ICS9112AF-17LF-T datasheet, PDF

Datasheet> All Categories > logic> logic> ICS9112AF-17LF-T

ICS9112AF-17LF-T: Description9112 SERIES, PLL BASED CLOCK DRIVER, 8 TRUE OUTPUT(S), 0 INVERTED OUTPUT(S), PDSO16, 0.150 INCH, MO-137, GREEN, SSOP-16; Categorylogic logic; File Size163KB，12 Pages; ManufacturerIDT (Integrated Device Technology); Environmental Compliance

Download Datasheet Parametric Compare View All

ICS9112AF-17LF-T Overview

9112 SERIES, PLL BASED CLOCK DRIVER, 8 TRUE OUTPUT(S), 0 INVERTED OUTPUT(S), PDSO16, 0.150 INCH, MO-137, GREEN, SSOP-16

ICS9112AF-17LF-T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	IDT (Integrated Device Technology)
Parts packaging code	SSOP
package instruction	SSOP,
Contacts	16
Reach Compliance Code	compliant
Other features	ALSO OPERATES WITH 5V SUPPLY
series	9112
Input adjustment	STANDARD
JESD-30 code	R-PDSO-G16
JESD-609 code	e3
length	4.9 mm
Logic integrated circuit type	PLL BASED CLOCK DRIVER
Number of functions	1
Number of inverted outputs
Number of terminals	16
Actual output times	8
Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260
propagation delay (tpd)	0.7 ns
Certification status	Not Qualified
Same Edge Skew-Max（tskwd）	0.25 ns
Maximum seat height	1.75 mm
Maximum supply voltage (Vsup)	3.63 V
Minimum supply voltage (Vsup)	2.97 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
Temperature level	COMMERCIAL
Terminal surface	MATTE TIN
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
width	3.9 mm
minfmax	133 MHz

Preview

Download Datasheet

View All

Integrated

Circuit

Systems, Inc.

ICS9112-17

Low Skew Output Buffer

General Description

The

ICS9112-17

is a high performance, low skew, low jitter

zero delay buffer. It uses a phase lock loop (PLL)

technology to align, in both phase and frequency, the REF

input with the CLKOUT signal. It is designed to distribute

high speed clocks in PC systems operating at speeds

from 25 to 133 MHz.

ICS9112-17

is a zero delay buffer that provides

synchronization between the input and output. The

synchronization is established via CLKOUT feed back to

the input of the PLL. Since the skew between the input and

output is less than +/- 350 pS, the part acts as a zero delay

buffer.

The

ICS9112-17

has two banks of four outputs controlled

by two address lines. Depending on the selected address

line, bank B or both banks can be put in a tri-state mode.

In this mode, the PLL is still running and only the output

buffers are put in a high impedance mode. The test mode

shuts off the PLL and connects the input directly to the

output buffers (see table below for functionality).

The

ICS9112-17

comes in a sixteen pin 150 mil SOIC or

16 pin SSOP package. In the absence of REF input, will

be in the power down mode. In this mode, the PLL is turned

off and the output buffers are pulled low. Power down mode

provides the lowest power consumption for a standby

condition.

Features

•

Zero input - output delay

Frequency range 25 - 133 MHz (3.3V)

High loop filter bandwidth ideal for Spread Spectrum

applications.

Less than 200 ps cycle to cycle Jitter

Skew controlled outputs

Skew less than 250 ps between outputs

Available in 16 pin, 150 mil SSOP & SOIC package

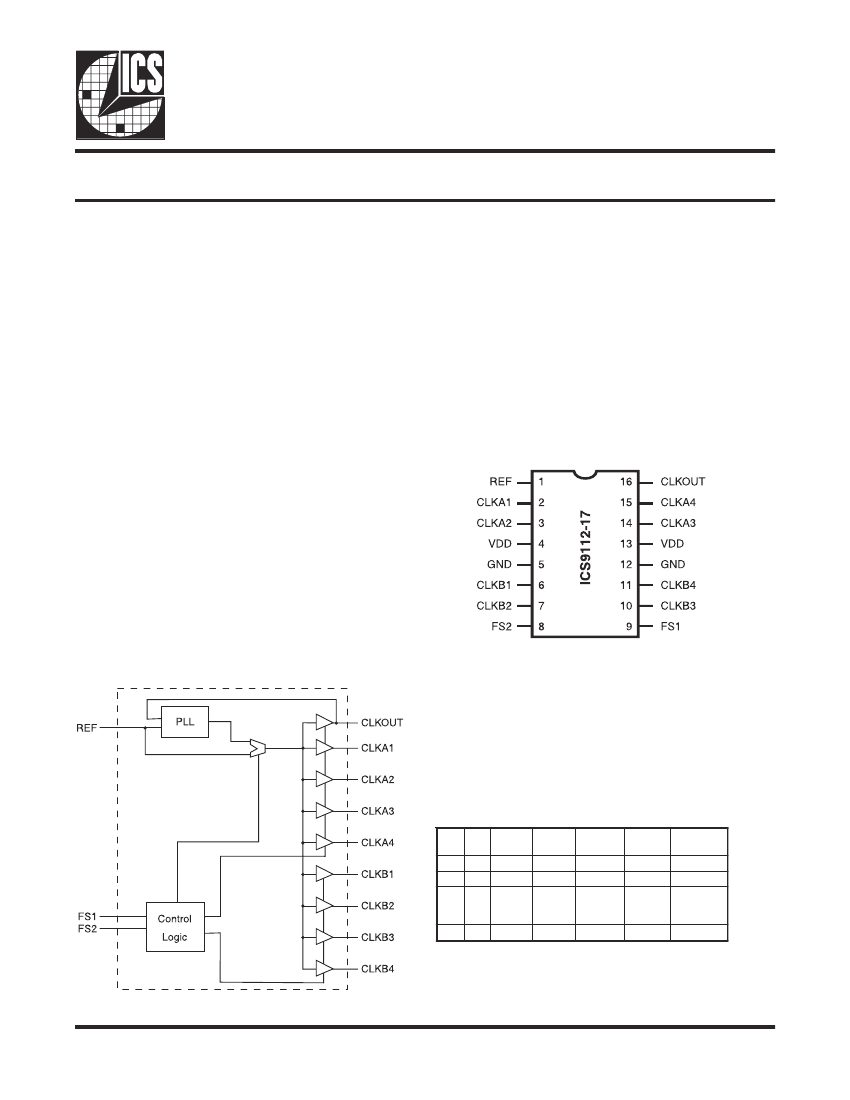

Pin Configuration

Block Diagram

16 pin SSOP & SOIC

Functionality

FS2 FS1

CLKA

(1, 4)

Driven

CLKB

(1, 4)

Tristate

CLKOUT

Driven

PLL

Bypass

Mode

Driven

Output

Source

PLL

REF

PLL

Shutdown

Tristate Tristate

PLL

Bypass Bypass

Mode

Driven

0051J—02/05/04

ICS9112AF-17LF-T Related Products

	ICS9112AF-17LF-T	9112AF-17T	ICS9112AF-17-T	ICS9112AF-17T	9112AM-17T	ICS9112AM-17T	ICS9112AF-17	9112AM-17	ICS9112AM-17	9112AF-17
Description	9112 SERIES, PLL BASED CLOCK DRIVER, 8 TRUE OUTPUT(S), 0 INVERTED OUTPUT(S), PDSO16, 0.150 INCH, MO-137, GREEN, SSOP-16	PLL Based Clock Driver, 9112 Series, 8 True Output(s), 0 Inverted Output(s), PDSO16, 0.150 INCH, MO-137, SSOP-16	9112 SERIES, PLL BASED CLOCK DRIVER, 8 TRUE OUTPUT(S), 0 INVERTED OUTPUT(S), PDSO16, 0.150 INCH, MO-137, SSOP-16	PLL Based Clock Driver, 9112 Series, 8 True Output(s), 0 Inverted Output(s), PDSO16, 0.150 INCH, MO-137, SSOP-16	PLL Based Clock Driver, 9112 Series, 8 True Output(s), 0 Inverted Output(s), PDSO16, 0.150 INCH, MS-012, SOIC-16	PLL Based Clock Driver, 9112 Series, 8 True Output(s), 0 Inverted Output(s), PDSO16, 0.150 INCH, MS-012, SOIC-16	PLL Based Clock Driver, 9112 Series, 8 True Output(s), 0 Inverted Output(s), PDSO16, 0.150 INCH, MO-137, SSOP-16	PLL Based Clock Driver, 9112 Series, 8 True Output(s), 0 Inverted Output(s), PDSO16, 0.150 INCH, MS-012, SOIC-16	PLL Based Clock Driver, 9112 Series, 8 True Output(s), 0 Inverted Output(s), PDSO16, 0.150 INCH, MS-012, SOIC-16	PLL Based Clock Driver, 9112 Series, 8 True Output(s), 0 Inverted Output(s), PDSO16, 0.150 INCH, MO-137, SSOP-16
Is it Rohs certified?	conform to	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)
Parts packaging code	SSOP	SSOP	SSOP	SSOP	SOIC	SOIC	SSOP	SOIC	SOIC	SSOP
package instruction	SSOP,	SSOP, SSOP16,.25	SSOP,	SSOP, SSOP16,.25	SOP, SOP16,.25	SOP, SOP16,.25	SSOP, SSOP16,.25	SOP, SOP16,.25	SOP, SOP16,.25	SSOP, SSOP16,.25
Contacts	16	16	16	16	16	16	16	16	16	16
Reach Compliance Code	compliant	not_compliant	compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
Other features	ALSO OPERATES WITH 5V SUPPLY	ALSO OPERATES WITH 5V SUPPLY	ALSO OPERATES WITH 5V SUPPLY	ALSO OPERATES WITH 5V SUPPLY	ALSO OPERATES WITH 5V SUPPLY	ALSO OPERATES WITH 5V SUPPLY	ALSO OPERATES WITH 5V SUPPLY	-	ALSO OPERATES WITH 5V SUPPLY	ALSO OPERATES WITH 5V SUPPLY
series	9112	9112	9112	9112	9112	9112	9112	-	9112	9112
Input adjustment	STANDARD	STANDARD	STANDARD	STANDARD	STANDARD	STANDARD	STANDARD	-	STANDARD	STANDARD
JESD-30 code	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	-	R-PDSO-G16	R-PDSO-G16
JESD-609 code	e3	e0	e0	e0	e0	e0	e0	-	e0	e0
length	4.9 mm	4.9 mm	4.9 mm	4.9 mm	9.9 mm	9.9 mm	4.9 mm	-	9.9 mm	4.9 mm
Logic integrated circuit type	PLL BASED CLOCK DRIVER	PLL BASED CLOCK DRIVER	PLL BASED CLOCK DRIVER	PLL BASED CLOCK DRIVER	PLL BASED CLOCK DRIVER	PLL BASED CLOCK DRIVER	PLL BASED CLOCK DRIVER	-	PLL BASED CLOCK DRIVER	PLL BASED CLOCK DRIVER
Number of functions	1	1	1	1	1	1	1	-	1	1
Number of terminals	16	16	16	16	16	16	16	-	16	16
Actual output times	8	8	8	8	8	8	8	-	8	8
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	-	70 °C	70 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	-	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SSOP	SSOP	SSOP	SSOP	SOP	SOP	SSOP	-	SOP	SSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE, SHRINK PITCH	-	SMALL OUTLINE	SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260	240	NOT SPECIFIED	NOT SPECIFIED	240	240	NOT SPECIFIED	-	240	240
propagation delay (tpd)	0.7 ns	0.7 ns	0.7 ns	0.7 ns	0.7 ns	0.7 ns	0.7 ns	-	0.7 ns	0.7 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified
Same Edge Skew-Max（tskwd）	0.25 ns	0.25 ns	0.25 ns	0.25 ns	0.25 ns	0.25 ns	0.25 ns	-	0.25 ns	0.25 ns
Maximum seat height	1.75 mm	1.75 mm	1.75 mm	1.75 mm	1.75 mm	1.75 mm	1.75 mm	-	1.75 mm	1.75 mm
Maximum supply voltage (Vsup)	3.63 V	3.63 V	3.63 V	3.63 V	3.63 V	3.63 V	3.63 V	-	3.63 V	3.63 V
Minimum supply voltage (Vsup)	2.97 V	2.97 V	2.97 V	2.97 V	2.97 V	2.97 V	2.97 V	-	2.97 V	2.97 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	-	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES	YES	-	YES	YES
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	-	COMMERCIAL	COMMERCIAL
Terminal surface	MATTE TIN	Tin/Lead (Sn85Pb15)	TIN LEAD	Tin/Lead (Sn85Pb15)	TIN LEAD	TIN LEAD	Tin/Lead (Sn85Pb15)	-	TIN LEAD	Tin/Lead (Sn85Pb15)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	-	GULL WING	GULL WING
Terminal pitch	0.635 mm	0.635 mm	0.635 mm	0.635 mm	1.27 mm	1.27 mm	0.635 mm	-	1.27 mm	0.635 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	-	DUAL	DUAL
Maximum time at peak reflow temperature	30	20	NOT SPECIFIED	NOT SPECIFIED	20	30	NOT SPECIFIED	-	30	20
width	3.9 mm	3.9 mm	3.9 mm	3.9 mm	3.9 mm	3.9 mm	3.9 mm	-	3.9 mm	3.9 mm
minfmax	133 MHz	133 MHz	133 MHz	133 MHz	133 MHz	133 MHz	133 MHz	-	133 MHz	133 MHz
MaximumI(ol)	-	0.008 A	-	0.008 A	0.008 A	0.008 A	0.008 A	-	0.008 A	0.008 A
Humidity sensitivity level	-	1	-	1	1	1	1	-	1	1
Encapsulate equivalent code	-	SSOP16,.25	-	SSOP16,.25	SOP16,.25	SOP16,.25	SSOP16,.25	-	SOP16,.25	SSOP16,.25
power supply	-	3.3/5 V	-	3.3/5 V	3.3/5 V	3.3/5 V	3.3/5 V	-	3.3/5 V	3.3/5 V
Base Number Matches	-	1	1	1	1	1	1	-	-	-
