AC6AFPZV datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> AC6AFPZV

AC6AFPZV: DescriptionAudio/RCA Connector, 6 Pole(s), Solder Terminal, Socket, ROHS COMPLIANT; CategoryThe connector The connector; File Size859KB，12 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

AC6AFPZV Overview

Audio/RCA Connector, 6 Pole(s), Solder Terminal, Socket, ROHS COMPLIANT

AC6AFPZV Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Amphenol
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	STANDARD: IEC-268-12
Body/casing type	SOCKET
Configuration	1X1 VERTICAL
Connector type	AUDIO/RCA CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Contact resistance	3 mΩ
DIN compliance	NO
IEC compliance	NO
MIL compliance	NO
Installation type	BOARD AND PANEL
Number of connectors	ONE
Number of poles	6
Number of ports	1
Options	GENERAL PURPOSE
Rated current (signal)	7.5 A
Shell material	ZINC ALLOY
Termination type	SOLDER

Preview

Download Datasheet

View All

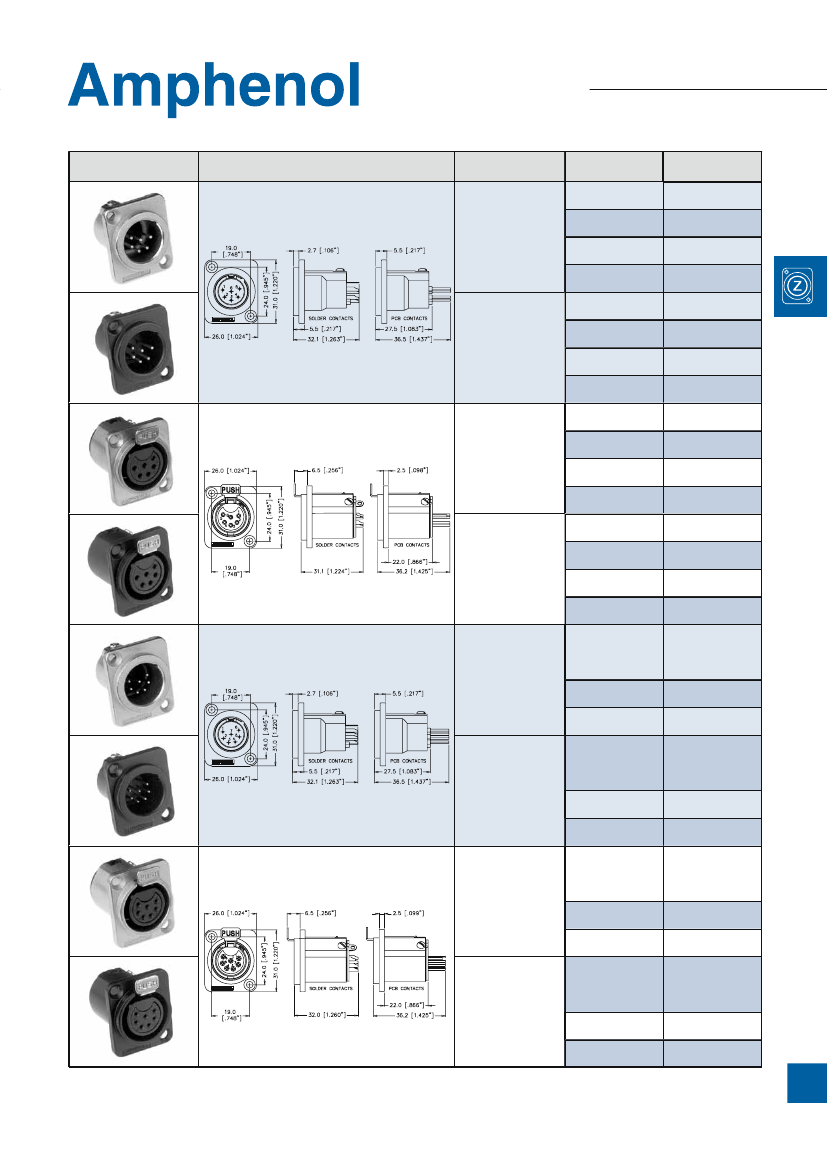

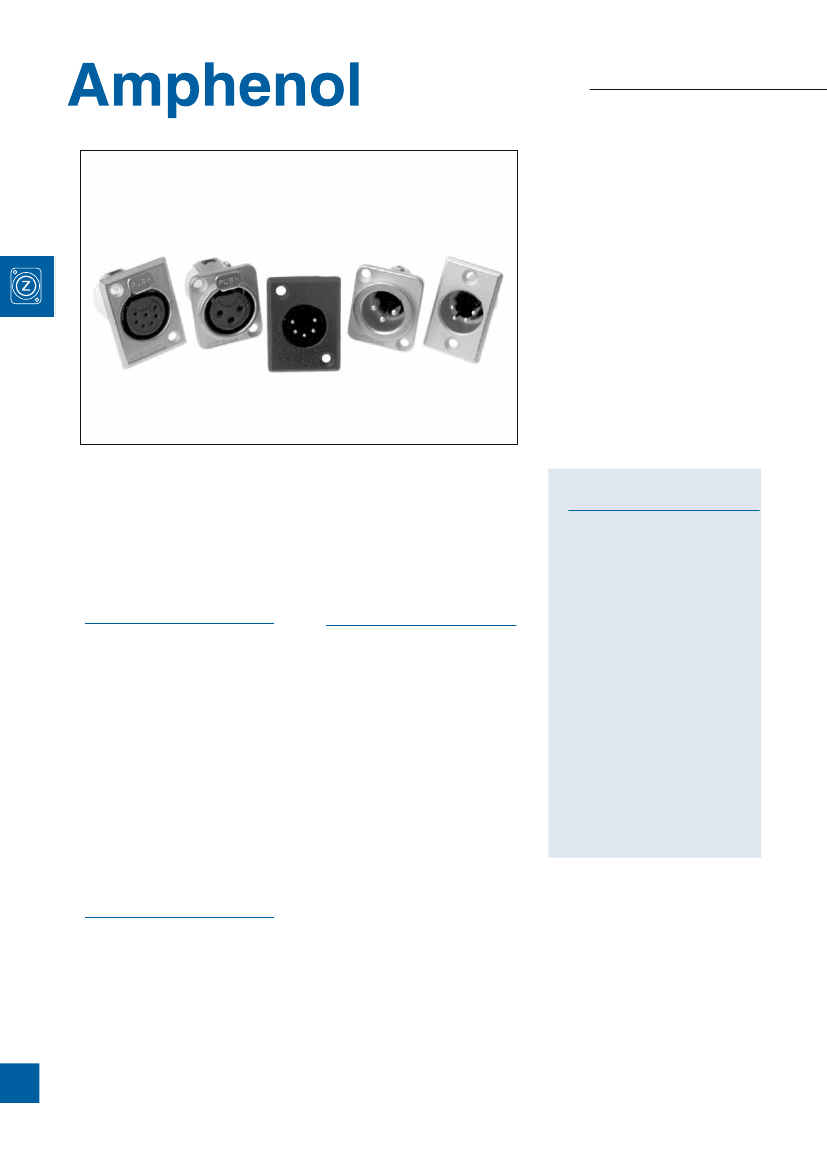

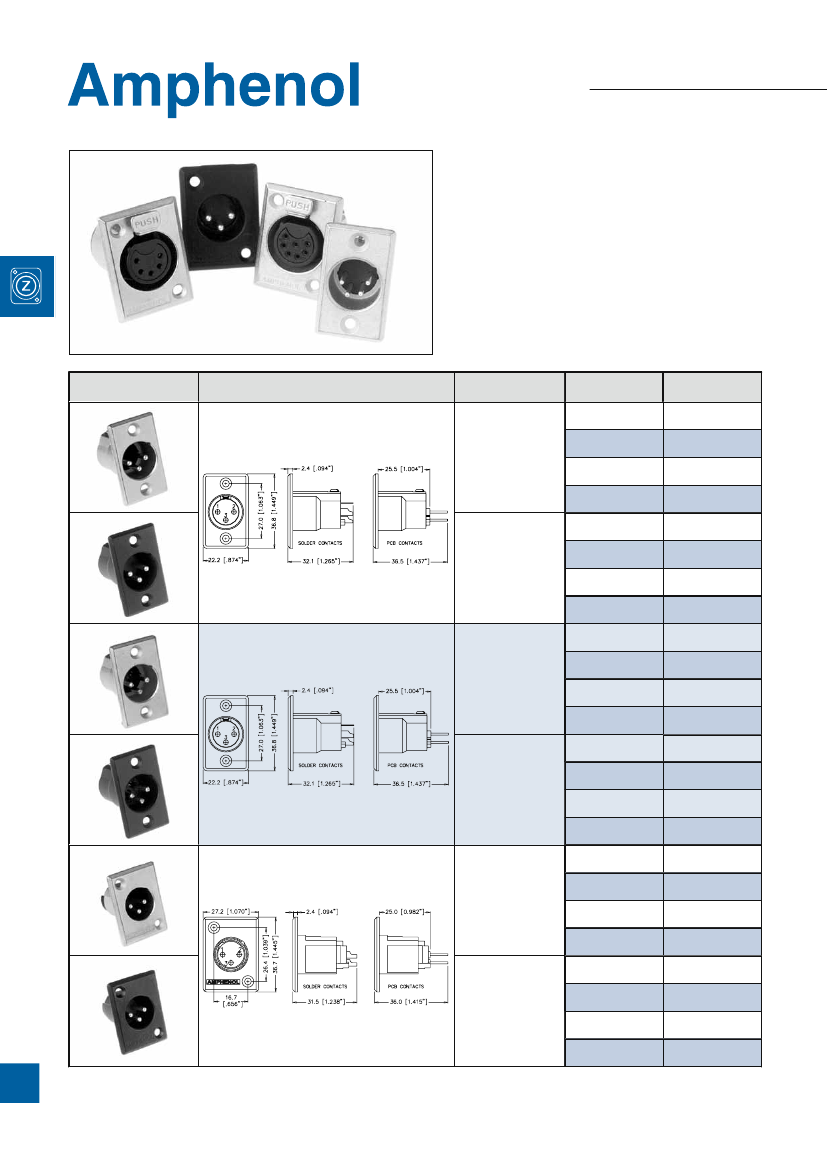

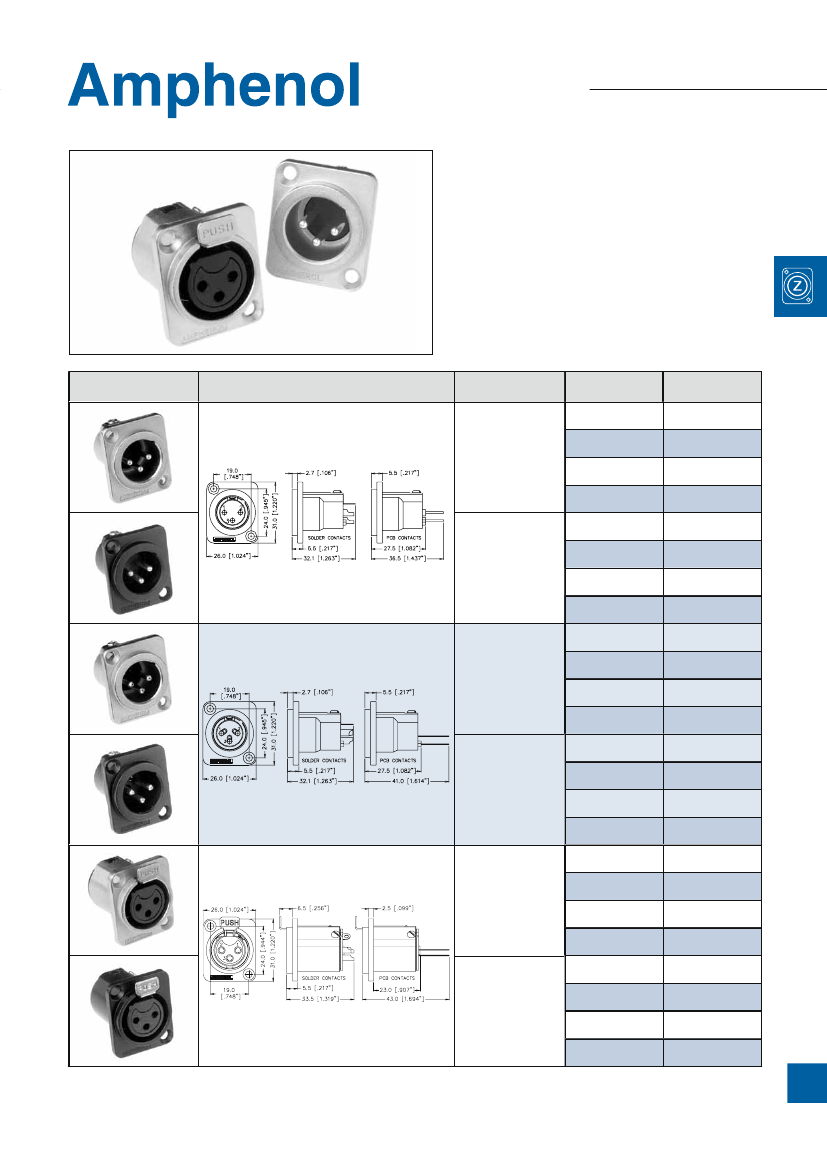

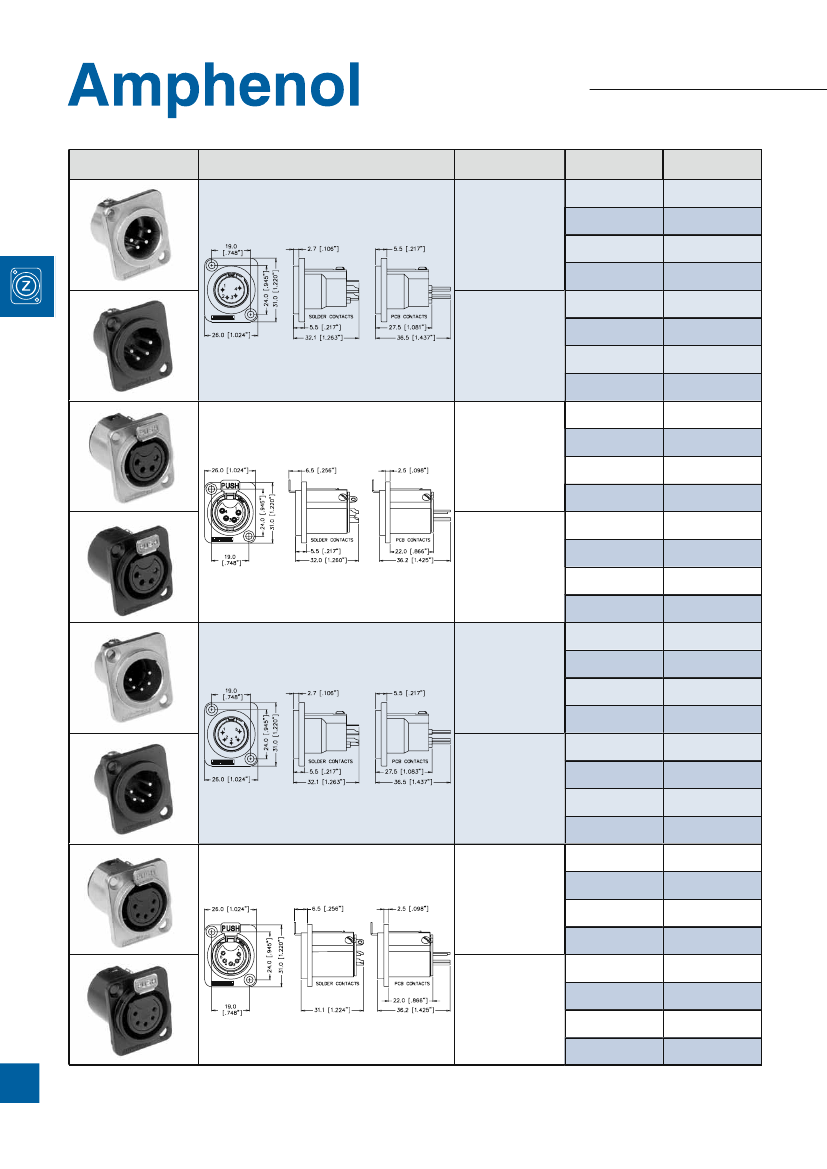

AC SERIES CHASSIS CONNECTORS

AC “Z” SERIES

XLR METAL

CHASSIS MOUNT

CONNECTORS

The metal chassis mount “Z” series

connectors are designed for the audio user

where durability, reliability and strength

across a wide range of applications are

important. All AC products are manufactured

to the highest quality standards and will

withstand the harshest environments. This

range complies with IEC268-12 and AES

14-1992 standards. CSA File Number 68598

“Z” series connectors. Although the ground

tag is intended for RFI shielding applications,

Amphenol cannot guarantee its effectiveness

in all cases.

The non-conductive Black polyester finish

insulates the ground tag from the shell and

should not be used in applications requiring

ground contact to the shell.

Note:

A ground tag is standard on all AC

Simple steps to guide you

in using this catalogue

1) Identify the product group listed in

Contents on page 1 and go directly to

that page number.

2) Each product group cover page then details

information and options available.

3) Refer to the product detail pages and identify

the product you require pictorially.

4) Read the product description column for the

products standard features.

5) Use variations column to determine

your choice.

6) Identify part number.

7) In the event the particular option you require

is not listed please refer to the part number

breakdown page at the end of each section.

8) Please contact us directly if you have any

further problems.

Features

• The “D” size housing can be either front or

rear mounted using the same panel cutout.

• The “P” size housing is the original wide

flange front mounting XLR connector. “PN”

is the original narrow flange front mounting

male connector.

• A leading first mate last break socket contact

is standard on all female connectors (Pin 1).

• Solder cup or Vertical PCB versions.

• Connectors are fitted with a grounding

system for RFI shielding applications.

• Available in 3, 4, 5, 6A and 7

contact arrangements.

• Compatible with all other XLR brands.

Ordering Codes

We have listed the more common ordering

codes in each section. For further options

please refer to the part number breakdown

charts. Please contact us if you need any

further assistance.

Options

• Solder Bucket termination

• Vertical PCB contacts

• Zinc Diecast Shell - Satin Nickel Finish

• Zinc Diecast Shell - Black Polyester Finish

• Gold, Silver or Tin Plated Contacts

• Bulk Packaging

• Single Bag packs

• Precision machined contacts

• Cost effective stamped contacts on 3 pole

• Latchless versions (Non-Latching)

(Female only)

ENTERTAINMENT INTERCONNECT CATALOGUE

- Amphenol Australia Pty Ltd

Telephone 61 3 8796 8888 Fax 61 3 8796 8801

www.amphenolaudio.com
