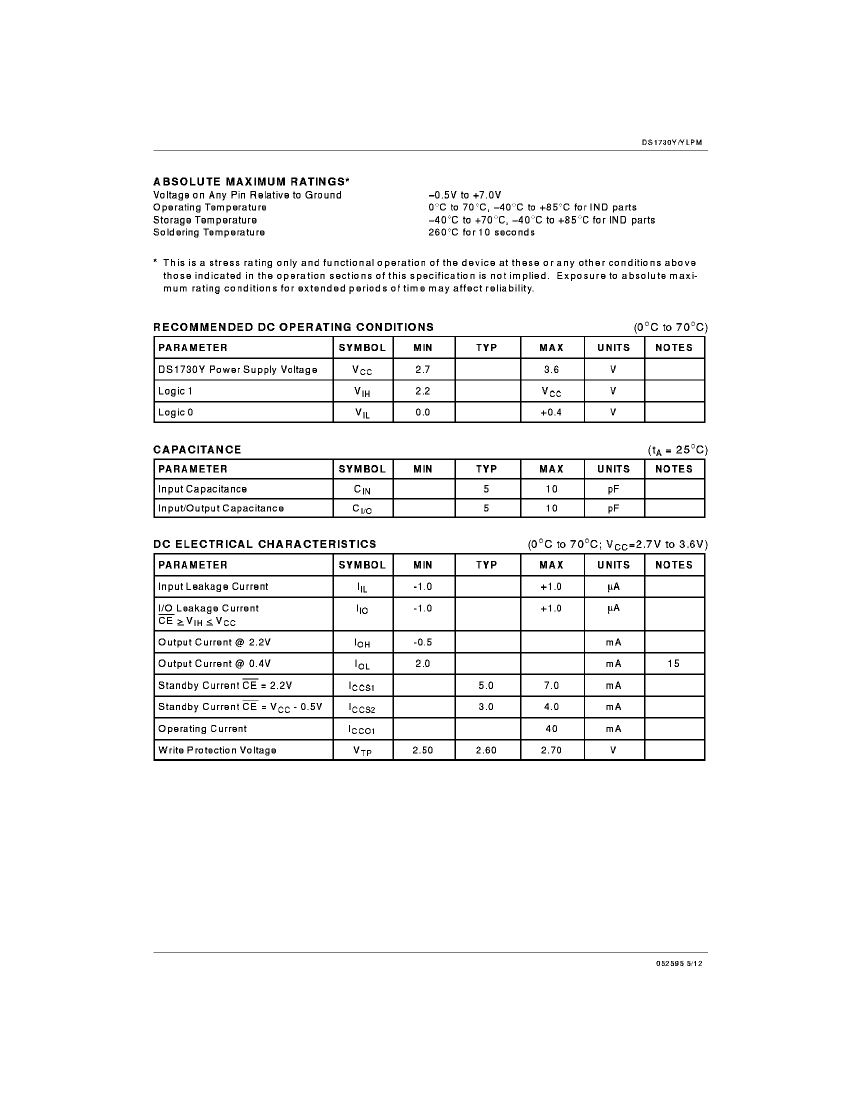

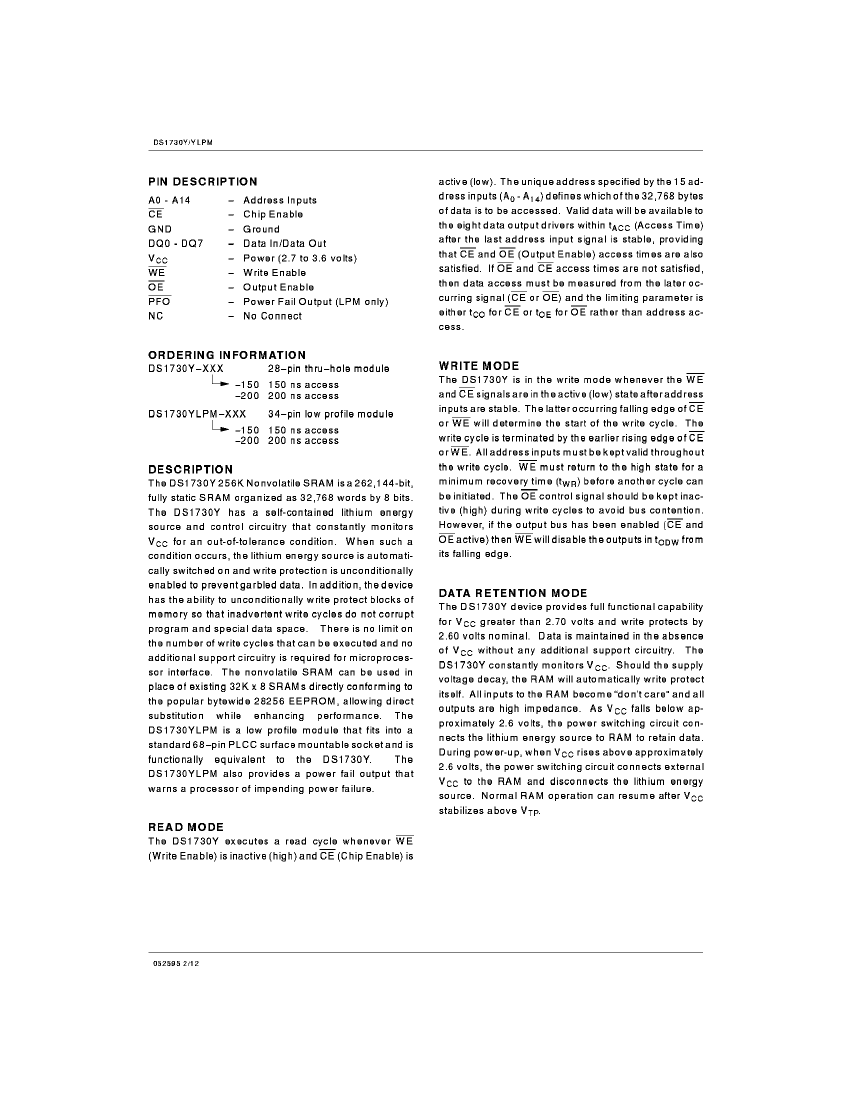

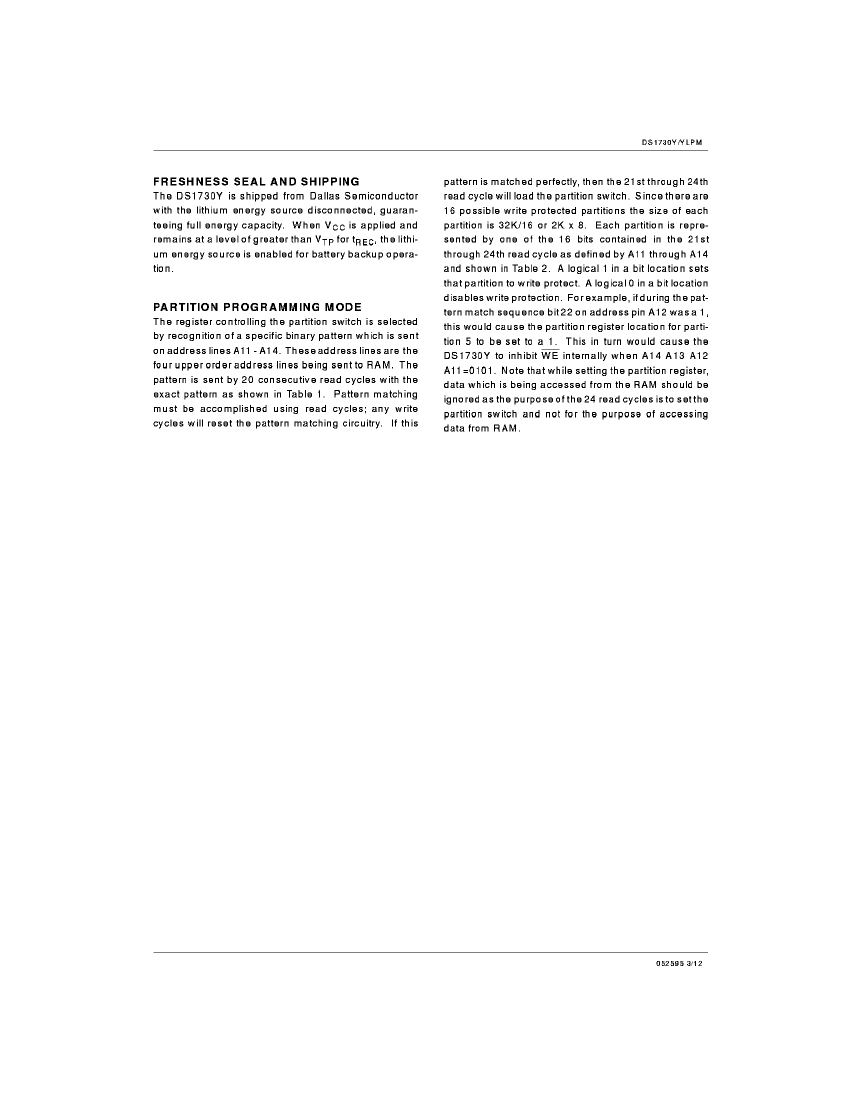

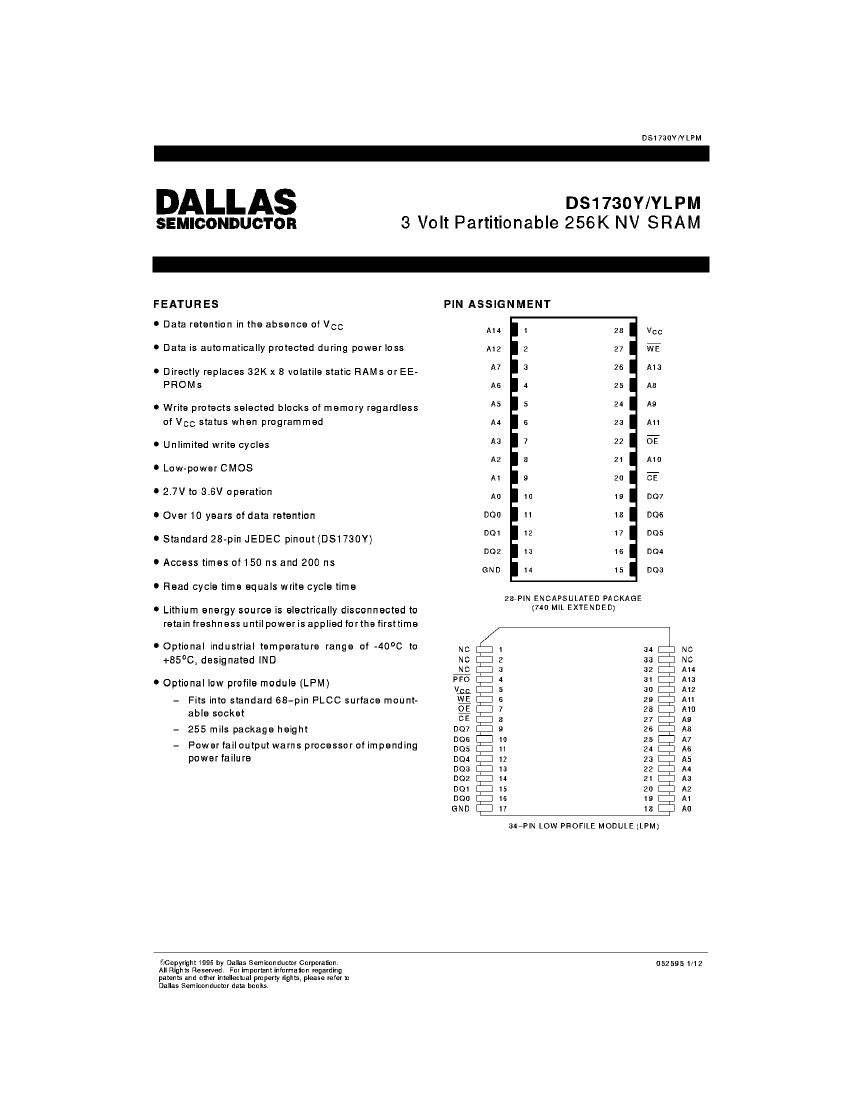

Preview

DS1730Y-150IND: DescriptionNon-Volatile SRAM Module, 32KX8, 150ns, CMOS; Categorystorage storage; File Size160KB，12 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html

Download Datasheet Parametric Compare View All

DS1730Y-150IND Overview

Non-Volatile SRAM Module, 32KX8, 150ns, CMOS

DS1730Y-150IND Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Maxim
Parts packaging code	DIP
package instruction	DIP, DIP28,.6
Contacts	28
Reach Compliance Code	not_compliant
ECCN code	EAR99
Maximum access time	150 ns
Other features	DATA RETENTION = 10 YRS
JESD-30 code	R-PDIP-T28
JESD-609 code	e0
length	37.85 mm
memory density	262144 bit
Memory IC Type	NON-VOLATILE SRAM MODULE
memory width	8
Mixed memory types	N/A
Number of functions	1
Number of terminals	28
word count	32768 words
character code	32000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	32KX8
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP28,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3/3.3 V
Certification status	Not Qualified
Maximum seat height	9.52 mm
Maximum standby current	0.004 A
Maximum slew rate	0.04 mA
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	2.7 V
Nominal supply voltage (Vsup)	3 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm

Preview

Download Datasheet

View All

DS1730Y-150IND Related Products

	DS1730Y-150IND	DS1730YLPM-150-IND	DS1730Y-150-IND	DS1730Y-200IND
Description	Non-Volatile SRAM Module, 32KX8, 150ns, CMOS	Non-Volatile SRAM, 32KX8, 150ns, CMOS	32KX8 NON-VOLATILE SRAM MODULE, 150ns, PDIP28, 0.740 INCH, PLASTIC, DIP-28	Non-Volatile SRAM Module, 32KX8, 200ns, CMOS
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	not_compliant	not_compliant	compliant	not_compliant
Maximum access time	150 ns	150 ns	150 ns	200 ns
memory density	262144 bit	262144 bit	262144 bit	262144 bit
Memory IC Type	NON-VOLATILE SRAM MODULE	NON-VOLATILE SRAM	NON-VOLATILE SRAM MODULE	NON-VOLATILE SRAM MODULE
memory width	8	8	8	8
Number of terminals	28	34	28	28
word count	32768 words	32768 words	32768 words	32768 words
character code	32000	32000	32000	32000
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
organize	32KX8	32KX8	32KX8	32KX8
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Encapsulate equivalent code	DIP28,.6	MODULE,34LEAD,1.0	DIP28,.6	DIP28,.6
Package form	IN-LINE	MICROELECTRONIC ASSEMBLY	IN-LINE	IN-LINE
power supply	3/3.3 V	3/3.3 V	3/3.3 V	3/3.3 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum standby current	0.004 A	0.004 A	0.004 A	0.004 A
Maximum slew rate	0.04 mA	0.04 mA	0.04 mA	0.04 mA
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Is it lead-free?	Contains lead	-	Contains lead	Contains lead
Maker	Maxim	-	Maxim	Maxim
package instruction	DIP, DIP28,.6	-	0.740 INCH, PLASTIC, DIP-28	0.740 INCH, PLASTIC, MODULE-28
Other features	DATA RETENTION = 10 YRS	-	OVER 10 YEARS DATA RETENTION	DATA RETENTION = 10 YRS
JESD-30 code	R-PDIP-T28	-	R-PDIP-P28	R-PDIP-T28
JESD-609 code	e0	-	e0	e0
Number of functions	1	-	1	1
Operating mode	ASYNCHRONOUS	-	ASYNCHRONOUS	ASYNCHRONOUS
encapsulated code	DIP	-	DIP	DIP
Package shape	RECTANGULAR	-	RECTANGULAR	RECTANGULAR
Parallel/Serial	PARALLEL	-	PARALLEL	PARALLEL
Maximum supply voltage (Vsup)	3.6 V	-	3.6 V	3.6 V
Minimum supply voltage (Vsup)	2.7 V	-	2.7 V	2.7 V
Nominal supply voltage (Vsup)	3 V	-	3 V	3 V
surface mount	NO	-	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	-	PIN/PEG	THROUGH-HOLE
Terminal pitch	2.54 mm	-	2.54 mm	2.54 mm
Terminal location	DUAL	-	DUAL	DUAL
