MC74LCX240ML1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> MC74LCX240ML1

MC74LCX240ML1: DescriptionIC,BUFFER/DRIVER,DUAL,4-BIT,LCX/LVC-CMOS,SOP,20PIN,PLASTIC; Categorylogic logic; File Size154KB，8 Pages; ManufacturerON Semiconductor; Websitehttp://www.onsemi.cn

Download Datasheet Parametric Compare View All

MC74LCX240ML1 Overview

IC,BUFFER/DRIVER,DUAL,4-BIT,LCX/LVC-CMOS,SOP,20PIN,PLASTIC

MC74LCX240ML1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	ON Semiconductor
package instruction	SOP, SOP20,.3
Reach Compliance Code	not_compliant
Control type	ENABLE LOW
JESD-30 code	R-PDSO-G20
JESD-609 code	e0
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
MaximumI(ol)	0.024 A
Number of digits	4
Number of functions	2
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP20,.3
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
method of packing	TAPE AND REEL
power supply	3.3 V
Prop。Delay @ Nom-Sup	6.5 ns
Certification status	Not Qualified
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL

Preview

Download Datasheet

View All

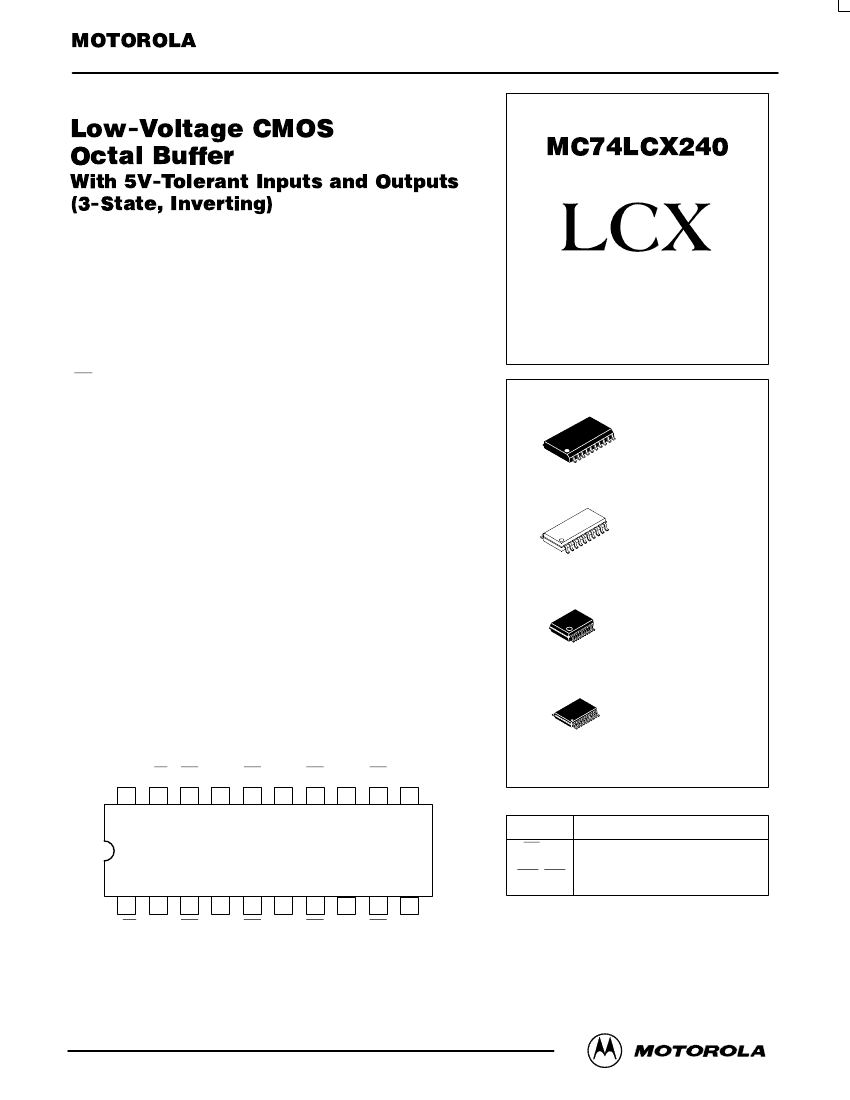

MOTOROLA

SEMICONDUCTOR TECHNICAL DATA

Low-Voltage CMOS

Octal Buffer

With 5V-Tolerant Inputs and Outputs

(3-State, Inverting)

The MC74LCX240 is a high performance, inverting octal buffer

operating from a 2.7 to 3.6V supply. High impedance TTL compatible

inputs significantly reduce current loading to input drivers while TTL

compatible outputs offer improved switching noise performance. A VI

specification of 5.5V allows MC74LCX240 inputs to be safely driven from

5V devices. The MC74LCX240 is suitable for memory address driving

and all TTL level bus oriented transceiver applications.

Current drive capability is 24mA at the outputs. The Output Enable

(OE) input, when HIGH, disables the outputs by placing them in a HIGH Z

condition.

MC74LCX240

LOW–VOLTAGE CMOS

OCTAL BUFFER

•

Designed for 2.7 to 3.6V VCC Operation

5V Tolerant — Interface Capability With 5V TTL Logic

Supports Live Insertion and Withdrawal

IOFF Specification Guarantees High Impedance When VCC = 0V

LVTTL Compatible

LVCMOS Compatible

24mA Balanced Output Sink and Source Capability

Near Zero Static Supply Current in All Three Logic States (10µA)

Substantially Reduces System Power Requirements

DW SUFFIX

PLASTIC SOIC

CASE 751D–04

M SUFFIX

PLASTIC SOIC EIAJ

CASE 967–01

•

Latchup Performance Exceeds 500mA

•

ESD Performance: Human Body Model >2000V; Machine Model >200V

SD SUFFIX

PLASTIC SSOP

CASE 940C–03

Pinout: 20–Lead

(Top View)

VCC

2OE

1O0

2D0

1O1

2D1

1O2

2D2

1O3

2D3

DT SUFFIX

PLASTIC TSSOP

CASE 948E–02

PIN NAMES

Pins

nOE

1Dn, 2Dn

1On, 2On

Function

Output Enable Inputs

Data Inputs

3–State Outputs

1OE

1D0

2O0

1D1

2O1

1D2

2O2

1D3

2O3

GND

9/95

Motorola, Inc. 1996

REV 3
