IDC
Industry Compatible
Competitively Priced
Complete with Strain Relief and Centre Bump
Gold Plated Contacts
2.54mm Pitch
IDC CABLE SOCKET
SPECIFICATION
Material & Finish
Contact Material:
Insulator Material:
Current Rating:
Brass
PBT & Glass-Fibre Reinforced UL-94V-0
1 A DC
30M Ω Max
Insulator Resistance:
Dielectric Withstanding
Voltage:
500V AC for One Minute
-40°C to + 105°C
3000M Ω Min
Operating Temperature:
Contact Resistance:

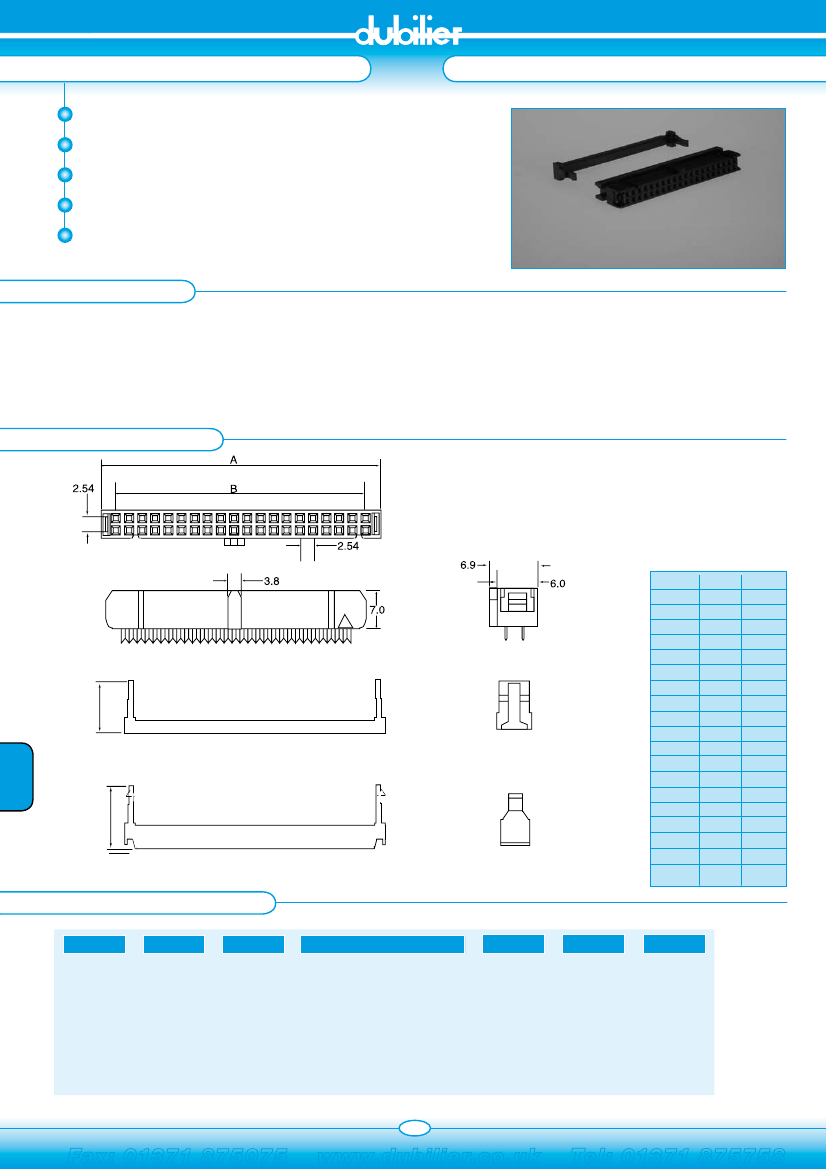

OUTLINE DRAWING
10.65
10.65 10.65
10.65
10.65
10.65
13.4
13.4 13.4
13.4
13.4
13.4
Position
6
8
10
12
14
16
20
24
26
30
34
36
40
44
50
56
60
62
64
A
12.18
14.72
17.26
19.80
22.34
24.88
29.96
35.04
37.58
42.66
47.74
50.28
55.36
60.44
68.06
75.68
80.76
83.30
85.84
B
5.08
7.62
10.16
12.70
15.24
17.78
22.86
27.94
30.48
35.56
40.64
43.18
48.26
53.34
60.96
68.58
73.66
76.20
78.74
SECTION 15
ORDERING INFORMATION
DBC
Dubilier
Connectors
IDC
IDC
Connector
2
Series
06=6way
08=8way
10=10way
12=12way
14=14way
16=16way
20=20way
24=24way
26=26way
30=30way
06
Nº of Ways
34=34way
36=36way
40=40way
44=44way
50=50way
56=56way
60=60way
62=62way
64=64way
A
Contact Material
A=Brass
S
Contact Plating
S= Selective Gold
1
Colour
1=Black
2 = Grey
318
Fax: 01371 875075
www.dubilier.co.uk
Tel: 01371 875758
