3.96U: DescriptionLeiterplatten-Direktsteckverbinder, Raster 3,96 mm; File Size78KB，1 Pages; ManufacturerLumberg; Websitehttp://www.lumberg.com/zh/

Download Datasheet Compare View All

3.96U Overview

Leiterplatten-Direktsteckverbinder, Raster 3,96 mm

Preview

Download Datasheet

View All

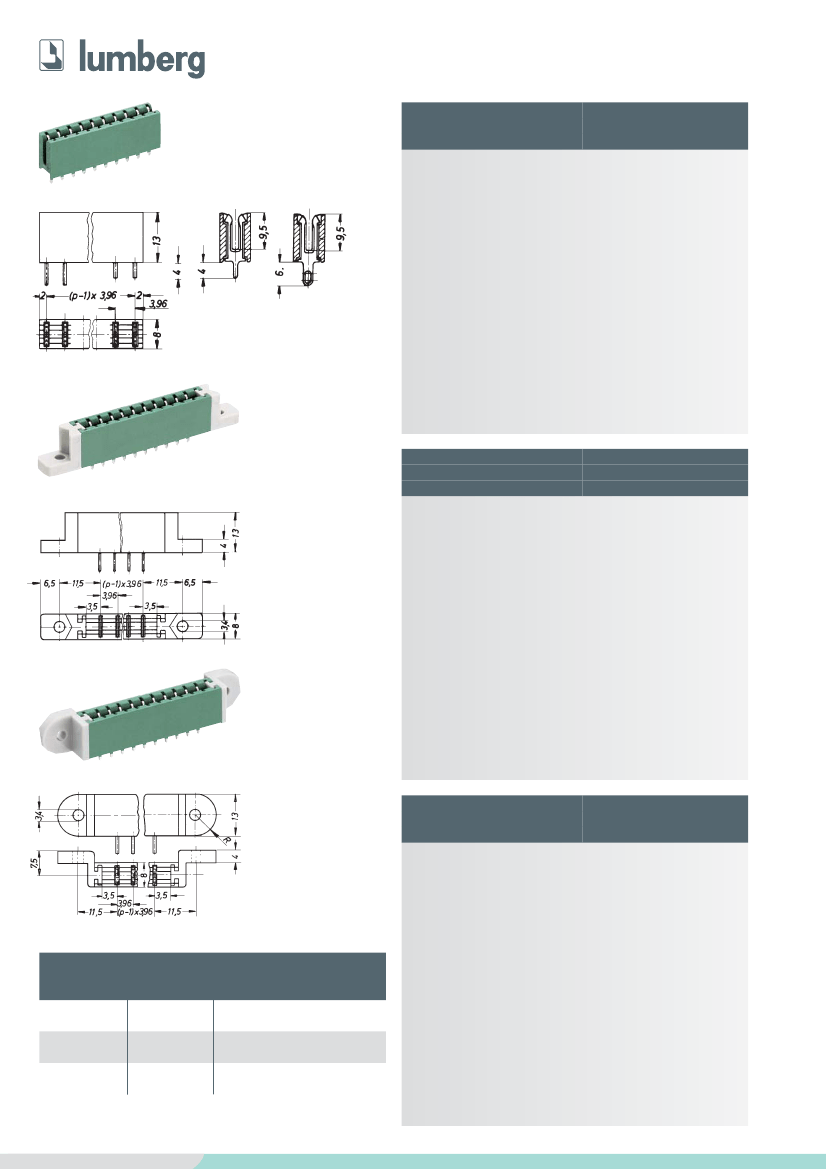

Leiterplatten-Direktsteckverbinder, Raster 3,96 mm

Direct connectors for printed circuit boards, pitch 3.96 mm

Connecteurs directs our cartes imprimées, pas 3,96 mm

3,96 R

3,96 RF

3,96 RFL

3,96 U

3,96 UF

3,96 UFL

3,96 R

3,96 U

Buchsenleiste für direktes Stecken, mit und ohne vormon-

tiertem Flanschpaar F/FL

3,96 R(...): mit Lötstiften

3,96 U(...): mit Lötösen

1. Temperaturbereich

2. Werkstoffe

Kontaktträger

Flansch

Kontaktfeder

3. Mechanische Daten

Kontaktierung mit

4. Elektrische Daten

Durchgangswiderstand

Bemessungsstrom

Bemessungsspannung

Prüfspannung

nach DIN EN 60664/IEC 60664

≤

3 mΩ

250 V AC

≥

2,5 kV eff.

Leiterplatte 1,5 ± 0,14 mm

-25 °C/+100 °C

PPO

CuSn, vernickelt und verzinnt

3,96 RF

3,96 R

3,96 RF

3,96 RFL

3,96 U

3,96 UF

3,96 UFL

Socket board for direct mating, with and without mount-

ed pair of flanges F/FL

3,96 R(...): with solder pins

3,96 U(...): with solder eyes

1. Temperature range

2. Materials

Insulating body

Flange

Contact spring

3. Mechanical data

-25 °C/+100 °C

PPO

CuSn, nickeled and tinned

3,96 RFL

Mating with

4. Electrical data

printed circuit board 1.5 ± 0.14 mm

Contact resistance

≤

3 mΩ

Rated current

250 V AC

Rated voltage

Test voltage

≥

2.5 kV eff.

according to DIN EN 60664/IEC 60664

3,96 R

3,96 RF

3,96 RFL

3,96 U

3,96 UF

3,96 UFL

Réglette à prises femelles pour enfichage direct, avec et

sans collets F/FL attachés

3,96 R(...): avec plots à souder

3,96 U(...): avec cosses à souder

1. Température d’utilisation

Bestellbezeichnung

Designation

Désignation

Polzahl

poles

pôles

Verpackungseinheit

Package unit

Unité d’emballage

2. Matériaux

Corps isolant

Collet

Ressort de contact

3. Caractéristiques mécaniques

Raccordement avec

4. Caractéristiques électriques

Résistance de contact

Courant assigné

Tension assignée

Tension d’essai

suivant DIN EN 60664/CEI 60664

≤

3 mΩ

250 V AC

≥

2,5 kV eff.

carte imprimée 1,5 ± 0,14 mm

-25 °C/+100 °C

PPO

CuSn, nickelé et étamé

3,96

RFL

UFL

3–42

3–40

200

Verpackung: lose im Karton

Packaging: in bulk, in a cardboard box

Emballage: en vrac, dans un carton

www.lumberg.com

11/2009
