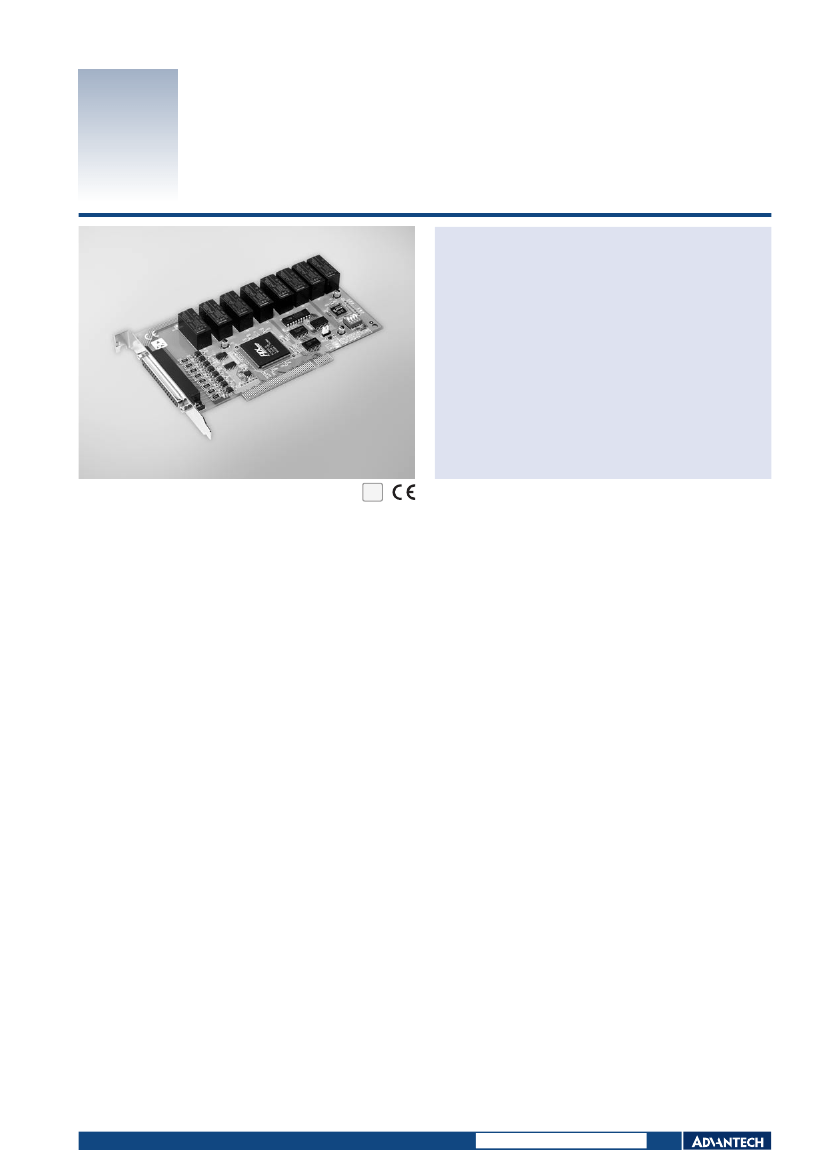

PCI-1761
RoHS
2002/95/EC
8-ch Relay and 8-ch Isolated Digital
Input PCI Card
Features
ISA-Compatible with PCL-725
8 relay output channels and 8 isolated digital input channels
LED indicators to show activated relays
4 Form C and 4 Form A type relay output channels
Male DB37 matching connector included
Output status readback
Retained relay output values when hot system reset
High-voltage isolation on input channels (3,750 V
DC
)
High ESD protection (2,000 V
DC
)
High over-voltage protection (70 V
DC
)
Wide input range (10 ~ 50 V
DC
)
Interrupt handling capability
BoardID™ switch
COMPLIANT
Introduction
The PCI-1761 relay actuator and isolated DI card is an add-on card for the PCI bus. It provides 8 optically-isolated digital inputs with isolation protection of 3,750 V
DC
for collecting
digital inputs in noisy environments and 8 relay actuators for serving as on/off control devices or small power switches. For easy monitoring, each relay is equipped with one red LED
to show its on/off status. The PCI-1761’s eight optically-isolated digital input channels are ideal for digital input in noisy environments or with floating potentials.
The PCI-1761 digital input channels feature a rugged isolation protection for industrial, lab and machinery automation applications. It durably withstands voltage up to 3,750 V
DC
,
protecting your host system from any incidental harms. If connected to an external input source with surge-protection, the PCI-1761 can offer up to a maximum of 2,000 V
DC
ESD
(Electrostatic Discharge) protection. Even with an input voltage rising up to 70 V
DC
, the PCI-1761 can still manage to work properly, albeit for only a short period of time.
Specifications
Isolated Digital Input
Channels
Input Voltage
8
Logic 0: 3 V max.
Logic 1: 5V min. (50V max.).
Interrupt Capable Ch.
8
Isolation Protection
3,750 V
DC
Overvoltage Protection
70 V
DC
Opto-Isolator Response
25 µs
Input Resistance
5,600
W
Input Current
1.6 mA @ 10 V
DC
, 8.9 mA @ 50 V
DC
General
PCI V2.2
1 x DB37 female connector
175 x 100 mm (6.9" x 3.9")
Typical: +5 V @ 220 mA
Max.: +5 V @ 750 mA
Operating Temperature
0 ~ 60° C (32 ~ 140° F) (IEC 68-2-1, 2)
Storage Temperature
-20 ~ 70° C (-4 ~ 158° F)
Storage Humidity
5 ~ 95 % RH, non-condensing (IEC 68-2-3)
Bus Type
I/O Connectors
Dimensions (L x H)
Power Consumption
Relay Output
Channels
Relay Type
Contact Rating
Relay on Time
Relay off Time
Life Span
Resistance
Contact:
Insulation:
8
SPDT (4 x Form C, and 4 x Form A)
250 V
AC
@ 3 A, or 24 V
DC
@ 3 A
15 ms max.
5 ms max.
2 x 10
7
operations
50 MW
1 GW min.
Ordering Information
PCI-1761
PCL-10137-1
PCL-10137-2
PCL-10137-3
ADAM-3937
PCLD-880
8-ch Relay/Isolated Digital Input PCI Card
DB37 Cable, 1 m
DB37 Cable, 2 m
DB37 Cable, 3 m
DB37 DIN-rail Wiring Board
Wiring Board w/ Two 20-pin Flat Cables & Adapter
Online Download
www.advantech.com/products
