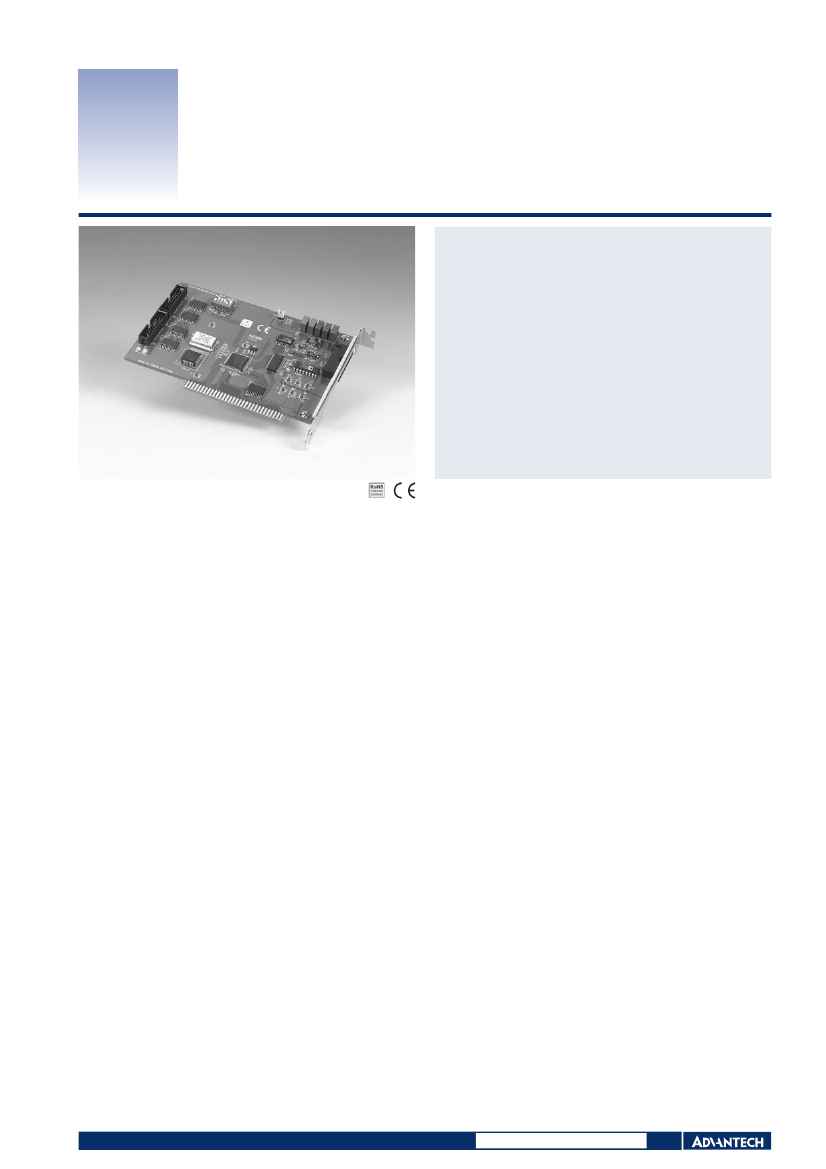

PCL-711B
40 kS/s, 12-bit, 8-ch SE Input ISA
Multifunction Card
Features
8 single-ended analog inputs
12-bit A/D converter, with up to 40 kHz sampling rate
Programmable gain
One 12-bit analog output channel
16 digital inputs and 16 digital outputs
Screw-terminal board and cable included
Introduction
PCL-711 offers four of the most popular I/O functions for PC/AT and compatible systems: A/D conversion, D/A conversion, digital input and digital output. The inexpensive PCL-711 is
ideal for entry level applications. The features of this half-sized card include: eight 12-bit analog inputs, one 12-bit analog output, 16 digital inputs and 16 digital outputs. In addition,
it comes with a 20-point screw-terminal board and a flat cable connector. PCL-711 performs a variety of I/O jobs, and features solid software support and a large selection of available
daughterboards and accessories. It is an ideal and affordable performer for OEMs, schools and hobbyists who require a combination of analog and digital I/O.
Specifications
Analog Input
Channels
Resolution
Max. Sampling Rate
FIFO Size
Overvoltage Protection
Input Impedance
Sampling Modes
Input Range (V)
Accuracy
Channels
Resolution
Output Rate
Output Range
Driving Capability
8 single-ended
12 bits
40 kS/s
0
±30 V
DC
>10 MΩ
Software, pacer or external trigger
±5, ±2.5, ±1.25, ±0.625, ±0.3125
±2 LSB
One double-buffered channel
12 bits
Static Update
0 ~ 5 V or 0 ~ 10 V
10 mA
16
5 V/TTL
Logic 0: 0.8V max.
Logic 1: 2.0V min.
16
5 V/TTL
Logic 0: 0.8 V max.
Logic 1: 2.0 V min.
Sink: 8 mA
Source: 0.4 mA
General
Bus Type
I/O Connectors
Dimensions (L x H)
Power Consumption
ISA
Box header 20P x 3
155 x 100 mm (6.1" x 3.9")
+5 V @ 500 mA typical, 1.0 A max.
+12 V @ 50 mA typical, 100 mA max.
-12 V @ 14 mA typical, 20 mA max.
Operating Temperature
0 ~ 50° C (32 ~ 122° F)
Storing Temperature
-20 ~ 65° C (-4 ~ 149° F)
Storing Humidity
5 ~ 95% RH non-condensing (refer to IEC 68-2-3)
Certifications
CE
Analog Output
Ordering Information
PCL-711S
PCL-711B
PCL-10120-1
PCL-10120-2
PCL-711B card, user’s manual, driver CD-ROM,
PCLD-7115 and 1 m 20-pin flat cable (PCL-10120-1)
40kS/s, 12-bit multifunction card
20-pin flat cable, 1 m
20-pin flat cable, 2 m
Digital Input
Channels
Compatibility
Input Voltage
Digital Output
Channels
Compatibility
Output Voltage
Output Capability
Online Download
www.advantech.com/products
