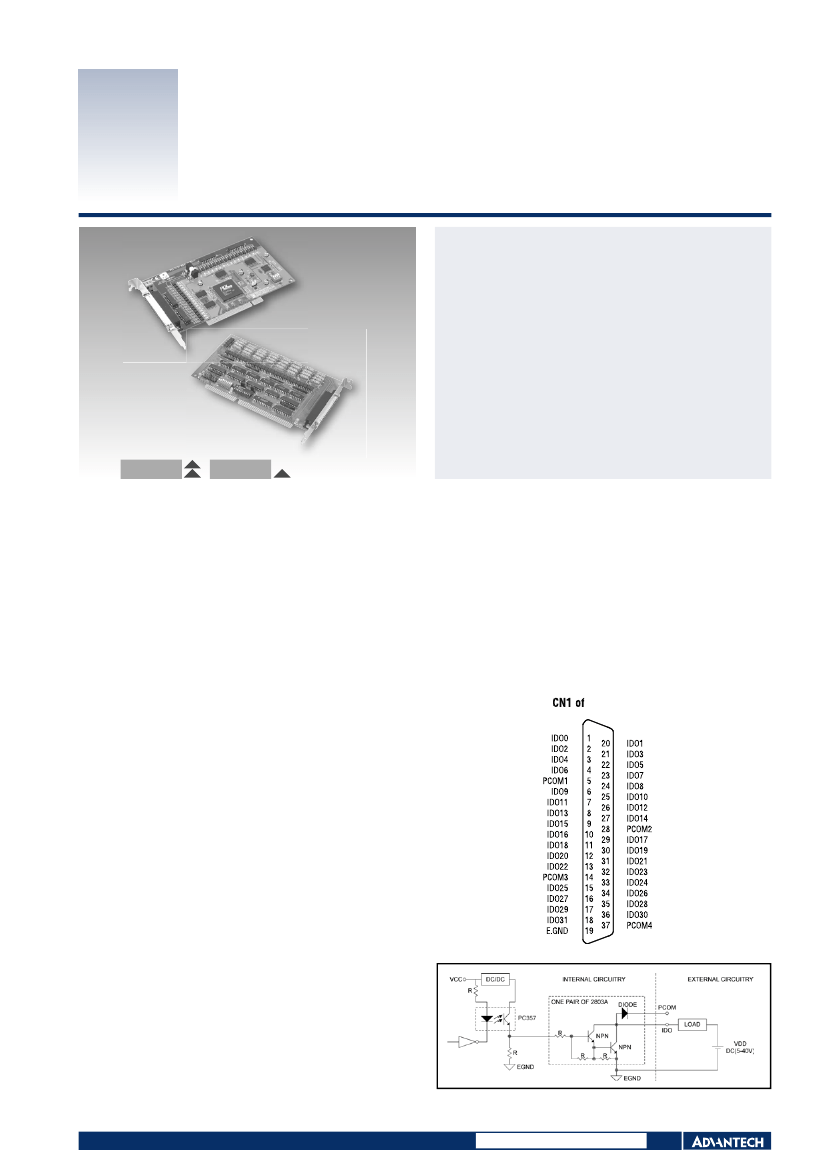

PCL-734: Description32-ch Isolated Digital Output Card with PCI Interface; File Size206KB，1 Pages; ManufacturerAdvantech; Websitehttp://www.advantech.com/

Download Datasheet Compare View All

PCL-734 Overview

32-ch Isolated Digital Output Card with PCI Interface

Preview

Download Datasheet

View All

PCI-1734

PCL-734

Features



32-ch Isolated Digital Output

Card with PCI Interface

32-ch Isolated Digital Output

Card with ISA Interface

32 isolated digital output channels

High output driving capacity

High-voltage isolation on output channels

High sink current on isolated output channels (200 mA/channel)

Integral suppression diodes for inductive loads

Wide output range (5 ~ 40 V

)

D-type connectors for isolated output channels

PCI-1734

PCL-734

Speciﬁcations

Isolated Digital Output



Channels



Output Type



Isolation Protection

32 (16-ch/group)

Sink (NPN)

PCI-1734: 2,500 V

PCL-734: 1,000 V



Output Voltage

5 ~ 40 V



Sink Current

200 mA max./channel



Opto-Isolator Response

PCL-734: 100 µs

PCI-1734: 25 µs

Applications



Industrial On/Off control



Contact closure monitoring



Switch status sensing



BCD interfacing



Digital input control



Industrial and lab automation

General



Bus Type



I/O Connector Type



Dimensions (L x H)



Power Consumption

PCL-734:

PCI-1734: PCI V2.2

PCL-734: ISA

37-pin D-type female

PCL-734: 185 x 100 mm (7.3” x 3.9”)

PCI-1734: 175 x 100 mm (6.9” x 3.9”)

Pin Assignments

PCI-1734

Typical: 5 V @ 330 mA

Max: 5 V @ 500 mA

PCI-1734:

Typical: 5 V @ 150 mA, 12 V @ 15 mA

Max: 5 V @ 250 mA, 12 V @ 25 mA



Operating Temperature

0 ~ 60° C (32 ~ 140° F)



Storing Temperature

PCL-734: -20~70° C(-4~158° F)

PCI-1734: -25 ~ 85° C (-13 ~ 185° F)



Storing Humidity

5 ~ 95% (IEC 68-2-3)

non-condensing

Ordering Information



PCI-1734



PCL-734



PCL-10137-2

PCL-10137-3

PCLD-780

PCLD-880

ADAM-3937

32-channel isolated digital PCI output card, user

manual and driver CD-ROM (cable not included)

32-channel isolated digital ISA output card, user

manual and driver CD-ROM (cable not included)

DB37 cable assembly, 2 m

DB37 cable assembly, 3 m

Universal screw terminal board

DB37 wiring terminal for DIN-rail mounting

Isolated Output Circuit Diagram

Online Download

www.advantech.com/products

All product specifications are subject to change without notice

Last updated : 20-Jan-2006
