239003M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> 239003M

239003M: DescriptionElectric Fuse, Time Lag Blow, 3A, 100A (IR), Supplemental, 5x20mm,; CategoryCircuit protection Circuit protection; File Size166KB，4 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com

Download Datasheet Parametric Compare View All

239003M Overview

Electric Fuse, Time Lag Blow, 3A, 100A (IR), Supplemental, 5x20mm,

239003M Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Littelfuse
Reach Compliance Code	unknow
Fusing characteristics	TIME LAG
Body length or diameter	20 mm
Circuit protection type	Electric Fuse
Fuse type	Supplemental
Fuse size	5x20mm
JESD-609 code	e0
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
physical size	20mm
Pre-discharge rating	129.5 A2/s
Rated breaking capacity	100 A
Rated current	3 A
Rated voltage	250 V
Guideline	CE; CSA; PSE; UL
resistance	0.0487 Ω
Terminal surface	Tin/Lead (Sn/Pb)
Terminal shape	PIN WIRE
Disconnect time or delay	14400 s

Preview

Download Datasheet

View All

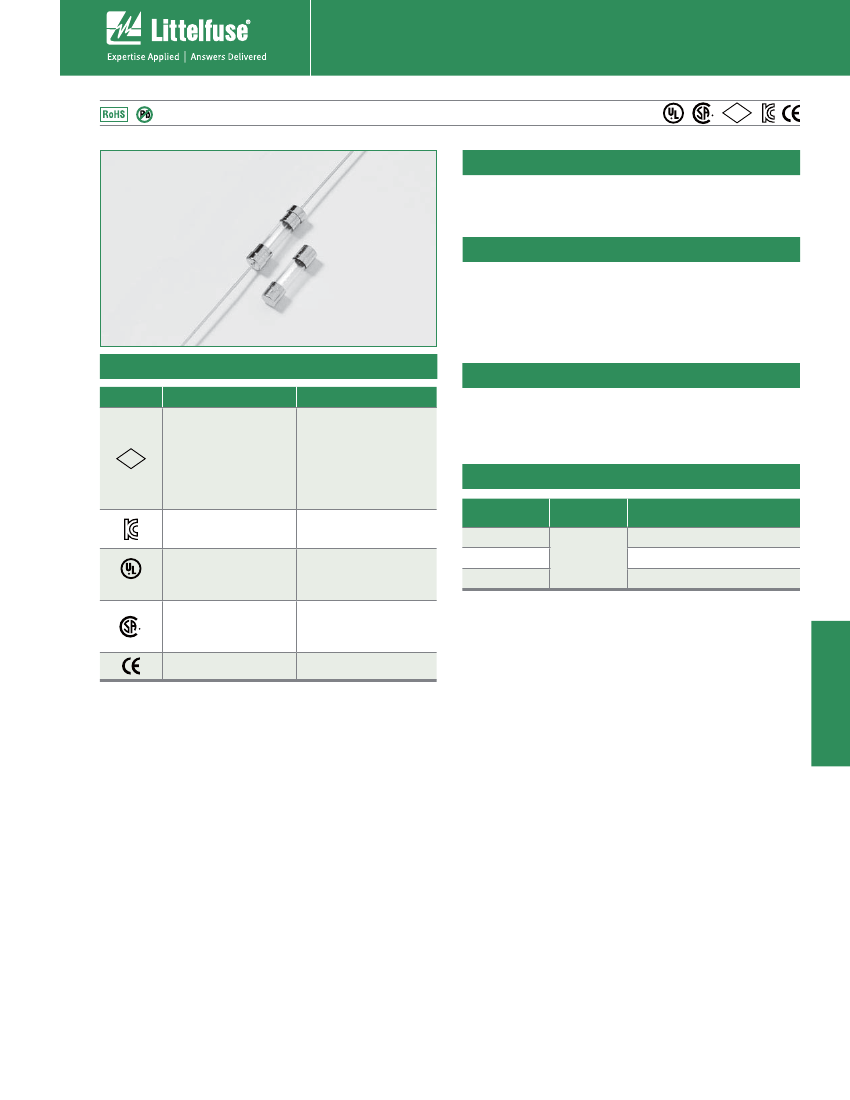

Axial Lead & Cartridge Fuses

5×20 mm > Time Lag > 239 Series

239 Series,

5 x 20 mm, Slo-Blo

Fuse

Description

Features

Agency Approvals

Agency

Agency File Number

Ampere Range

Applications

80mA – 7A

Specifications are subject to change without notice.

Please refer to www.littelfuse.com/series/239.html for current information.

305

Revised: September 9, 2010

239 Series

Cartridge Certificates:

NBK290502-E10480 G

NBK280602-E10480 C

NBK290502-E10480 I

Leaded Certificates:

NBK290502-E10480 H

NBK280602-E10480 D

NBK290502-E10480 J

Certificates:

SU05001 – 2004A

SU05001 – 2014A

Listed File:

E10480

Guide:

JDYX

File:

029862

Certificates Class:

LR1422-01

1A – 3.5A

4A & 5A

1A – 3.15A

4A & 5A

200mA – 3.15A

4A – 7A

80mA – 7A

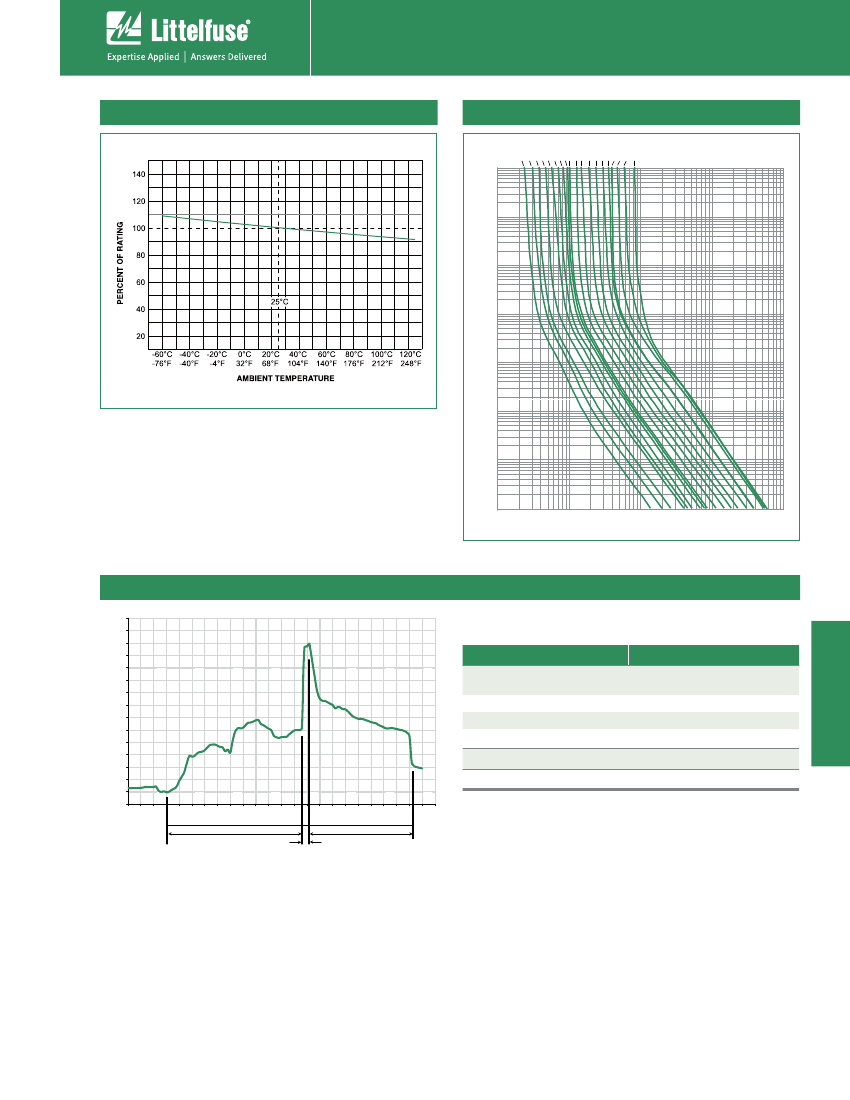

Electrical Characteristics for Series

% of Ampere

Rating

100%

135%

200%

Ampere

Ratings

Opening Time

200mA – 3.15A

4A – 7A

239003M Related Products

	239003M	23902.5M	239001M	239002M	23901.6M
Description	Electric Fuse, Time Lag Blow, 3A, 100A (IR), Supplemental, 5x20mm,	Electric Fuse, Time Lag Blow, 2.5A, 100A (IR), Supplemental, 5x20mm,	Electric Fuse, Time Lag Blow, 1A, 100A (IR), Supplemental, 5x20mm,	Electric Fuse, Time Lag Blow, 2A, 100A (IR), Supplemental, 5x20mm,	Electric Fuse, Time Lag Blow, 1.6A, 100A (IR), Supplemental, 5x20mm,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Littelfuse	Littelfuse	Littelfuse	Littelfuse	Littelfuse
Reach Compliance Code	unknow	unknown	unknow	unknow	unknow
Fusing characteristics	TIME LAG	TIME LAG	TIME LAG	TIME LAG	TIME LAG
Body length or diameter	20 mm	20 mm	20 mm	20 mm	20 mm
Circuit protection type	Electric Fuse	Electric Fuse	Electric Fuse	Electric Fuse	Electric Fuse
Fuse type	Supplemental	Supplemental	Supplemental	Supplemental	Supplemental
Fuse size	5x20mm	5x20mm	5x20mm	5x20mm	5x20mm
JESD-609 code	e0	e0	e0	e0	e0
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
physical size	20mm	20mm	20mm	20mm	20mm
Pre-discharge rating	129.5 A2/s	79.705 A2/s	11.295 A2/s	50.585 A2/s	30.43 A2/s
Rated breaking capacity	100 A	100 A	100 A	100 A	100 A
Rated current	3 A	2.5 A	1 A	2 A	1.6 A
Rated voltage	250 V	250 V	250 V	250 V	250 V
Guideline	CE; CSA; PSE; UL	CE; CSA; PSE; UL	CE; CSA; PSE; UL	CE; CSA; PSE; UL	CE; CSA; PSE; UL
resistance	0.0487 Ω	0.0584 Ω	0.2965 Ω	0.0943 Ω	0.1205 Ω
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal shape	PIN WIRE	PIN WIRE	PIN WIRE	PIN WIRE	PIN WIRE
Disconnect time or delay	14400 s	14400 s	14400 s	14400 s	14400 s
