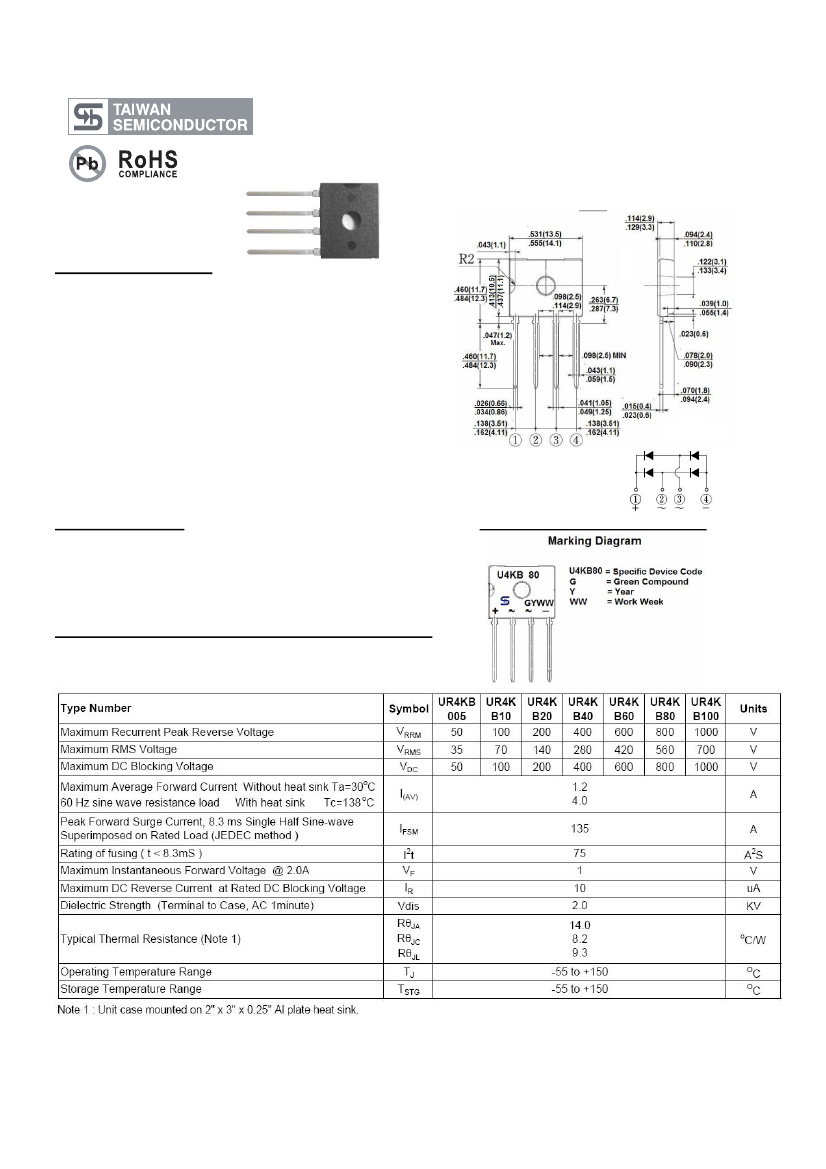

Prelimitary specification
UR4KB005-UR4KB100
Single Phase
4.0
AMPS.
Glass Passivated Bridge Rectifiers
D3K
Features
UL Recoganized
Glass passivated junction
Ideal for printed circuit board
High case dielectric strength
Plastic material has Underwriters laboratory
flammability Classification 94V-0
Typical IR less than 0.1uA
High surge current capability
High temperature soldering guaranteed:
260℃ / 10 seconds at 5 lbs., ( 2.3 kg ) tension
Green compound with suffix “G” on packing code &
prefix “G” on datecode.
Mechanical Data
Case : Molded plastic body
Terminal : Pure
tin plated , Lead free. Leads solderable per
MIL-STD-202 Method 208
Weight : 1.41 grams (0.053 ounce)
Mounting Torque : 0.8 N.M max.
Dimension in inches and (millimeter)
Maximum Ratings and Electrical Characteristics
Rating at 25℃ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%
Type Number
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Current
Without heat sink
Ta=30 C
o
Symbol
V
RRM
V
RMS
V
DC
I
(AV)
I
FSM
I
2
t
V
F
I
R
Vdis
R
θJA
R
θJC
RθJL
UR4KB80
800
560
800
1.2
4.0
135
75
1
10
2.0
55
1.5
15
-55 to +150
-55 to +150
Units
V
V
V
A
A
A
2
S
V
uA
kV
oC/W
O
O
60 Hz sine wave resistance load
With heat sink
Tc=138
o
C
Peak Forward Surge Current, 8.3 ms Single Half Sine-wave Superimposed
on Rated Load (JEDEC method )
Rating of fusing ( t < 8.3mS )
Maximum Instantaneous Forward Voltage @ 2.0A
Maximum DC Reverse Current at Rated DC Blocking Voltage
Dielectric Strength (Terminal to Case, AC 1minute)
Typical Thermal Resistance (Note 1)
Operating Temperature Range
Storage Temperature Range
Note 1 : Unit case mounted on 2" x 3" x 0.25" Al plate heat sink.
T
J
C
C
T
STG
