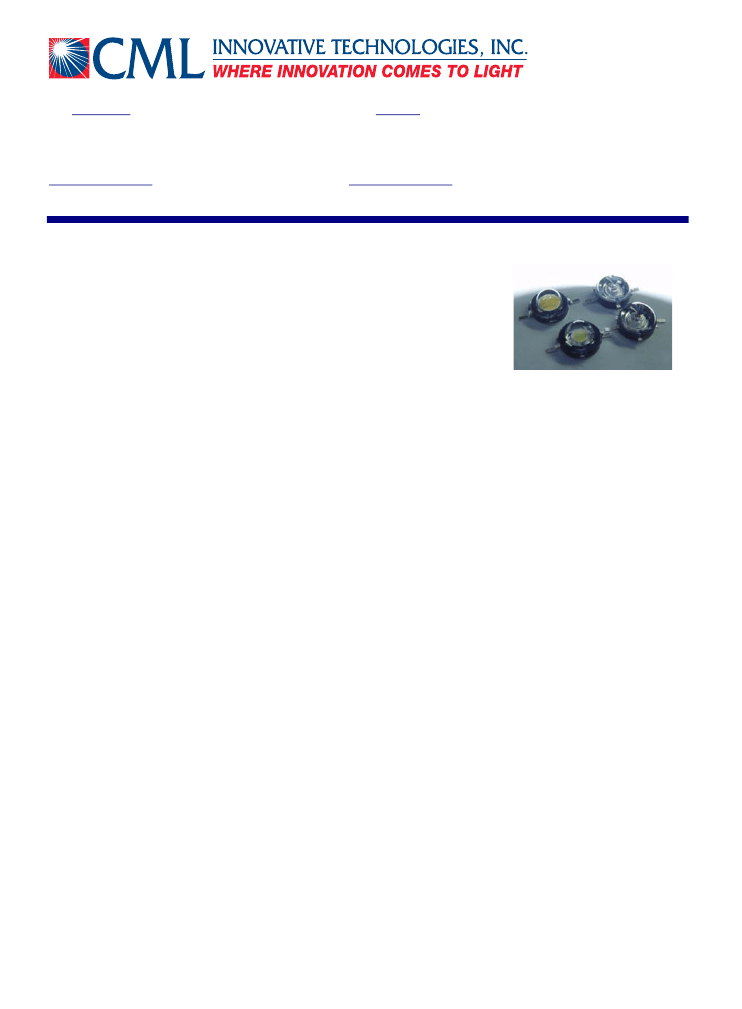

CMDA49xx15D13L Series on Star PCB
CMDA50xx15D13L Series on Square PCB
Power LED (2.5 Watt)
Technical Datasheet
CMDA49 and CMDA50 Power series is designed for high current operation and high flux
output applications. Its thermal management characteristic are better than other LED
solutions due to the SMD package design and good thermal emission material.
With these design advantages, it enables the Power LED to be applied in various lighting
applications and design solution, automotive, architectural lighting, and large size LCD
backlight etc.
Features
• Super high Flux output and high
Luminance
• Designed for high current
operation
•
•
•
•
Low thermal resistance
SMT solderability
Lead Free product
RoHS compliant
Application
• Mobile phone flash
• Automotive interior / exterior lighting
• Automotive signal lighting
• Automotive forward lighting
• General Lighting (Torch)
• Architectural lighting
• LCD TV / Monitor Backlight
• Projector light source
• Traffic Signals
• Task lighting
• Decorative / Pathway lighting
• Remote / Solar powered lighting
• Household appliances
1

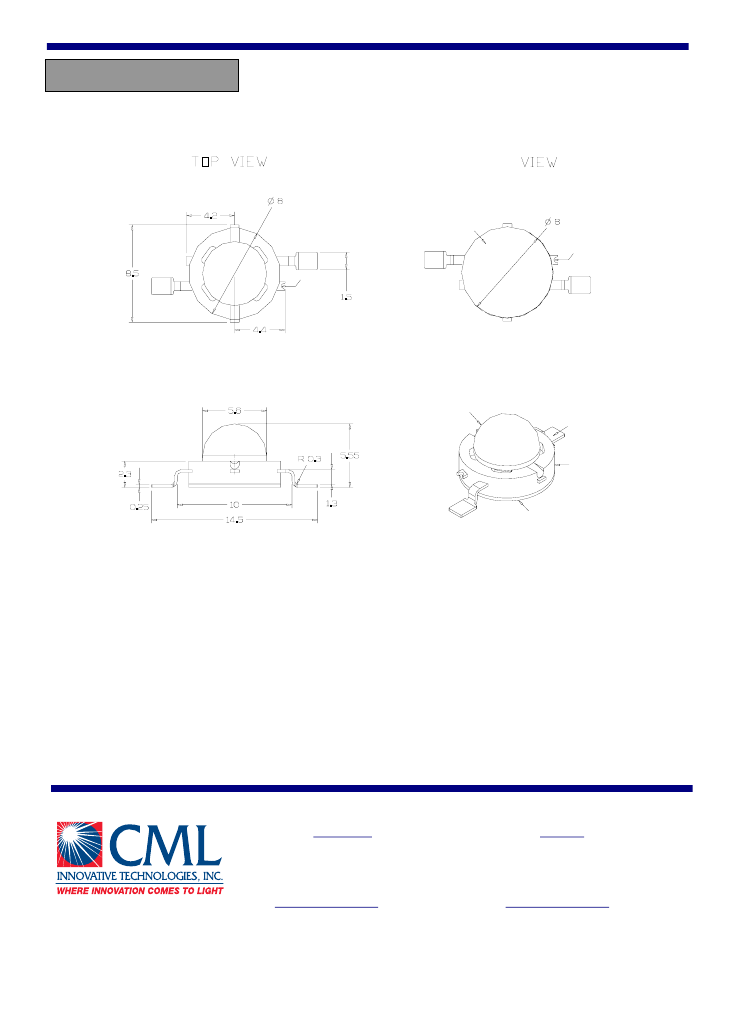

1. Outline Dimensions
Dome Type
BOTTOM
Slug
Cathode Mark
Cathode Mark
Lens
Lead
Body
Slug
Notes :
1.
2.
3.
4.
All dimensions are in millimeters.
Scale : none
This drawing without tolerances are for reference only
Slug of package is connected to anode.
Americas
147 Central Avenue
Hackensack, NJ 07601
(201) 489-8989
www.cml-it.com
Europe
Robert Bunsen Str. 1
D-67098 Bad Durkheim
+49 (6322) 9567-0
www.cml-it.com
2

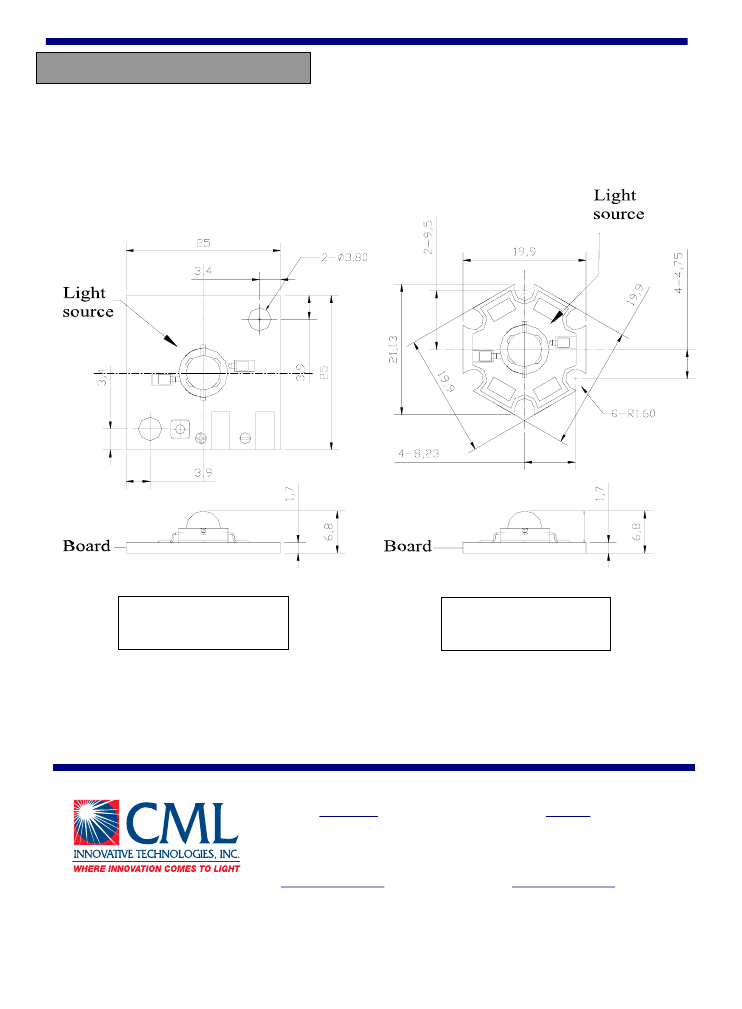

2. Metal PCB Outline Dimensions
Square Type
Star Type
CMDA50xx15D13L
Square Configuration
Notes :
1. All dimensions are in millimeters.
2. Scale : none
3. This drawing without tolerances are for reference only
CMDA49xx15D13L
Star Configuration
Americas
147 Central Avenue
Hackensack, NJ 07601
(201) 489-8989
www.cml-it.com
Europe
Robert Bunsen Str. 1
D-67098 Bad Durkheim
+49 (6322) 9567-0
www.cml-it.com
3
Americas
147 Central Avenue
Hackensack, NJ 07601
(201) 489-8989
www.cml-it.com
Europe
Robert Bunsen Str. 1
D-67098 Bad Durkheim
+49 (6322) 9567-0
www.cml-it.com
3. Electro-Optical Characteristics (at IF=700mA, TA=25ºC)
Luminous
Flux
Min./Typ.
(lm)
ФV
[1]
67 / 90
42 / 60
8 / 16
54 / 84
54 / 60
54 / 71
54 / 68
Correlated
Color
Temperature
(Kelvin)
CCT [3]
6500
3000
CMDA49xx15D13L Star PCB series
Dominant
Wavelength
(nm)
Min./Typ./Max.
P/N
Description
Symbol
Pure White
Warm White
Blue
Green
Red
Cyan
Amber
CRI
Ra
70
80
Forward Voltage
(volts)
Min./Typ./Max.
V
3.0 / 3.4 / 4.3
3.0 / 3.4 / 4.3
3.0 / 3.4 / 4.3
3.0 / 3.4 / 4.3
2.0 / 2.5 / 3.0
3.0 / 3.4 / 4.3
2.0 / 2.5 / 3.0
View Angle
(degrees)
2Θ 1/2
120
120
130
130
128
130
128
Thermal
resistance
(ºC /W)
Rθ [4]
9
9
9
9
13
9
13
λD
CMDA49CW15D13L
CMDA49WW15D13L
CMDA49CB15D13L
CMDA49AG15D13L
CMDA49AR15D13L
CMDA49GB15D13L
CMDA49DY15D13L
455 / 460 / 475
520 / 527 / 535
620 / 625 / 630
500 / 505 / 510
585 / 590 / 595
4. Absolute Maximum Ratings (at TA=25ºC)
Forward
Current
(A)
I
F
0.8
0.8
0.8
0.8
0.8
0.8
0.8
Power
Dissipation
(Watts)
P/N
Description
Symbol
CMDA49CW15D13L Pure White
CMDA49WW15D13L Warm White
CMDA49CB15D13L Blue
CMDA49AG15D13L Green
CMDA49AR15D13L Red
CMDA49GB15D13L Cyan
CMDA49DY15D13L Amber
P
D
3.2
3.2
3.2
3.2
2.4
3.2
2.4
Junction
Operating
Storage
Temperat
Temperature
(ºC)
Temperature
(ºC)
ure
(ºC)
T
j
T
opr
T
stg
125
-30~+85
-40~+120
125
-30~+85
-40~+120
125
-30~+85
-40~+120
125
-30~+85
-40~+120
100
-30~+85
-40~+120
125
-30~+85
-40~+120
100
-30~+85
-40~+120
*Notes:
[1]
ФV
is the total luminous flux output as measured with an integrating sphere.
[2] Zener diode chip included to protect the LED from ESD.
[3] Rθ is measured with a metal core PCB (25 ºC
≤TJ ≤
125 ºC).
[4] CML maintains a tolerance of ± 10% on flux and power measurements.
[5] CCT ± 5% tester tolerance.
[6] Color Coordinate Measurement allowance is ± 0.005
[7] A tolerance of ± 0.006V on forward voltage measurements
--------------------------Caution--------------------------
Please do not drive at rated current more than 5 sec. without proper heat sink
4
Americas
147 Central Avenue
Hackensack, NJ 07601
(201) 489-8989
www.cml-it.com
Europe
Robert Bunsen Str. 1
D-67098 Bad Durkheim
+49 (6322) 9567-0
www.cml-it.com
5. Electro-Optical Characteristics (at IF=700mA, TA=25ºC)
Luminous
Flux
Min./Typ.
(lm)
ФV
[1]
67 / 90
42 / 60
8 / 16
54 / 84
54 / 60
54 / 71
54 / 68
Correlated
Color
Temperature
(Kelvin)
CCT [3]
6500
3000
CMDA50xx15D13L Square PCB series
Dominant
Wavelength
(nm)
Min./Typ./Max.
P/N
Description
Symbol
Pure White
Warm White
Blue
Green
Red
Cyan
Amber
CRI
Ra
70
80
Forward Voltage
(volts)
Min./Typ./Max.
V
3.0 / 3.4 / 4.3
3.0 / 3.4 / 4.3
3.0 / 3.4 / 4.3
3.0 / 3.4 / 4.3
2.0 / 2.5 / 3.0
3.0 / 3.4 / 4.3
2.0 / 2.5 / 3.0
View Angle
(degrees)
2Θ 1/2
120
120
130
130
128
130
128
Thermal
resistance
(ºC /W)
Rθ [4]
9
9
9
9
13
9
13
λD
CMDA50CW15D13L
CMDA50WW15D13L
CMDA50CB15D13L
CMDA50AG15D13L
CMDA50AR15D13L
CMDA50GB15D13L
CMDA50DY15D13L
455 / 460 / 475
520 / 527 / 535
620 / 625 / 630
500 / 505 / 510
585 / 590 / 595
6. Absolute Maximum Ratings (at TA=25ºC)
Forward
Current
(A)
I
F
0.8
0.8
0.8
0.8
0.8
0.8
0.8
Power
Dissipation
(Watts)
P/N
Description
Symbol
CMDA50CW15D13L Pure White
CMDA50WW15D13L Warm White
CMDA50CB15D13L Blue
CMDA50AG15D13L Green
CMDA50AR15D13L Red
CMDA50GB15D13L Cyan
CMDA50DY15D13L Amber
P
D
3.2
3.2
3.2
3.2
2.4
3.2
2.4
Junction
Operating
Storage
Temperat
Temperature
(ºC)
Temperature
(ºC)
ure
(ºC)
T
j
T
opr
T
stg
125
-30~+85
-40~+120
125
-30~+85
-40~+120
125
-30~+85
-40~+120
125
-30~+85
-40~+120
100
-30~+85
-40~+120
125
-30~+85
-40~+120
100
-30~+85
-40~+120
*Notes:
[1]
ФV
is the total luminous flux output as measured with an integrating sphere.
[2] Zener diode chip included to protect the LED from ESD.
[3] Rθ is measured with a metal core PCB (25 ºC
≤TJ ≤
125 ºC).
[4] CML maintains a tolerance of ± 10% on flux and power measurements.
[5] CCT ± 5% tester tolerance.
[6] Color Coordinate Measurement allowance is ± 0.005
[7] A tolerance of ± 0.006V on forward voltage measurements
--------------------------Caution--------------------------
Please do not drive at rated current more than 5 sec. without proper heat sink
5
