LS4D28-8R2-RM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> LS4D28-8R2-RM

LS4D28-8R2-RM: DescriptionGeneral Purpose Inductor, 8.2uH, 20%, 1 Element, SMD, ROHS COMPLIANT; CategoryPassive components inductor; File Size203KB，1 Pages; ManufacturerICE Components; Websitehttp://www.icecomponents.com/; Environmental Compliance

Download Datasheet Parametric View All

LS4D28-8R2-RM Overview

General Purpose Inductor, 8.2uH, 20%, 1 Element, SMD, ROHS COMPLIANT

LS4D28-8R2-RM Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ICE Components
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
DC Resistance	0.1175 Ω
Nominal inductance(L)	8.2 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	20%

Preview

Download Datasheet

View All

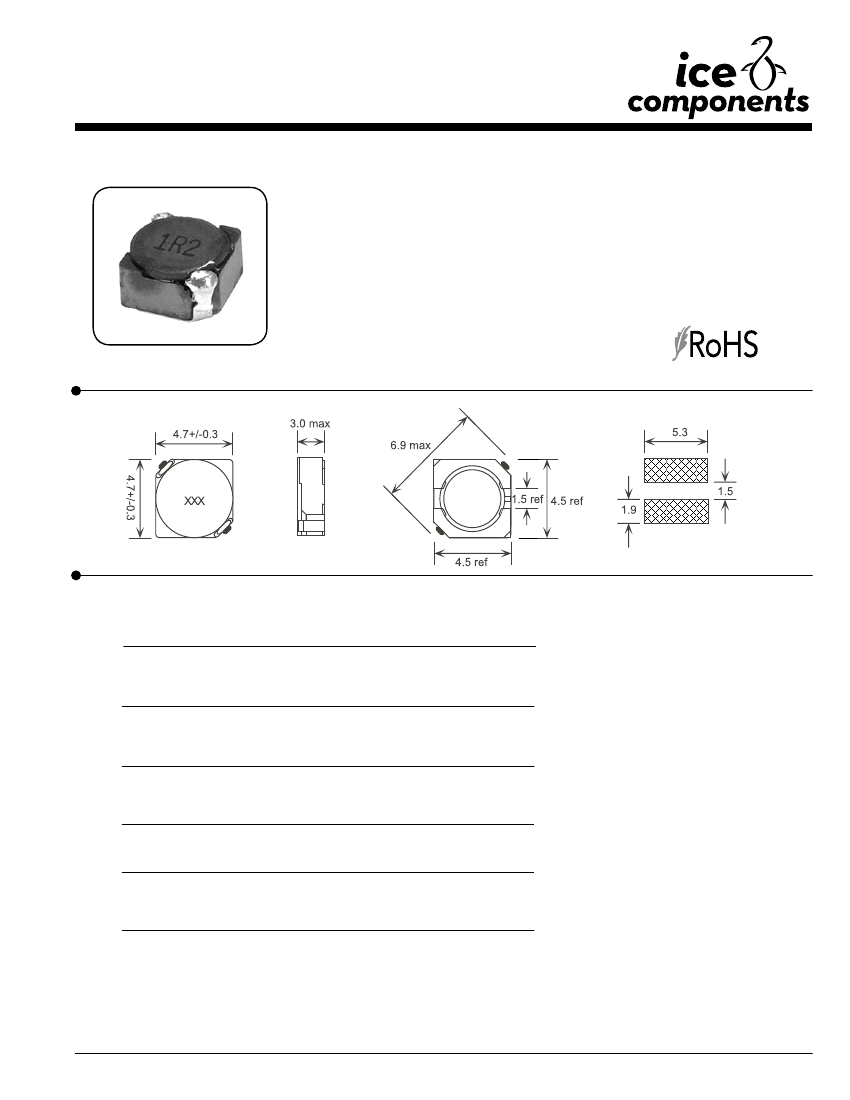

LS4D28 Series

Surface Mount Power Inductors

Features

•

Will Handle Up To 2.56A

•

Economical Design

•

Suitable For Pick And Place

•

Withstands Solder Reflow

•

Shielded Design

Packaging

Reel Diameter: 330mm

•

Reel Width: 12.3mm

•

Pieces Per Reel: 2000

•

Applications

•

Handheld And PDA Applications

•

DC/DC Converters

•

Output Power Chokes

•

Battery Powered Or Low Voltage Applications

Mechanical

unit= mm

Electrical Specifications

Part

Number

LS4D28-1R2-RN

LS4D28-1R8-RN

LS4D28-2R2-RN

LS4D28-2R7-RN

LS4D28-3R3-RN

LS4D28-3R9-RN

LS4D28-4R7-RN

LS4D28-5R6-RN

LS4D28-6R8-RN

LS4D28-8R2-RN

LS4D28-100-RN

LS4D28-120-RN

LS4D28-150-RN

LS4D28-180-RN

LS4D28-220-RN

LS4D28-270-RN

LS4D28-330-RN

LS4D28-390-RN

LS4D28-470-RN

LS4D28-560-RN

LS4D28-680-RN

LS4D28-820-RN

LS4D28-101-RN

LS4D28-121-RN

LS4D28-151-RN

LS4D28-181-RN

LS4D28-221-RN

LS4D28-271-RN

LS4D28-331-RN

LS4D28-391-RN

Inductance

Test Frequency

(μH)

(khz)

1.2

1.8

2.2

2.7

3.3

3.9

4.7

5.6

6.8

8.2

100

120

150

180

220

270

330

390

100

DCR max

(Ω)

0.0236

0.0275

0.0313

0.0433

0.0492

0.0648

0.0720

0.1009

0.1089

0.1175

0.1283

0.1316

0.1490

0.1660

0.2350

0.2610

0.3780

0.3837

0.5870

0.6245

0.6990

0.9148

1.020

1.270

1.350

1.540

1.720

1.950

2.660

2.830

max

(A)

2.56

2.20

2.04

1.60

1.57

1.44

1.32

1.17

1.12

1.04

1.00

0.84

0.76

0.72

0.70

0.58

0.56

0.50

0.48

0.41

0.35

0.32

0.29

0.27

0.24

0.22

0.20

0.16

0.14

0.13

Tested @ 100kHz, 0.1Vrms.

Inductance drop = 35% at rated I

max.

Electrical specifications at 25ºC.

Operating temperature range:

-40ºC to +85ºC.

5. Meets UL 94V-0.

6. Optional Tolerances: 10%(K), 15%(L),

and 20%(M).

Specifications subject to change without notice.

800.729.2099 tel

www.icecomponents.com

(04/08) LS-9
