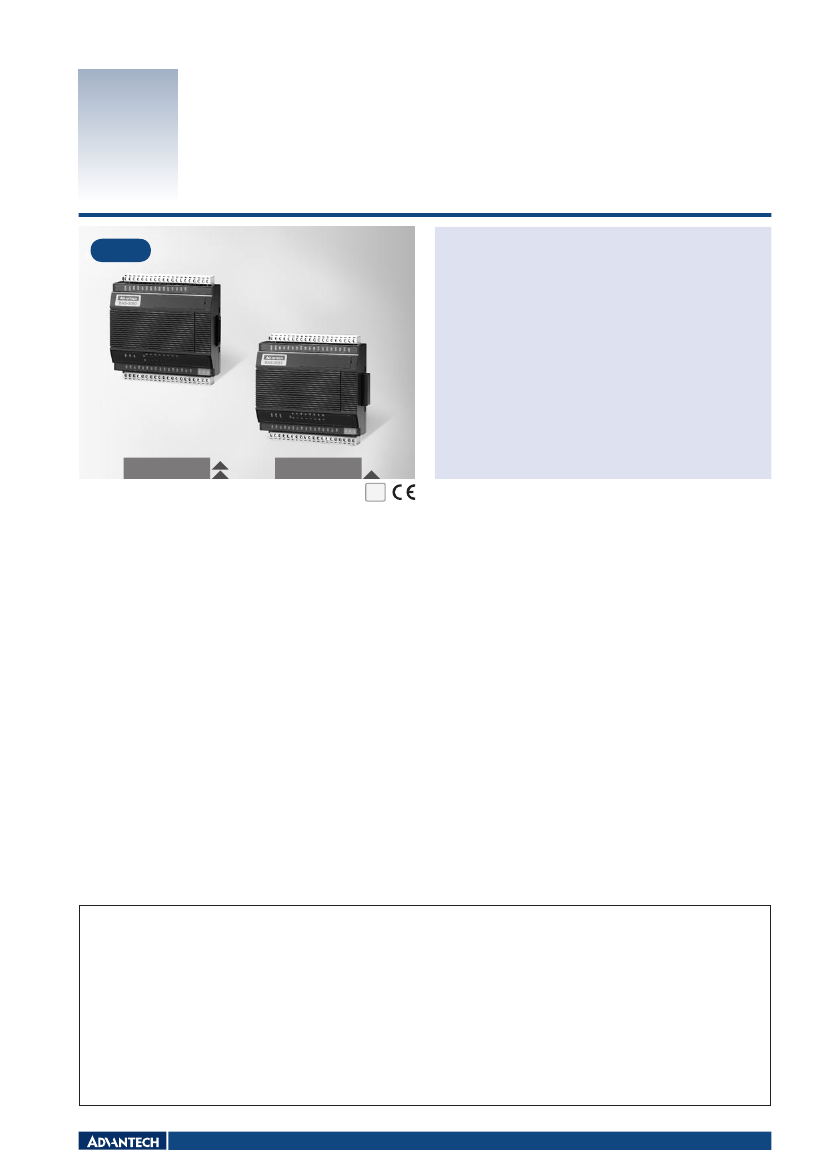

BAS-3050
BAS-3051
NEW
8-ch DI, 8-ch DO Expansion Module
16-ch DI Expansion Module
Features
Unique IO design for local & remote IO
Supports 1 kHz counter input and 1 kHz frequency input (2 channels)
Supports PWM output (2 channels) (BAS-3050 only)
BAS-3050
BAS-3051
RoHS
2002/95/EC
COMPLIANT
Introduction
BAS-3050/BAS-3051 expansion I/O modules can be stacked on the DDC controller, or can serve as remote standalone I/O modules through an RS-485 network. These expansion I/O
modules add both scalability and flexibility to Advantech BAS-3000 solutions. Like the DDC, I/O expansion modules can be programmed using the BASPro programming tool.
Specifications
General
Power Input
Power Consumption
24 V
DC
/24 V
AC
3 W @ 24 V
DC
Protection
Isolation Voltage
3,000 V
DC
Ordering Information
BAS-3050-AE
BAS-3051-AE
8-ch DI, 8-ch DO Expansion Module
16-ch DI Expansion Module
Digital Input
Channels
8 (BAS-3050)/16 (BAS-3051)
Dry Contact Logic High
Close
Logic Low
Open
Support 1 kHz Counter Input (2 channels)
Support 1 kHz Frequency Input (2 channels)
Digital Output (BAS-3050 only)
Channels
8 (Source Type)
Vcc
10 ~ 35 V
DC
, Current: 1 A (per channel)
Supports PWM output (2 channels)
Minimum Period
1 second (for PWM output)
Minimum Pulse Width
0.1 second (for PWM output)
Common Specifications
General
Dimension (W x H x D)
Enclosure
Watchdog Timer
Operating Mode
120 x 120 x 44 m
ABS + PC
Yes
1. Connect to BAS-3520/3512
(Powered by BAS-3520/3512)
2. Standalone as remote I/O devices
(Need external power 24 V
DC
)
Local Bus (Connect to BAS-3520/3512)
RS-485 (Standalone as remote I/O devices)
Environment
Operating Temperature
Storage Temperature
Operating Humidity
Storage Humidity
-10 ~ 60° C
-20 ~ 80° C
20 ~ 95% (Non-condensing)
0 ~ 95% (Non-condensing)
Communication
Building Automation Systems
