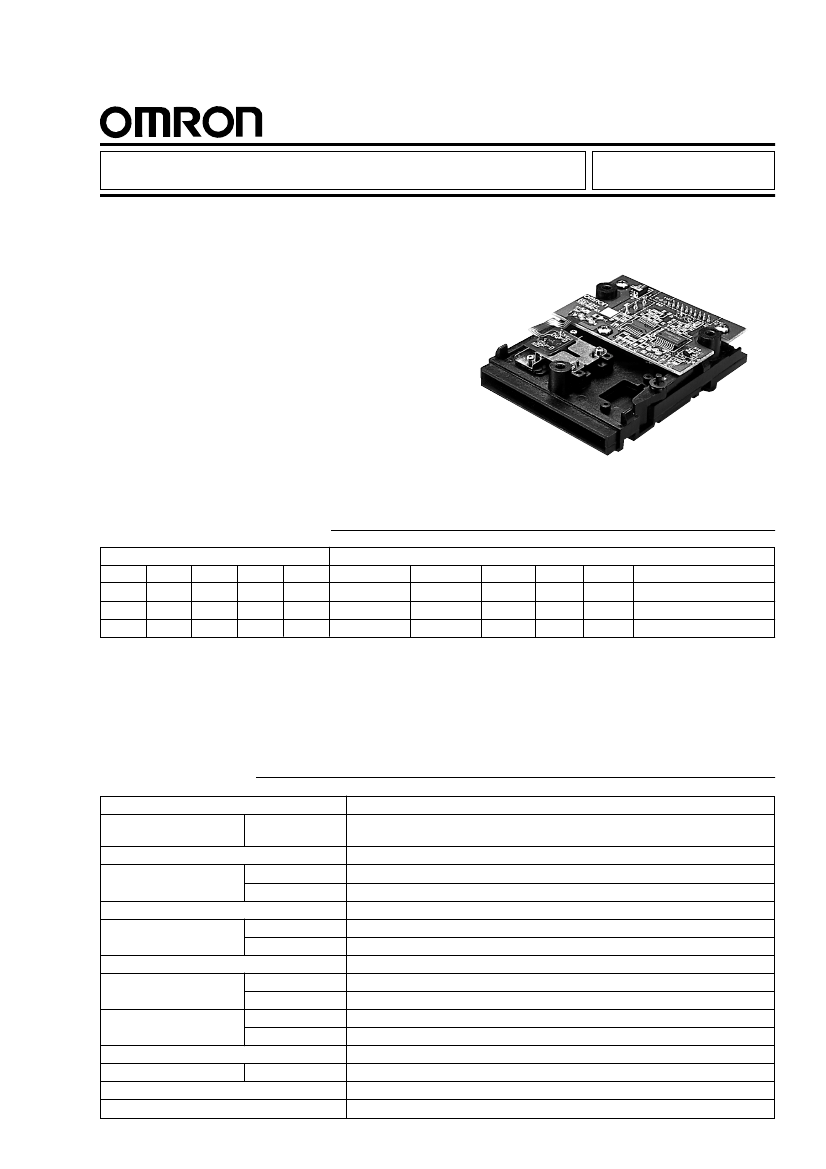

Manual Insert Magnetic Card Reader
Compact, Highly Reliable Insert Reader
Reads 62% of Magnetic Track
s
Effective strip length of 46.6 mm max.
s
Microswitches incorporated for card
3S4YR-SBRN
detection
s
Wide operating temperature range
s
Low power CMOS technology
s
Current save mode
s
Housing compatible with SCR type for
easy conversion to IC cards
s
TTL-compatible interface (clock & data)
Ordering Information
Magnetic Tracks Supported (R, R/W)
1
R
—
—
2
—
R
—
3
—
—
R
Center
—
—
—
JIS II
—
—
—
IC Contact
No
No
No
Interface
TTL
TTL
TTL
Cable
No
No
No
Cover
No
No
No
Color
Black
Black
Black
Part Number
3S4YR-SBR3N-50
3S4YR-SBR4N-50
3S4YR-SBR5N-50
Note: Consult the
IC Card Basics
section of this catalog for IC contact descriptions.
s
TYPICAL APPLICATIONS
• Access Control
• Time and Attendance
• Remote Terminals for Computers
• Telephones
• Electronic Locks
• Vending
• ID Card Checkers
• Gaming Machines
Specifications
Part number
Recommended
card type
Card feeding speed
Service life
Operating power supply
Current consumption
Mounting location
Ambient temperature
Ambient humidity
Vibration
Shock
Dimensions
Weight
Storage
Operation
Storage
Operation
Storage
Operation
Standby
Magnetic head
PCB
Magnetic head
3S4YR-SBRN
ISO 7810, 7811/1-5, 7812, 7813.
Please inquire if using high-coercivity cards.
10 to 100 cm/sec (4 to 39 in/sec)
300,000 passes (one round trip)
50,000 hours
5 VDC
±
10%
5 mA max., 3 mA mean
1.5 mA max., 1 mA mean
Indoors away from wind, rain and sunlight.
-10° to 55°C (14° to 131°F)
-30° to 70°C (-22° to 158°F)
10% to 95% RH without condensation
10% to 95% RH without condensation
10 to 55 Hz, 2 mm double amplitude, for 30 minutes in X, Y, and Z directions.
300 m/sec
2
(30 G) three times in each of X, Y, and Z directions for a total of 18 times.
78L x 60W x 21.5H mm (3.07L x 2.36W x 0.85H in)
50 g (1.8 oz)
3S4YR-SBRN
3S4YR-SBRN
Engineering Data
s
OUTPUT CIRCUIT DIAGRAM
+5 VDC
s
I/O INFORMATION
3S4YR-SBR4N-50
10-pin JAE single-pin header part number IL-10P-S3FP2-1.
Connector JAE part number IL-10S-S3L-N.
Pin #
1
Signal
NC
RDP
RCP
CLS
SW1-COM
SW1-NO
SW2-COM
SW2-NO
5 VDC
0V
Input/Output
—
Output
Output
Output
Output
Input
Output
Input
—
—
Description
Not connected
Read data
Read clock
Card load
Card detection for rear
Card detection for rear
Card detection for front
Card detection for front
V
cc
Ground
Output
2
3
4
5
OV
6
7
8
9
10
Output signal levels:
V
OL
= 0.4 V at 4 mA
V
OH
= 3.5 V at 1 mA
Dimensions
Unit: mm (inch)
s
3S4YR-SBRN-50
[37]
9 (0.35)
PCB
ø8
30
(1.18)
5 (0.20)
+4
7
-0
+.002
(0.28
-0
)
23
±
0.5
(0.91
±
0.02)
42.4
±
0.7
(1.67
±
0.03)
(Between center of head and
card stop position)
4 (0.16)
9 (0.35)
21.5
(0.85)
3-M3 complete thread 5
6 (0.24)
8 (0.31)
5 (0.20)
58
±
0.2
(2.28
±
0.01)
24
±
0.2
(0.94
±
.01)
48
±
0.2
(1.89
±
.01)
60
±
0.3
(2.36
±
0.01)
21
(0.83)
40
±
0.2
(1.57
±
0.01)
78
±
0.8 (3.07
±
0.3)
NOTE: DIMENSIONS SHOWN ARE IN MILLIMETERS. To convert millimeters to inches divide by 25.4.
One East Commerce Drive
Schaumburg, IL 60173
Cat. No. GC CR3
OMRON ELECTRONICS, INC.
R
OMRON CANADA, INC.
1-800-55-OMRON
7/00
2
Specifications subject to change without notice.
416-286-6465
885 Milner Avenue
Scarborough, Ontario M1B 5V8
Printed in U.S.A.
