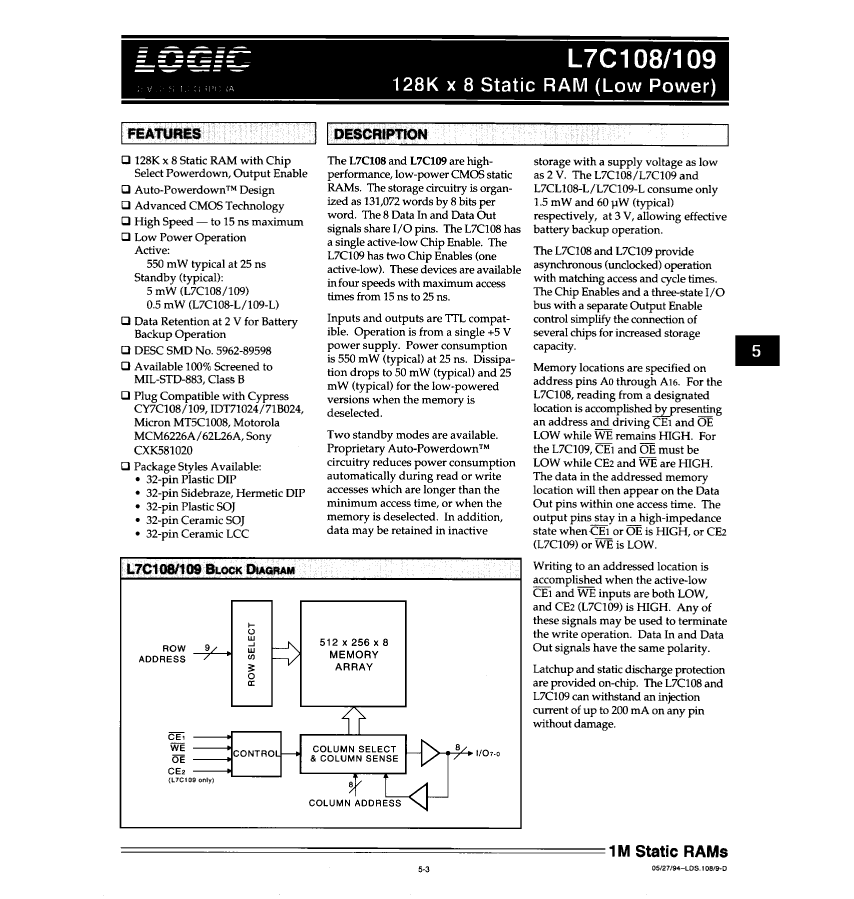

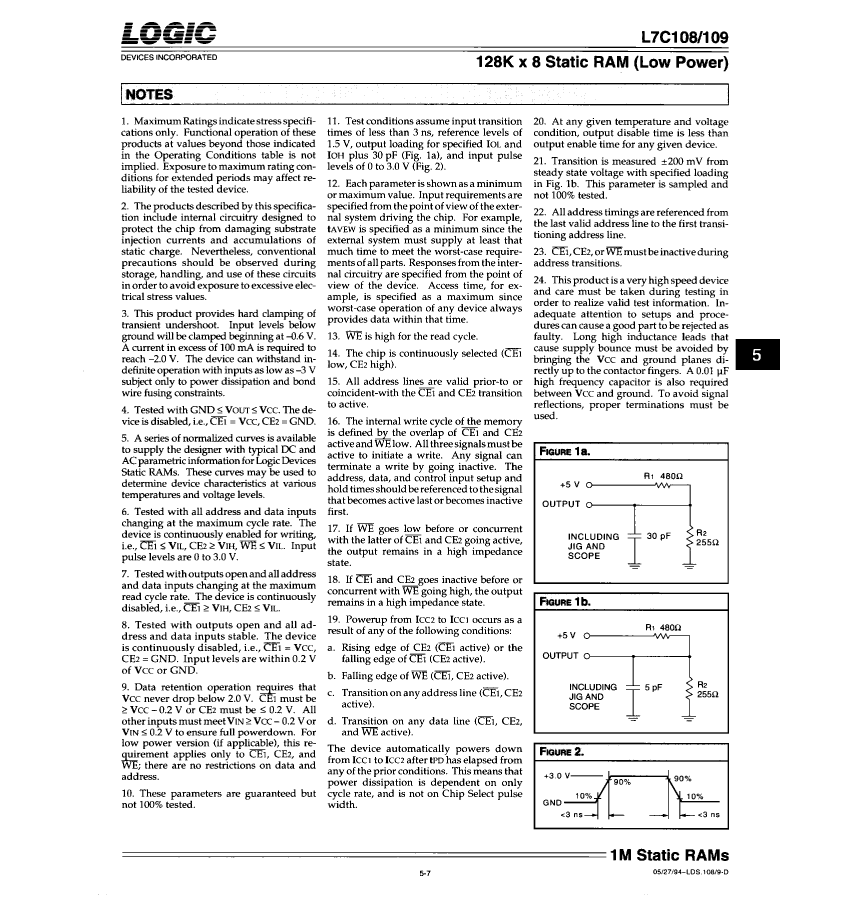

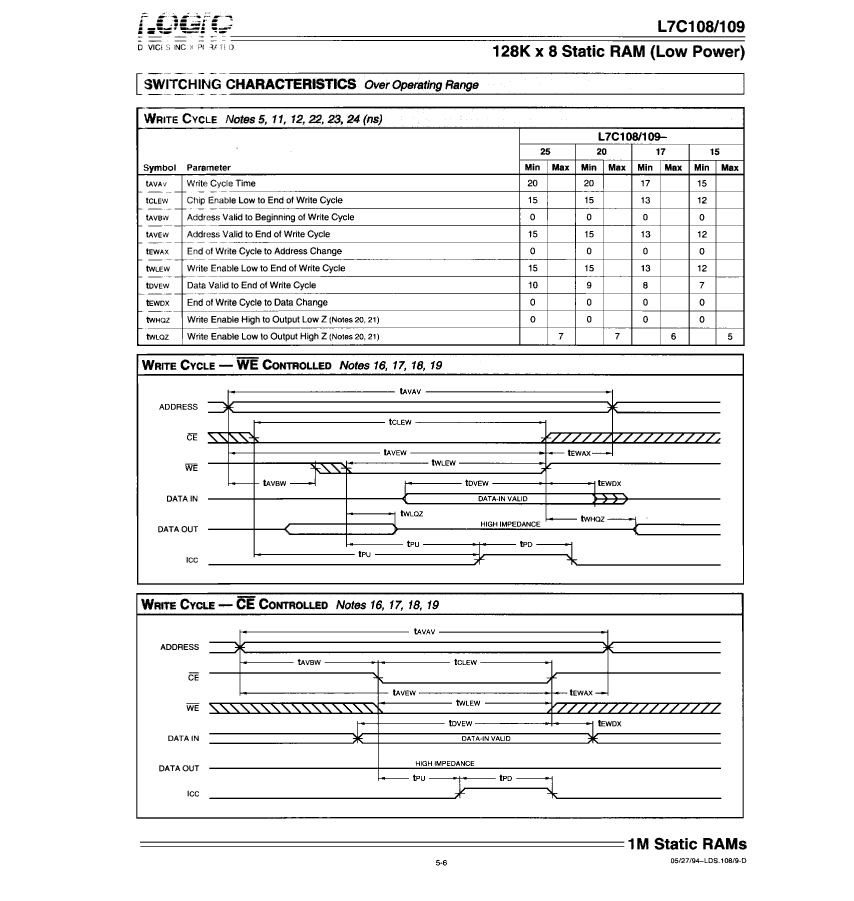

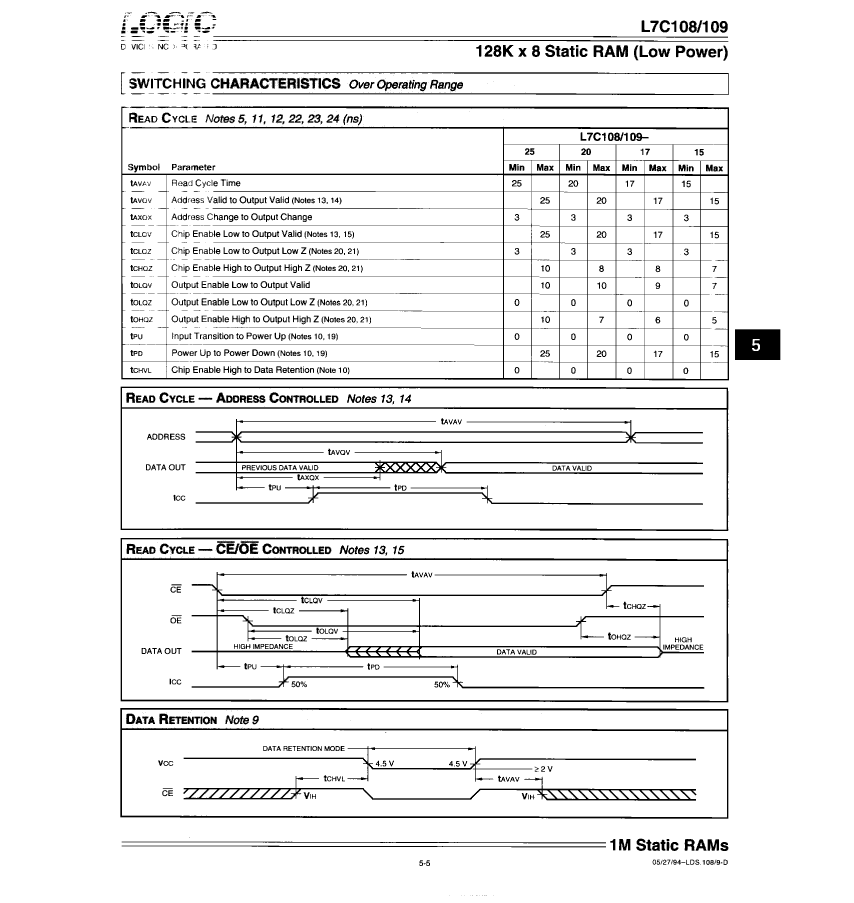

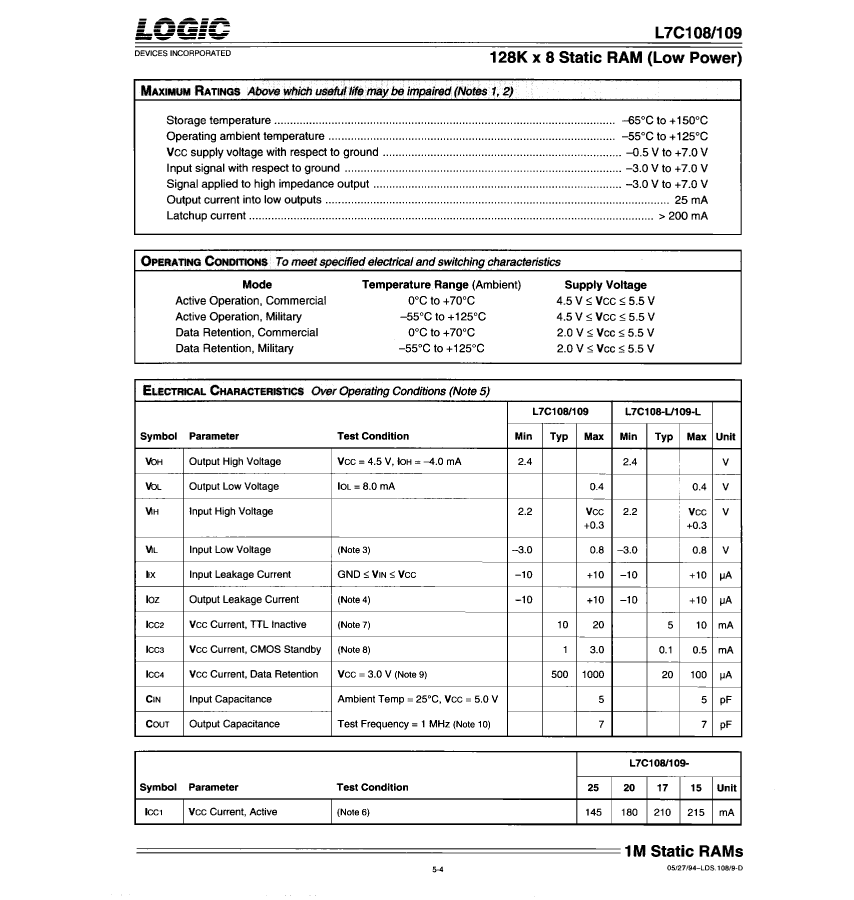

L7C109PC25L datasheet, PDF - EEWORLD Datasheet

L7C109PC25L: DescriptionStandard SRAM, 128KX8, 25ns, CMOS, PDIP32, 0.400 INCH, PLASTIC, DIP-32; Categorystorage storage; File Size372KB，9 Pages; ManufacturerLOGIC Devices; Websitehttp://www.logicdevices.com/

Download Datasheet Parametric View All

L7C109PC25L Overview

Standard SRAM, 128KX8, 25ns, CMOS, PDIP32, 0.400 INCH, PLASTIC, DIP-32

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	LOGIC Devices
Parts packaging code	DIP
package instruction	0.400 INCH, PLASTIC, DIP-32
Contacts	32
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum access time	25 ns
Other features	AUTOMATIC POWER-DOWN
I/O type	COMMON
JESD-30 code	R-PDIP-T32
JESD-609 code	e0
length	40.64 mm
memory density	1048576 bit
Memory IC Type	STANDARD SRAM
memory width	8
Humidity sensitivity level	3
Number of functions	1
Number of ports	1
Number of terminals	32
word count	131072 words
character code	128000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	128KX8
Output characteristics	3-STATE
Exportable	YES
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP32,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	225
power supply	5 V
Certification status	Not Qualified
Maximum seat height	4.445 mm
Maximum standby current	0.0001 A
Minimum standby current	2 V
Maximum slew rate	0.145 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	10.16 mm
