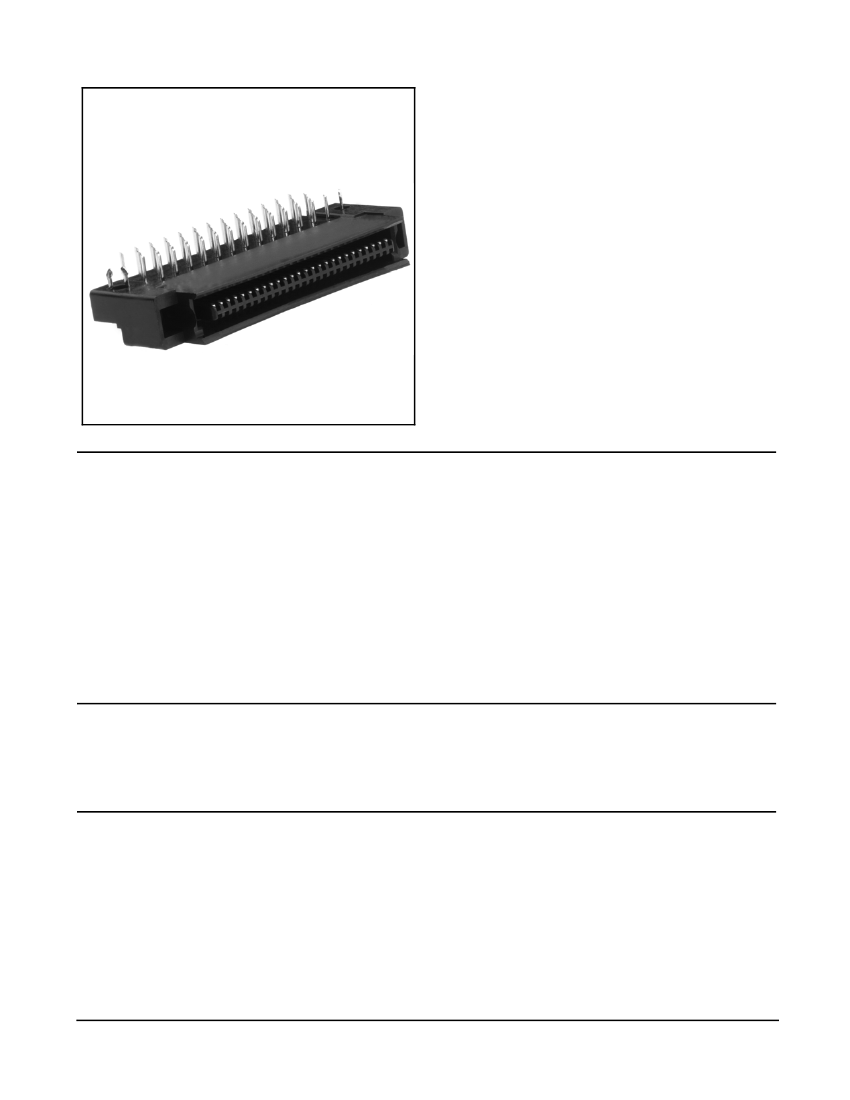

.050″ Through-Hole, Straight and Right Angle, With Ret. Clips, Flng. Option P50 Series
• Contact design features two contact points and
straight beam construction for connector
reliability and low insertion force
• Retention clip secures connector for wave
soldering eliminating additional hardware
expenses
• Horizontal, parallel or vertical mating available
• Insulator design prevents miss-insertion errors
and contact damage
• Available with or without flanges
• RoHS* compliant
Date Modified: December 8, 2006
TS-2046-04
Sheet 1 of 6
Physical
Insulation
Material:
Glass Filled Nylon
Flammability:
UL 94V-0
Color:
Black
Contact
Material:
Phosphor Bronze
Plating
Underplating:
Nickel
Wiping Area:
10
µ″
[ 0.25
µm
] Gold
Solder Tails:
Gold Flash
Retaining Clips:
Tin Copper
Electrical
Current Rating:
Withstanding Voltage:
0.5 A
500 Vrms at Sea Level
Insulation Resistance:
> 1
×
10
9
Ω
at 500 V
DC
Environmental
Temperature Rating:
-55°C to +85°C
Process Rating:
260°C (per J-STD-020C)
"RoHS compliant" means that the product or part does not contain any of the following substances in excess of the following maximum concentration values
in any homogeneous material, unless the substance is in an application that is exempt under RoHS: (a) 0.1% (by weight) for lead, mercury, hexavalent
chromium, polybrominated biphenyls or polybrominated diphenyl ethers; or (b) 0.01% (by weight) for cadmium. Unless otherwise stated by 3M in writing,
this information represents 3M's knowledge and belief based upon information provided by third party suppliers to 3M.
UL File No.: E68080
3
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Pak 50 Boardmount Plug
.050″ Through-Hole, Straight and Right Angle, With Ret. Clips, Flng. Option P50 Series
Straight with Flanges, With or Without Retention Clips

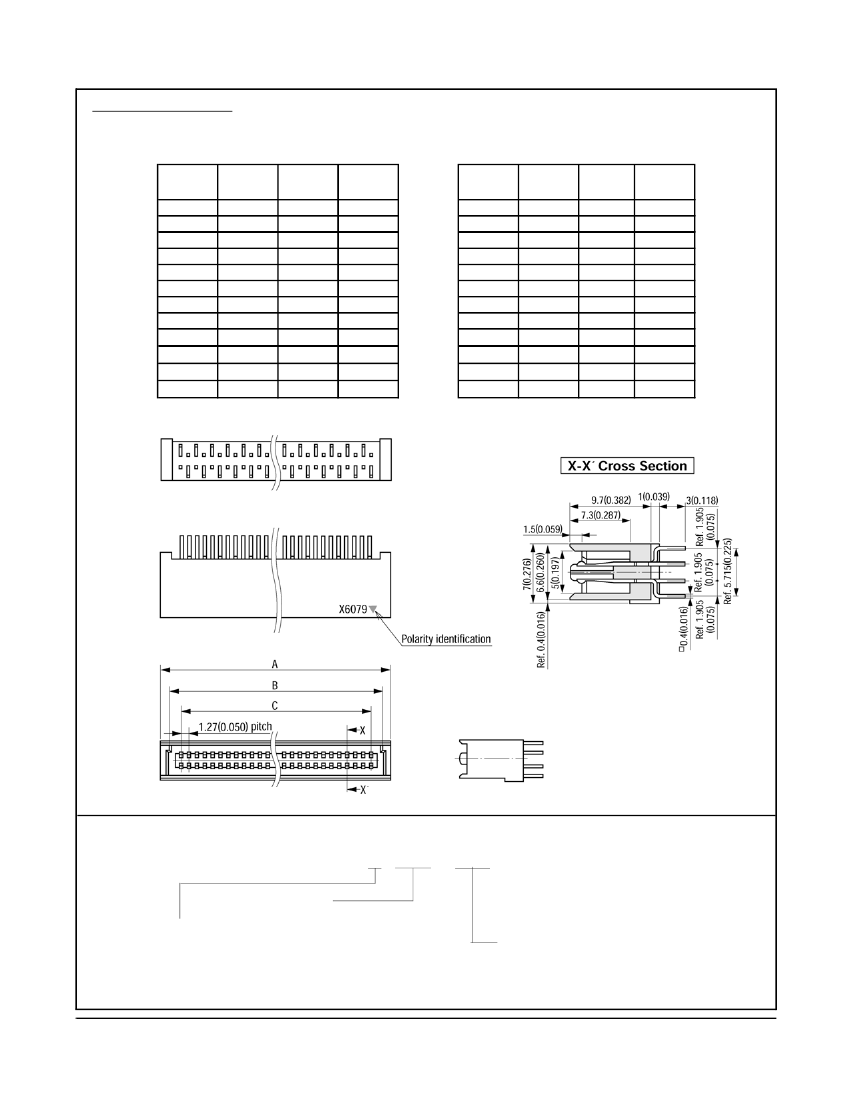

Product Table / Dimensions
Contact
Quantity
20
26
30
32
34
40
A
25.43
[1.001]
29.24
[1.151]
31.78
[1.251]
33.05
[1.301]
34.32
[1.351]
38.13
[1.501]
B
20.32
[0.800]
24.13
[0.950]
26.67
[1.050]
27.94
[1.100]
29.21
[1.150]
33.02
[1.300]
C
15.83
[0.623]
19.64
[0.773]
22.18
[0.873]
23.45
[0.923]
24.72
[0.973]
28.53
[1.123]
D
11.43
[0.450]
15.24
[0.600]
17.78
[0.700]
19.05
[0.750]
20.32
[0.800]
24.13
[0.950]
Contact
A
Quantity
50
44.48
[1.751]
52
45.75
[1.801]
60
50.83
[2.001]
68
55.91
[2.201]
80
63.53
[2.501]
100
76.23
[3.001]
B
39.37
[1.550]
40.64
[1.600]
45.72
[1.800]
50.80
[2.000]
58.42
[2.300]
71.12
[2.800]
C
34.88
[1.373]
36.15
[1.423]
41.23
[1.623]
46.31
[1.823]
53.93
[2.123]
66.63
[2.623]
D
30.48
[1.200]
31.75
[1.250]
36.83
[1.450]
41.91
[1.650]
49.53
[1.950]
62.23
[2.450]
With Retention Clips
Without Retention Clips
Shown with Retention Clips
TS-2046-04
Sheet 2 of 6
3
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Pak 50 Boardmount Plug
.050″ Through-Hole, Straight and Right Angle, With Ret. Clips, Flng. Option P50 Series

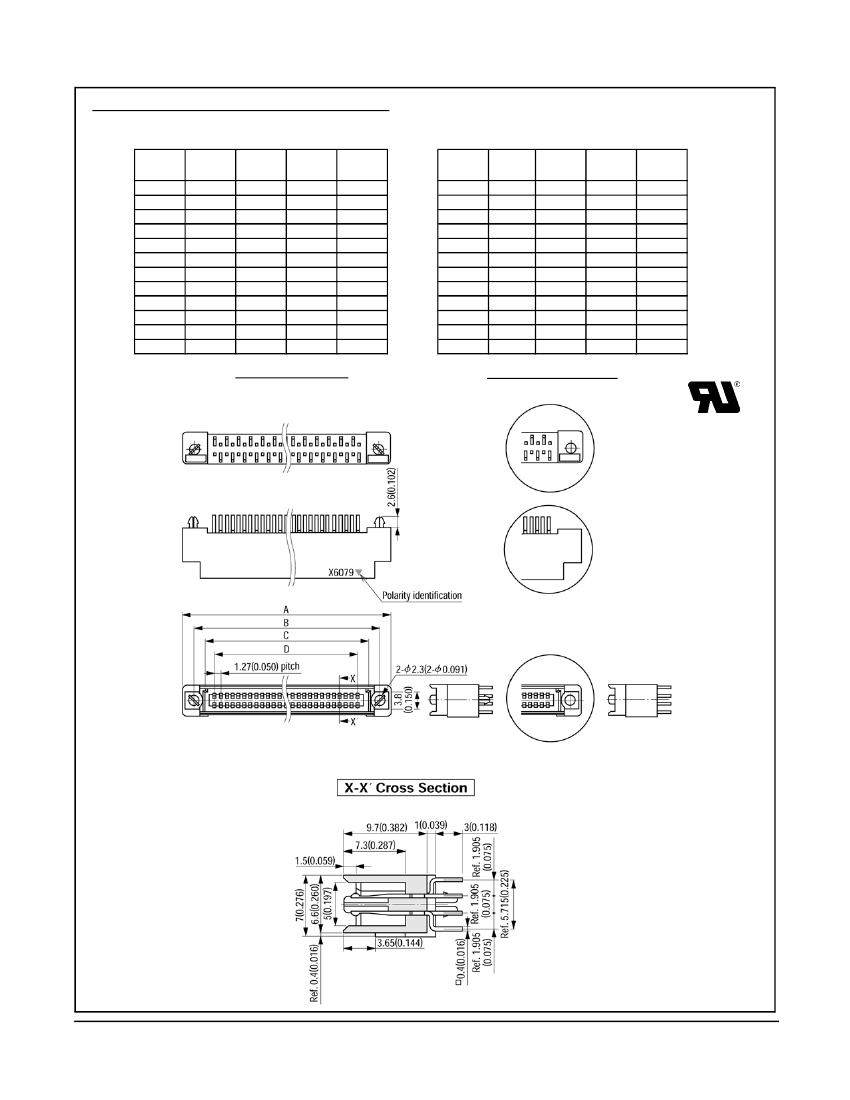

Straight, Without Flanges
Product Table / Dimensions
Contact
Quantity
20
26
30
32
34
40
A
17.83
[0.702]
21.64
[0.852]
24.18
[0.952]
25.45
[1.002]
26.72
[1.052]
30.53
[1.202]
B
15.83
[0.623]
19.64
[0.773]
22.18
[0.873]
23.45
[0.923]
24.72
[0.973]
28.53
[1.123]
C
11.43
[0.450]
15.24
[0.600]
17.78
[0.700]
19.05
[0.750]
20.32
[0.800]
24.13
[0.950]
Contact
Quantity
50
52
60
68
80
100
A
36.88
[1.452]
38.15
[1.502]
43.23
[1.702]
48.31
[1.902]
55.93
[2.202]
68.63
[2.702]
B
34.88
[1.373]
36.15
[1.423]
41.23
[1.623]
46.31
[1.823]
53.93
[2.123]
66.63
[2.623]
C
30.48
[1.200]
31.75
[1.250]
36.83
[1.450]
41.91
[1.650]
49.53
[1.950]
62.23
[2.450]
Ordering Information
P5X - XXXP - XXX - EA
Contact Quantity
See Table
0 = With Flanges
1 = Without Flanges, (offered
without retention clips only)
Solder Tail and Clip Options:
S1 = Straight without Retention Clips
SR1 = Right Angle without Retention Clips
R1 = Straight with Retention Clips
RR1 = Right Angle with Retention Clips
TS-2046-04
Sheet 3 of 6
3
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Pak 50 Boardmount Plug
.050″ Through-Hole, Straight and Right Angle, With Ret. Clips, Flng. Option P50 Series

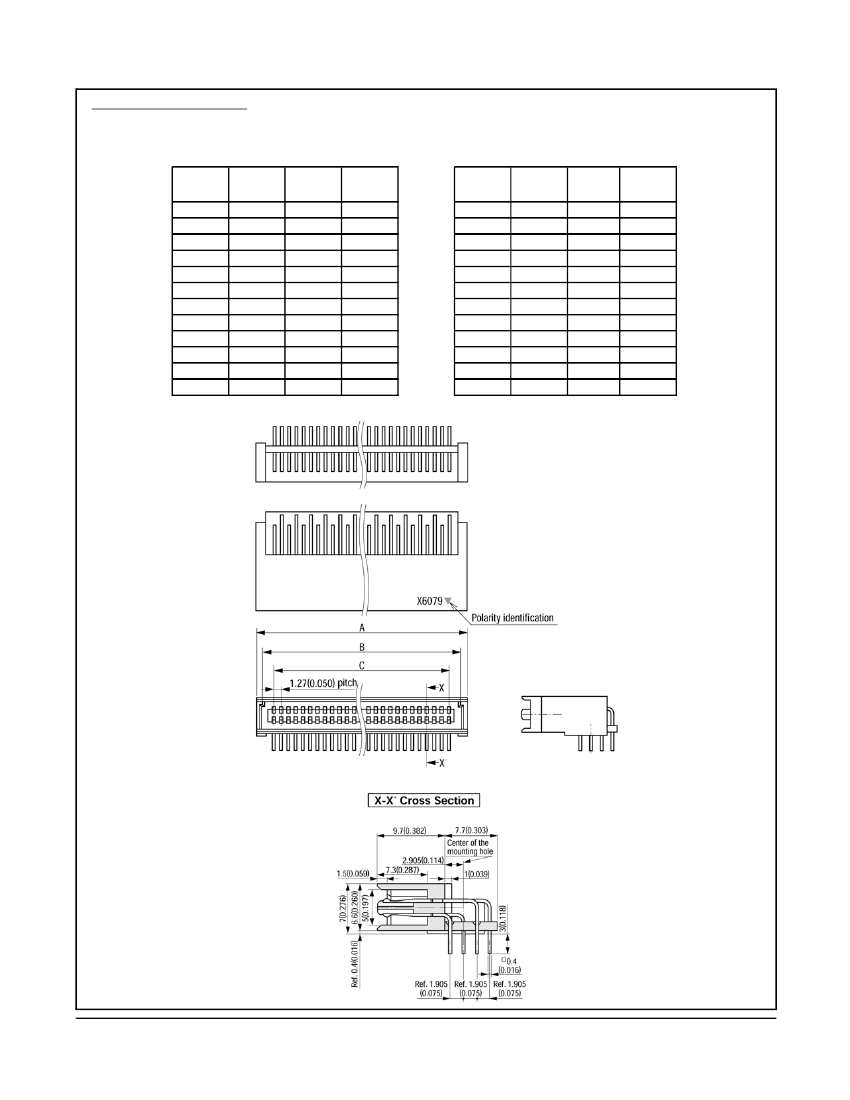

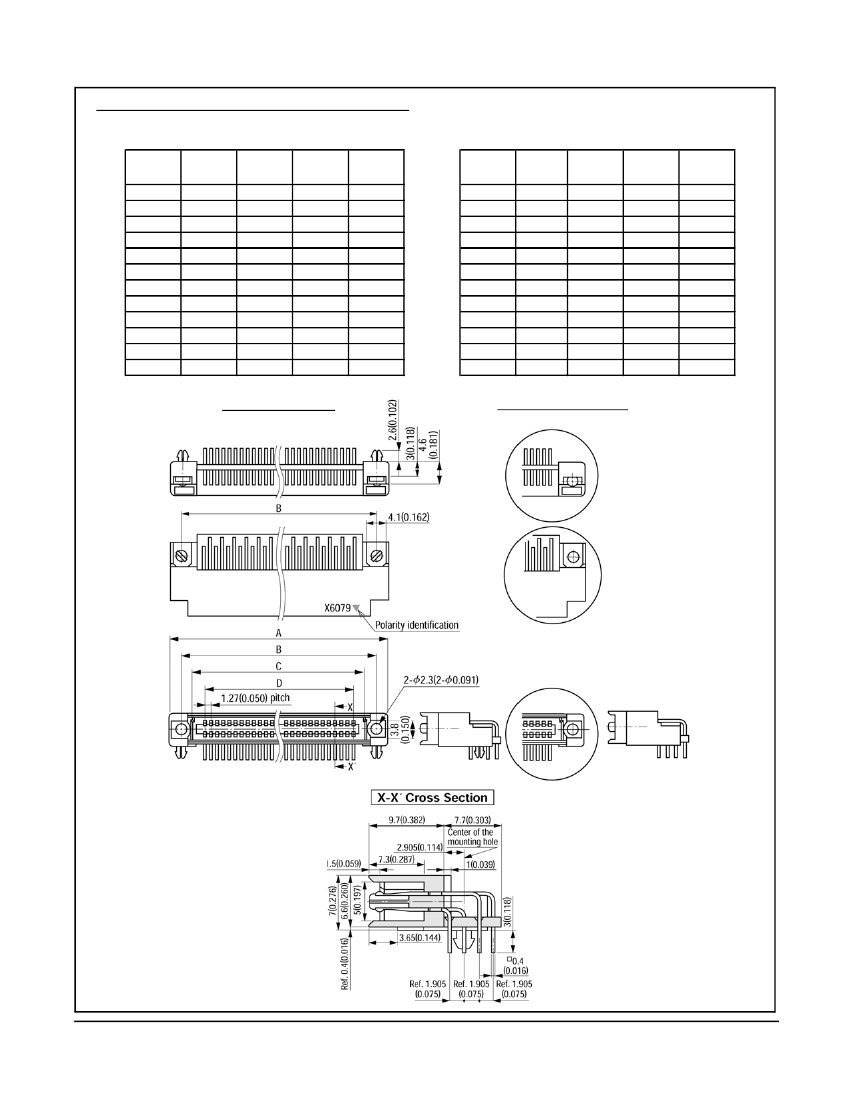

Right Angle with Flanges, with or without Retention Clips
Product Table / Dimensions
Contact
Quantity
20
26
30
32
34
40
A
25.43
[1.001]
29.24
[1.151]
31.78
[1.251]
33.05
[1.301]
34.32
[1.351]
38.13
[1.501]
B
20.32
[0.800]
24.13
[0.950]
26.67
[1.050]
27.94
[1.100]
29.21
[1.150]
33.02
[1.300]
C
15.83
[0.623]
19.64
[0.773]
22.18
[0.873]
23.45
[0.923]
24.72
[0.973]
28.53
[1.123]
D
11.43
[0.450]
15.24
[0.600]
17.78
[0.700]
19.05
[0.750]
20.32
[0.800]
24.13
[0.950]
Contact
A
Quantity
44.48
50
[1.751]
45.75
52
[1.801]
50.83
60
[2.001]
55.91
68
[2.201]
63.53
80
[2.501]
76.23
100
[3.001]
B
39.37
[1.550]
40.64
[1.600]
45.72
[1.800]
50.80
[2.000]
58.42
[2.300]
71.12
[2.800]
C
34.88
[1.373]
36.15
[1.423]
41.23
[1.623]
46.31
[1.823]
53.93
[2.123]
66.63
[2.623]
D
30.48
[1.200]
31.75
[1.250]
36.83
[1.450]
41.91
[1.650]
49.53
[1.950]
62.23
[2.450]
With Retention Clips
Without Retention Clips
Shown with Retention Clips
TS-2046-04
Sheet 4 of 6
3
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Pak 50 Boardmount Plug
.050″ Through-Hole, Straight and Right Angle, With Ret. Clips, Flng. Option P50 Series
