WB0610-721Y: DescriptionTHRU-HOLE INDUCTORS BDC & WB Series: Beads & Chokes; File Size192KB，2 Pages; ManufacturerRFE International, Inc; Websitehttp://www.rfeinc.com/

Download Datasheet Compare View All

WB0610-721Y Overview

THRU-HOLE INDUCTORS BDC & WB Series: Beads & Chokes

Preview

Download Datasheet

View All

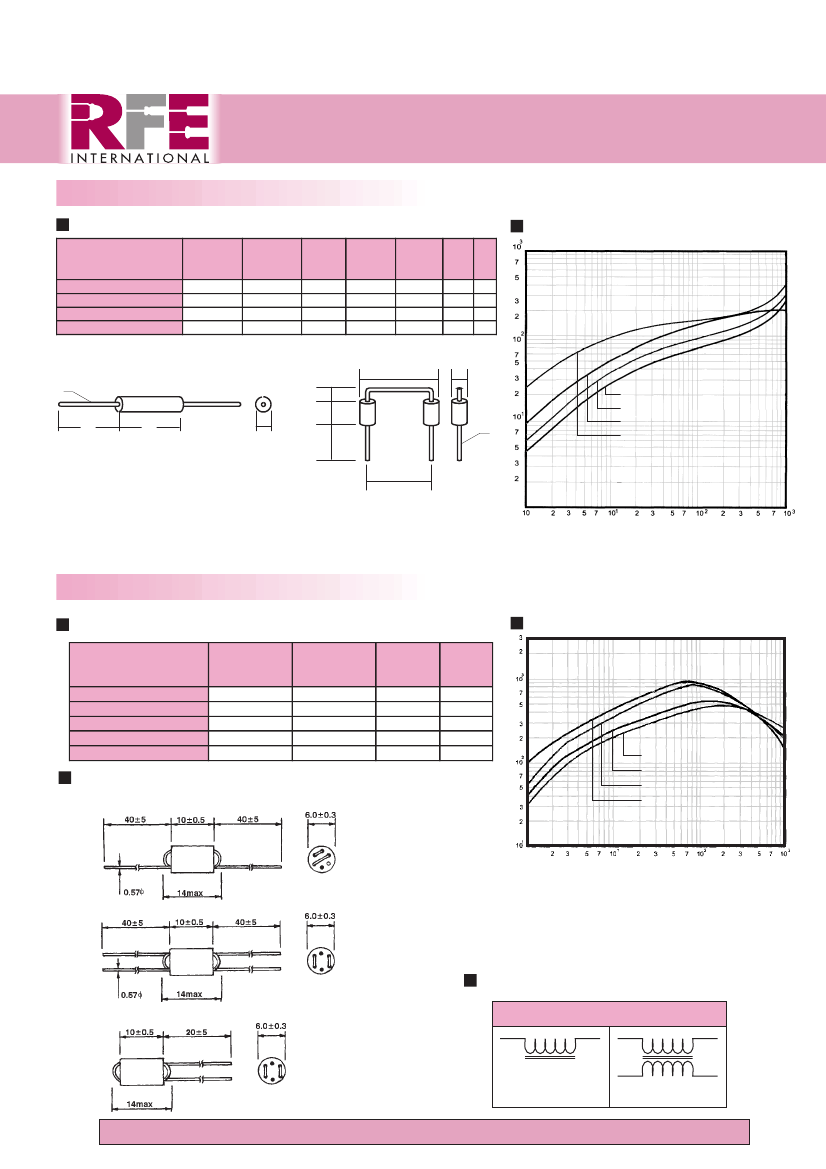

THRU-HOLE INDUCTORS

BDC & WB Series: Beads & Chokes

BDC: BEADS

SPECIFICATIONS

Part Number

Impedance

Test

A

B

C

Frequency ±0.2

±0.3

±3.0

W

(min)

MHz

mm

45

100

3.5

4.7

29

60

100

3.5

6.0

28.5

80

100

3.5

9.0

27

110

100

9.0 max 3.8 max 4.5±1.0

d

TYP.

mm

0.65

0.60

Fig.

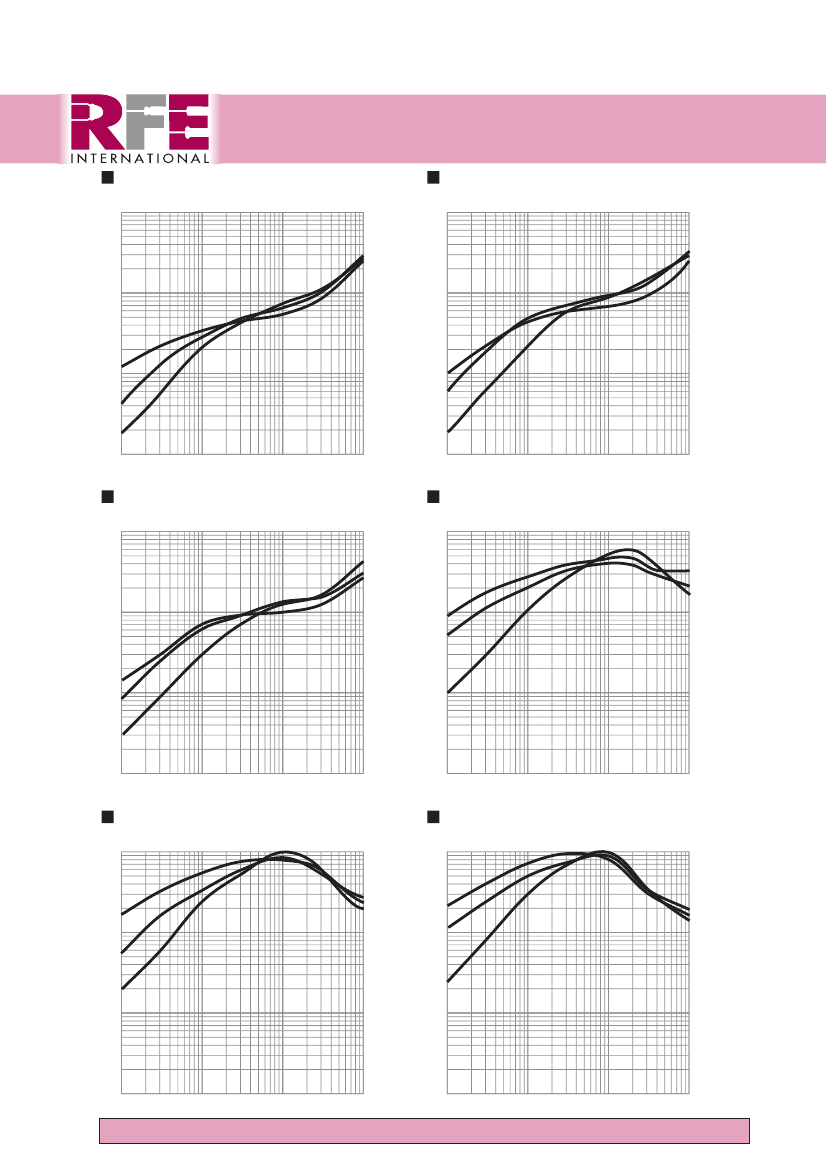

IMPEDANCE CURVE

BDC0305-450Y/100MHZ

BDC0306-600Y/100MHZ

BDC0309-800Y/100MHZ

BDC0907-111Y/100MHZ

A

B

Impedance (W)

Figure A

d

Figure B

A

2.0 max

5.3 max

B

BDC0305-450Y/100MHZ

BDC0306-600Y/100MHZ

BDC0309-800Y/100MHZ

C

B

A

C

d

BDC0907-111Y/100MHZ

Can be axial taped

5.0 ±0.8

Can be radial taped

Frequency (Mhz)

WB: WIDE BAND CHOKES

SPECIFICATIONS

Part Number

Impedance

W

(min)

300

450

600

720

700

Test

Frequency

MHz

120

90

50

80

50

Number

Of

Turns

1.5

2.0

2.5

3.0

1.5 + 1.5

Figure

IMPEDANCE CURVE

Impedance (W)

WB0610-301Y/120MHZ

WB0610-451Y/90MHZ

WB0610-601Y/50MHZ

WB0610-721Y/80MHZ

WB0610-701Y/50MHZ

A

C

A

C

B

WB0610-301Y/120MHZ

WB0610-451Y/90MHZ

WB0610-601Y/50MHZ

WB0610-721Y/80MHZ

(WB0610-701Y/50MHZ)

DIMENSIONS

(mm)

Figure A

Frequency (Mhz)

Figure B

COMMON CIRCUIT TYPES

Figure C

Schematic

1.5 & 2.5 Turns

1.5 + 1.5 Turns

C4C01

REV 2001

RFE International

• Tel:(949) 833-1988 • Fax:(949) 833-1788 • E-Mail Sales@rfeinc.com
