BC560A datasheet, PDF - EEWORLD Datasheet

BC560A: DescriptionTransistor,; CategoryDiscrete semiconductor The transistor; File Size234KB，2 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric Compare View All

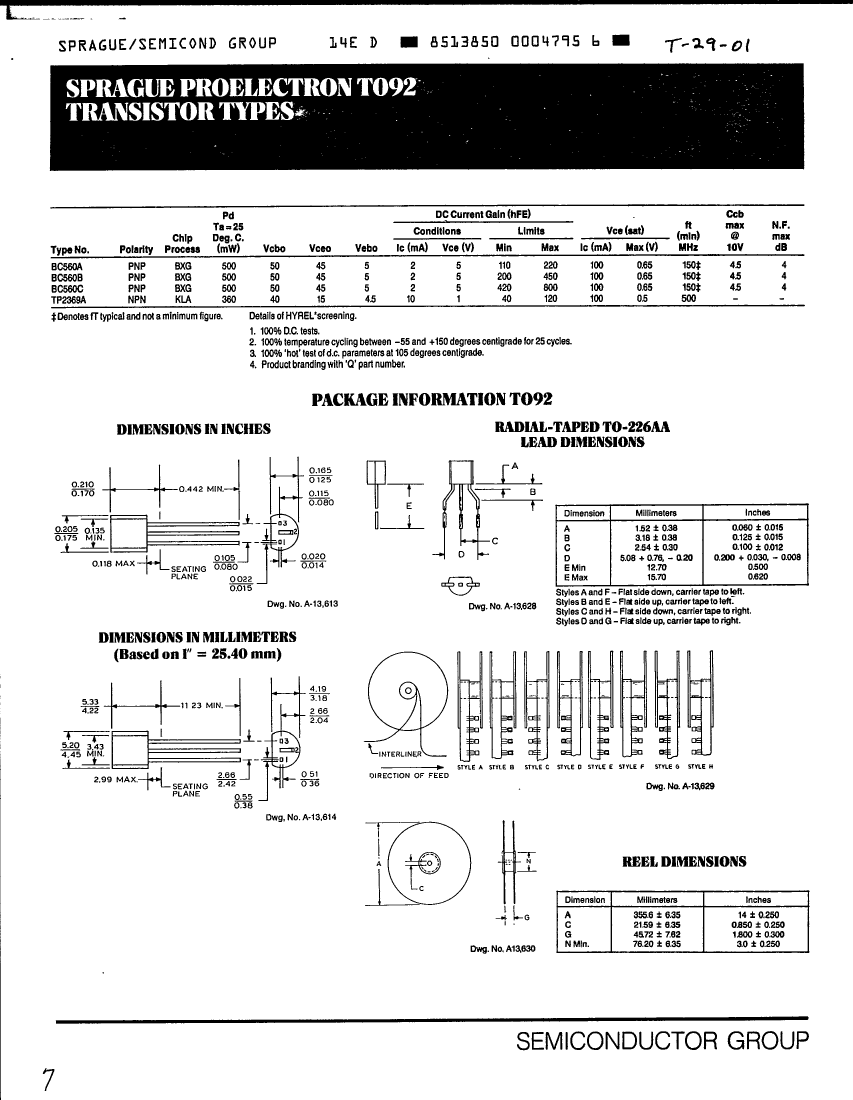

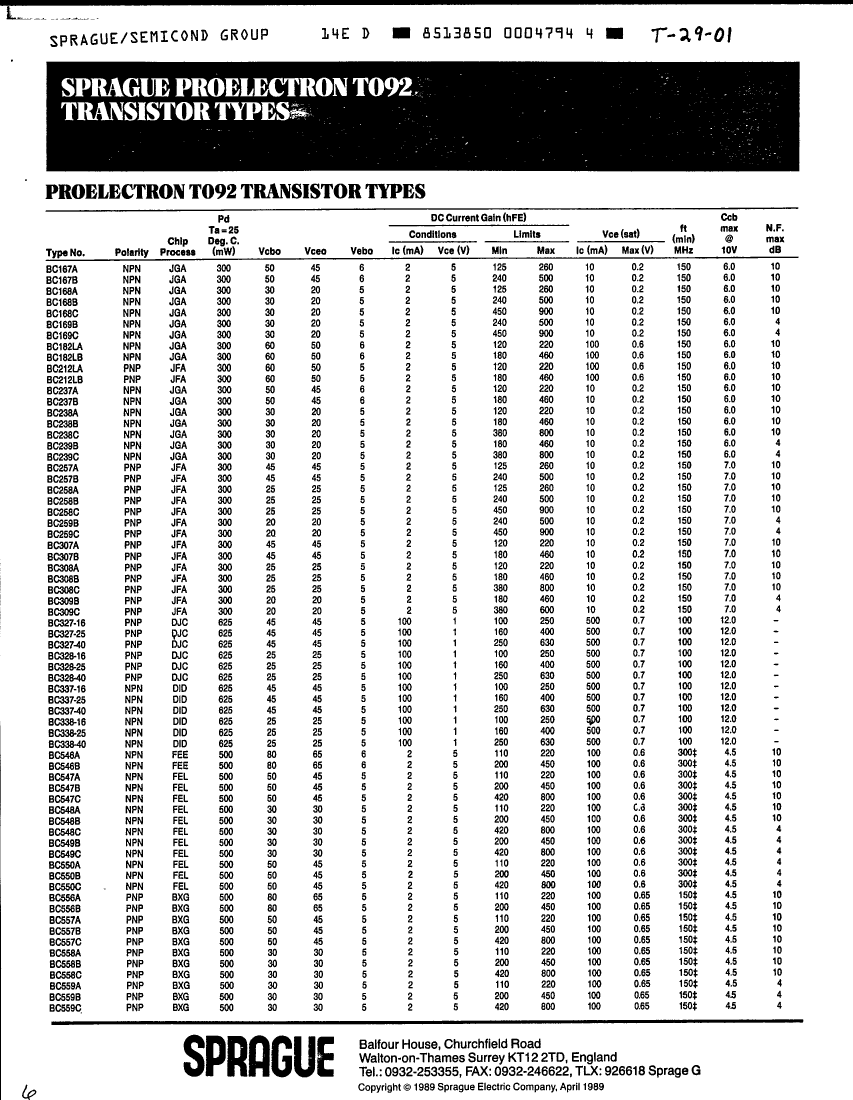

BC560A Overview

Transistor,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Vishay
package instruction	,
Reach Compliance Code	unknown
Maximum collector current (IC)	0.1 A
Configuration	Single
Minimum DC current gain (hFE)	125
JESD-609 code	e0
Maximum operating temperature	150 °C
Polarity/channel type	PNP
Maximum power dissipation(Abs)	0.5 W
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Nominal transition frequency (fT)	150 MHz

	BC560A	BC550C	BC550B	BC557A	BC547C	BC546A	BC549B
Description	Transistor,	Transistor,	Transistor,	Small Signal Bipolar Transistor, 0.1A I(C), 45V V(BR)CEO, 1-Element, PNP, Silicon, TO-226AA, PLASTIC, TO-92, 3 PIN	Transistor	Small Signal Bipolar Transistor, 0.1A I(C), 65V V(BR)CEO, 1-Element, NPN, Silicon, TO-226AA, PLASTIC, TO-92, 3 PIN	Small Signal Bipolar Transistor, 0.1A I(C), 30V V(BR)CEO, 1-Element, NPN, Silicon, TO-226AA, PLASTIC, TO-92, 3 PIN
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Maximum collector current (IC)	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A
Configuration	Single	Single	Single	SINGLE	Single	SINGLE	SINGLE
Minimum DC current gain (hFE)	125	420	200	110	420	110	200
Polarity/channel type	PNP	NPN	NPN	PNP	NPN	NPN	NPN
surface mount	NO	NO	NO	NO	NO	NO	NO
Is it Rohs certified?	incompatible	incompatible	incompatible	conform to	-	-	-
Maker	Vishay	-	Vishay	Vishay	Vishay	Vishay	Vishay
JESD-609 code	e0	e0	e0	e3	-	-	-
Maximum operating temperature	150 °C	150 °C	150 °C	-	150 °C	-	-
Maximum power dissipation(Abs)	0.5 W	0.625 W	0.625 W	-	0.5 W	-	-
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	MATTE TIN	-	-	-
Nominal transition frequency (fT)	150 MHz	-	-	150 MHz	-	300 MHz	300 MHz
