1109814-RC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> socket> 1109814-RC

1109814-RC: DescriptionSOIC8, IC SOCKET; CategoryThe connector socket; File Size347KB，1 Pages; ManufacturerAries Electronics; Environmental Compliance

Download Datasheet Parametric View All

1109814-RC Overview

SOIC8, IC SOCKET

1109814-RC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
Contact to complete cooperation	GOLD (10) OVER NICKEL (100)
Contact completed and terminated	GOLD (10) OVER NICKEL (100)
Contact material	BRASS
Device slot type	IC SOCKET
Type of equipment used	SOIC8
Shell material	BRASS
JESD-609 code	e4
Manufacturer's serial number	1109814-RC
Number of contacts	8
Base Number Matches	1

Preview

Download Datasheet

View All

RoHs/WEEE-Compliant

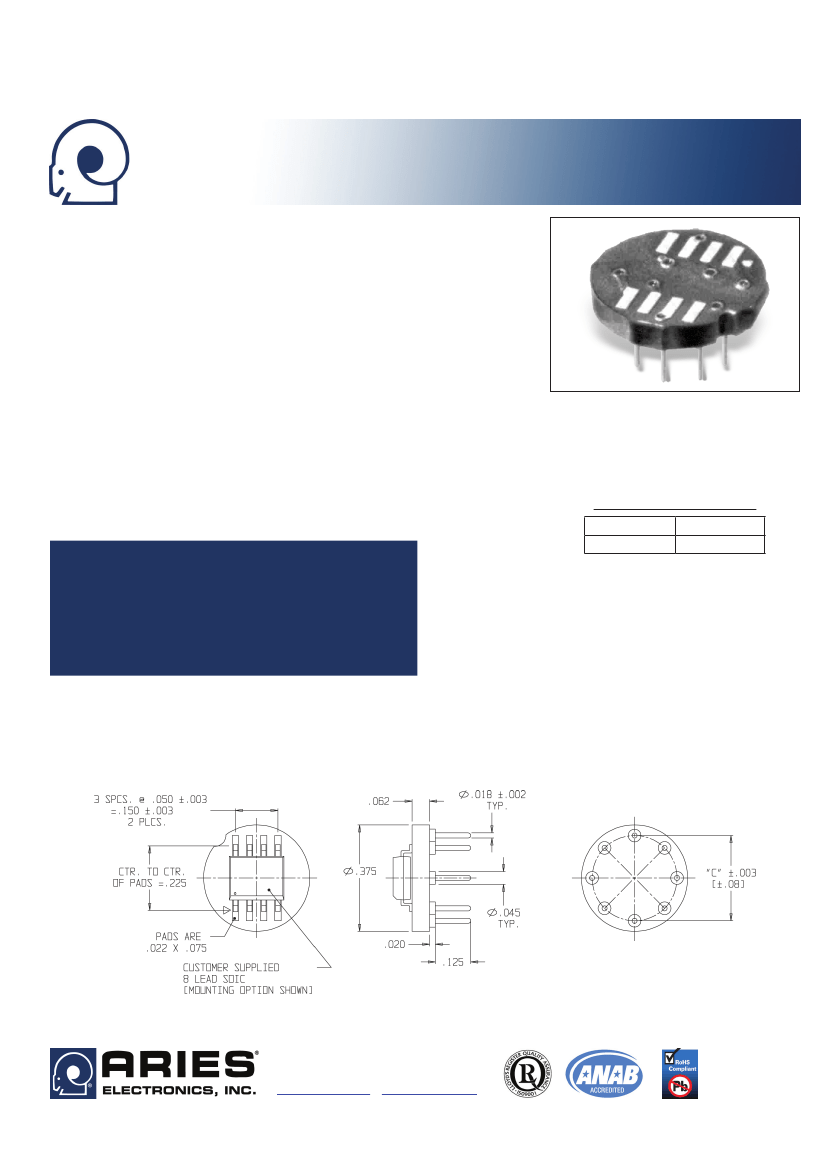

SOIC-to-JEDEC TO Adapter

FEATURES

• Pb-Free RoHs/WEEE-compliant

• 8-position SOIC footprint on the top and a circular, 8-pin JEDEC TO can male pin

footprint on the bottom. ICs now available only in 8-position SOIC packages can be

readily mounted on boards having JEDEC TO thru-hole footprints without having to

redesign the board.

• Consult factory for mounting of consigned chips.

GENERAL SPECIFICATIONS

• ADAPTER BOARD: 0.062 [1.58] thick FR-4 or IS410 per IPC 4101A/26 with

1-oz. Cu traces, both sides

• MALE PINS: Brass 360 1/2-hard per UNS C36000, ASTM B16/B16M

• MALE PIN PLATING: 10µ [0.254µ] min. Au per MIL-G-45204 over 100µ [2.54µ]

Ni per SAE AMS-QQ-N-290

• OPERATING TEMPERATURE: 221°F [105°C]

MOUNTING CONSIDERATIONS

CUSTOMIZATION:

In addition to the standard products shown

on this page, Aries specializes in custom design and production.

Special materials, platings, sizes, and configurations can be

furnished, depending on the quantity.

NOTE:

Aries reserves the

right to change product general specifications without notice.

• SUGGESTED PCB HOLE SIZE: 0.028 ±0.003 [0.71 ±0.08] dia.

ORDERING INFORMATION

P/N

1109814-RC

Dim “C”

0.200 [5.08]

ALL DIMENSIONS: INCHES [MILLIMETERS]

ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED

DIP-to-TO ADAPTER ALSO AVAILABLE. CONSULT

DATA SHEET

18012

CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS

Bristol, PA 19007-6810 USA

TEL (215) 781-9956 • FAX (215) 781-9845

WWW.ARIESELEC.COM • INFO@ARIESELEC.COM

PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED

18013RC

Rev. AA
