MBM29F400TA-12PF-V datasheet, PDF

Datasheet> All Categories > storage> storage> MBM29F400TA-12PF-V

MBM29F400TA-12PF-V: DescriptionIC,EEPROM,NOR FLASH,256KX16/512KX8,CMOS,SOP,44PIN,PLASTIC; Categorystorage storage; File Size774KB，17 Pages; ManufacturerFUJITSU; Websitehttp://edevice.fujitsu.com/fmd/en/index.html

Download Datasheet Parametric Compare View All

MBM29F400TA-12PF-V Overview

IC,EEPROM,NOR FLASH,256KX16/512KX8,CMOS,SOP,44PIN,PLASTIC

MBM29F400TA-12PF-V Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	101130239
package instruction	SOP, SOP44,.63
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum access time	120 ns
Spare memory width	8
startup block	TOP
command user interface	YES
Data polling	YES
Durability	100000 Write/Erase Cycles
JESD-30 code	R-PDSO-G44
JESD-609 code	e0
memory density	4194304 bit
Memory IC Type	FLASH
memory width	16
Number of departments/size	1,2,1,7
Number of terminals	44
word count	262144 words
character code	256000
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
organize	256KX16
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP44,.63
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	PARALLEL
power supply	5 V
Certification status	Not Qualified
ready/busy	YES
Department size	16K,8K,32K,64K
Maximum standby current	0.0001 A
Maximum slew rate	0.08 mA
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
switch bit	YES
type	NOR TYPE

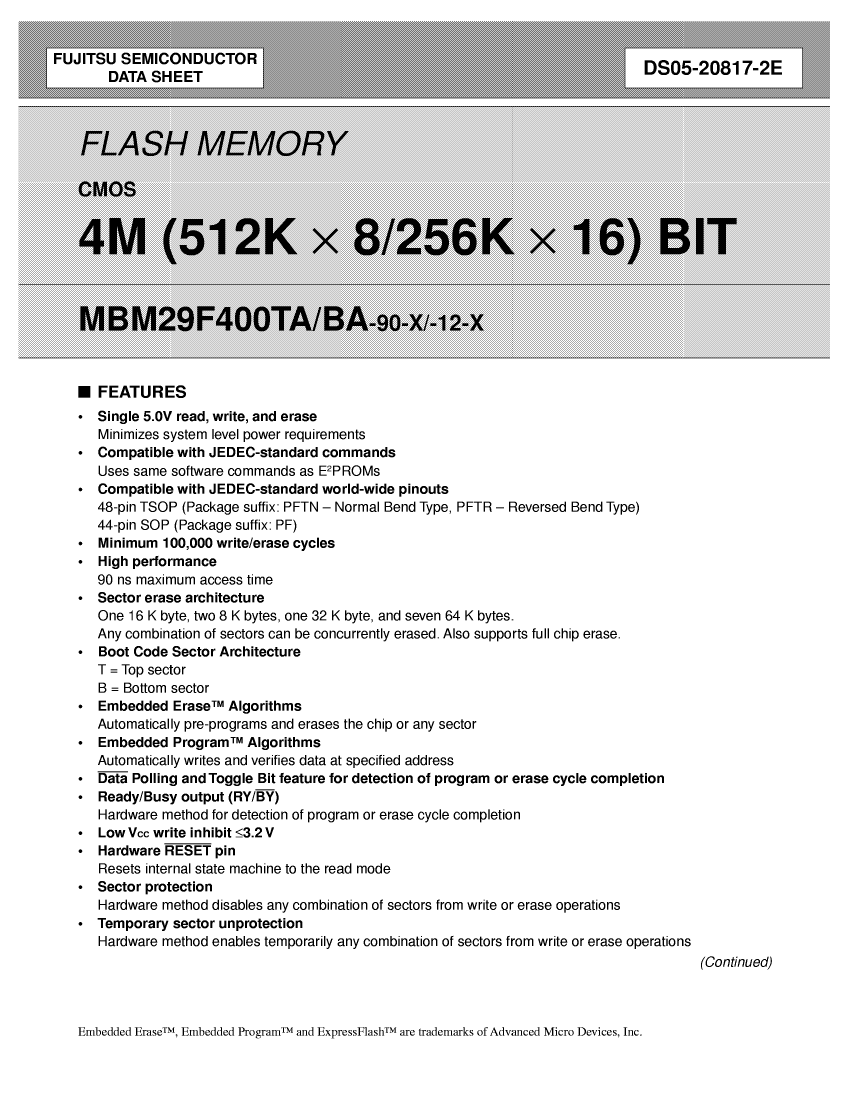

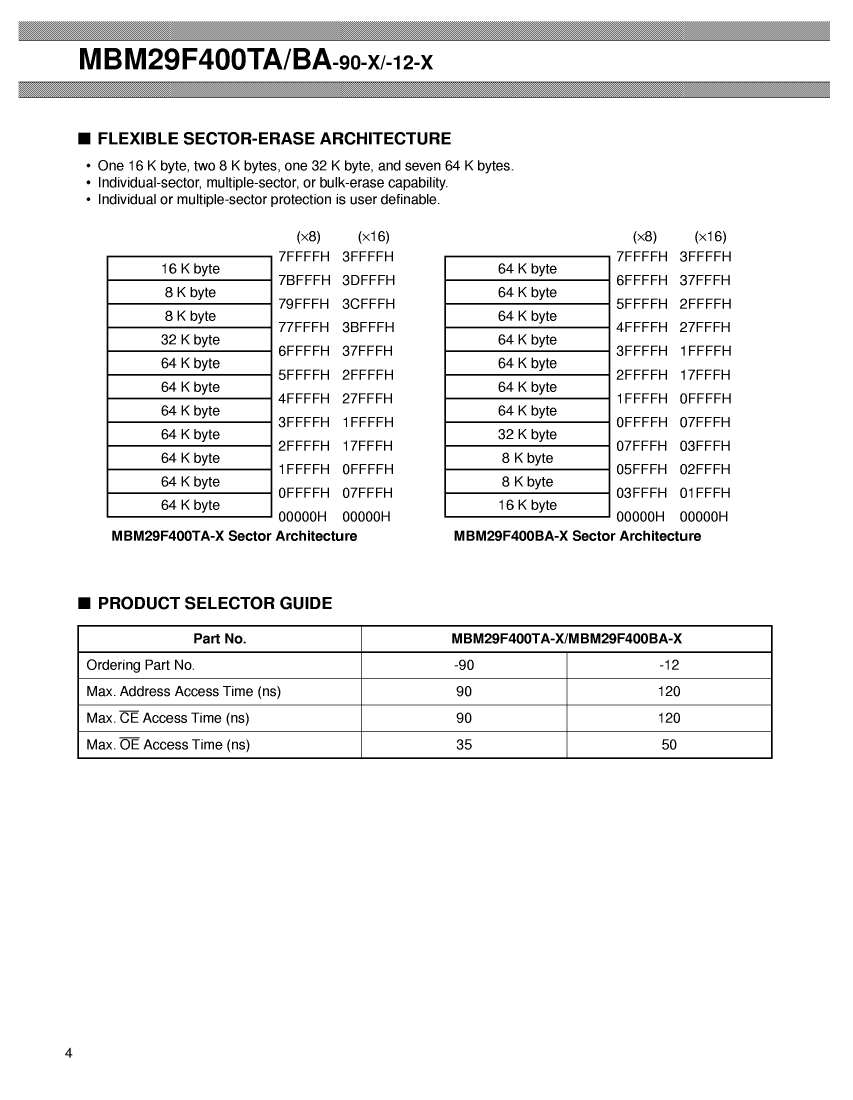

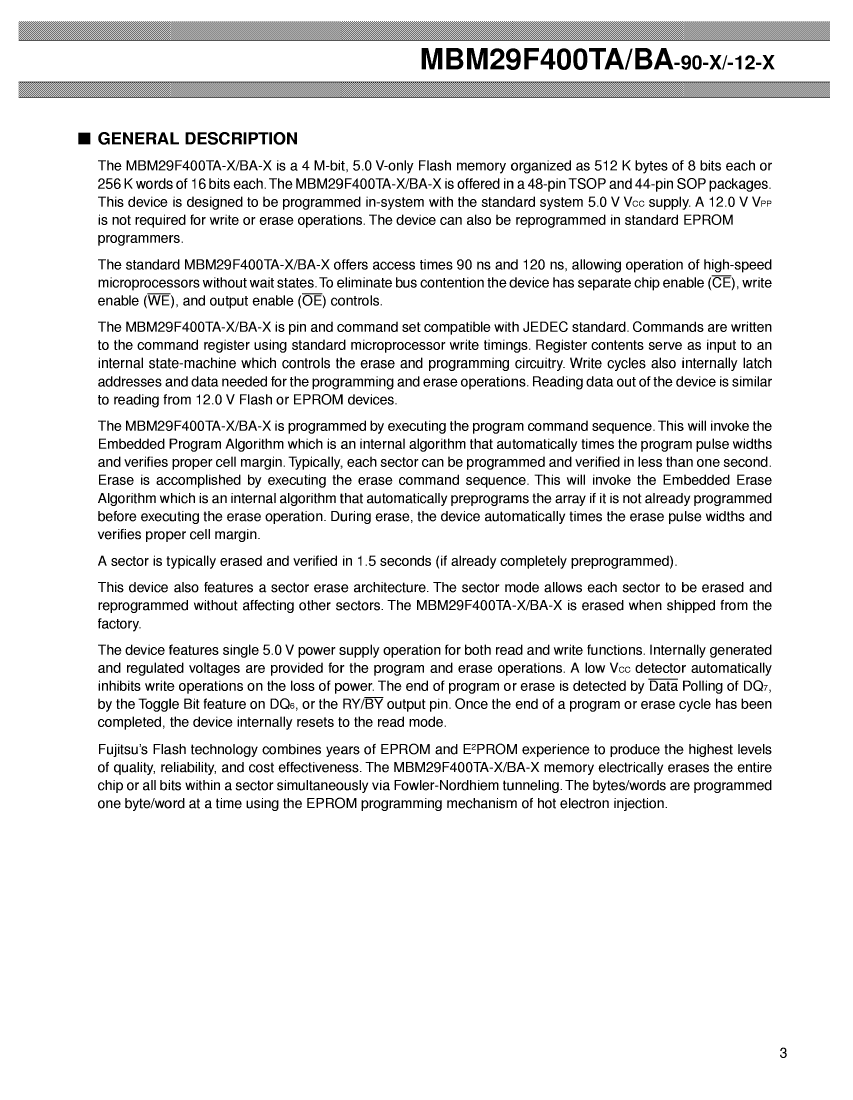

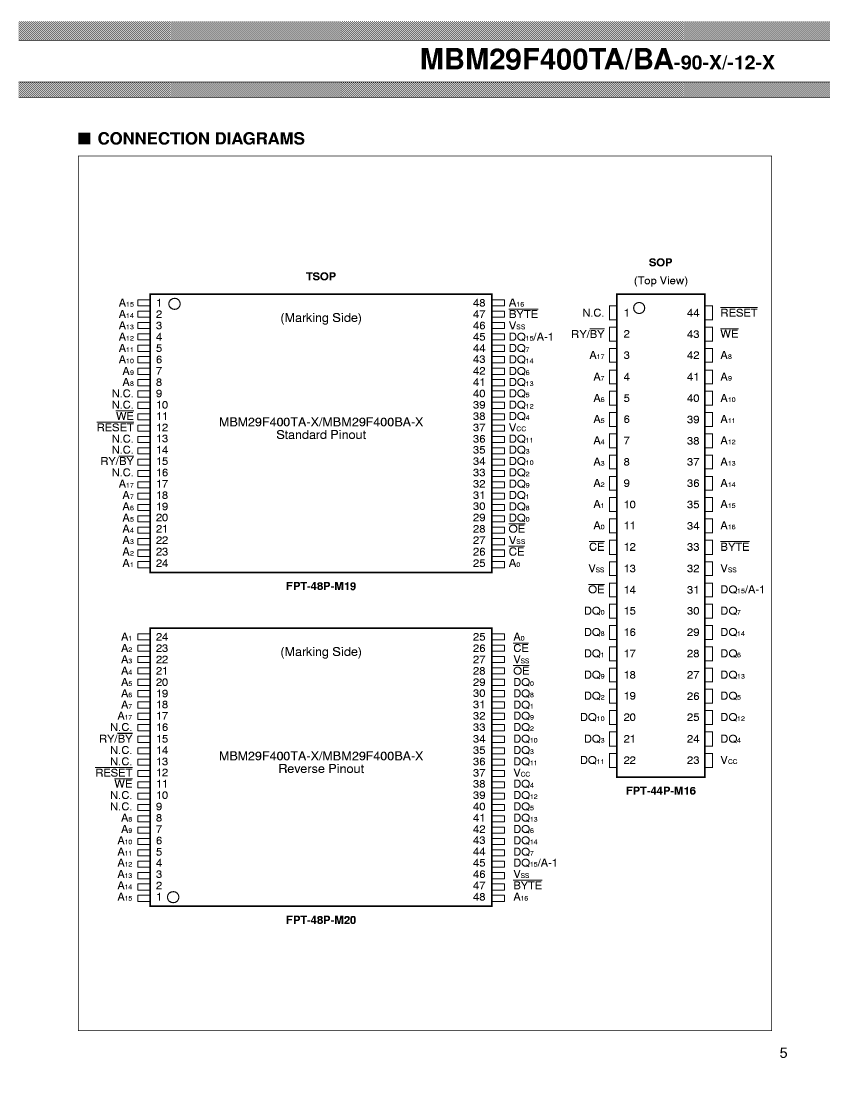

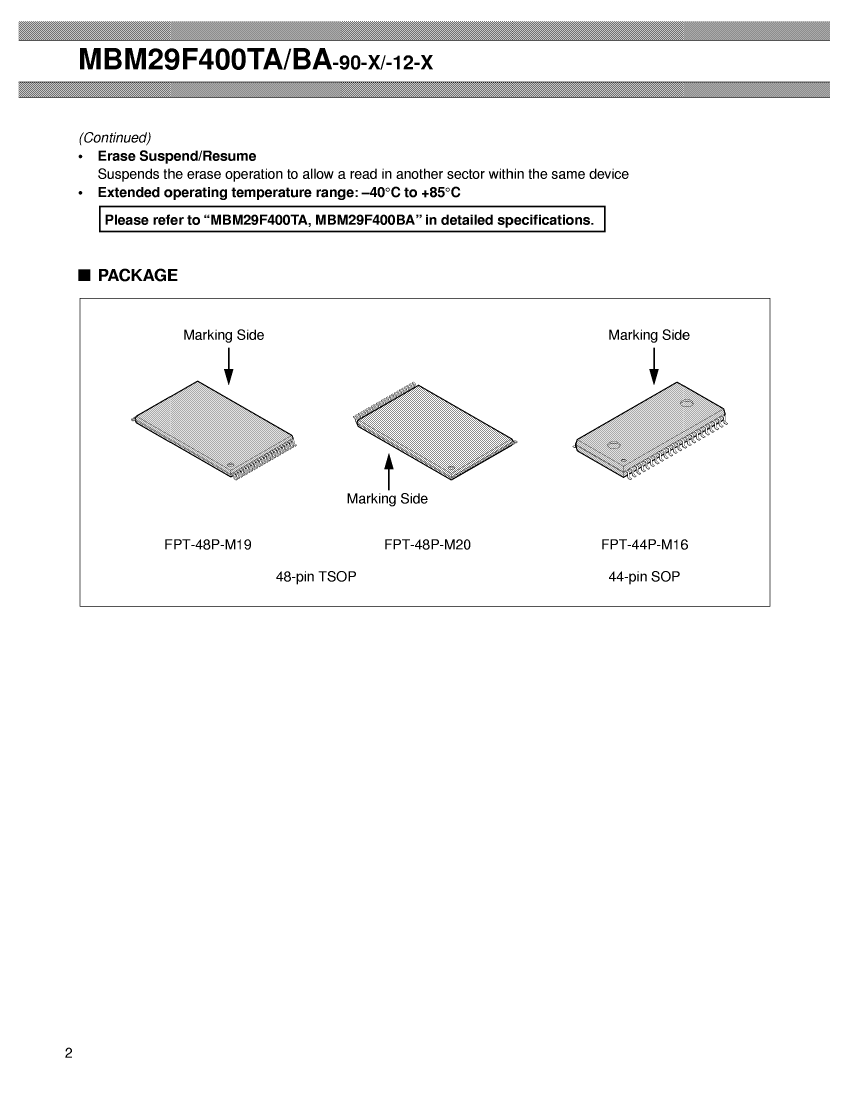

Preview

Download Datasheet

View All

MBM29F400TA-12PF-V Related Products

	MBM29F400TA-12PF-V	MBM29F400TA-12PFTR-X	MBM29F400TA-90PFTN-X	MBM29F400BA-12PF-V
Description	IC,EEPROM,NOR FLASH,256KX16/512KX8,CMOS,SOP,44PIN,PLASTIC	Flash, 512KX8, 120ns, PDSO48, PLASTIC, REVERSE, TSOP-48	Flash, 512KX8, 90ns, PDSO48, PLASTIC, TSOP-48	IC,EEPROM,NOR FLASH,256KX16/512KX8,CMOS,SOP,44PIN,PLASTIC
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
package instruction	SOP, SOP44,.63	PLASTIC, REVERSE, TSOP-48	PLASTIC, TSOP-48	SOP, SOP44,.63
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Maximum access time	120 ns	120 ns	90 ns	120 ns
Spare memory width	8	8	8	8
startup block	TOP	TOP	TOP	BOTTOM
command user interface	YES	YES	YES	YES
Data polling	YES	YES	YES	YES
Durability	100000 Write/Erase Cycles	100000 Write/Erase Cycles	100000 Write/Erase Cycles	100000 Write/Erase Cycles
JESD-30 code	R-PDSO-G44	R-PDSO-G48	R-PDSO-G48	R-PDSO-G44
JESD-609 code	e0	e0	e0	e0
memory density	4194304 bit	4194304 bit	4194304 bit	4194304 bit
Memory IC Type	FLASH	FLASH	FLASH	FLASH
memory width	16	8	8	16
Number of departments/size	1,2,1,7	1,2,1,7	1,2,1,7	1,2,1,7
Number of terminals	44	48	48	44
word count	262144 words	524288 words	524288 words	262144 words
character code	256000	512000	512000	256000
Maximum operating temperature	105 °C	85 °C	85 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
organize	256KX16	512KX8	512KX8	256KX16
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	TSOP1-R	TSOP1	SOP
Encapsulate equivalent code	SOP44,.63	TSSOP48,.8,20	TSSOP48,.8,20	SOP44,.63
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL
power supply	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
ready/busy	YES	YES	YES	YES
Department size	16K,8K,32K,64K	16K,8K,32K,64K	16K,8K,32K,64K	16K,8K,32K,64K
Maximum standby current	0.0001 A	0.0001 A	0.0001 A	0.0001 A
Maximum slew rate	0.08 mA	0.08 mA	0.08 mA	0.08 mA
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	0.5 mm	0.5 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
switch bit	YES	YES	YES	YES
type	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE
