MOC8107.300 datasheet, PDF - EEWORLD Datasheet

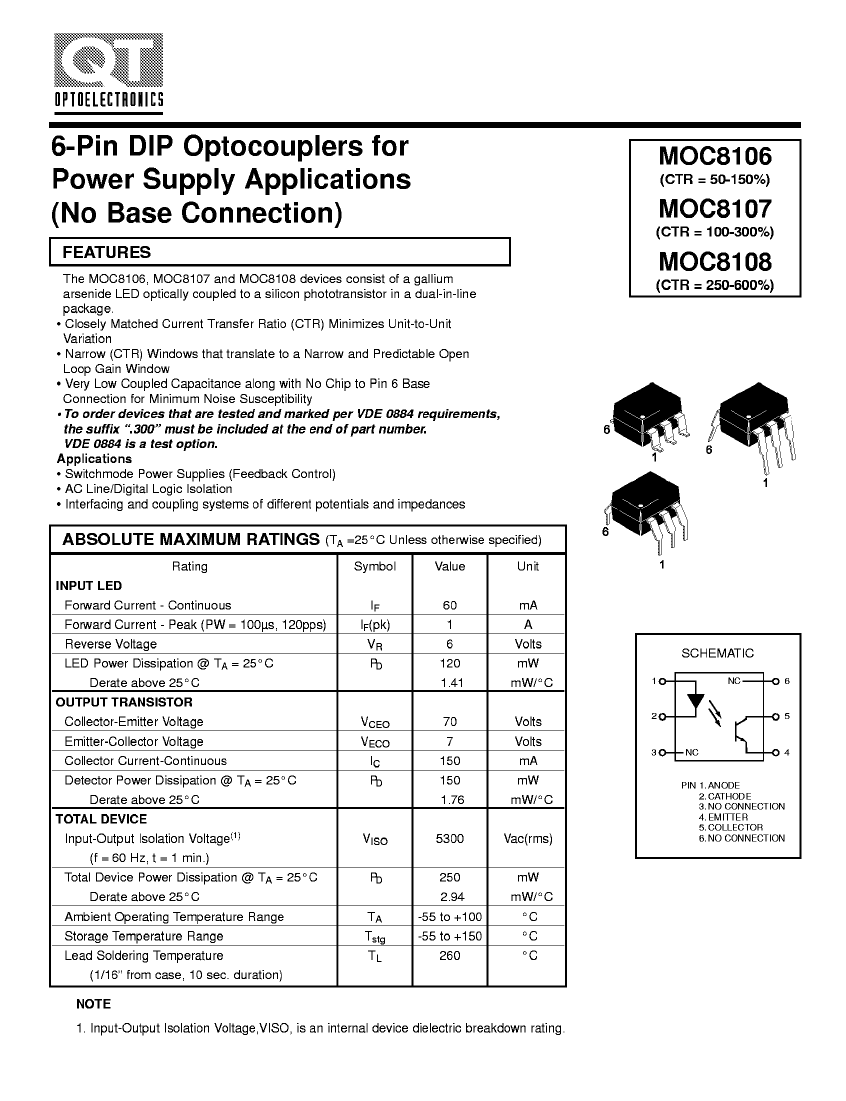

MOC8107.300: DescriptionTransistor Output Optocoupler, 1-Element, 5300V Isolation, DIP-6; CategoryLED optoelectronic/LED photoelectric; File Size106KB，4 Pages; ManufacturerQT Optoelectronics

Download Datasheet Parametric Compare View All

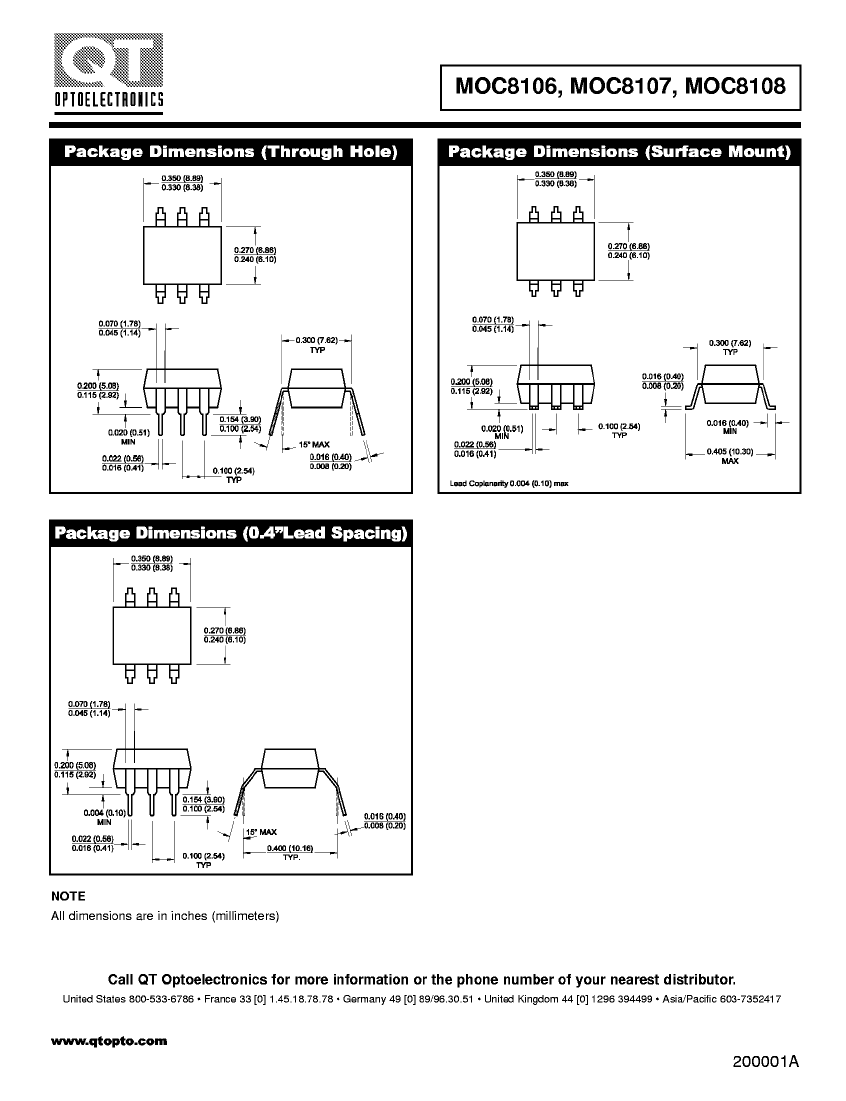

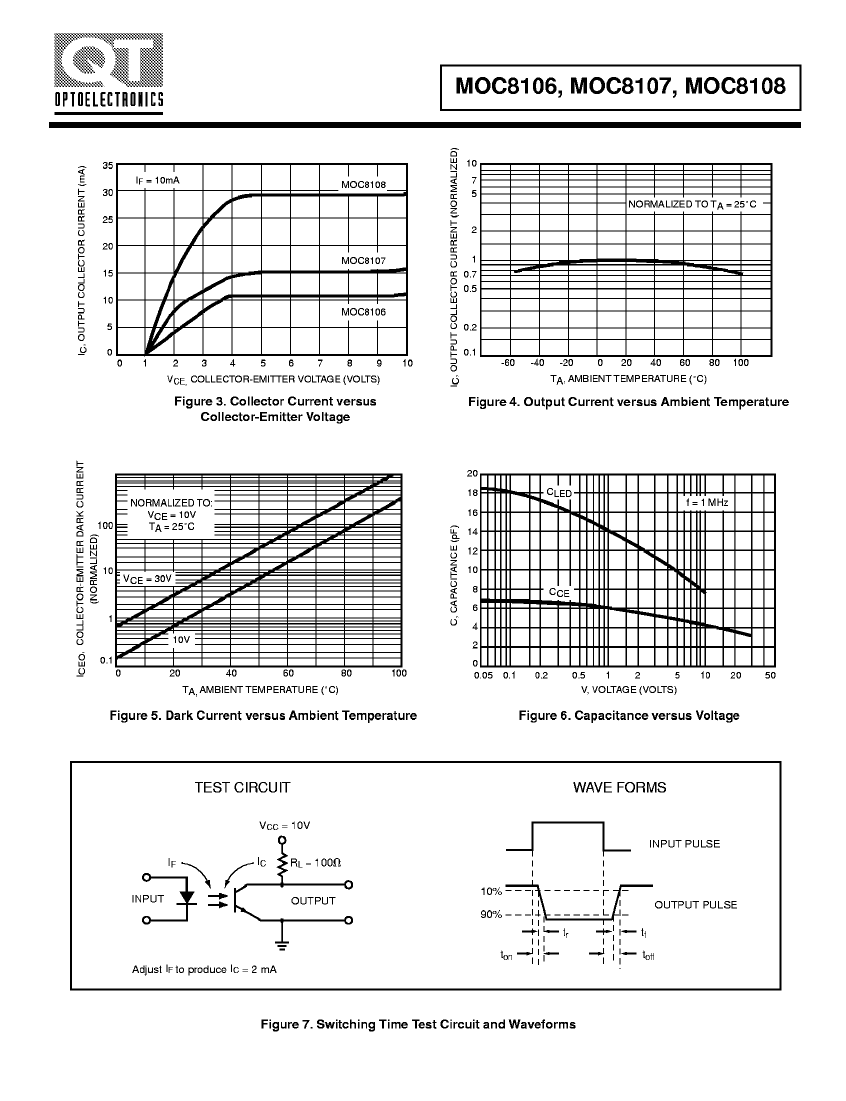

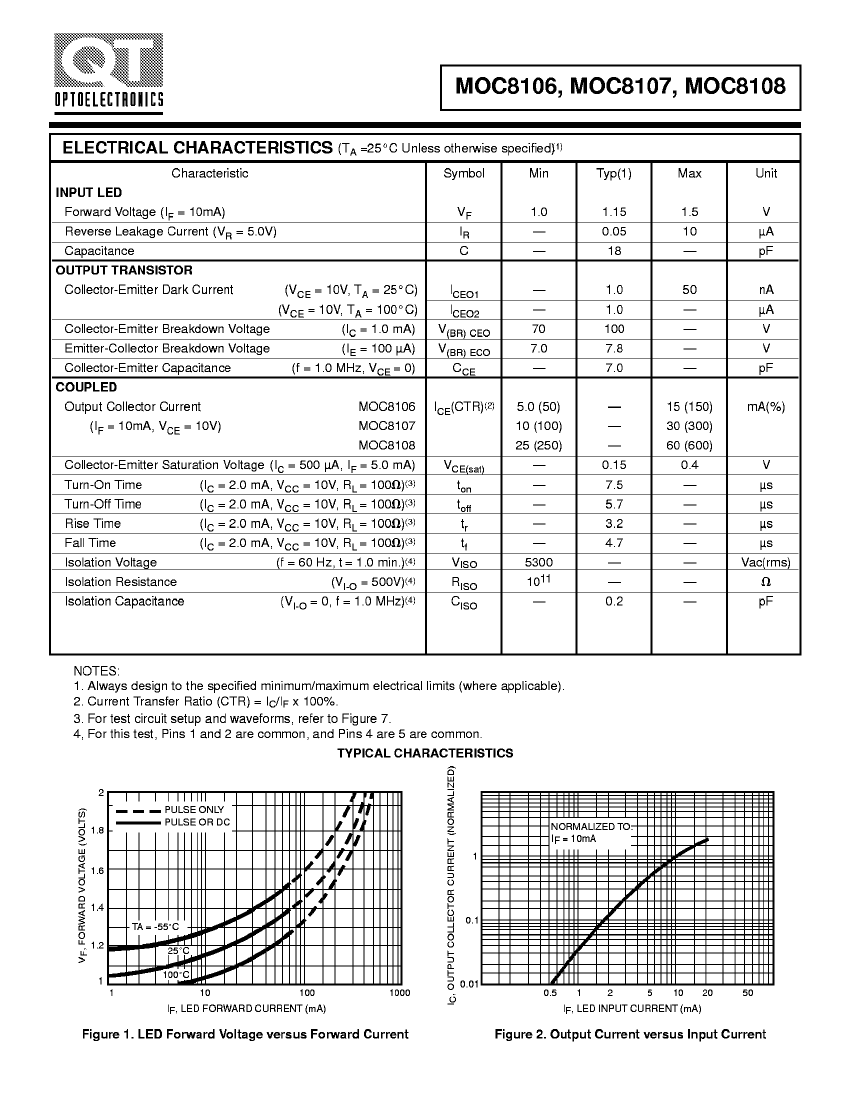

MOC8107.300 Overview

Transistor Output Optocoupler, 1-Element, 5300V Isolation, DIP-6

Parameter Name	Attribute value
Maker	QT Optoelectronics
package instruction	DIP-6
Reach Compliance Code	unknown
Other features	VDE APPROVED
Coll-Emtr Bkdn Voltage-Min	70 V
Configuration	SINGLE
Nominal current transfer ratio	100%
Maximum dark power	50 nA
Maximum forward current	0.06 A
Maximum insulation voltage	5300 V
Number of components	1
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
Optoelectronic device types	TRANSISTOR OUTPUT OPTOCOUPLER

	MOC8107.300	MOC8108	MOC8108.300	MOC8106.300	MOC8106	MOC8107
Description	Transistor Output Optocoupler, 1-Element, 5300V Isolation, DIP-6	Transistor Output Optocoupler, 1-Element, 5300V Isolation, DIP-6	Transistor Output Optocoupler, 1-Element, 5300V Isolation, DIP-6	Transistor Output Optocoupler, 1-Element, 5300V Isolation, DIP-6	Transistor Output Optocoupler, 1-Element, 5300V Isolation, DIP-6	Transistor Output Optocoupler, 1-Element, 5300V Isolation, DIP-6
package instruction	DIP-6	DIP-6	DIP-6	DIP-6	DIP-6	DIP-6
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknow
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Nominal current transfer ratio	100%	250%	250%	50%	50%	100%
Maximum dark power	50 nA	50 nA	50 nA	50 nA	50 nA	50 nA
Maximum forward current	0.06 A	0.06 A	0.06 A	0.06 A	0.06 A	0.06 A
Maximum insulation voltage	5300 V	5300 V	5300 V	5300 V	5300 V	5300 V
Number of components	1	1	1	1	1	1
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Optoelectronic device types	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER
Maker	QT Optoelectronics	-	QT Optoelectronics	QT Optoelectronics	QT Optoelectronics	QT Optoelectronics
Coll-Emtr Bkdn Voltage-Min	70 V	70 V	70 V	70 V	70 V	-
