SAW Filter 1680 MHz
MODEL NO.:TA0891A
A. MAXIMUM RATING:
1. Input Power Level: 10 dBm
2. DC Voltage : 3V
3. Operating Temperature: -40°C to +85°C
4. Storage Temperature: -50°C to +95°C
B. ELECTRICAL CHARACTERISTICS:
Terminating source impedance (differential) :
Terminating load impedance (differential) :
Item
Center Frequency
Bandwidth at –2 dB
Insertion Loss
in 1650~1710 MHz
Amplitude ripple
(1650 MHz ~ 1710 MHz)
Phase error
(1650 MHz ~ 1710 MHz)
(3)
I/O VSWR
(1650 MHz ~ 1710 MHz)
CMDR
(1650 MHz ~ 1710 MHz)
Attenuation
(1)
50 ~ 1580
1800 ~ 3000
3000 ~ 4000
4000 ~ 6000
MHz
MHz
MHz
MHz
dB
dB
dB
dB
44
44
35
18
55
50
40
23
-
-
-
-
-
-
-
-
dB
Fc
REV. NO.:1
RoHS Compliant
Lead free
Lead-free soldering
Zs = 150
Ω
// 15 nH
Z
L
= 150
Ω
// 15 nH
Unit
MHz
MHz
dB
dB
deg
Min.
-
60
-
-
-
-
25
Typ.
1680
76
3.7
1.2
2
1.5
30
Max.
-
-
5
2
5
2.5
-
Note
-
-
-
-
-
-
-
Notes :
(1) The amplitude reference is insertion loss at Fc.
(2) The amplitude ripple is defined as the max. level – min. level over any 36 MHz
block of the given bandwidth.
(3) The phase error is measured over any 36 MHz block of the given bandwidth.
TAI-SAW TECHNOLOGY CO., LTD.
TST DCC
Release document
2
C.OUTLINE DRAWING:
G
D. MEASUREMENT CIRCUIT:
△
□
150Ω
15nH
B
Y
H
A, B : Balance Input
D, E : Balance Output
C,F,G,H : Ground
Unit : mm
△
: Year Code (2006->6, …, 2009->9)
□
: Date Code (Follow the table from planner each year)
15nH
150Ω
TAI-SAW TECHNOLOGY CO., LTD.
TST DCC
Release document
3

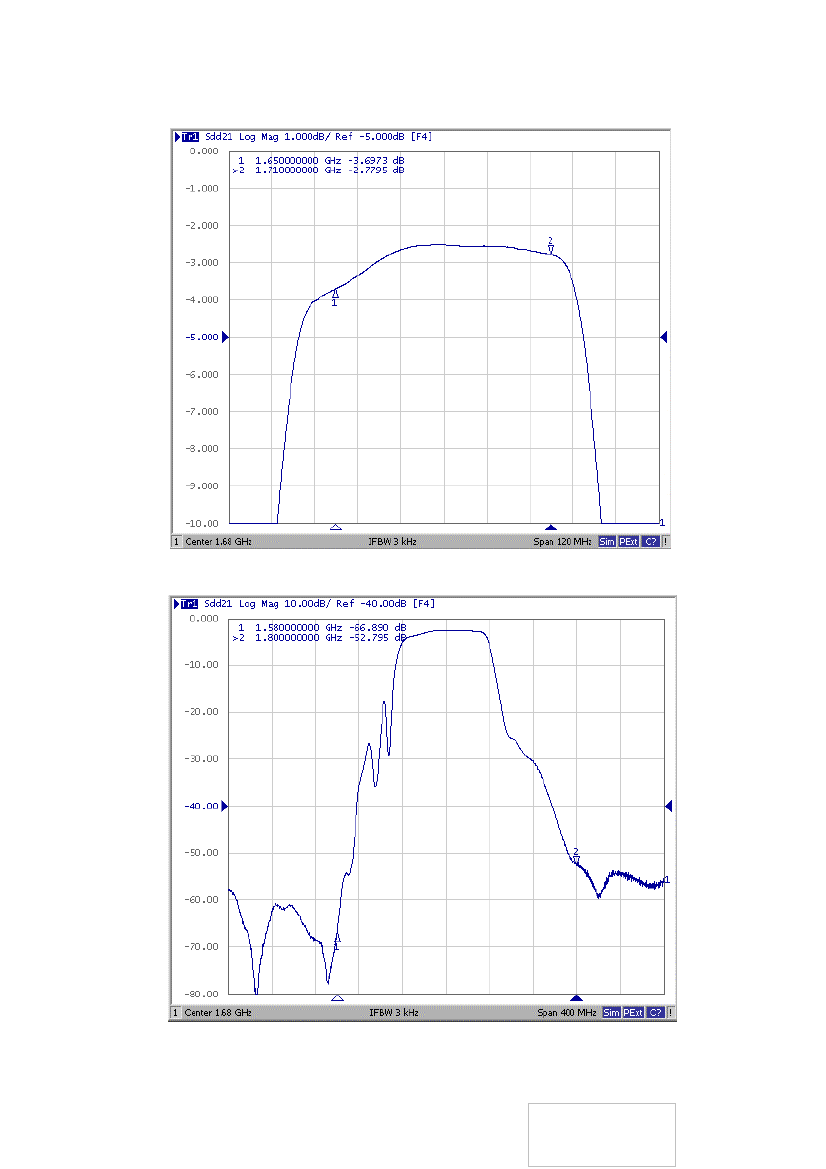

F. Frequency Characteristics :
TAI-SAW TECHNOLOGY CO., LTD.
TST DCC
Release document
5
