1N6469US thru 1N6476US
Voidless-Hermetically-Sealed Surface
Mount Unidirectional Transient
Suppressors
SCOTTSDALE DIVISION
DESCRIPTION
This surface mount series of industry recognized voidless-hermetically-sealed
Unidirectional Transient Voltage Suppressor (TVS) designs is military qualified to MIL-
PRF-19500/552 and are ideal for high-reliability applications where a failure cannot be
tolerated. They provide a Working Peak “Standoff” Voltage selection from 5.0 to 51.6
Volts with 1500 W ratings. They are very robust in hard-glass construction and also
use an internal metallurgical bond identified as Category I for high reliability
applications. The 1500 W series is military qualified to MIL-PRF-19500/552. These
devices are also available in axial-leaded packages for thru-hole mounting by deleting
the “US” suffix (see separate data sheet for 1N6469 thru 1N6476A). Microsemi also
offers numerous other TVS products to meet higher and lower peak pulse power and
voltage ratings in both through-hole and surface-mount packages.
IMPORTANT:
For the most current data, consult
MICROSEMI’s
website:
http://www.microsemi.com
APPEARANCE
WWW .
Microsemi
.
C OM
Package “G”
(or “D-5C”)
FEATURES
•
•
•
•
•
High surge current and peak pulse power provides
transient voltage protection for sensitive circuits
Triple-layer passivation
Internal “Category
I”
metallurgical bonds
Voidless hermetically sealed glass package
JAN/TX/TXV military qualifications available per MIL-
PRF-19500/552 by adding JAN, JANTX, or JANTXV
prefix
Further options for screening in accordance with MIL-
PRF-19500 for JANS by using a “SP” prefix, e.g.
SP6469, SP6476, etc.
Axial-leaded equivalents are also available (see
separate data sheet for 1N6469 thru 1N6476)
•
•
•
•
•
•
•
•
•
APPLICATIONS / BENEFITS
Military and other high reliability transient protection
Extremely robust construction
Working Peak “Standoff” Voltage (V
WM
) from 5.0 to
51.6 V
Available as 1500 W Peak Pulse Power (P
PP
)
ESD and EFT protection per IEC61000-4-2 and
IEC61000-4-4 respectively
Secondary lightning protection per select levels in
IEC61000-4-5
Square-end-cap terminals for easy mounting
Nonsensitive to ESD per MIL-STD-750 Method
1020
Inherently radiation hard as described in Microsemi
MicroNote 050
•
•
MAXIMUM RATINGS
MECHANICAL AND PACKAGING
•
CASE: Hermetically sealed voidless hard glass
•
Operating & Storage Temperature: -55
o
C to +175
o
C
o
with Tungsten slugs
•
Peak Pulse Power at 25 C: 1500 Watts @ 10/1000 µs
•
TERMINATIONS: End caps are Copper with
(also see Figures 1,2 and 4)
Tin/Lead (Sn/Pb) finish. Note: Previous inventory
•
Impulse repetition rate (duty factor): 0.01%
had solid Silver end caps with Tin/Lead (Sn/Pb)
•
Forward Surge Current: 130 Amps@ 8.33 ms one-
finish.
half sine wave
•
MARKING: Body painted and part number, etc.
•
Forward Voltage: 1.5 V @ 4 Amps dc and 4.8 V at
•
POLARITY: Cathode band
100 Amps (pulsed)
•
Tape & Reel option: Standard per EIA-481-B
•
Steady-State Power: 3.0 W @ T
A
= 25
o
C (see note
•
Weight: 1100 mg
below and Figure 4)
o
•
See package dimensions on last page
•
Thermal Resistance Junction to End Cap: 20.0 C/W
o
•
Solder Temperatures: 260 C for 10 s (maximum)
NOTE:
Steady-state power ratings with reference to ambient are for PC boards where thermal resistance from
mounting point to ambient is sufficiently controlled where T
J(MAX)
is not exceeded.
1N6469US – 1N6476US
Copyright
©
2007
10-03-2007 REV D
Microsemi
Scottsdale Division
8700 E. Thomas Rd. PO Box 1390, Scottsdale, AZ 85252 USA, (480) 941-6300, Fax: (480) 947-1503
Page 1
1N6469US thru 1N6476US
Voidless-Hermetically-Sealed Surface
Mount Unidirectional Transient
Suppressors
SCOTTSDALE DIVISION
ELECTRICAL CHARACTERISTICS
BREAK
DOWN
VOLTAGE
V(BR)
MIN.
Volts
5.6
6.5
13.6
16.4
27.0
33.0
43.7
54.0
BREAKDOWN
CURRENT
I
(BR)
WORKING
PEAK
VOLTAGE
V
WM
Vdc
5
6
12
15
24
30.5
40.3
51.6
MAX
LEAKAGE
CURRENT
I
D
μAdc
1500
1000
20
10
5
5
5
5
MAXIMUM
CLAMPING
VOLTAGE
V
C
MAXIMUM
PEAK PULSE
CURRENT
I
PP
@8/20 µs
A(pk)
945
775
374
322
207
181
135
107
@10/1000 µs
A(pk)
167
137
66
57
36.5
32
24
19
MAXIMUM
TEMP.
COEF. OF
V
(BR)
%/ C
-.03, +0.04
0.06
0.085
0.085
.096
.098
.101
.103
o
WWW .
Microsemi
.C
OM
TYPE
@ 10/1000 µs
V(pk)
9.0
11.0
22.6
26.5
41.4
47.5
63.5
78.5
1N6469US
1N6470US
1N6471US
1N6472US
1N6473US
1N6474US
1N6475US
1N6476US
mAdc
50
50
10
10
5
1
1
1
Symbol
V
BR
V
WM
I
D
V
C
P
PP
SYMBOLS & DEFINITIONS
Definition
Minimum Breakdown Voltage: The minimum voltage the device will exhibit at a specified current.
Working Peak Voltage: The maximum peak voltage that can be applied over the operating temperature range.
This is also referred to as Standoff Voltage.
Maximum Standoff Current: The maximum current that will flow at the specified voltage and temperature.
Maximum clamping voltage at specified I
PP
(Peak Pulse Current) at the specified pulse conditions.
Peak Pulse Power: The peak power dissipation resulting from the peak impulse current I
PP
.
GRAPHS
Pulse current (I
P
) in percent of I
PP
Peak Value
1N6469US – 1N6476US
I
PP
Pulse time duration (tp) is
defined as that point where
I
P
decays to 50% of peak
value (I
PP
).

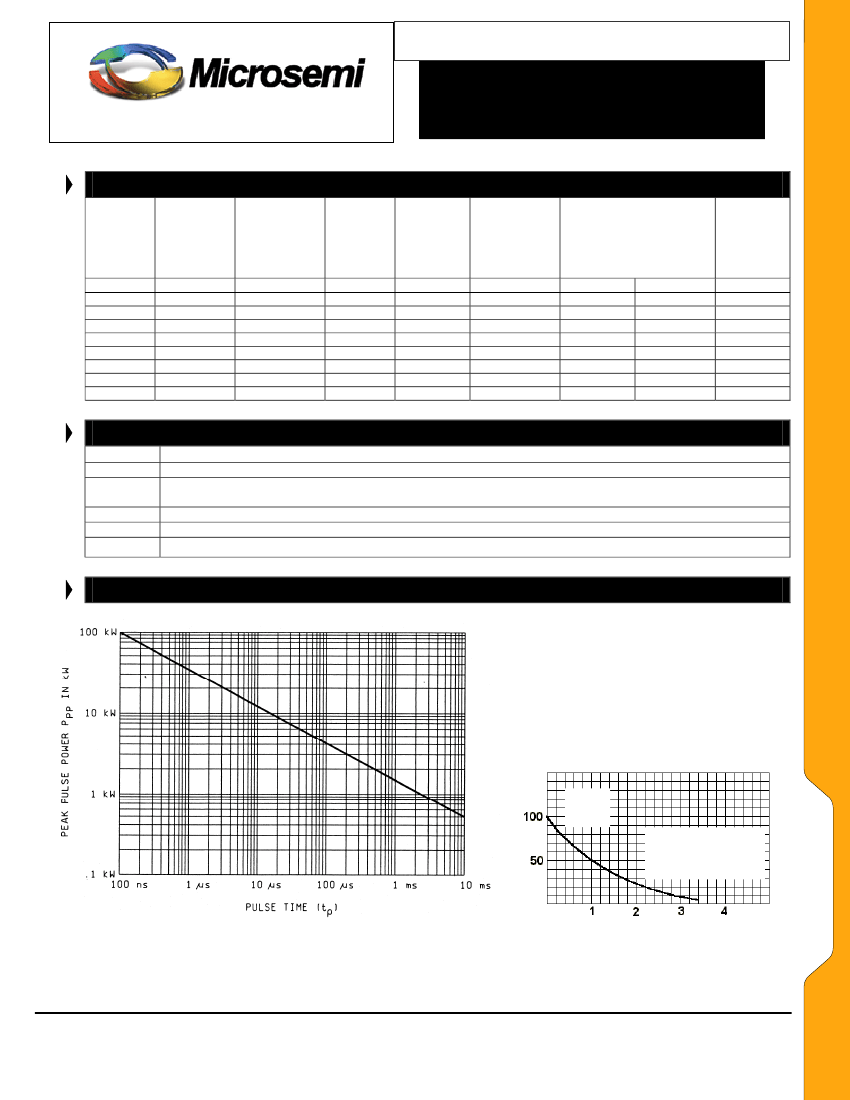

FIG. 1 –
Non-repetive peak pulse power rating curve
NOTE: Peak power defined as peak voltage times peak current
time (t) in milliseconds
FIG. 2
Pulse wave form for exponential surge
for 10/1000 µs
Copyright
©
2007
10-03-2007 REV D
Microsemi
Scottsdale Division
8700 E. Thomas Rd. PO Box 1390, Scottsdale, AZ 85252 USA, (480) 941-6300, Fax: (480) 947-1503
Page 2
1N6469US thru 1N6476US
Voidless-Hermetically-Sealed Surface
Mount Unidirectional Transient
Suppressors
SCOTTSDALE DIVISION
WWW .
Microsemi
.C
OM
Peak Pulse Power (Ppp), Current (Ipp),
and DC Power in Percent of 25
o
C Rating

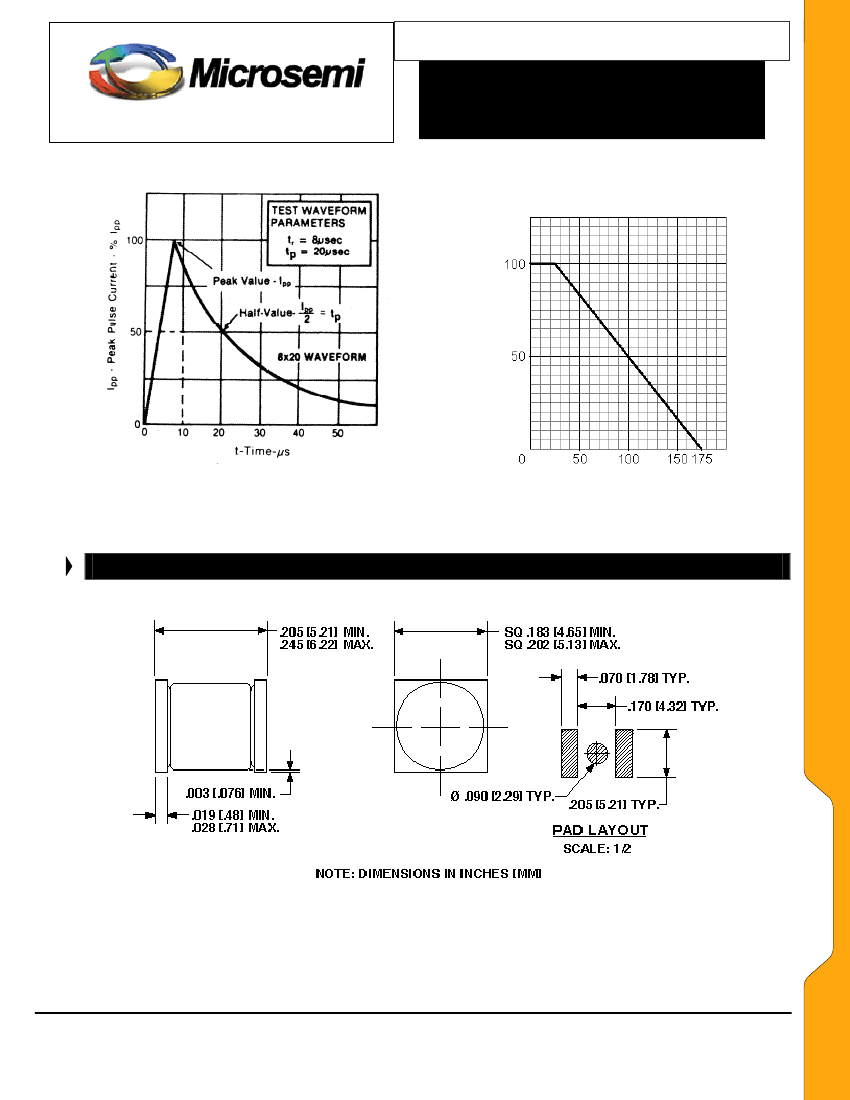

FIGURE 3
8/20 µs CURRENT IMPULSE WAVEFORM
T – Temperature –
o
C
FIGURE 4
DERATING CURVE
PACKAGE DIMENSIONS Inches [mm]
1N6469US – 1N6476US
G-MELF-PKG (D-5C)
Note:
If mounting requires adhesive separate from the solder,
an additional 0.090 inch diameter contact may be placed in the
center between the pads as an optional spot for cement as
shown in the pad layout.
Copyright
©
2007
10-03-2007 REV D
Microsemi
Scottsdale Division
8700 E. Thomas Rd. PO Box 1390, Scottsdale, AZ 85252 USA, (480) 941-6300, Fax: (480) 947-1503
Page 3
