TAI-SAW TECHNOLOGY CO., LTD.
Low-Loss 70 MHz IF SAW Filter (SMD 13.3
×
6.5 mm)
Model No.: TB0212A
A. Maximum Rating:
1. Input Power Level: +20 dB
m
2. Operating Temperature: -30°C to +80°C
3. Storage Temperature: -40°C to +85°C
B. Electrical Characteristics:
Parameters
Center frequency,
Fc
Insertion Loss,
IL
1 dB Bandwidth
3 dB Bandwidth
40 dB Bandwidth
Relative Attenuation:
10 to 64.5 MHz
75.5 to 140 MHz
Amplitude ripple
within Fc
±
2.1 MHz
Group Delay ripple
within Fc
±
2.1 MHz
Rev. No.:4
RoHS Compliant
Lead free
Lead-free soldering
Unit
MHz
dB
MHz
MHz
MHz
dB
dB
dB
nsec
-
ppm/
°C
Min.
69.8
-
5.2
6.0
-
40
40
-
-
-
-
Typical
70
7.6
5.4
6.5
9.5
45
43
0.8
140
YZ-LN
-94
Max.
70.2
9.0
-
-
10.0
-
-
1.0
170
-
-
Substrate Material
Temperature Coefficient of frequency
TAI-SAW TECHNOLOGY CO., LTD.
TST DCC
Release document
2

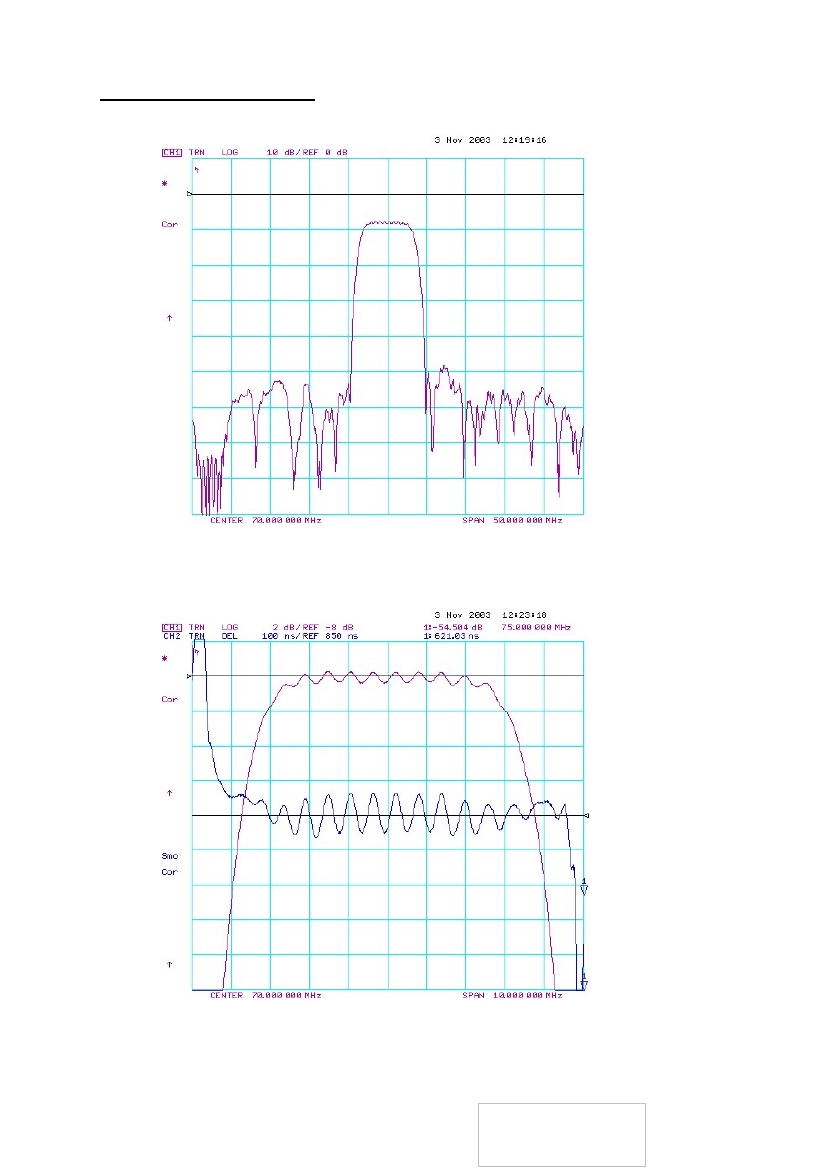

C. Frequency Characteristics:
(1) Frequency Response
(2) Passband response and Group Delay Variation
TAI-SAW TECHNOLOGY CO., LTD.
TST DCC
Release document
3
D. Measurement Circuit:
Source and load impedance: 50
Ω
Network analyzer
L1
50Ω
K
SAW Filter
E
L2
50Ω
C2
A,B,C,D,F,G,H,I,J,L
Input: L1=220 nH, Q>40
Output: L2=150 nH, Q>40; C2=5 pF

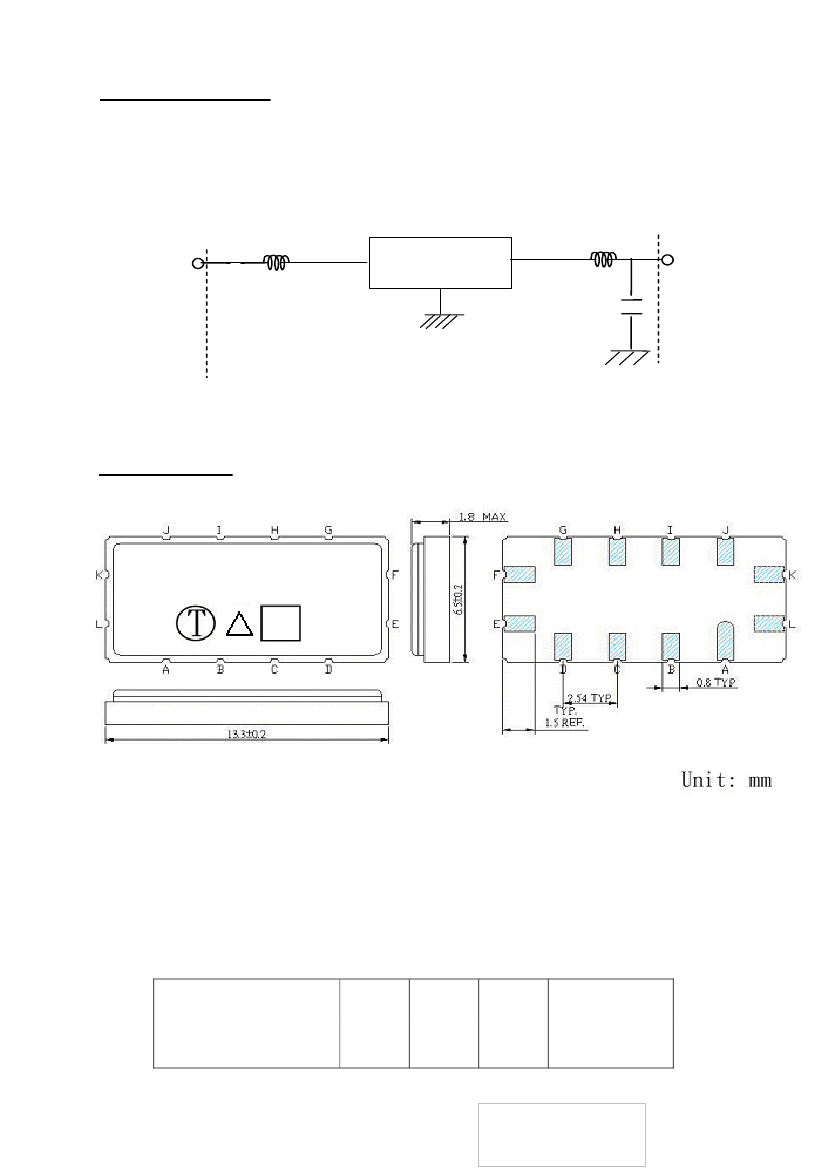

E. Outline Drawing:
212
Pin K: RF Input
Pin E: RF Output
Pin L: Input Ground
Pin F: Output Ground
Pin A, B, C, D, G, H, I, J: To be Ground
□:
Date code
△
: Product / Year Code
Year
2005
2009
2006
2010
2007
2011
2008
2012
TAI-SAW TECHNOLOGY CO., LTD.
TST DCC
Release document
4
Product Code
B
b
B
b

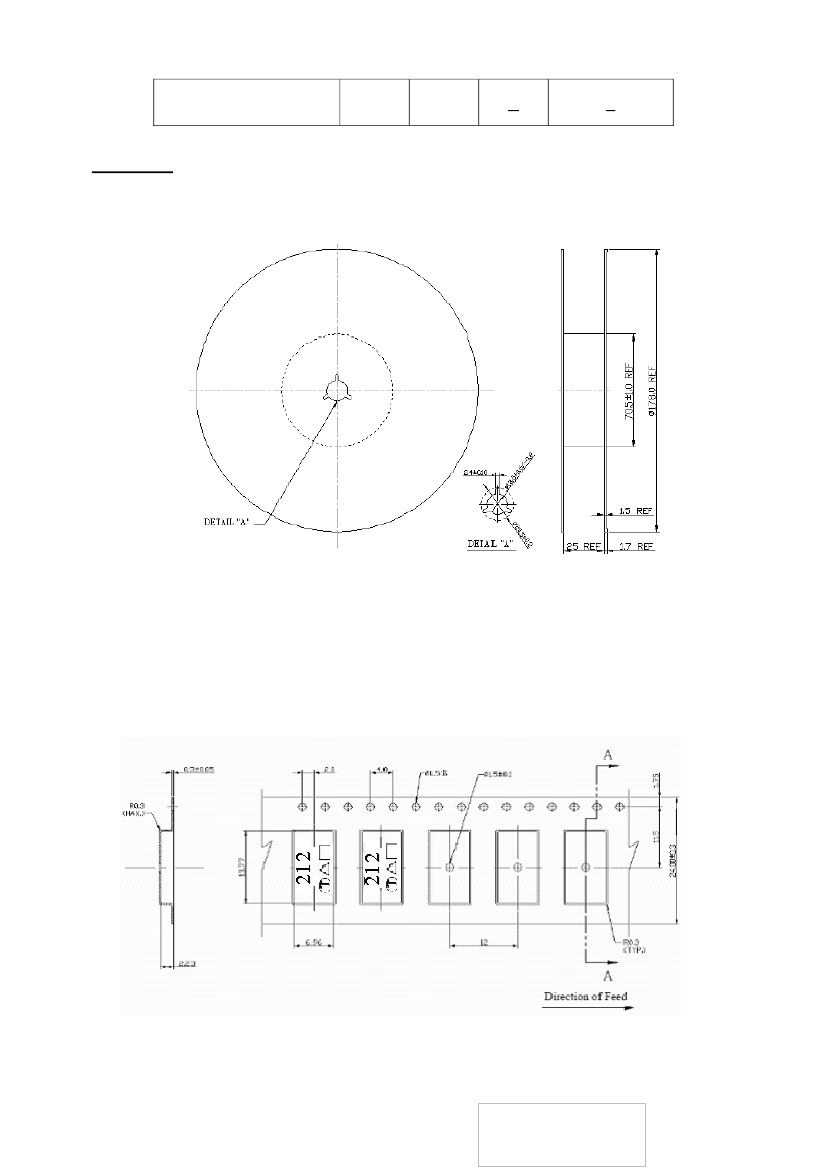

F.PACKING:
REEL DIMENSION:
(Reel Count: 7”=500 ; 13”=1000)
TAPE DIMENSION:
TAI-SAW TECHNOLOGY CO., LTD.
TST DCC
Release document
5
