3.3Vdc HCMOS/TTL COMPATIBLE
SMD VOLTAGE CONTROL CRYSTAL OSCILLATOR
ASVV SERIES
*RoHS COMPLIANT
• Suitable for reflow methods
7.0 x 5.0 x 1.7mm
| | | | | | | | | | | | | | |
FEATURES:
• Low profile (1.7) ceramic VCXO
• Enable/Disable functions
• 7.0mm x 5.0mm seam welded
• HCMOS/TTL output
APPLICATIONS:
• Phase locked loops (PLLs)
• Synthesizers
• Clock Recover, Digital Transmission device
• Digital set-top box
STANDARD SPECIFICATIONS:
PARAMETERS
Frequency Range
Operating Temperature
Storage Temperature
Overall Frequency Stability
Supply Voltage (Vdd)
Input Current
1.00 MHz to 155.52 MHz
0°C to + 70°C
- 40°C to + 85°C
± 50 ppm max.
3.3 Vdc ± 5%
10 mA max. For 1MHz to 20MHz
15 mA max. For 20.01MHz to 40MHz
40 mA max. For 40.01MHz to 60MHz
40/60 % max. @ 1/2Vdd (see options)
8nS max
15pF (2TTL)
100ns max
VOH = 0.9* Vdd min
VOL = 0.1* Vdc max
1.65Vdc ± 1.5V (see options)
± 80 ppm min.
10mS max
"1" (VIH >= 2.2 Vdc) or open: Oscillation
"0" (VIL < 0.8 Vdc) : Hi Z
± 10ps max.
± 10% max
Symmetry
Rise and Fall Time (Tr/Tf)
Output Load
Output Disable/Enable time
Output Voltage
Control Voltage
Pulling
Start-up Time
Tristate Function
(option A)
Period jitter one sigma
Linearity
ABRACON IS
ISO 9001 / QS 9000
CERTIFIED
rev3.1-5/06
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
3.3Vdc HCMOS/TTL COMPATIBLE
SMD VOLTAGE CONTROL CRYSTAL OSCILLATOR
ASVV SERIES
*RoHS COMPLIANT
7.0 x 5.0 x 1.7mm
| | | | | | | | | | | | | | |
MARKING:
XX.X F30
(see note below)
ASVV ZYX
(see note below)
Note:
XX.X First 3 digits of frequency
ex: 66.6 or 100
F30 Temperature/Stability options
Z month A to L
Y year 1 for 2001, 2 for 2003
X traceability code
Alternate Marking: Marking scheme subject to
change without notice. Contact factory for
Alternate Marking Specifications.
OPTIONS AND PART IDENTIFICATION (Left blank if standard):
ASVV - Frequency - Temperature Stability - Symmetry - Pulling - Packaging
Temp.
Temp.
0°C to 50°C
0°C to 60°C
-10°C to 60°C
0°C to 70°C
-10°C to 70°C
-20°C to 70°C
-40°C to 85°C
Code
I
B
D
C
F
E
L
Frequency stability
10
15
O
O
O
O
O
O
O
O
20
O
O
O
O
O
O
30
O
O
O
O
O
O
O
50
O
O
O
STD
O
O
O
O denotes availability
Symmetry option:
-
S
for 45/55% at 1/2Vdd
Pulling option:
-
N122
(±120 ppm min. 0V to 3V)
-
N102
(±100 ppm min. 0V to 3V)
Packaging option:
T
for Tape and Reel
(1,000pcs/reel)

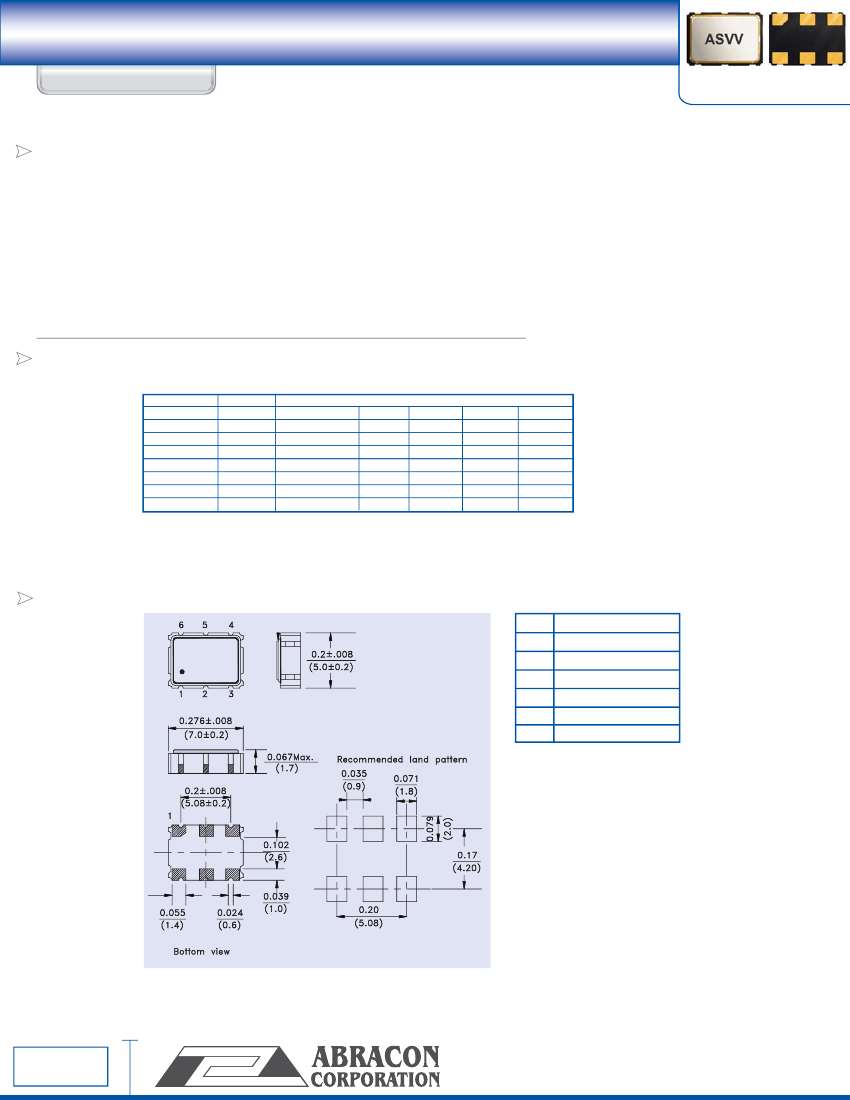

OUTLINE DRAWING:
PIN
FUNCTION
1 Voltage Control Vc
Tri-state Control
2
GND/Case
3
Output
4
NC
5
Vdd
6
Dimensions: inch (mm)
ABRACON IS
ISO 9001 / QS 9000
CERTIFIED
rev3.1-5/06
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
