MOTOROLA
SEMICONDUCTOR TECHNICAL DATA
High Current Transistors
PNP Silicon
COLLECTOR
2
3
BASE
1
EMITTER
BC636
BC638
BC640
1
2
3
MAXIMUM RATINGS
Rating
Collector – Emitter Voltage
Collector – Base Voltage
Emitter – Base Voltage
Collector Current — Continuous
Total Device Dissipation @ TA = 25°C
Derate above 25°C
Total Device Dissipation @ TC = 25°C
Derate above 25°C
Operating and Storage Junction
Temperature Range
Symbol
VCEO
VCBO
VEBO
IC
PD
PD
TJ, Tstg
BC636
–45
–45
BC638
–60
–60
–5.0
–0.5
625
5.0
1.5
12
– 55 to +150
BC640
–80
–80
Unit
Vdc
Vdc
Vdc
Adc
mW
mW/°C
Watt
mW/°C
°C
CASE 29–04, STYLE 14
TO–92 (TO–226AA)
THERMAL CHARACTERISTICS
Characteristic
Thermal Resistance, Junction to Ambient
Thermal Resistance, Junction to Case
Symbol
R
q
JA
R
q
JC
Max
200
83.3
Unit
°C/W
°C/W
ELECTRICAL CHARACTERISTICS
(TA = 25°C unless otherwise noted)
Characteristic
Symbol
Min
Typ
Max
Unit
OFF CHARACTERISTICS
Collector – Emitter Breakdown Voltage*
(IC = –10 mAdc, IB = 0)
V(BR)CEO
BC636
BC638
BC640
V(BR)CBO
BC636
BC638
BC640
V(BR)EBO
ICBO
—
—
—
—
–100
–10
nAdc
µAdc
–45
–60
–80
–5.0
—
—
—
—
—
—
—
—
Vdc
–45
–60
–80
—
—
—
—
—
—
Vdc
Vdc
Collector – Base Breakdown Voltage
(IC = –100
µAdc,
IE = 0)
Emitter – Base Breakdown Voltage
(IE = –10
m
Adc, IC = 0)
Collector Cutoff Current
(VCB = –30 Vdc, IE = 0)
(VCB = –30 Vdc, IE = 0, TA = 125°C)
1. Pulse Test: Pulse Width
≤
300
µs,
Duty Cycle 2.0%.
Motorola Small–Signal Transistors, FETs and Diodes Device Data
2–139
BC636 BC638 BC640
ELECTRICAL CHARACTERISTICS
(TA = 25°C unless otherwise noted) (Continued)
Characteristic
Symbol
Min
Typ
Max
Unit
ON CHARACTERISTICS(1)
DC Current Gain
(IC = –5.0 mAdc, VCE = –2.0 Vdc)
(IC = –150 mAdc, VCE = –2.0 Vdc)
hFE
BC636
BC638
BC640
VCE(sat)
VBE(on)
25
40
40
40
25
—
—
—
—
—
—
—
—
–0.25
–0.5
—
—
250
160
160
—
–0.5
—
–1.0
Vdc
Vdc
—
(IC = –500 mA, VCE = –2.0 V)
Collector – Emitter Saturation Voltage
(IC = –500 mAdc, IB = –50 mAdc)
Base–Emitter On Voltage
(IC = –500 mAdc, VCE = –2.0 Vdc)
DYNAMIC CHARACTERISTICS
Current – Gain — Bandwidth Product
(IC = –50 mAdc, VCE = –2.0 Vdc, f = 100 MHz)
Output Capacitance
(VCB = –10 Vdc, IE = 0, f = 1.0 MHz)
Input Capacitance
(VEB = –0.5 Vdc, IC = 0, f = 1.0 MHz)
1. Pulse Test: Pulse Width
≤
300
µs,
Duty Cycle 2.0%.
fT
Cob
Cib
—
—
—
150
9.0
110
—
—
—
MHz
pF
pF
2–140
Motorola Small–Signal Transistors, FETs and Diodes Device Data
BC636 BC638 BC640
–1000
–500
IC, COLLECTOR CURRENT (mA)
–200
–100
–50
–20
–10
–5
–2
–1
–1
PD TA 25°C
PD TC 25°C
BC636
BC638
BC640
PD TC 25°C
PD TA 25°C
SOA = 1S
hFE, DC CURRENT GAIN
200
–A
100
–L
500
VCE = –2 V
–B
50
–2 –3 –4 –5 –7 –10
–20 –30–40 –50 –70 –100
VCE, COLLECTOR–EMITTER VOLTAGE (VOLTS)
20
–1
–3
–5
–10
–30 –50 –100
IC, COLLECTOR CURRENT (mA)
–300 –500 –1000

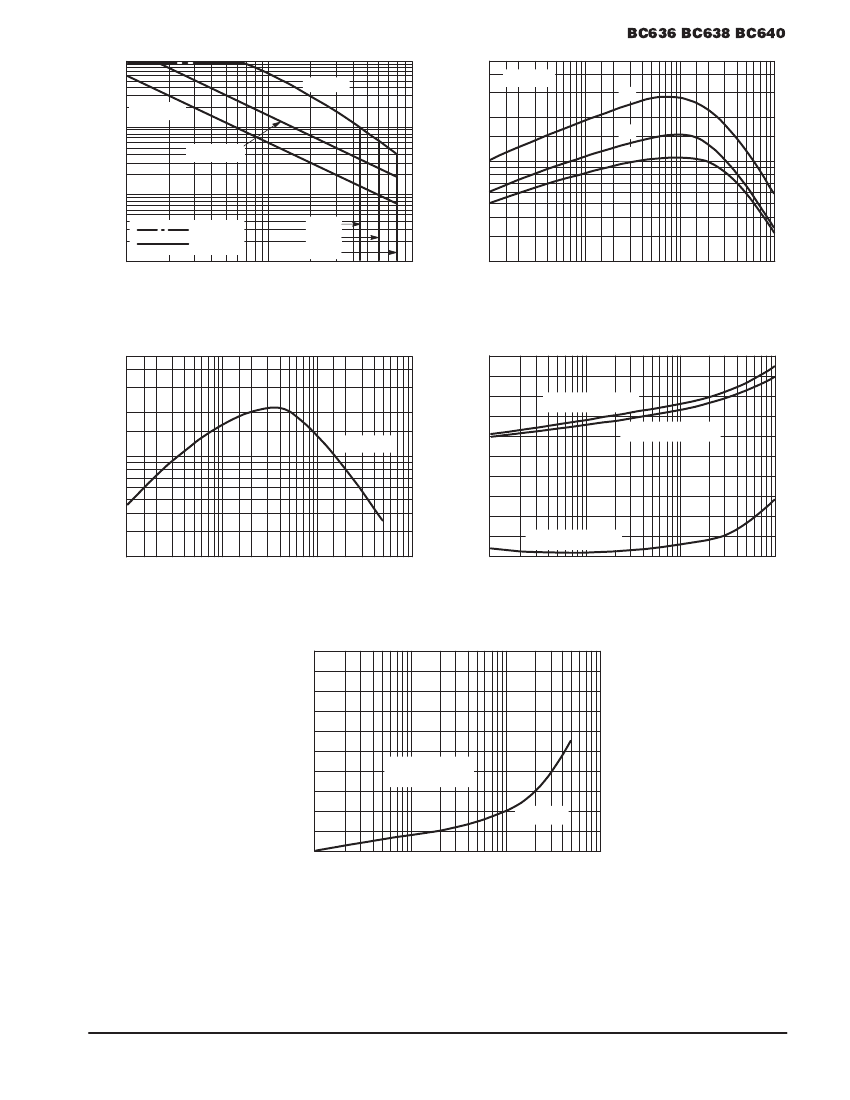

Figure 1. Active Region Safe Operating Area
f T, CURRENT–GAIN — BANDWIDTH PRODUCT (MHz)
Figure 2. DC Current Gain
500
300
V, VOLTAGE (VOLTS)
–1
–0.8
VBE(sat) @ IC/IB = 10
VBE(on) @ VCE = –2 V
100
VCE = –2 V
–0.6
–0.4
50
–0.2
VCE(sat) @ IC/IB = 10
20
–1
–10
–100
IC, COLLECTOR CURRENT (mA)
–1000
0
–1
–100
–10
IC, COLLECTOR CURRENT (mA)
–1000
Figure 3. Current Gain Bandwidth Product
Figure 4. “Saturation” and “On” Voltages
θ
V, TEMPERATURE COEFFICIENTS (mV/
°
C)
–0.2
–1.0
VCE = –2 VOLTS
∆T
= 0°C to +100°C
–1.6
θ
V for VBE
–2.2
–1
–3
–5
–10
–30 –50 –100
IC, COLLECTOR CURRENT (mA)
–300 –500 –1000
Figure 5. Temperature Coefficients
Motorola Small–Signal Transistors, FETs and Diodes Device Data
2–141
