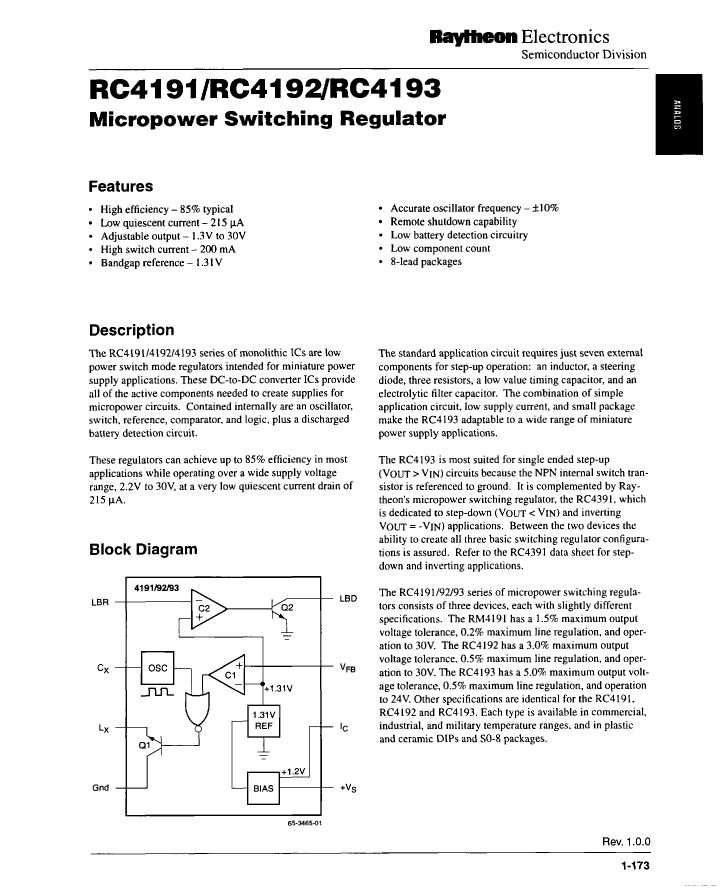

RM4191D/883 Overview

Switching Regulator, Voltage-mode, 0.375A, 75kHz Switching Freq-Max, CDIP8,

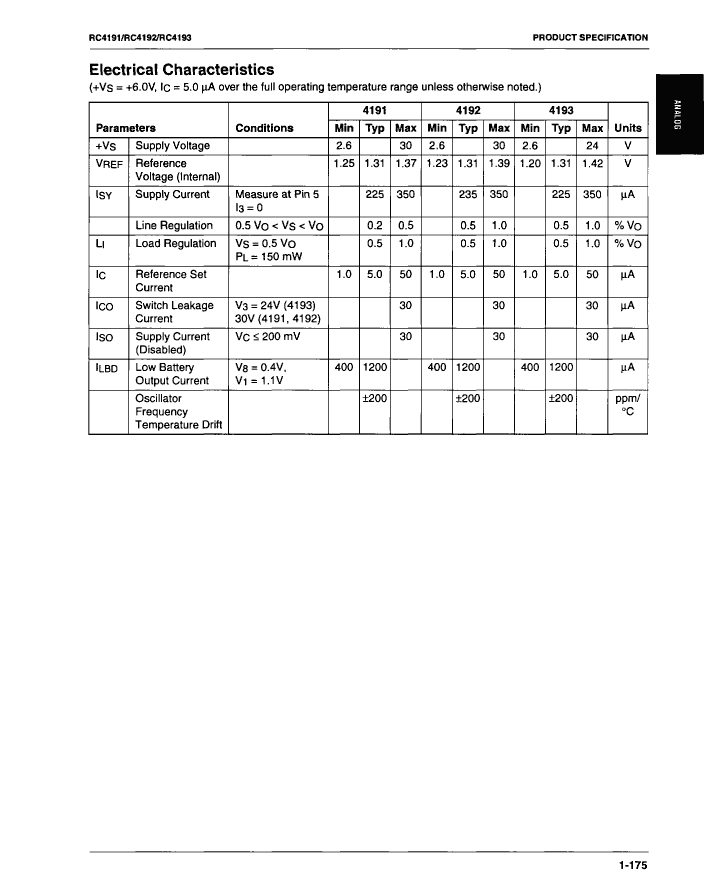

Parameter Name	Attribute value
Maker	Raytheon Company
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	SWITCHING REGULATOR
control mode	VOLTAGE-MODE
Control Technology	PULSE WIDTH MODULATION

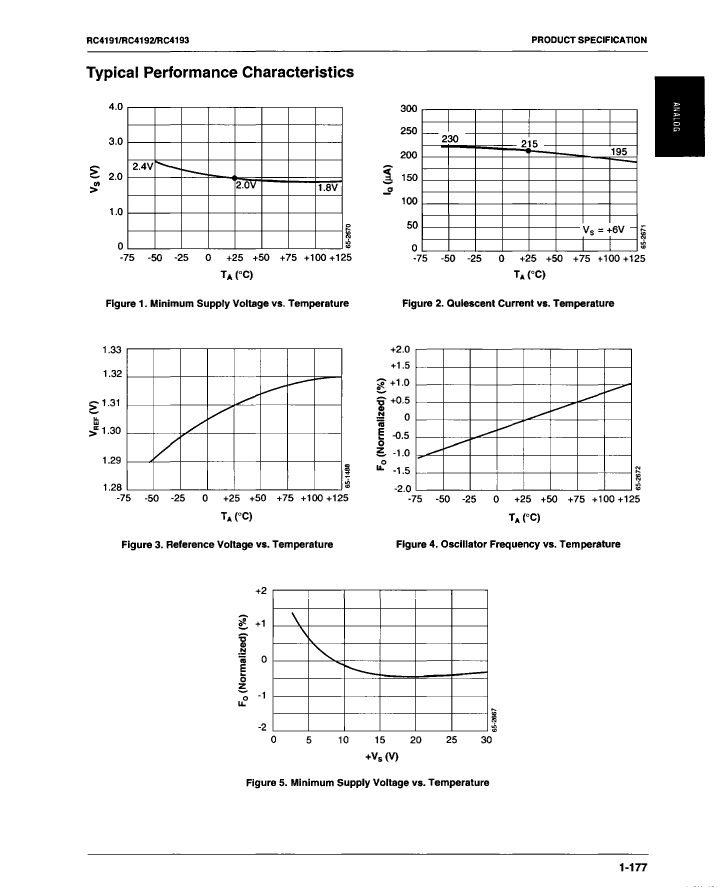

Maximum input voltage	30 V
Minimum input voltage	2.6 V
JESD-30 code	R-GDIP-T8
Number of functions	1

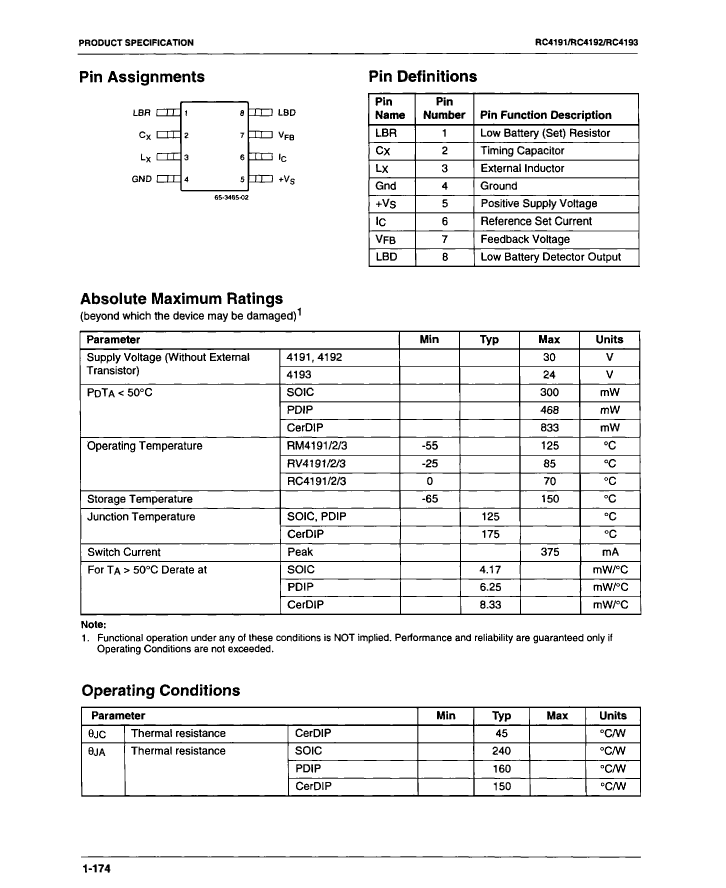

Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Maximum output current	0.375 A
Nominal output voltage	1.31 V
Package body material	CERAMIC, GLASS-SEALED
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified

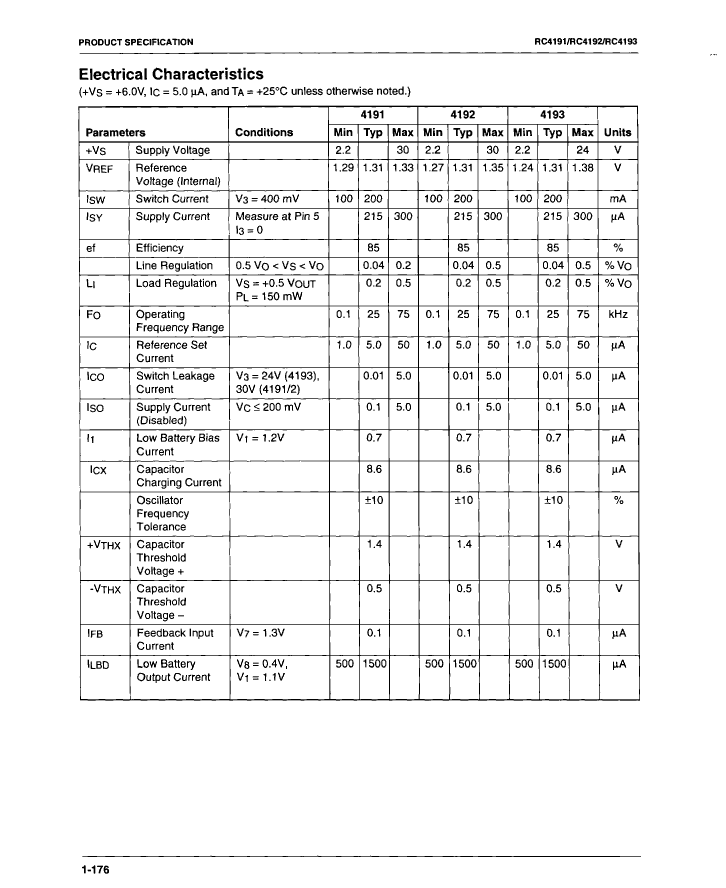

Maximum supply current (Isup)	0.35 mA
surface mount	NO
Switch configuration	SINGLE
Maximum switching frequency	75 kHz
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal location	DUAL
