MWDM6L-51-2PS datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> MWDM6L-51-2PS

MWDM6L-51-2PS: DescriptionD Microminiature Connector, 51 Contact(s), Male, Solder Terminal,; CategoryThe connector The connector; File Size157KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

MWDM6L-51-2PS Overview

D Microminiature Connector, 51 Contact(s), Male, Solder Terminal,

MWDM6L-51-2PS Parametric

Parameter Name	Attribute value
Maker	Glenair
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARD: MIL-DTL-83513
Connector type	D MICROMINIATURE CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	MALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	LIQUID CRYSTAL POLYMER
JESD-609 code	e4
MIL compliance	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE AND PANEL
Options	GENERAL PURPOSE
Shell material	ALUMINUM ALLOY
Housing size	G
Termination type	SOLDER
Total number of contacts	51

Preview

Download Datasheet

View All

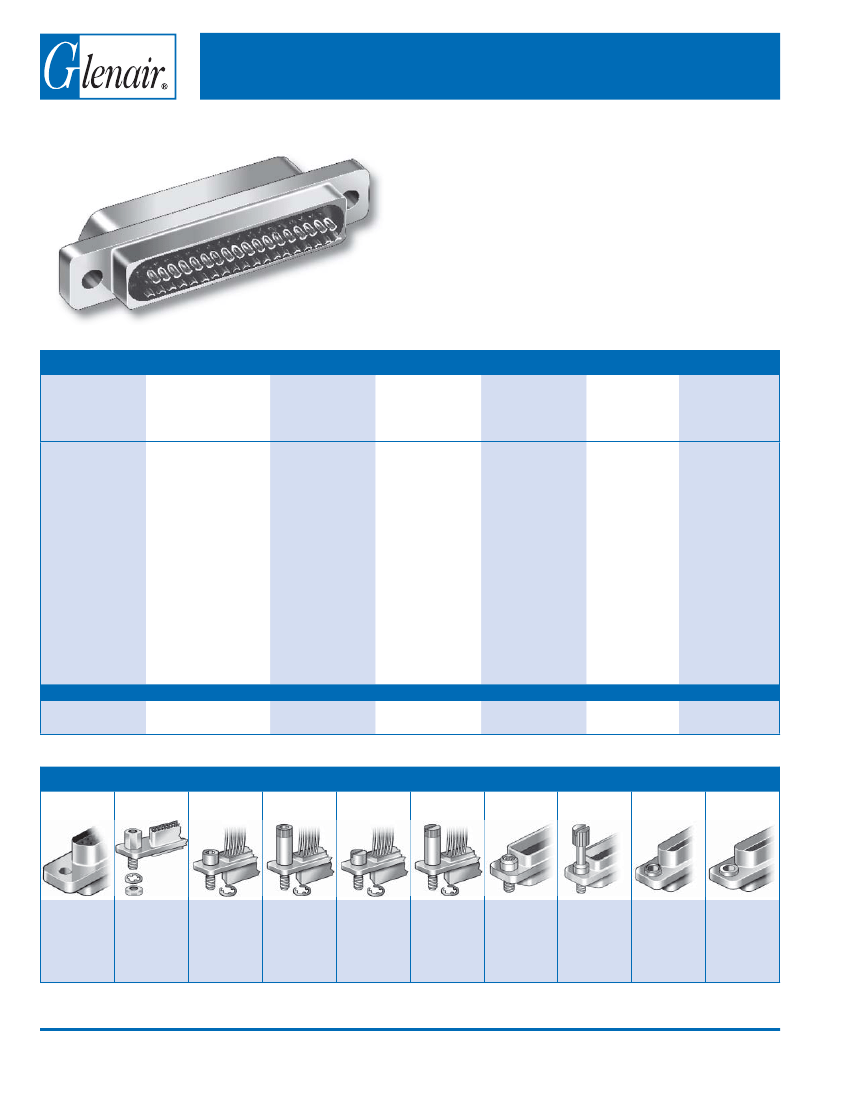

Micro-D Metal Shell

MWDM Solder Cup Connectors

Micro-D Solder Cup Termination–These

connectors

feature gold-plated TwistPin contacts for best

performance. Use with #26 or smaller stranded or solid

wire. Specify nickel-plated shells or cadmium plated

shells for best availability.

Now Available With #24 Gage Contacts–AWG

24 wire

offers increased mechanical strength and lower voltage

drop. Glenair Micro-D solder cup connectors are now

compatible with 24 gage stranded or solid wire. Specify

“N” for 24 gage pin contacts, or “T” for 24 gage socket

contacts.

HOW TO ORDER METAL SHELL SOLDER CUP MICRO-D CONNECTORS

Shell Material and

Finish

Aluminum Shell

– Cadmium

– Nickel

Series

MWDM

Insulator

Material

– LCP

30% Glass-Filled

Liquid Crystal

Polymer

Contact Layout

51-2

100

Contact Type

Size #26 Solder

Cup Contacts

(Standard)

Termination

Type

– Solder Cup

Hardware

See Micro-D

Mounting Hardware

Options Below

– Black Anodize

– Gold

– Chem Film

Stainless Steel Shell

– Passivated

– Pin

– Socket

Size #24 Solder

Cup Contacts

– Pin

– Socket

Sample Part Number

MWDM

L –

MICRO-D MOUNTING HARDWARE

Thru-Hole Jackpost Jackscrew Jackscrew Jackscrew Jackscrew Jackscrew Jackscrew Float Mount Float Mount

Order

Hardware

Separately

Removable

Includes Nut

and Washer

Hex Head

Removable

E-ring

Hex Head

Removable

E-ring

Extended

Slot Head

Removable

E-ring

Slot Head

Removable

E-ring

Extended

Hex Head

Non-

Removable

Slot Head

Non-

Removable

Extended

For Front

Panel

Mounting

For Rear

Panel

Mounting

CAGE Code 06324/0CA77

Printed in U.S.A.

GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912

www.glenair.com

B-2
