Datasheet> All Categories > semiconductor> Discrete semiconductor> ES1K

Preview

ES1K: Description1 A, 800 V, SILICON, SIGNAL DIODE; Categorysemiconductor Discrete semiconductor; File Size239KB，3 Pages; ManufacturerSSC; Websitehttp://www.siliconstandard.com/

Download Datasheet Compare View All

ES1K Overview

1 A, 800 V, SILICON, SIGNAL DIODE

Preview

Download Datasheet

View All

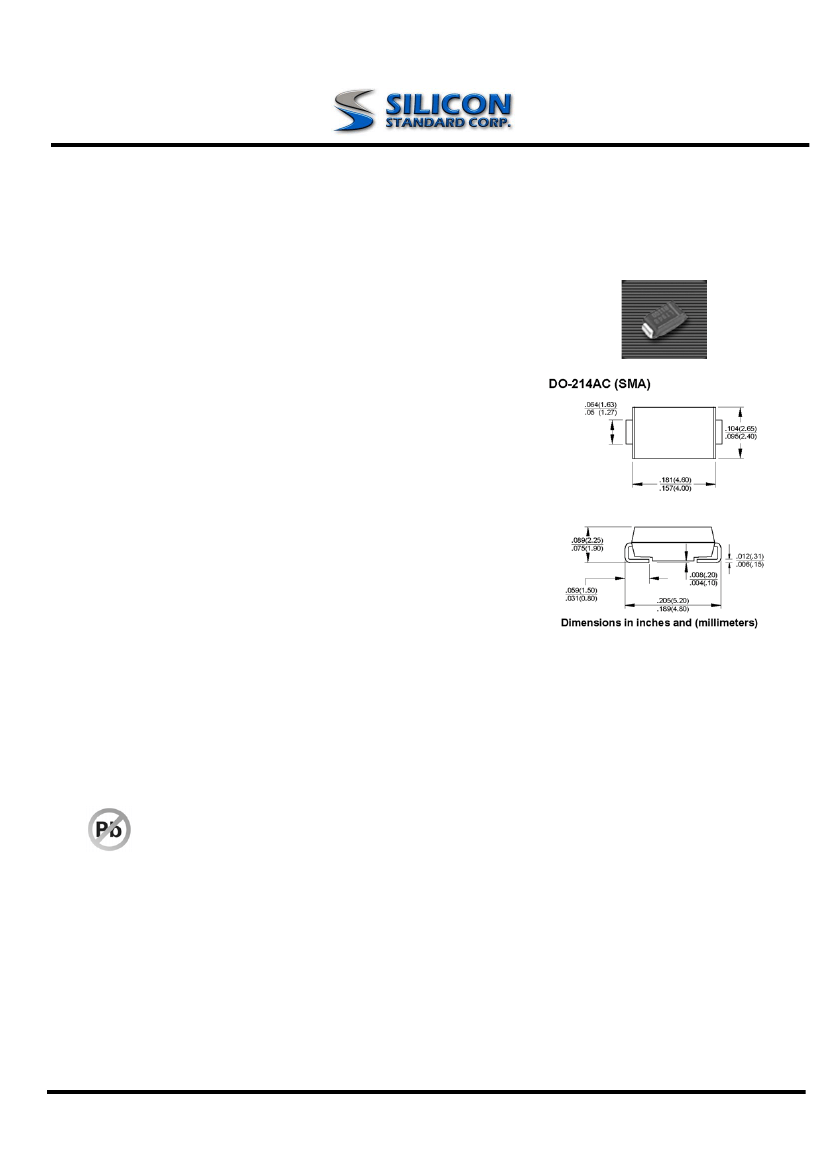

ES1M

SUPER FAST SURFACE

MOUNT RECTIFIERS

PRODUCT SUMMARY

Reverse Voltage 50 to 1000 Volts

Forward current 1.0 Ampere

FEATURES

For surface mounted application

Low profile package

Built-in strain relief,

Ideal for automated placement

Easy pick and place

Superfast recovery time for high efficiency

Glass passivated chip junction

High temperature soldering:

o

250 C /10 seconds at terminals

Plastic material used carries Underwriters Laboratory

Classification 94V-O

MECHANICAL DATA

Cases: Molded plastic

Terminals: Solder plated

Polarity: Indicated by cathode band

Weight: 0.002 ounce, 0.064 gram

Pb-free; RoHS-compliant

07/04/2007 Rev.1.00

www.SiliconStandard.com

1

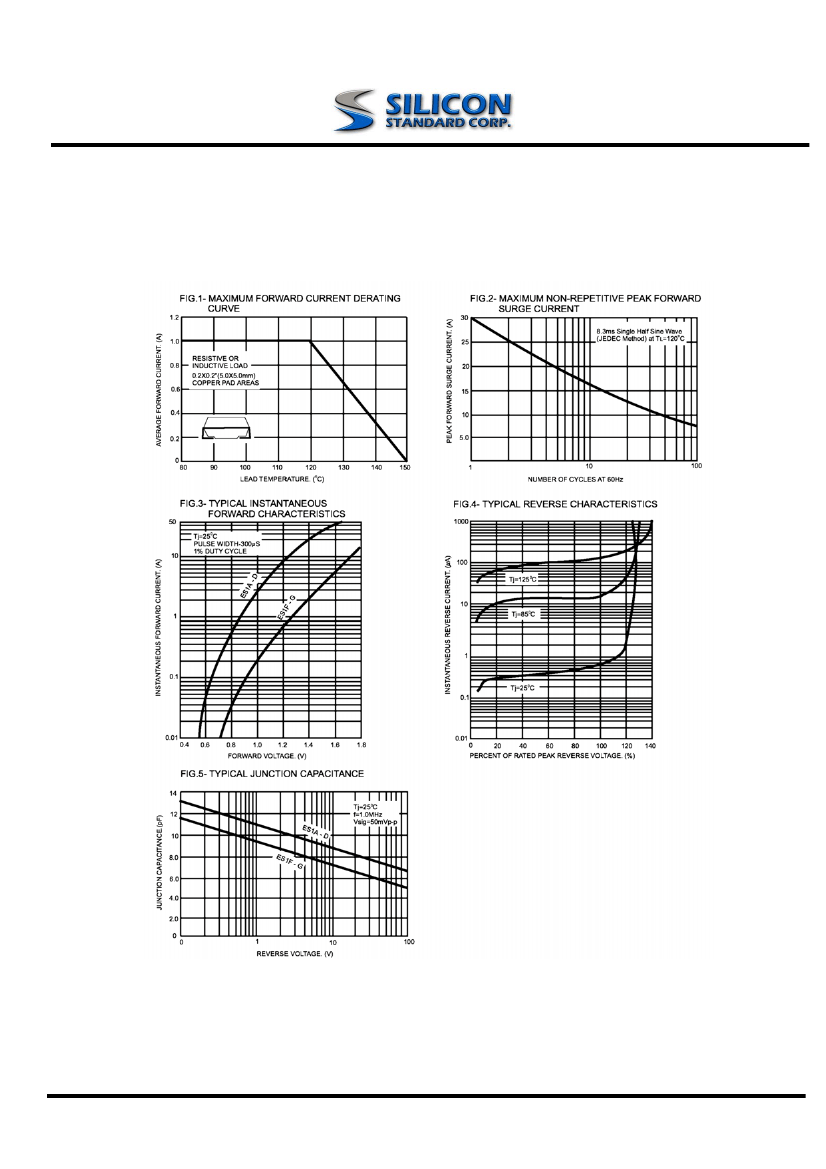

ES1K Related Products

	ES1K	ES1A	ES1D	ES1F	ES1J	ES1M	ES1B	ES1C	ES1G
Description	1 A, 800 V, SILICON, SIGNAL DIODE	1 A, 50 V, SILICON, SIGNAL DIODE	1 A, 200 V, SILICON, SIGNAL DIODE	1 A, 300 V, SILICON, SIGNAL DIODE, DO-214AC	1 A, 600 V, SILICON, SIGNAL DIODE, DO-214AC	1 A, 1000 V, SILICON, SIGNAL DIODE, DO-214AC	1 A, 100 V, SILICON, SIGNAL DIODE, DO-214AC	1 A, 150 V, SILICON, SIGNAL DIODE, DO-214AC	1 A, 400 V, SILICON, SIGNAL DIODE, DO-214AC
Number of terminals	-	2	2	2	2	-	2	2	2
Number of components	-	1	1	1	1	-	1	1	1
Processing package description	-	Plastic, SMA, 2 PIN	Plastic, SMA, 2 PIN	SMA, 2 PIN	SMA, 2 PIN	-	GREEN, PLASTIC, SMA, 2 PIN	SMA, 2 PIN	Plastic, HSMA, 2 PIN
state	-	ACTIVE	ACTIVE	ACTIVE	TRANSFERRED	-	ACTIVE	ACTIVE	DISCONTINUED
packaging shape	-	Rectangle	Rectangle	Rectangle	Rectangle	-	Rectangle	RECTANGULAR	Rectangle
Package Size	-	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	-	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
surface mount	-	Yes	Yes	Yes	Yes	-	Yes	Yes	Yes
Terminal form	-	C BEND	C BEND	C BEND	C BEND	-	C BEND	C BEND	C BEND
Terminal location	-	pair	pair	pair	pair	-	pair	DUAL	pair
Packaging Materials	-	Plastic/Epoxy	Plastic/Epoxy	Plastic/Epoxy	Plastic/Epoxy	-	Plastic/Epoxy	PLASTIC/EPOXY	Plastic/Epoxy
structure	-	single	single	single	single	-	single	SINGLE	single
Diode component materials	-	silicon	silicon	silicon	silicon	-	silicon	SILICON	silicon
Diode type	-	Signal diode	Signal diode	Signal diode	Signal diode	-	Signal diode	SIGNAL DIODE	Signal diode
Maximum reverse recovery time	-	0.0200 us	0.0200 us	0.0350 us	0.0600 us	-	0.0350 us	0.0150 us	0.0600 us
Maximum repetitive peak reverse voltage	-	50 V	200 V	300 V	600 V	-	100 V	150 V	400 V
Maximum average forward current	-	1 A	1 A	1 A	1 A	-	1 A	1 A	1 A
terminal coating	-	-	PURE Tin	MATTE Tin	NOT SPECIFIED	-	PURE Tin	MATTE TIN	tin lead
