PS2503-1-L datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> PS2503-1-L

PS2503-1-L: DescriptionTransistor Output Optocoupler, 1-Element, 5000V Isolation, PLASTIC, DIP-4; CategoryLED optoelectronic/LED photoelectric; File Size251KB，5 Pages; ManufacturerCalifornia Eastern Labs; Websitehttp://www.cel.com/

Download Datasheet Parametric Compare View All

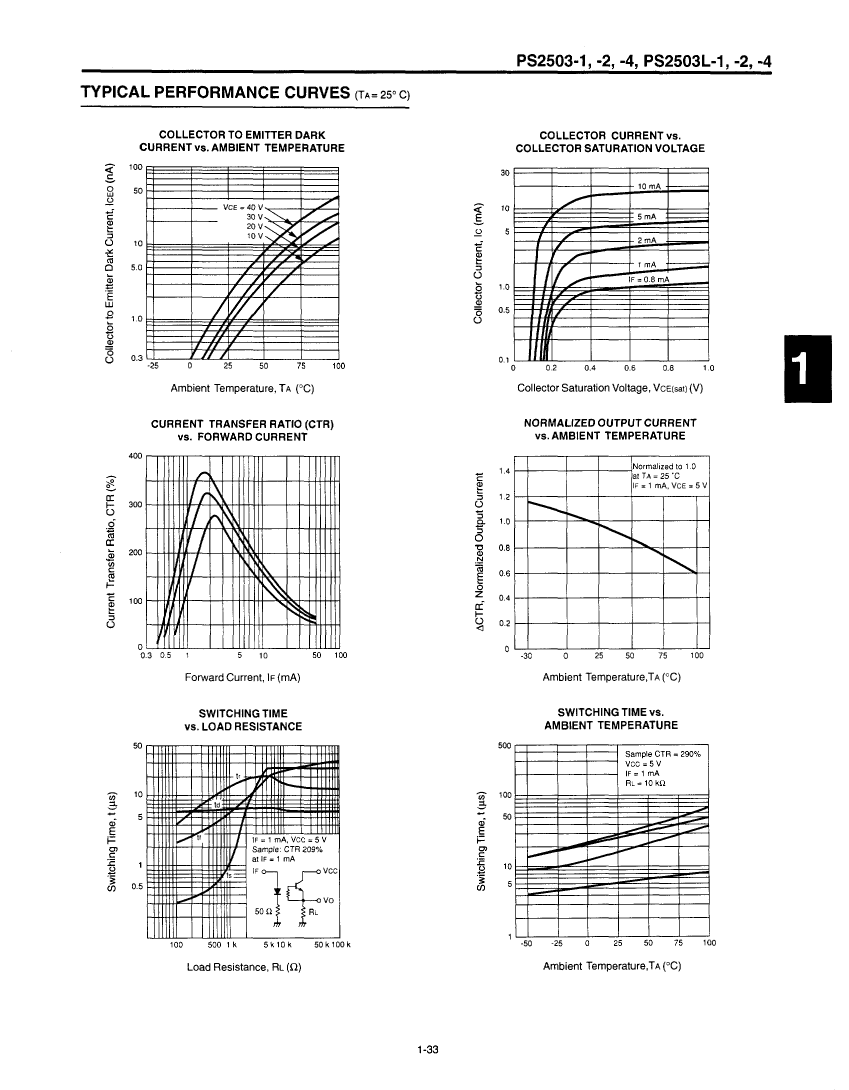

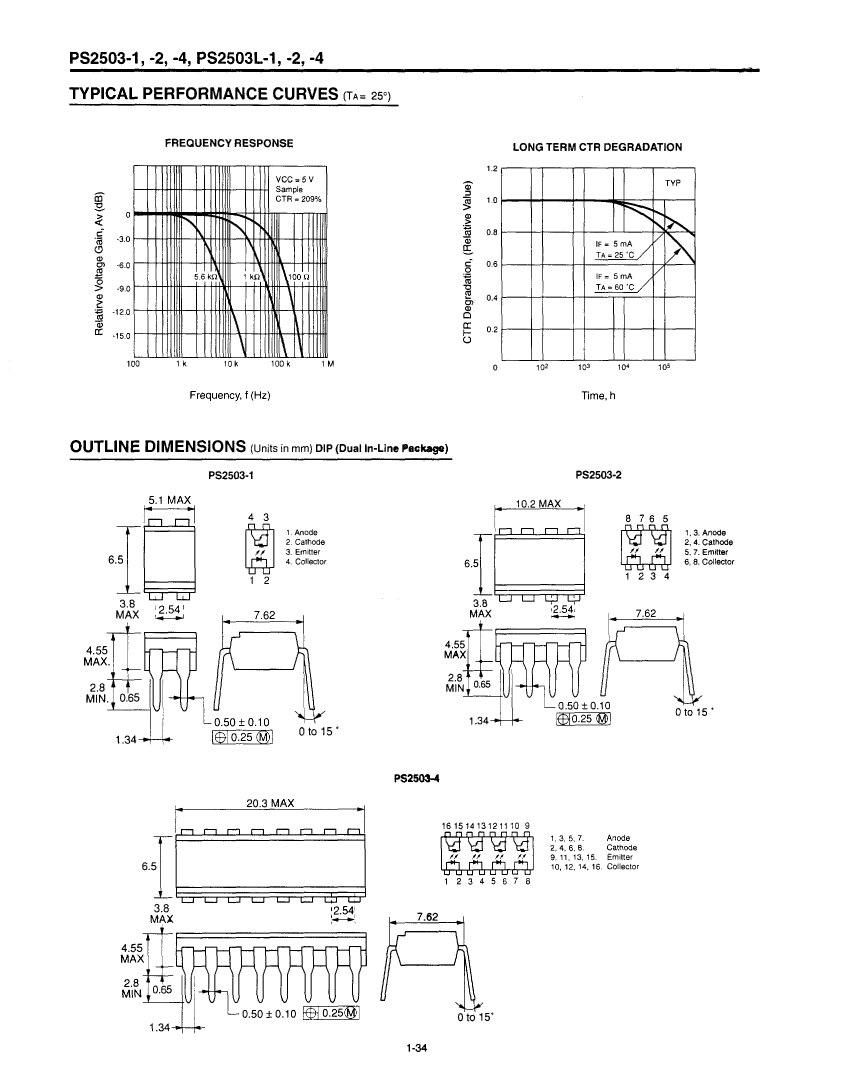

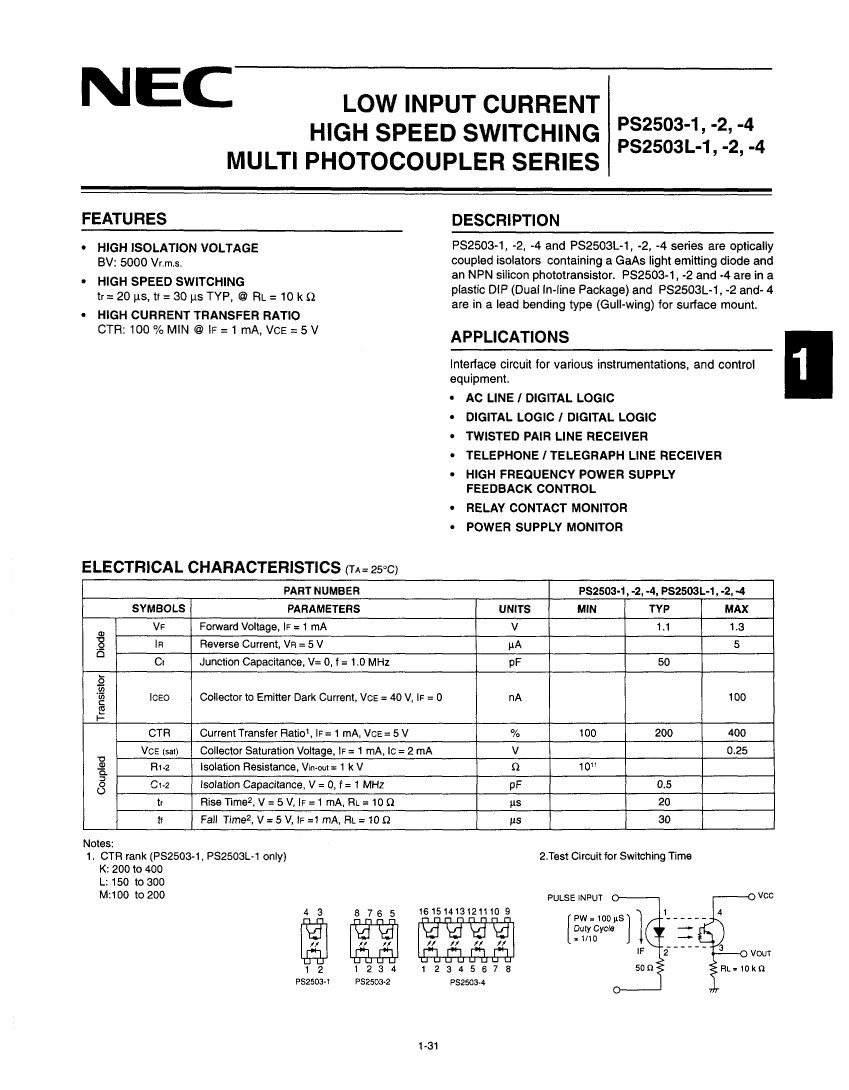

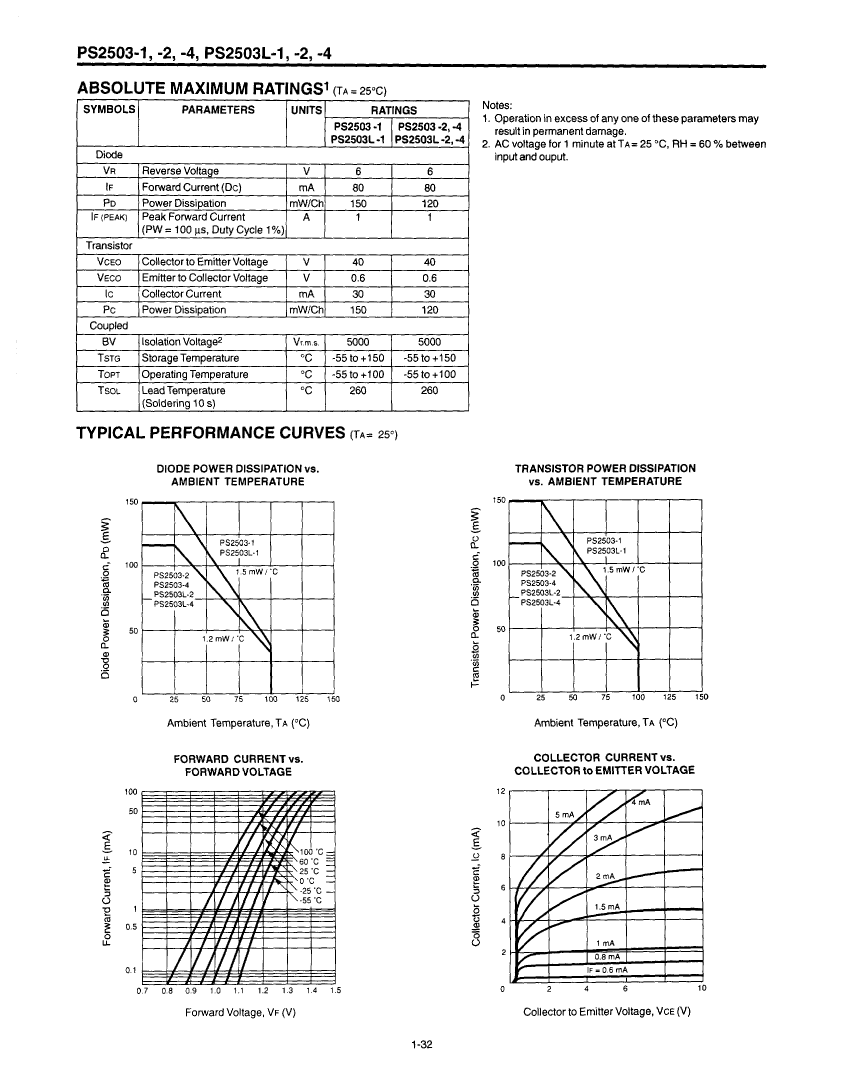

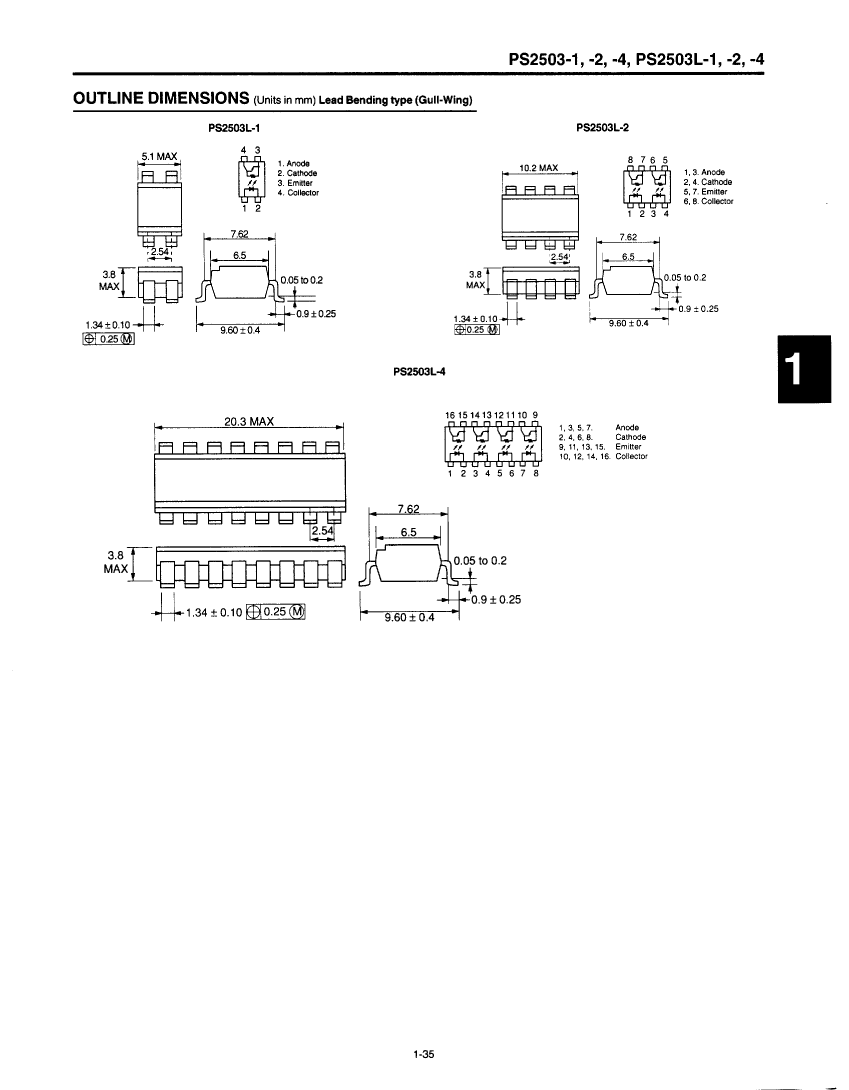

PS2503-1-L Overview

Transistor Output Optocoupler, 1-Element, 5000V Isolation, PLASTIC, DIP-4

PS2503-1-L Parametric

Parameter Name	Attribute value
Maker	California Eastern Labs
package instruction	PLASTIC, DIP-4
Reach Compliance Code	compliant
Coll-Emtr Bkdn Voltage-Min	40 V
Configuration	SINGLE
Nominal current transfer ratio	100%
Maximum dark power	100 nA
Maximum forward current	0.08 A
Maximum insulation voltage	5000 V
Number of components	1
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
Optoelectronic device types	TRANSISTOR OUTPUT OPTOCOUPLER

Preview

Download Datasheet

View All

PS2503-1-L Related Products

	PS2503-1-L	PS2503L-2	PS2503L-4	PS2503-1-M	PS2503L-1-M	PS2503L-1-K	PS2503L-1-L	PS2503-1-K
Description	Transistor Output Optocoupler, 1-Element, 5000V Isolation, PLASTIC, DIP-4	Transistor Output Optocoupler, 2-Element, 5000V Isolation, GULL-WING, PLASTIC, DIP-8	Transistor Output Optocoupler, 4-Element, 5000V Isolation, GULL-WING, PLASTIC, DIP-16	Transistor Output Optocoupler, 1-Element, 5000V Isolation, PLASTIC, DIP-4	Transistor Output Optocoupler, 1-Element, 5000V Isolation, GULL-WING, PLASTIC, DIP-4	Transistor Output Optocoupler, 1-Element, 5000V Isolation, GULL-WING, PLASTIC, DIP-4	Transistor Output Optocoupler, 1-Element, 5000V Isolation, GULL-WING, PLASTIC, DIP-4	Transistor Output Optocoupler, 1-Element, 5000V Isolation, PLASTIC, DIP-4
Maker	California Eastern Labs	California Eastern Labs	California Eastern Labs	California Eastern Labs	California Eastern Labs	California Eastern Labs	California Eastern Labs	California Eastern Labs
package instruction	PLASTIC, DIP-4	GULL-WING, PLASTIC, DIP-8	GULL-WING, PLASTIC, DIP-16	PLASTIC, DIP-4	GULL-WING, PLASTIC, DIP-4	GULL-WING, PLASTIC, DIP-4	GULL-WING, PLASTIC, DIP-4	PLASTIC, DIP-4
Reach Compliance Code	compliant	unknown	unknown	compliant	compliant	compliant	compliant	compliant
Coll-Emtr Bkdn Voltage-Min	40 V	40 V	40 V	40 V	40 V	40 V	40 V	40 V
Configuration	SINGLE	SEPARATE, 2 CHANNELS	SEPARATE, 4 CHANNELS	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Nominal current transfer ratio	100%	150%	150%	150%	100%	150%	200%	200%
Maximum dark power	100 nA	100 nA	100 nA	100 nA	100 nA	100 nA	100 nA	100 nA
Maximum forward current	0.08 A	0.08 A	0.08 A	0.08 A	0.08 A	0.08 A	0.08 A	0.08 A
Maximum insulation voltage	5000 V	5000 V	5000 V	5000 V	5000 V	5000 V	5000 V	5000 V
Number of components	1	2	4	1	1	1	1	1
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Optoelectronic device types	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER
