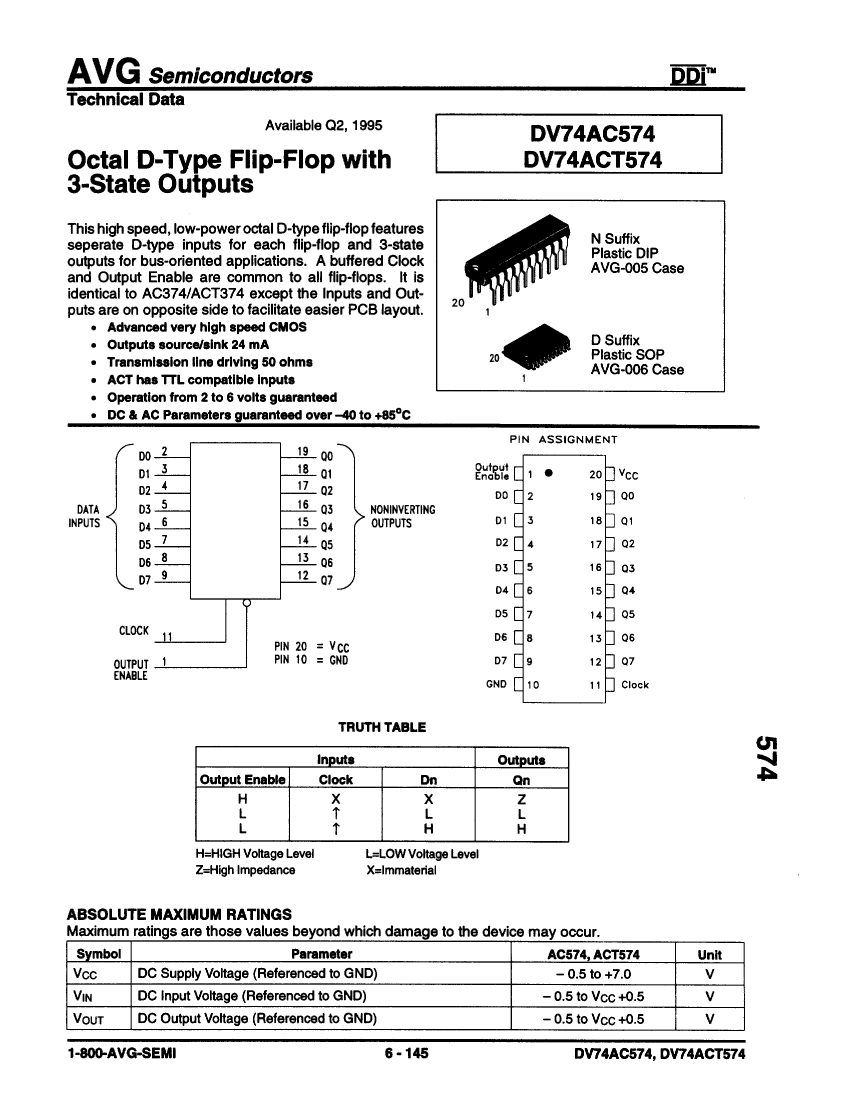

Bus Driver, ACT Series, 1-Func, 8-Bit, True Output, CMOS, PDIP20, PLASTIC, DIP-20

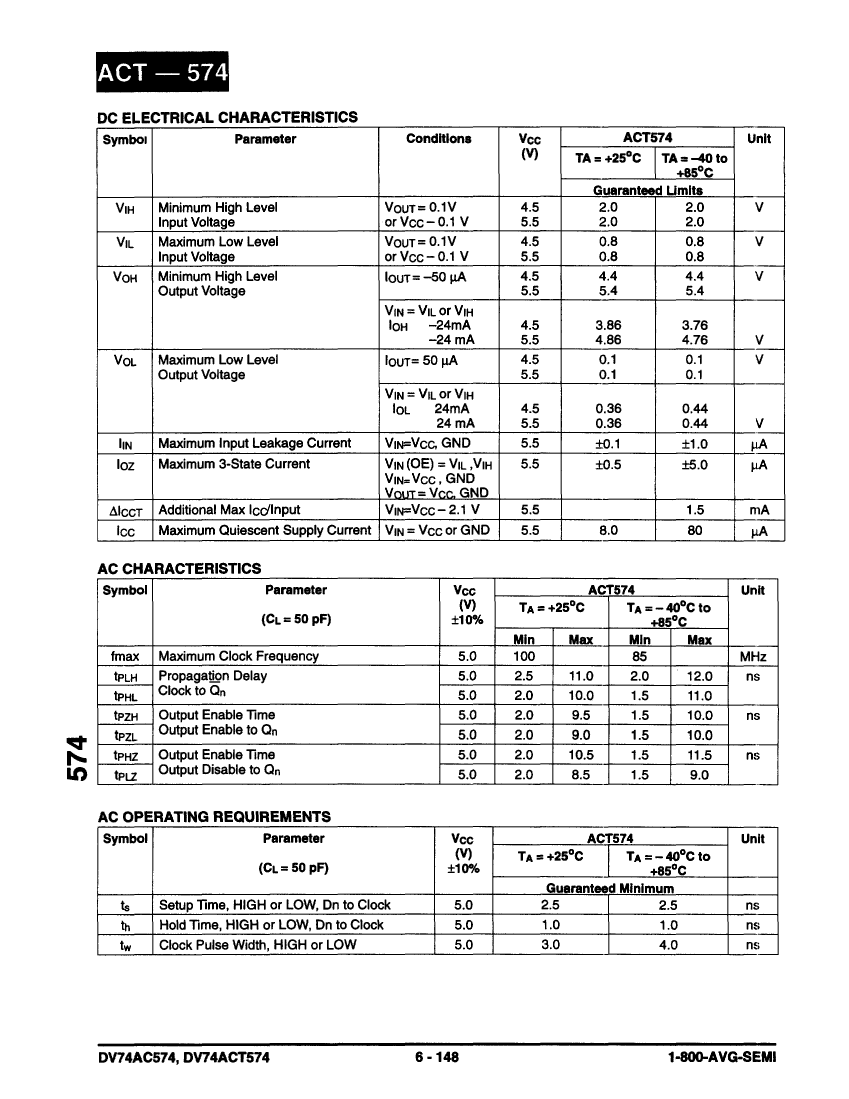

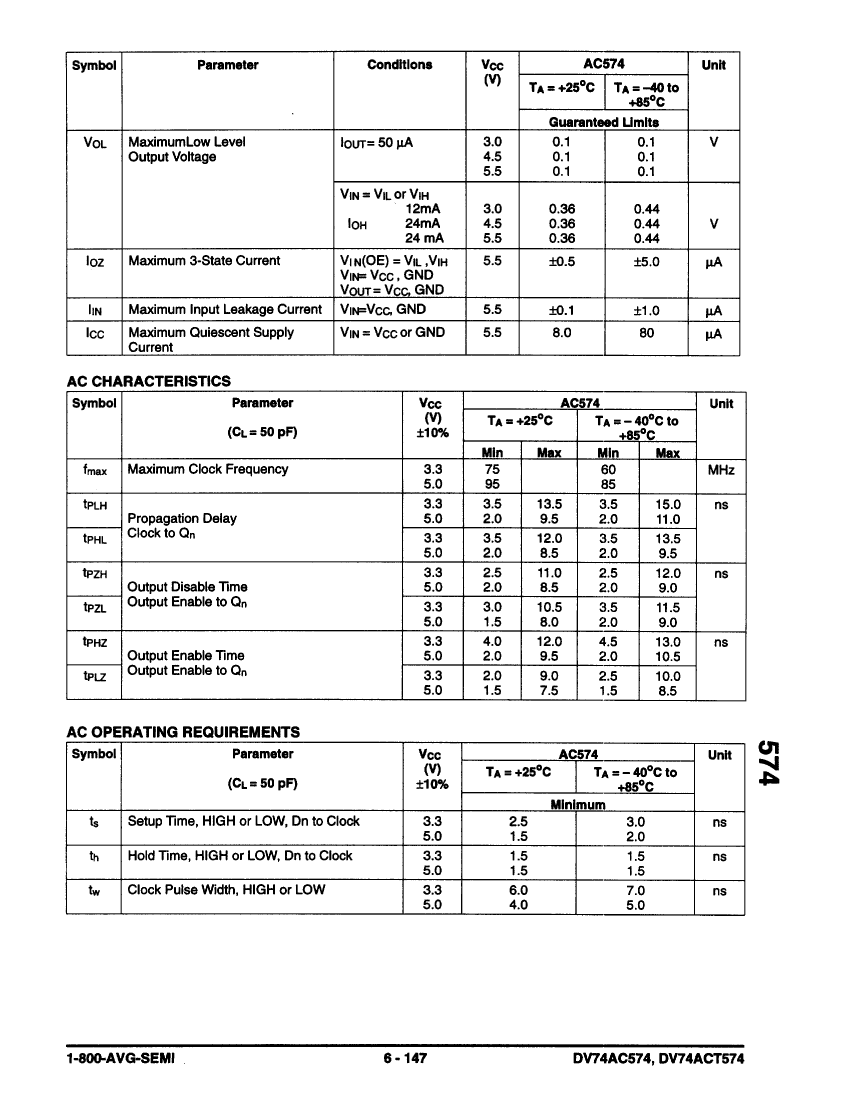

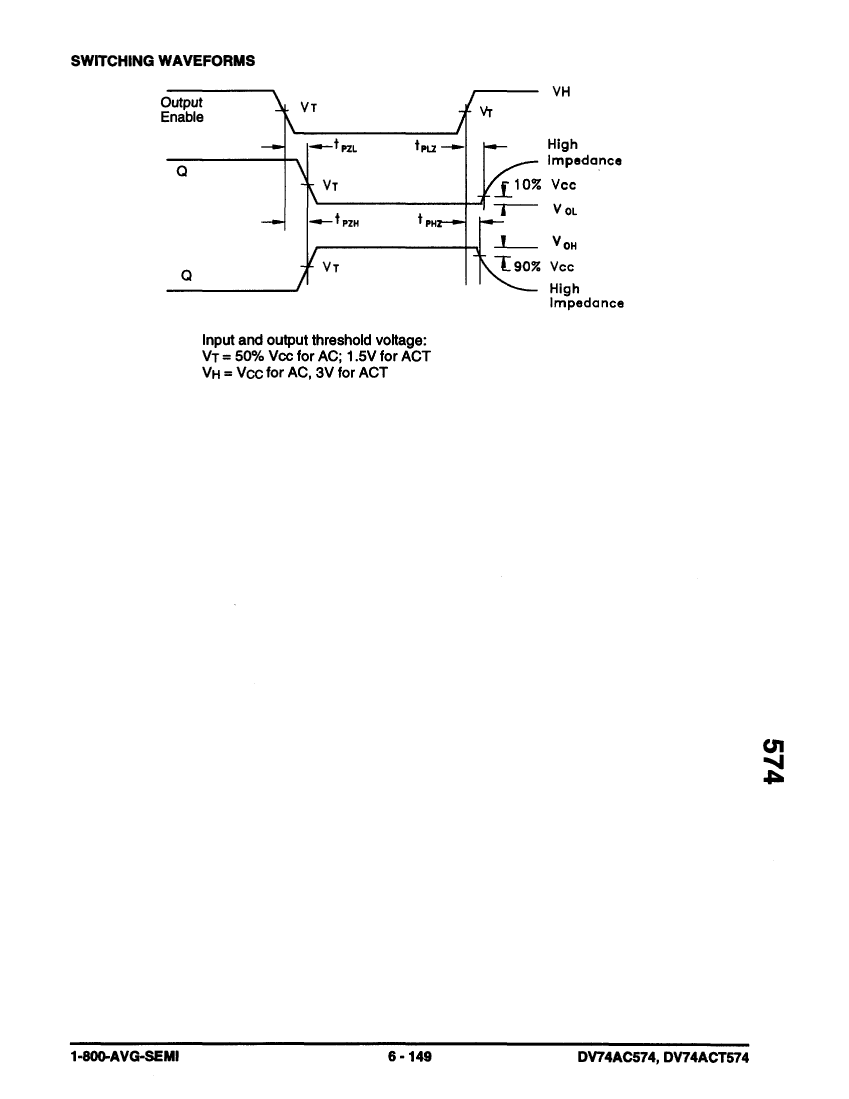

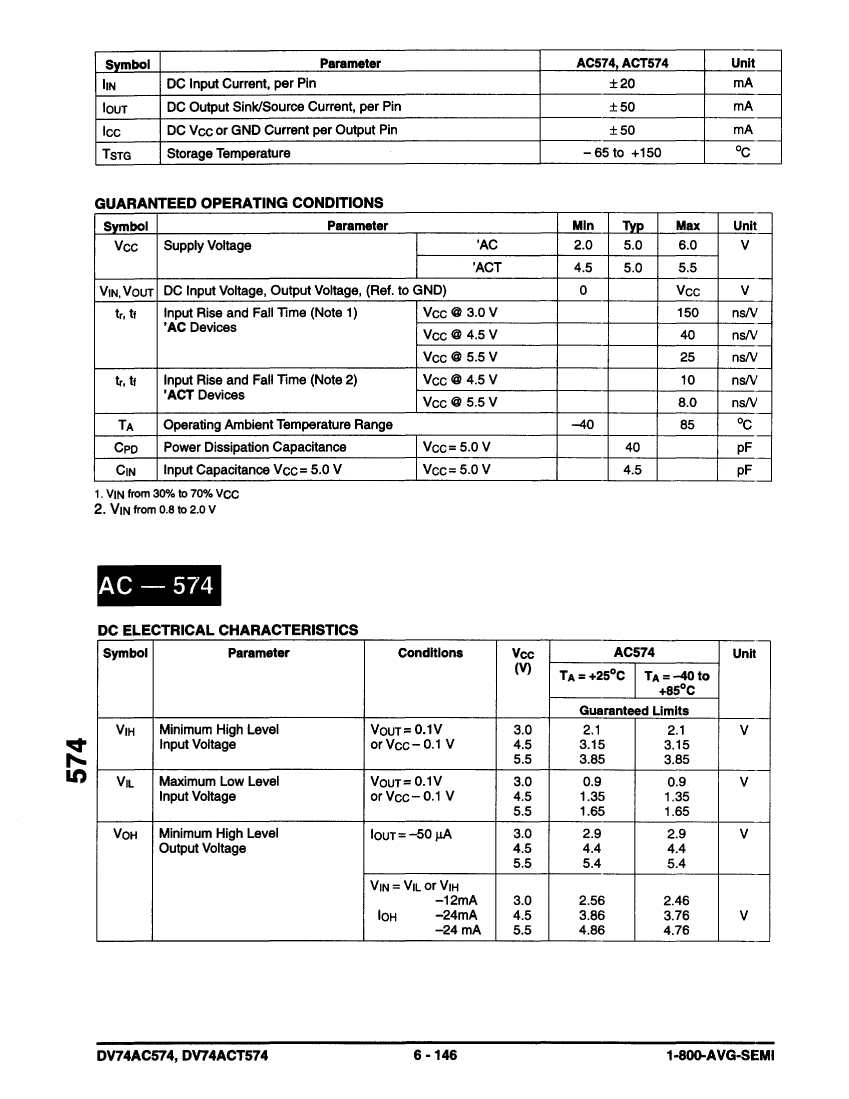

| Parameter Name | Attribute value |
| Maker | AVG [AVG Semiconductors(HITEK)] |
| Parts packaging code | DIP |
| package instruction | DIP, |
| Contacts | 20 |
| Reach Compliance Code | unknown |
| DV74ACT574N | DV74AC574N | DV74ACT574D | DV74AC574D | |
|---|---|---|---|---|
| Description | Bus Driver, ACT Series, 1-Func, 8-Bit, True Output, CMOS, PDIP20, PLASTIC, DIP-20 | Bus Driver, AC Series, 1-Func, 8-Bit, True Output, CMOS, PDIP20, PLASTIC, DIP-20 | Bus Driver, ACT Series, 1-Func, 8-Bit, True Output, CMOS, PDSO20, PLASTIC, SOP-20 | Bus Driver, AC Series, 1-Func, 8-Bit, True Output, CMOS, PDSO20, PLASTIC, SOP-20 |
| Maker | AVG [AVG Semiconductors(HITEK)] | AVG [AVG Semiconductors(HITEK)] | AVG [AVG Semiconductors(HITEK)] | AVG [AVG Semiconductors(HITEK)] |
| Parts packaging code | DIP | DIP | SOIC | SOIC |
| package instruction | DIP, | DIP, | SOP, | SOP, |
| Contacts | 20 | 20 | 20 | 20 |
| Reach Compliance Code | unknown | unknown | unknown | unknown |
| Other features | - | BROADSIDE VERSION OF 374 | BROADSIDE VERSION OF 374 | BROADSIDE VERSION OF 374 |
| series | - | AC | ACT | AC |
| JESD-30 code | - | R-PDIP-T20 | R-PDSO-G20 | R-PDSO-G20 |
| length | - | 26.415 mm | 12.8 mm | 12.8 mm |
| Load capacitance (CL) | - | 50 pF | 50 pF | 50 pF |
| Logic integrated circuit type | - | BUS DRIVER | BUS DRIVER | BUS DRIVER |
| Number of digits | - | 8 | 8 | 8 |
| Number of functions | - | 1 | 1 | 1 |
| Number of ports | - | 2 | 2 | 2 |
| Number of terminals | - | 20 | 20 | 20 |
| Maximum operating temperature | - | 85 °C | 85 °C | 85 °C |
| Minimum operating temperature | - | -40 °C | -40 °C | -40 °C |
| Output characteristics | - | 3-STATE | 3-STATE | 3-STATE |
| Output polarity | - | TRUE | TRUE | TRUE |
| Package body material | - | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | - | DIP | SOP | SOP |
| Package shape | - | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | - | IN-LINE | SMALL OUTLINE | SMALL OUTLINE |
| propagation delay (tpd) | - | 15 ns | 12 ns | 15 ns |
| Certification status | - | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | - | 4.57 mm | 2.65 mm | 2.65 mm |
| Maximum supply voltage (Vsup) | - | 6 V | 5.5 V | 6 V |
| Minimum supply voltage (Vsup) | - | 2 V | 4.5 V | 2 V |
| Nominal supply voltage (Vsup) | - | 5 V | 5 V | 5 V |
| surface mount | - | NO | YES | YES |
| technology | - | CMOS | CMOS | CMOS |
| Temperature level | - | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL |
| Terminal form | - | THROUGH-HOLE | GULL WING | GULL WING |
| Terminal pitch | - | 2.54 mm | 1.27 mm | 1.27 mm |
| Terminal location | - | DUAL | DUAL | DUAL |
| width | - | 7.62 mm | 7.5 mm | 7.5 mm |
