SN74LS162AJ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> SN74LS162AJ

SN74LS162AJ: DescriptionDecade Counter, Synchronous, Up Direction, TTL, CDIP16,; Categorylogic logic; File Size169KB，5 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

SN74LS162AJ Overview

Decade Counter, Synchronous, Up Direction, TTL, CDIP16,

SN74LS162AJ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Motorola ( NXP )
Reach Compliance Code	unknown
Counting direction	UP
JESD-30 code	R-XDIP-T16
JESD-609 code	e0
Load/preset input	YES
Logic integrated circuit type	DECADE COUNTER
Maximum Frequency@Nom-Sup	25000000 Hz
MaximumI(ol)	0.008 A
Operating mode	SYNCHRONOUS
Number of functions	1
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Maximum supply current (ICC)	32 mA
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

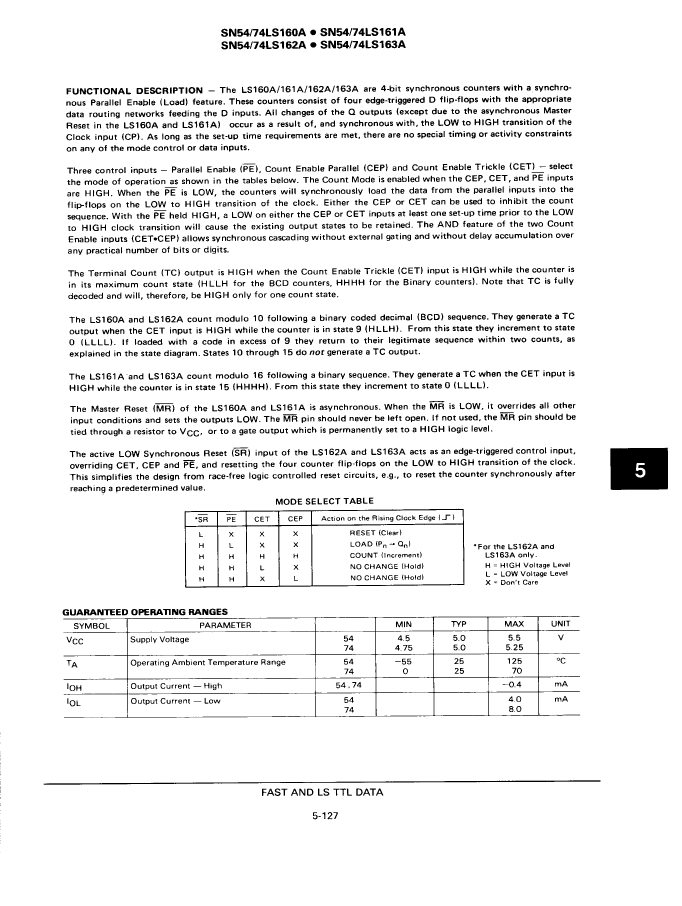

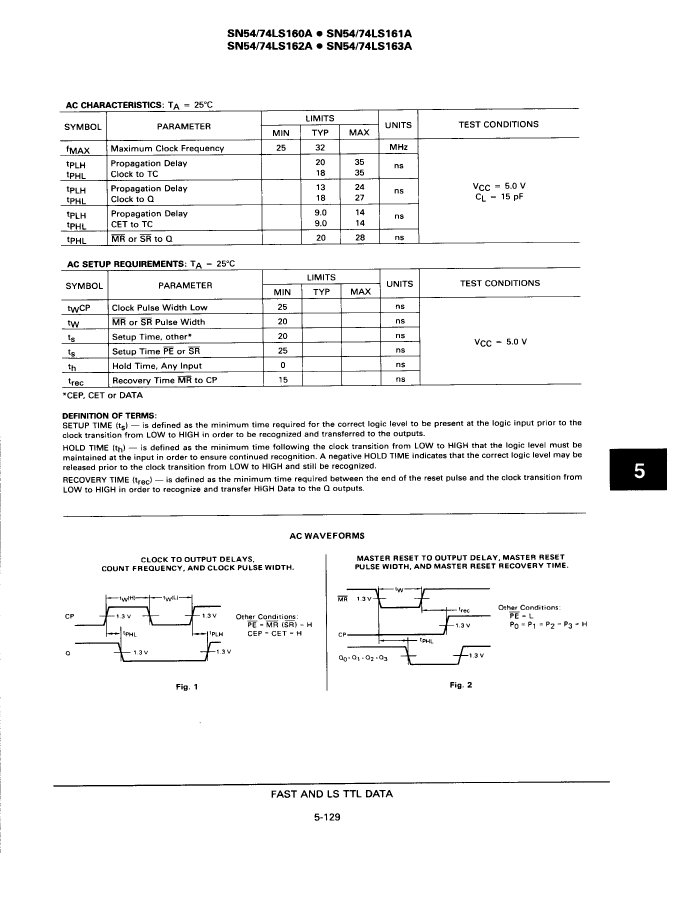

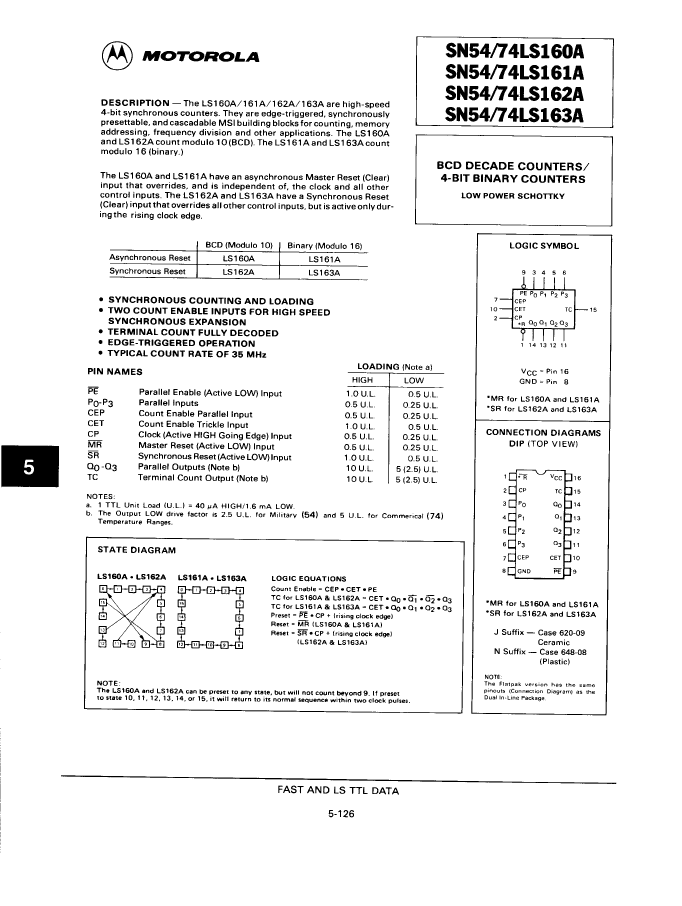

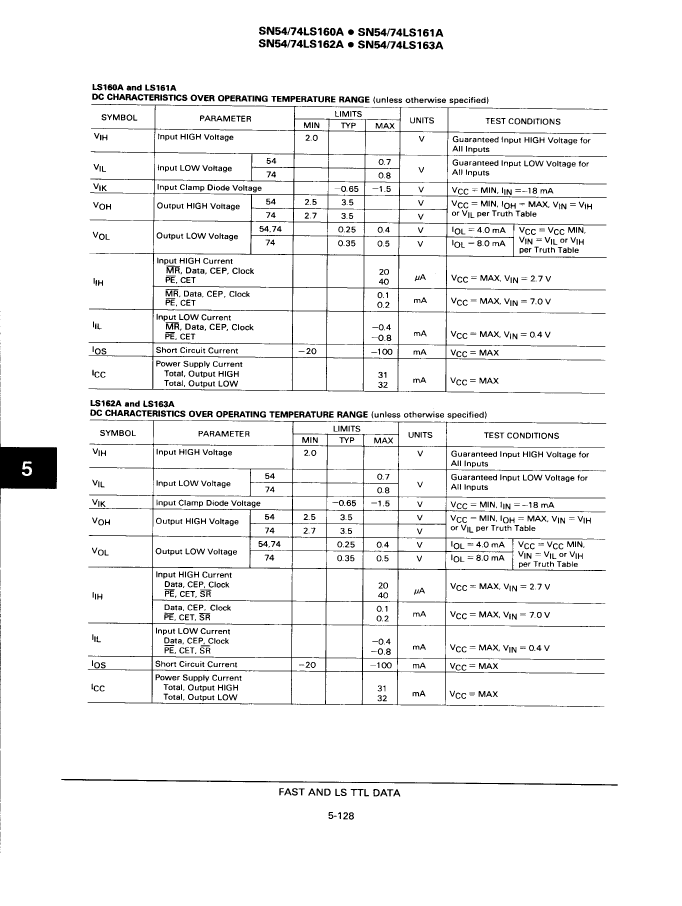

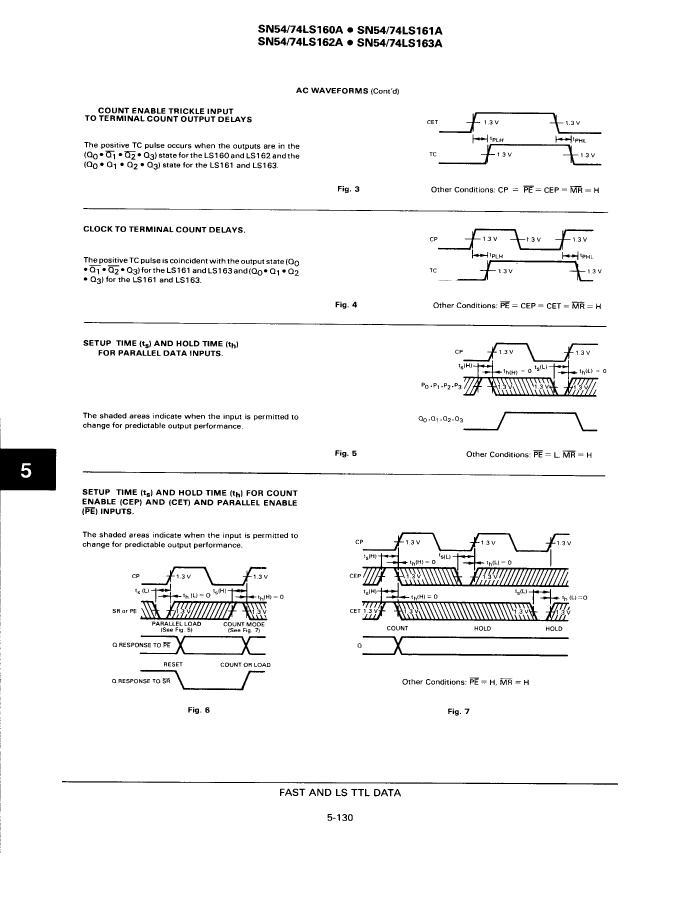

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

SN74LS162AJ Related Products

	SN74LS162AJ	SN54LS163AJ	SN74LS160AJ	SN74LS163AJ
Description	Decade Counter, Synchronous, Up Direction, TTL, CDIP16,	Binary Counter, LS Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, TTL, CDIP16, CERAMIC, DIP-16	Decade Counter, Synchronous, Up Direction, TTL, CDIP16,	Binary Counter, Synchronous, Up Direction, TTL, CDIP16,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknow
Counting direction	UP	UP	UP	UP
JESD-30 code	R-XDIP-T16	R-GDIP-T16	R-XDIP-T16	R-XDIP-T16
JESD-609 code	e0	e0	e0	e0
Load/preset input	YES	YES	YES	YES
Logic integrated circuit type	DECADE COUNTER	BINARY COUNTER	DECADE COUNTER	BINARY COUNTER
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Number of functions	1	1	1	1
Number of terminals	16	16	16	16
Maximum operating temperature	70 °C	125 °C	70 °C	70 °C
Package body material	CERAMIC	CERAMIC, GLASS-SEALED	CERAMIC	CERAMIC
encapsulated code	DIP	DIP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Maximum supply current (ICC)	32 mA	32 mA	32 mA	32 mA
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO
technology	TTL	TTL	TTL	TTL
Temperature level	COMMERCIAL	MILITARY	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
Maker	Motorola ( NXP )	-	Motorola ( NXP )	Motorola ( NXP )
MaximumI(ol)	0.008 A	-	0.008 A	0.008 A
Encapsulate equivalent code	DIP16,.3	-	DIP16,.3	DIP16,.3
power supply	5 V	-	5 V	5 V
package instruction	-	DIP,	DIP, DIP16,.3	DIP, DIP16,.3
