DM54LS109AW datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> DM54LS109AW

DM54LS109AW: DescriptionJ-Kbar Flip-Flop, LS Series, 2-Func, Positive Edge Triggered, 2-Bit, Complementary Output, TTL, CDFP16, CERAMIC, FP-16; Categorylogic logic; File Size157KB，6 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

DM54LS109AW Overview

J-Kbar Flip-Flop, LS Series, 2-Func, Positive Edge Triggered, 2-Bit, Complementary Output, TTL, CDFP16, CERAMIC, FP-16

DM54LS109AW Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Fairchild
Parts packaging code	DFP
package instruction	DFP, FL16,.3
Contacts	16
Reach Compliance Code	compliant
series	LS
JESD-30 code	R-GDFP-F16
JESD-609 code	e0
length	9.6645 mm
Logic integrated circuit type	J-KBAR FLIP-FLOP
Maximum Frequency@Nom-Sup	20000000 Hz
MaximumI(ol)	0.004 A
Number of digits	2
Number of functions	2
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	COMPLEMENTARY
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DFP
Encapsulate equivalent code	FL16,.3
Package shape	RECTANGULAR
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Maximum supply current (ICC)	8 mA
propagation delay (tpd)	30 ns
Certification status	Not Qualified
Maximum seat height	2.032 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger type	POSITIVE EDGE
width	6.604 mm
minfmax	25 MHz

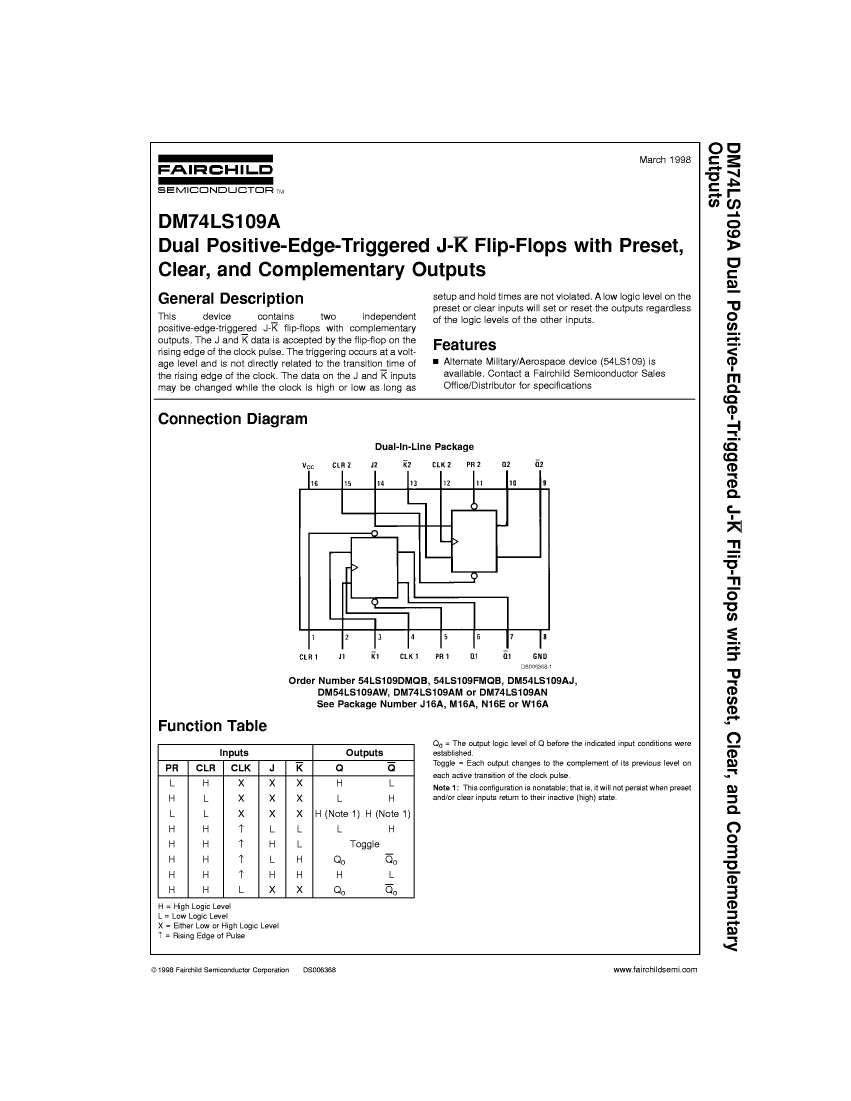

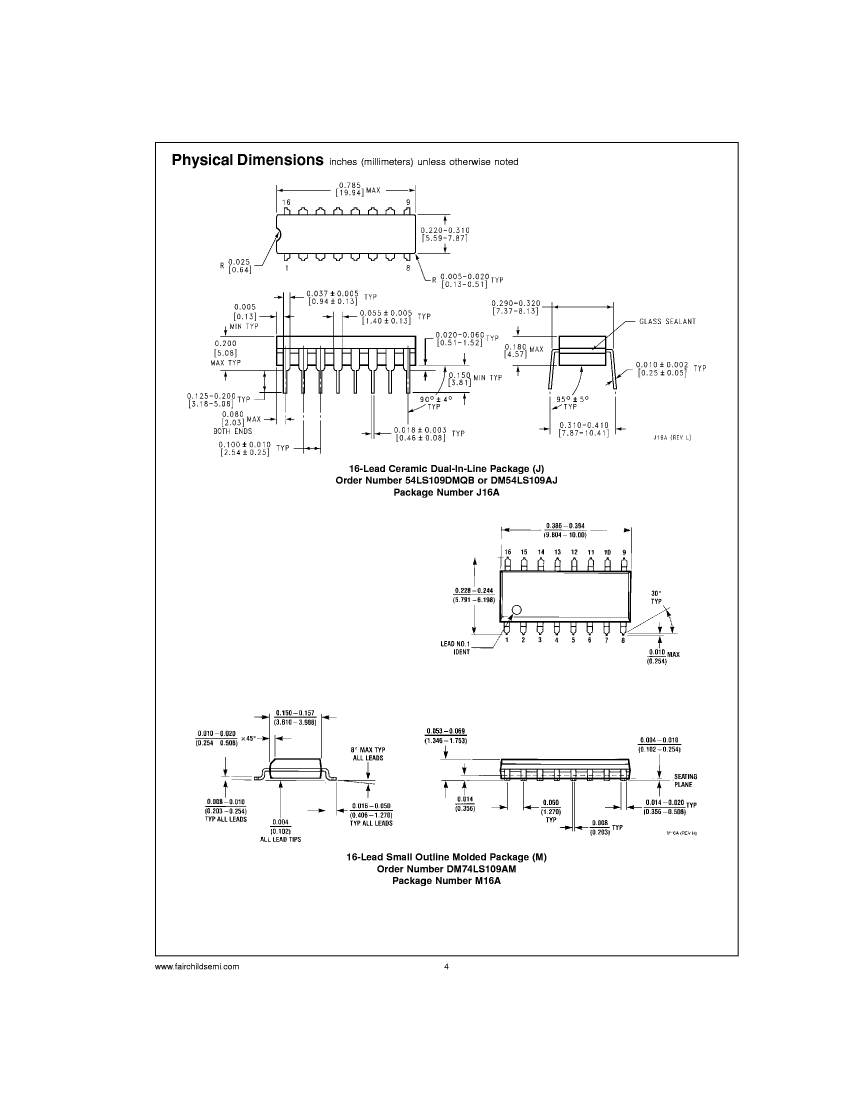

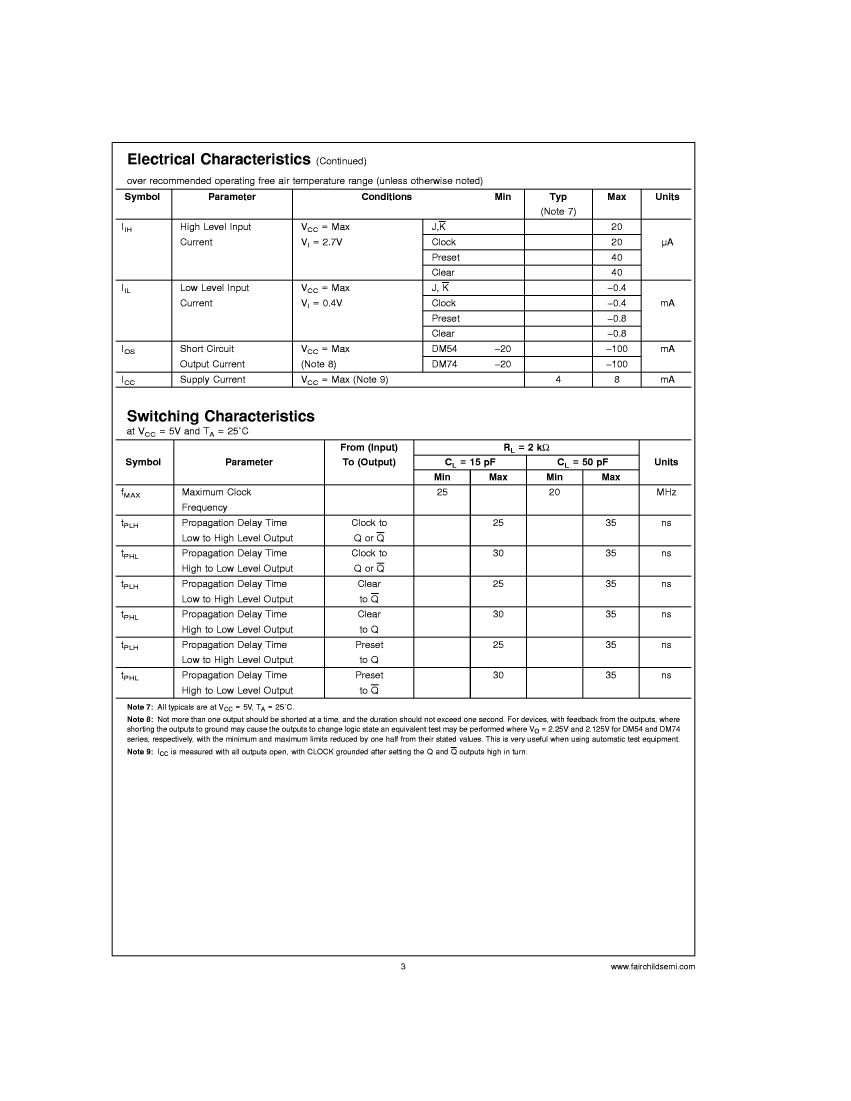

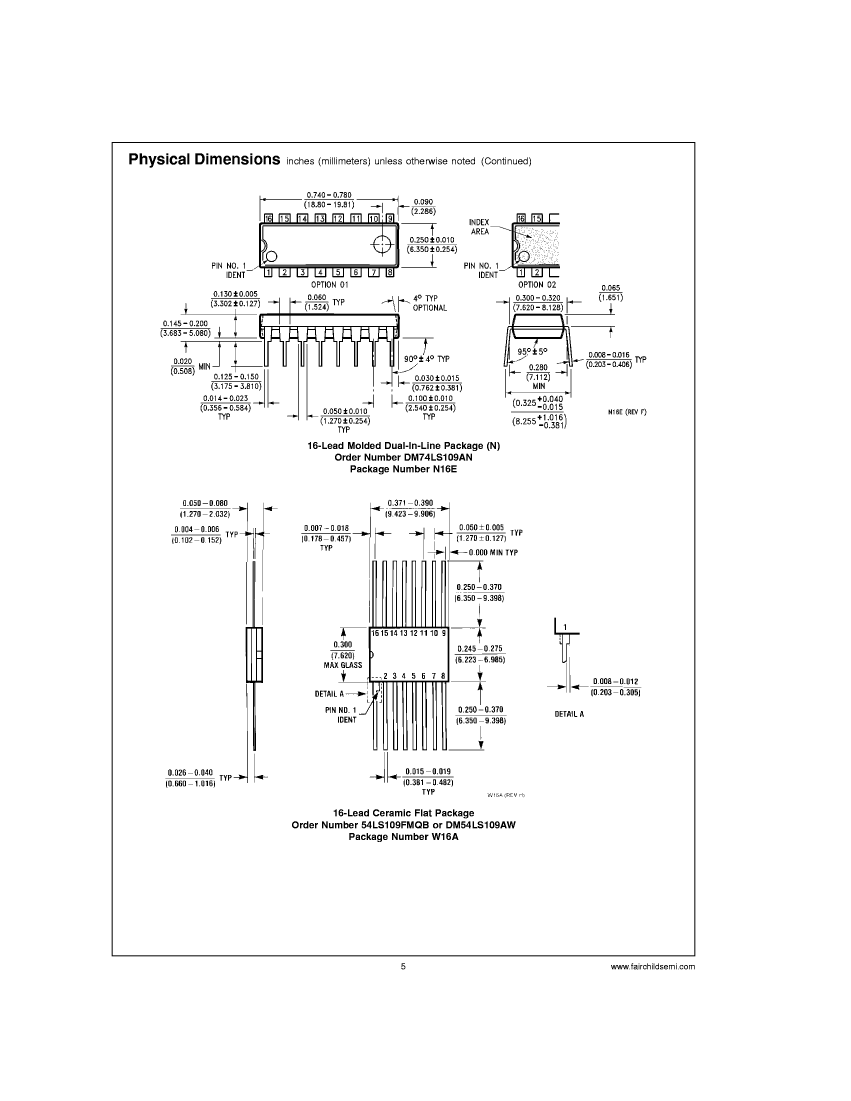

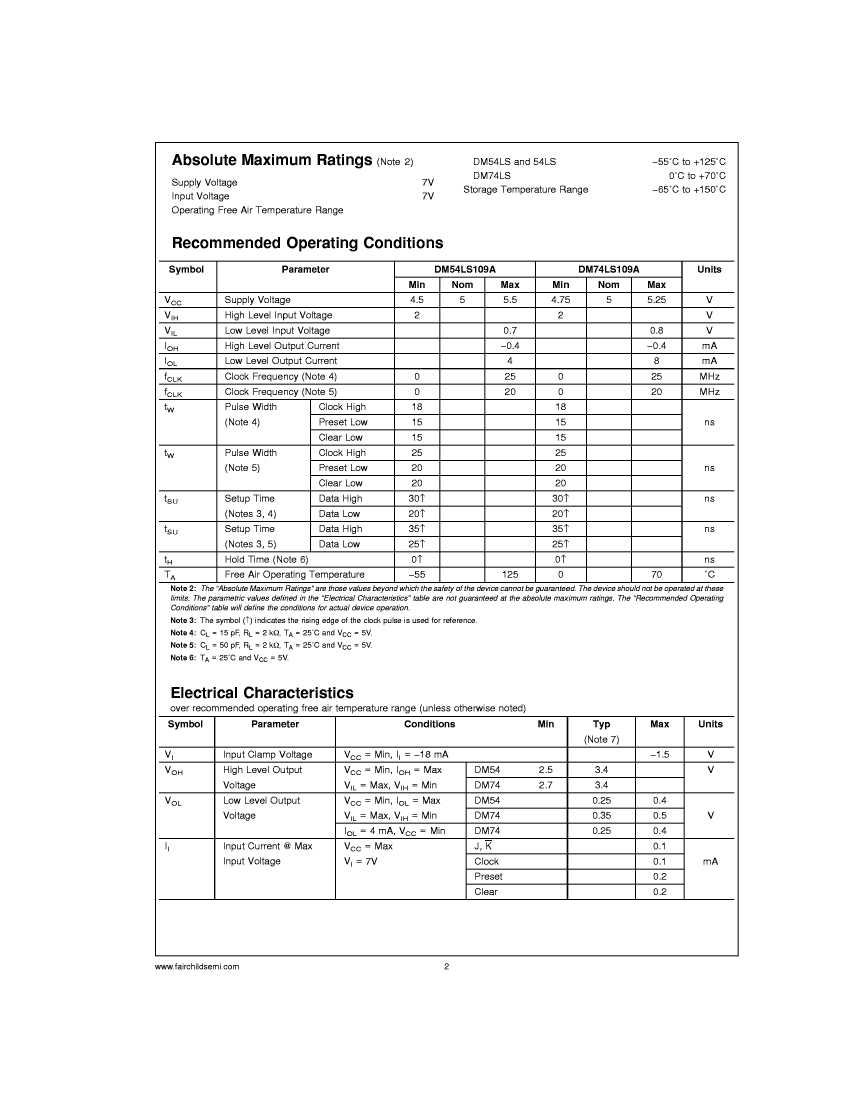

Preview

Download Datasheet

View All

DM54LS109AW Related Products

	DM54LS109AW	54LS109FMQB	54LS109DMQB	DM54LS109AJ
Description	J-Kbar Flip-Flop, LS Series, 2-Func, Positive Edge Triggered, 2-Bit, Complementary Output, TTL, CDFP16, CERAMIC, FP-16	J-Kbar Flip-Flop, LS Series, 2-Func, Positive Edge Triggered, 2-Bit, Complementary Output, TTL, CDFP16, CERAMIC, FP-16	J-Kbar Flip-Flop, LS Series, 2-Func, Positive Edge Triggered, 2-Bit, Complementary Output, TTL, CDIP16, CERAMIC, DIP-16	J-Kbar Flip-Flop, LS Series, 2-Func, Positive Edge Triggered, 2-Bit, Complementary Output, TTL, CDIP16, CERAMIC, DIP-16
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Parts packaging code	DFP	DFP	DIP	DIP
package instruction	DFP, FL16,.3	CERAMIC, FP-16	DIP, DIP16,.3	DIP, DIP16,.3
Contacts	16	16	16	16
Reach Compliance Code	compliant	compliant	compliant	compliant
series	LS	LS	LS	LS
JESD-30 code	R-GDFP-F16	R-GDFP-F16	R-GDIP-T16	R-GDIP-T16
JESD-609 code	e0	e0	e0	e0
length	9.6645 mm	9.6645 mm	19.304 mm	19.304 mm
Logic integrated circuit type	J-KBAR FLIP-FLOP	J-KBAR FLIP-FLOP	J-KBAR FLIP-FLOP	J-KBAR FLIP-FLOP
Maximum Frequency@Nom-Sup	20000000 Hz	20000000 Hz	20000000 Hz	20000000 Hz
MaximumI(ol)	0.004 A	0.004 A	0.004 A	0.004 A
Number of digits	2	2	2	2
Number of functions	2	2	2	2
Number of terminals	16	16	16	16
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Output polarity	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	DFP	DFP	DIP	DIP
Encapsulate equivalent code	FL16,.3	FL16,.3	DIP16,.3	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	FLATPACK	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V	5 V	5 V
Maximum supply current (ICC)	8 mA	8 mA	8 mA	8 mA
propagation delay (tpd)	30 ns	30 ns	30 ns	30 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.032 mm	2.032 mm	5.08 mm	5.08 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	YES	YES	NO	NO
technology	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	FLAT	FLAT	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
width	6.604 mm	6.604 mm	7.62 mm	7.62 mm
minfmax	25 MHz	25 MHz	25 MHz	25 MHz
Maker	Fairchild	Fairchild	-	Fairchild
