D15XB60-4001 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> D15XB60-4001

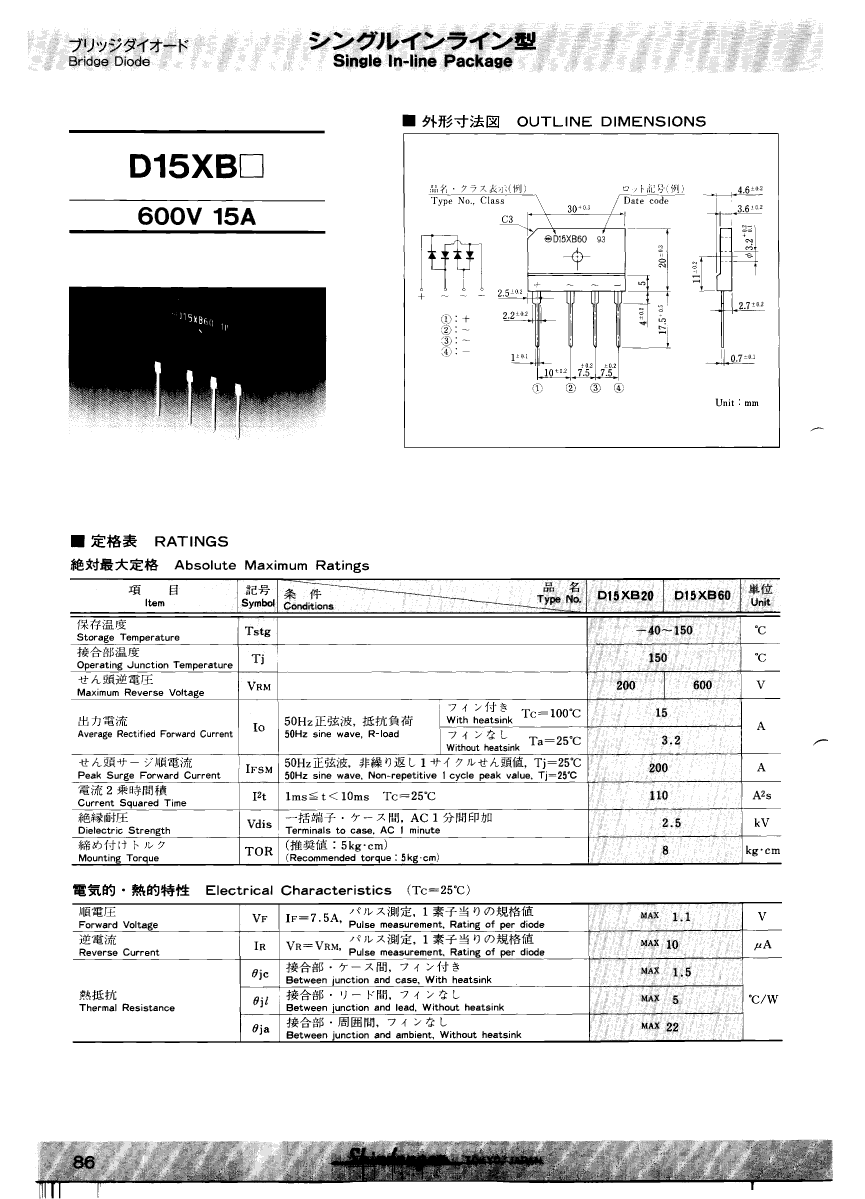

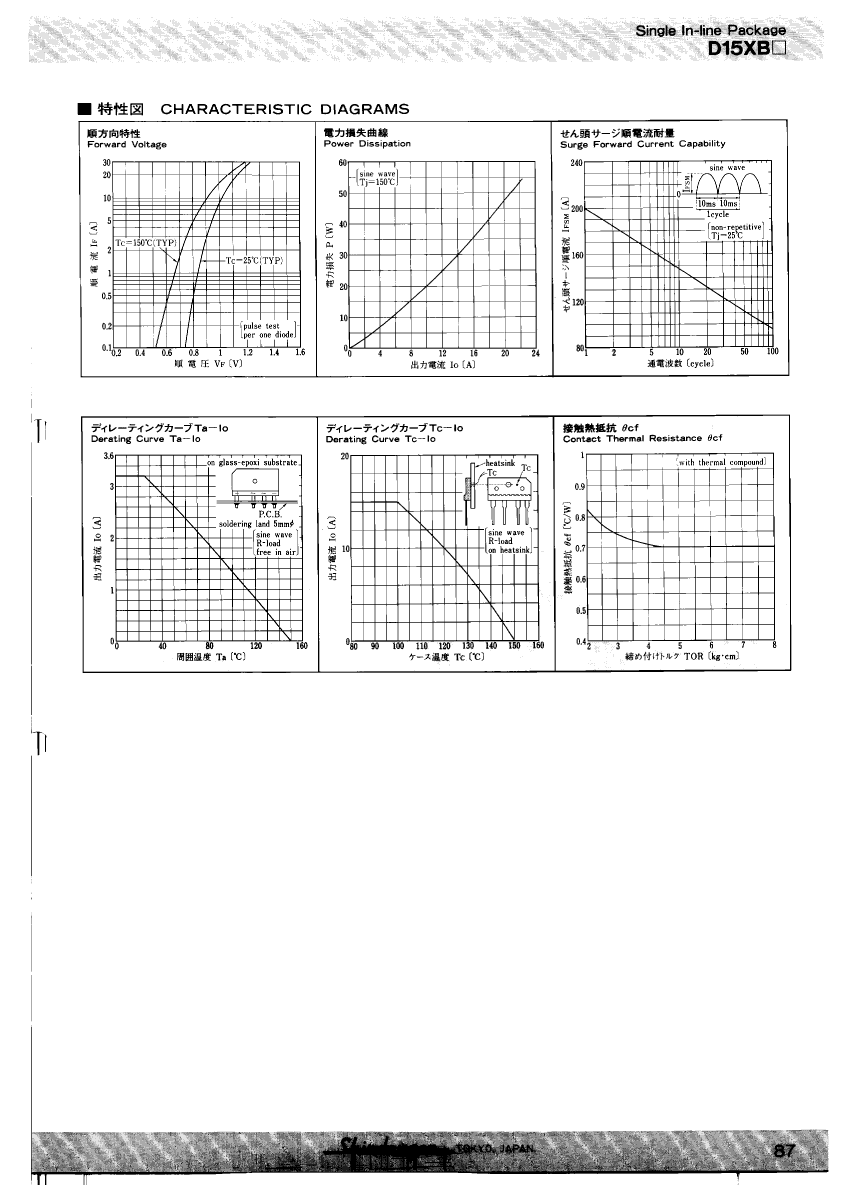

D15XB60-4001: DescriptionBridge Rectifier Diode, 1 Phase, 3.2A, Silicon,; CategoryDiscrete semiconductor diode; File Size347KB，2 Pages; ManufacturerSHINDENGEN; Websitehttps://www.shindengen.com

Download Datasheet Parametric Compare View All

D15XB60-4001 Overview

Bridge Rectifier Diode, 1 Phase, 3.2A, Silicon,

D15XB60-4001 Parametric

Parameter Name	Attribute value
Maker	SHINDENGEN
package instruction	R-PSFM-T4
Reach Compliance Code	unknown
Minimum breakdown voltage	600 V
Shell connection	ISOLATED
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V
JESD-30 code	R-PSFM-T4
Maximum non-repetitive peak forward current	200 A
Number of components	4
Phase	1
Number of terminals	4
Maximum operating temperature	150 °C
Maximum output current	3.2 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum reverse current	10 µA
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE

Preview

Download Datasheet

View All

D15XB60-4001 Related Products

	D15XB60-4001	PTN1005K1290BST0	D15XB20-4003	D15XB60-4003	D15XB60-4002	D15XB20-4001
Description	Bridge Rectifier Diode, 1 Phase, 3.2A, Silicon,	RESISTOR, THIN FILM, 0.25 W, 0.1 %, 100 ppm, 129 ohm, SURFACE MOUNT, 1005, CHIP, ROHS COMPLIANT	Bridge Rectifier Diode, 1 Phase, 3.2A, Silicon,	Bridge Rectifier Diode, 1 Phase, 3.2A, Silicon,	Bridge Rectifier Diode, 1 Phase, 3.2A, Silicon,	Bridge Rectifier Diode, 1 Phase, 3.2A, Silicon,
package instruction	R-PSFM-T4	SMT, 1005	R-PSFM-T4	R-PSFM-T4	R-PSFM-T4	R-PSFM-T4
Reach Compliance Code	unknown	compliant	unknown	unknown	unknown	unknown
Number of terminals	4	2	4	4	4	4
Maximum operating temperature	150 °C	155 °C	150 °C	150 °C	150 °C	150 °C
Package form	FLANGE MOUNT	SMT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
surface mount	NO	YES	NO	NO	NO	NO
Minimum breakdown voltage	600 V	-	200 V	600 V	600 V	200 V
Shell connection	ISOLATED	-	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	BRIDGE, 4 ELEMENTS	-	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON	-	SILICON	SILICON	SILICON	SILICON
Diode type	BRIDGE RECTIFIER DIODE	-	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V	-	1.1 V	1.1 V	1.1 V	1.1 V
JESD-30 code	R-PSFM-T4	-	R-PSFM-T4	R-PSFM-T4	R-PSFM-T4	R-PSFM-T4
Maximum non-repetitive peak forward current	200 A	-	200 A	200 A	200 A	200 A
Number of components	4	-	4	4	4	4
Phase	1	-	1	1	1	1
Maximum output current	3.2 A	-	3.2 A	3.2 A	3.2 A	3.2 A
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Certification status	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum reverse current	10 µA	-	10 µA	10 µA	10 µA	10 µA
Terminal form	THROUGH-HOLE	-	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	-	SINGLE	SINGLE	SINGLE	SINGLE
