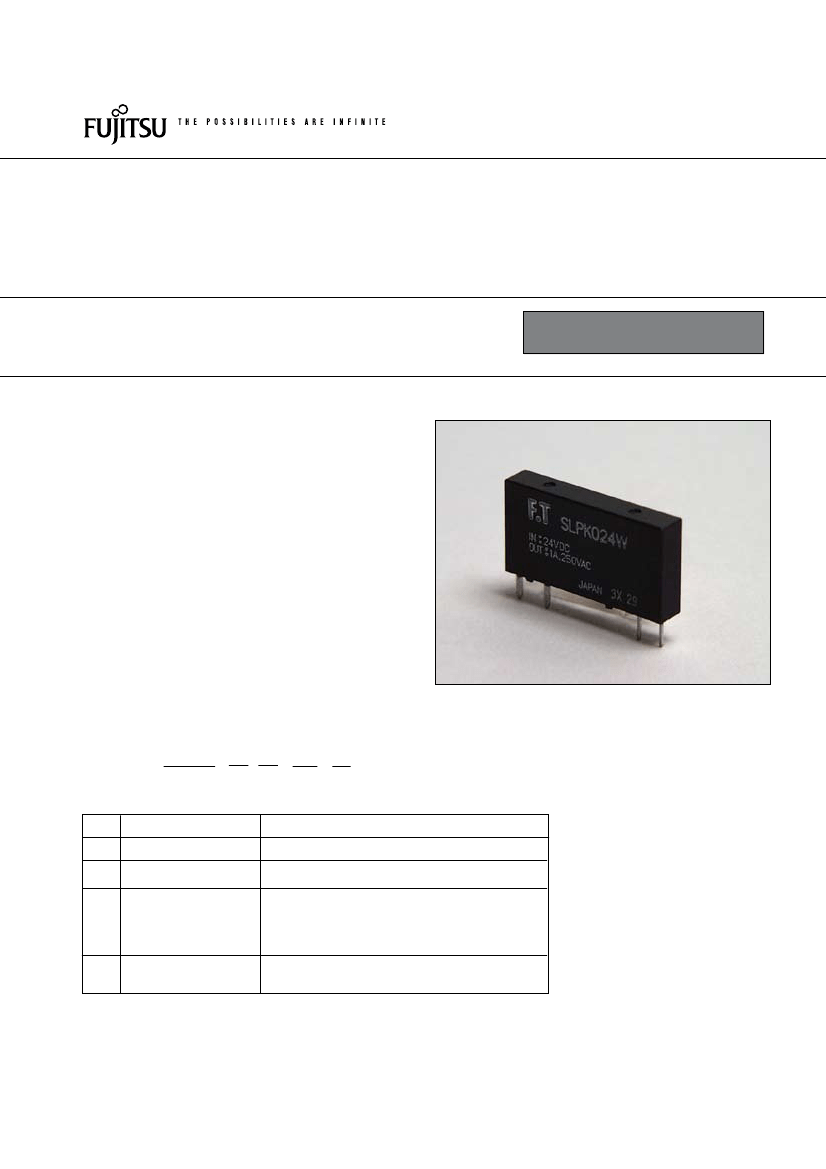

SOLID STATE RELAY
1 Maximum Load current 1A
FTR-SL SERIES
n
FEATURES
l
RoHS compliant
l
l
l
l
l
l
Ultra slim and light weight, SIL terminal type
— size: 5.0 (W) x 28.0 (L) x 5.0 (H): 40mm mount-
ing area
— weight: approximately 4.0g
Internal varistor and snubber circuit
High insulation (between input and output) - dielec-
tric strength 2500Vrms
Include a zero cross circuit as standard equipment
High frequency switching, long life and maintenance
free
High impact/vibration resistance, good for automatic
assembly, washable
RoHS compliant since date code: 6202 (February
2nd, 2006)
Please see page 5 for more information
n
ORDERING INFORMATION
[Example]
FTR-SL
(a)
P
(b)
K
(c)
024 W
(d) (e)
(a)
(b)
(c)
(d)
Series Name
Load Voltage
Input or Output Type
Nominal Voltage
FTR-SL : FTR-SL Series
P
K
005
02
024
060
W
: AC type
: Output type
: 5 VDC
: 2 VDC
: 24VDC
: 60 VDC
: With Zero Cross Circuit and Varistor
(e)
Zero Cross Circuit
Output Protection
Note: The part number on the relay cover does not include 'FTR'
Example:
Ordering part number: FTR-SL-PK02W
Stamped part number: SLPK02W
FTR-SL SERIES
n
SPECIFICATION
Item
Nominal Voltage
Operate Range
Iput side
Must operate
voltage
Must release
voltage
Input Impedance
Load voltage
range
Max. load current
Outpt side
1 cycle surge
current
max. off-state
leakage current
max. on-state
voltage drop
Storage
temperature
range
Operating
temperature
range
Max. operating
time
Max. release time
Output protection
Other
Case color
weight
FTR-SLPK005 W
5 VD C
3.75 to 6 VD C
3.75 VDC
1.25 VDC
560
Ω
±10 %
FTR-SLPK012 W FTR-SLPK024 W FTR-SLPK060 W
12 VD C
9 to 14.4 VD C
9.0 VD C
3.6 VD C
1.3K
Ω
±10 %
24 VD C
18 to 28.8 VD C
18 VD C
8.4 VD C
2.4K
Ω
±10 %
60 VD C
48 to 66 VD C
48 VD C
18 VD C
10K
Ω
±10 %
24 to 250 AC Vrms
1 Arm s
50 A (60 Hz, 1 cycle)
max. 1 mArms (60Hz, 220 AC Vrms)
max. 1.3 V (1Arms, 50Hz)
-40 to +100
˚
C (no frost)
Temperature
-30 to +85
˚
C (no frost)
max. 1/2 cycle + 1ms
max. 1/2 cycle + 1m s
Snubber circuit and varisto r
Blac k
Approximately 4.0g
Time
n
INSULATION
Item
Resistance (initial)
Surge Voltage
AC .0A type
Minimum 1,000 MΩ (500VDC)
2,500V rms min.
Note
Input-output
2
FTR-SL SERIES
RoHS Compliance and Lead Free Relay Information
1. General Information
Relays produced after the specific date code that is indicated on each data sheet are lead-free
now. Most of our signal and power relays are lead-free. Please refer to Lead-Free Status Info.
(http://www.fujitsu.com/us/downloads/MICRO/fcai/relays/lead-free-letter.pdf)
l
Lead free solder paste currently used in relays is Sn-.0Ag-0.5Cu.
l
All signal and most power relays also comply with RoHS. Please refer to individual data
sheets. Relays that are RoHS compliant do not contain the 5 hazardous materials that
are restricted by RoHS directive (lead, mercury, chromium IV, PBB, PBDE).
l
It has been verified that using lead-free relays in leaded assembly process will not cause any
problems (compatible).
l
“LF” is marked on each outer and inner carton. (No marking on individual relays).
l
To avoid leaded relays (for lead-free sample, etc.) please consult with area sales office.
l
We will ship leaded relays as long as the leaded relay inventory exists.
Note: Cadmium was exempted from RoHS on October 2, 2005. (Amendment to Directive 2002/95/EC)
l
2.
Recommended Lead Free Solder Profile
l
Recommended solder paste Sn-.0Ag-0.5Cu.
Reflow Solder condition
Flow Solder condition:
Pre-heating:
Soldering:
maximum 120˚C
dip within 5 sec. at
260˚C soler bath
Solder by Soldering Iron:
Soldering Iron
Temperature: maximum 360˚C
Duration:
maximum sec.
We highly recommend that you confirm your actual solder conditions
3. Moisture Sensitivity
l
Moisture Sensitivity Level standard is not applicable to electromechanical realys.
Dipped SnAgCu solder is known as low risk tin whisker. No considerable length whisker was found by our in
house test.
4. Tin Whisker
l
5
