SN74S51N3 datasheet, PDF - EEWORLD Datasheet

SN74S51N3: DescriptionAND-OR-Invert Gate, S Series, 2-Func, 4-Input, TTL, PDIP14, PLASTIC, MS-001AA, DIP-14; Categorylogic logic; File Size954KB，21 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

SN74S51N3 Overview

AND-OR-Invert Gate, S Series, 2-Func, 4-Input, TTL, PDIP14, PLASTIC, MS-001AA, DIP-14

Parameter Name	Attribute value
Maker	Rochester Electronics
package instruction	DIP,
Reach Compliance Code	unknown
Other features	ANOTHER FUNCTION HAS 6 INPUT
series	S
JESD-30 code	R-PDIP-T14
length	19.305 mm
Logic integrated circuit type	AND-OR-INVERT GATE
Number of functions	2
Number of entries	4
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
propagation delay (tpd)	5.5 ns
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	INDUSTRIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm

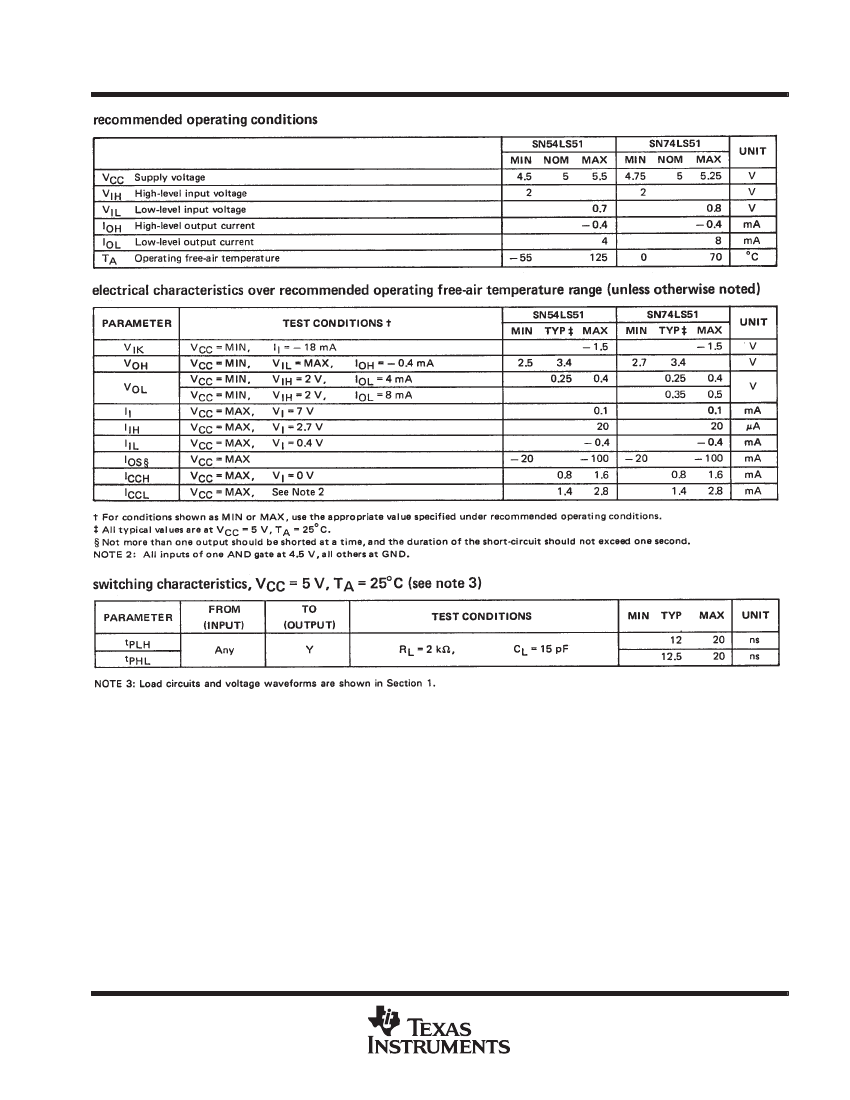

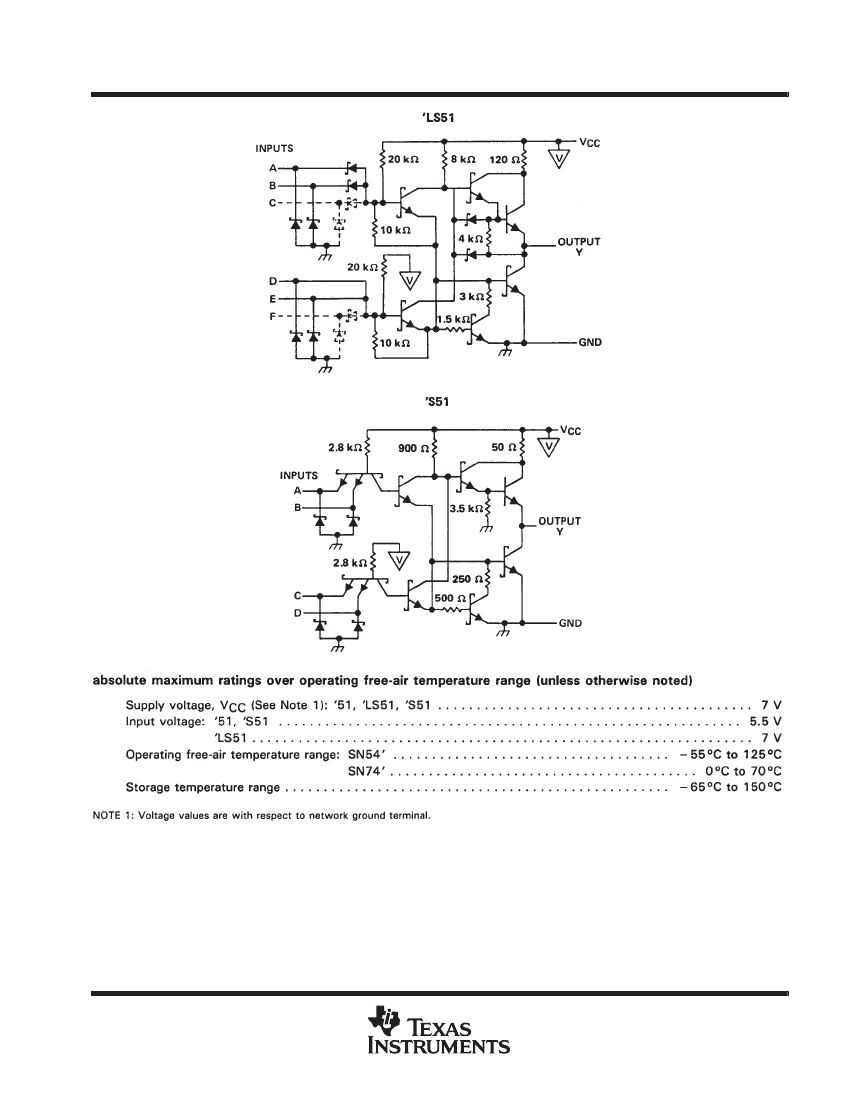

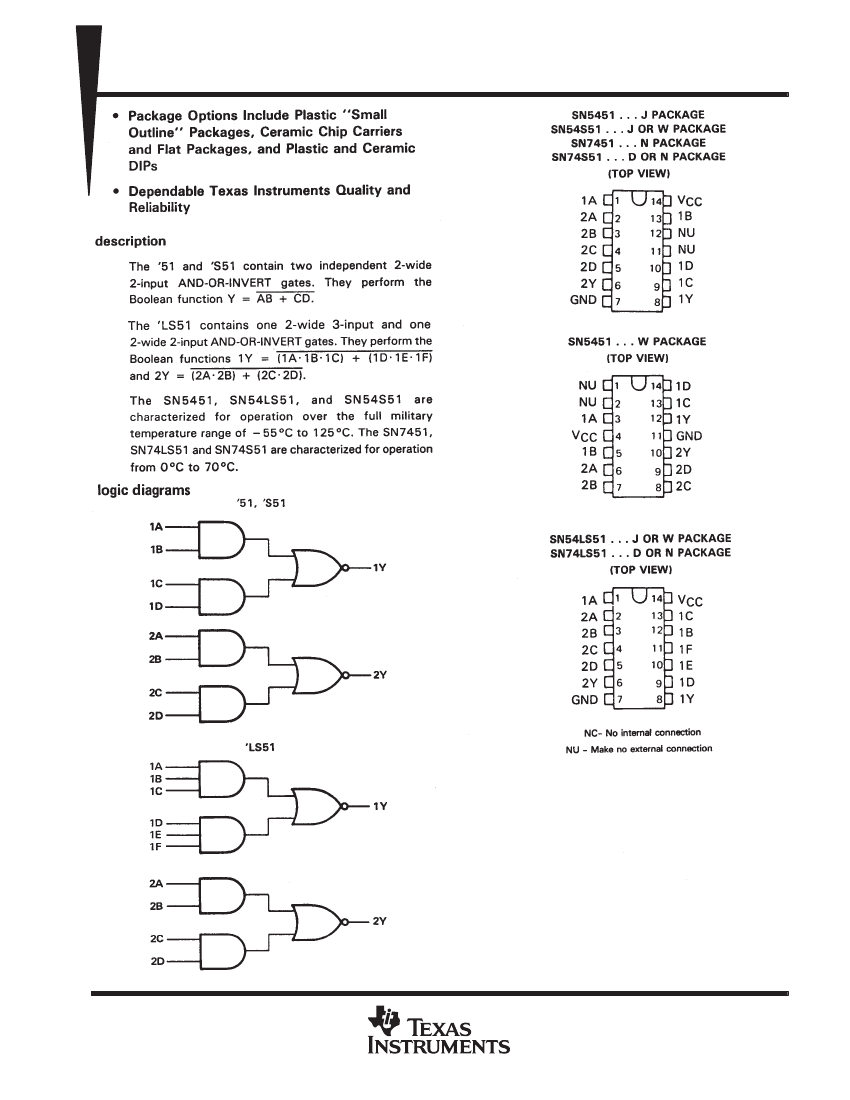

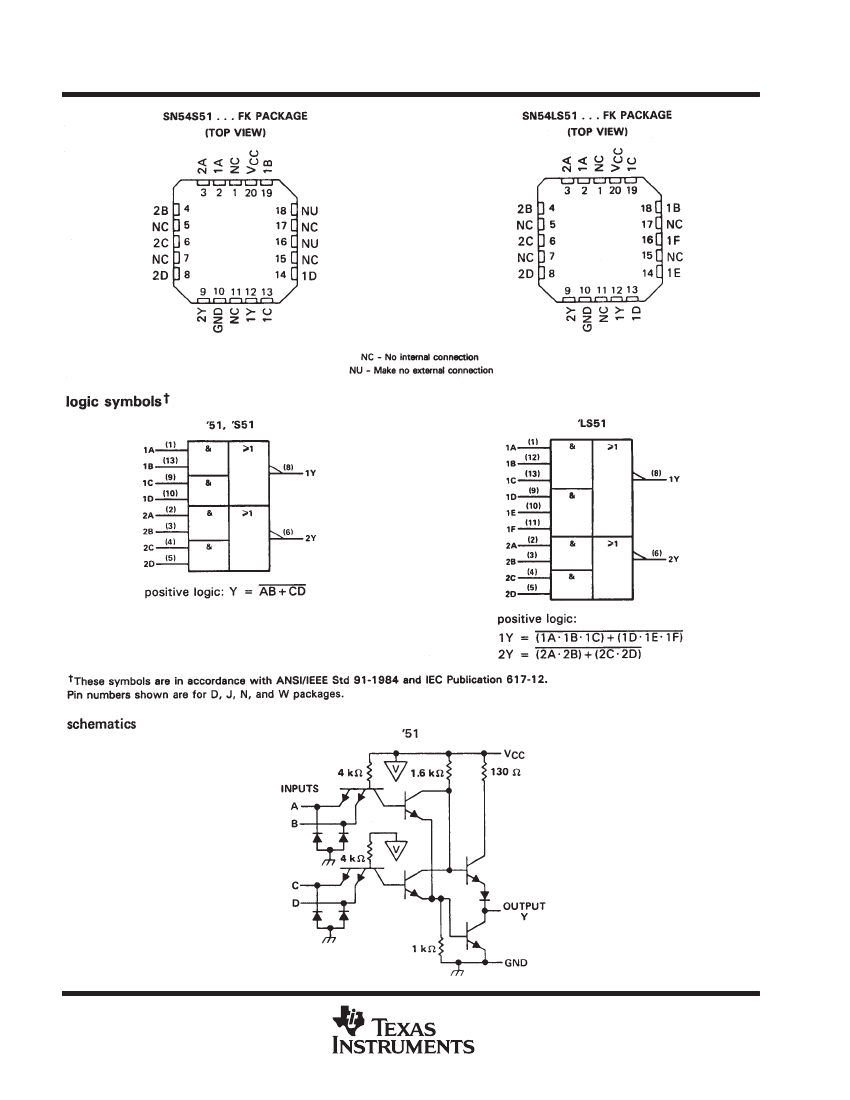

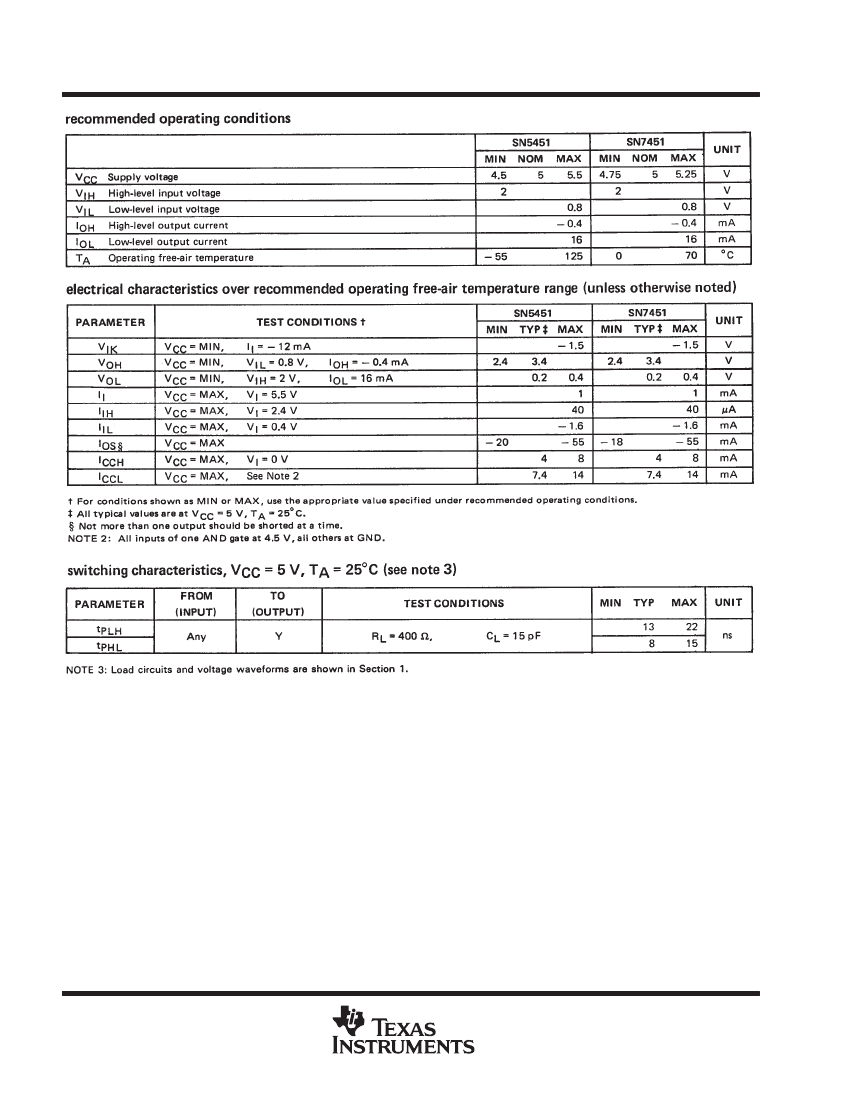

SN5451, SN54LS51, SN54S51

SN7451, SN74LS51, SN74S51

AND-OR-INVERT GATES

SDLS113 – DECEMBER 1983 – REVISED MARCH 1988

PRODUCTION DATA information is current as of publication date.

Products conform to specifications per the terms of Texas Instruments

standard warranty. Production processing does not necessarily include

testing of all parameters.

1988, Texas Instruments Incorporated

POST OFFICE BOX 655303

•

DALLAS, TEXAS 75265

	SN74S51N3	SN74S51J	SN74S51DRE4
Description	AND-OR-Invert Gate, S Series, 2-Func, 4-Input, TTL, PDIP14, PLASTIC, MS-001AA, DIP-14	AND-OR-Invert Gate, S Series, 2-Func, 4-Input, TTL, CDIP14, CERAMIC, DIP-14	AND-OR-Invert Gate, S Series, 2-Func, 4-Input, TTL, PDSO14, GREEN, PLASTIC, SOIC-14
package instruction	DIP,	DIP,	SOP,
Reach Compliance Code	unknown	unknown	unknown
Other features	ANOTHER FUNCTION HAS 6 INPUT	ANOTHER FUNCTION HAS 6 INPUT	ANOTHER FUNCTION HAS 6 INPUT
series	S	S	S
JESD-30 code	R-PDIP-T14	R-GDIP-T14	R-PDSO-G14
length	19.305 mm	19.56 mm	8.65 mm
Logic integrated circuit type	AND-OR-INVERT GATE	AND-OR-INVERT GATE	AND-OR-INVERT GATE
Number of functions	2	2	2
Number of entries	4	4	4
Number of terminals	14	14	14
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY
encapsulated code	DIP	DIP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	SMALL OUTLINE
propagation delay (tpd)	5.5 ns	5.5 ns	5.5 ns
Maximum seat height	5.08 mm	5.08 mm	1.75 mm
Maximum supply voltage (Vsup)	5.25 V	5.25 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	4.75 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	NO	NO	YES
technology	TTL	TTL	TTL
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	GULL WING
Terminal pitch	2.54 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL
width	7.62 mm	7.62 mm	3.9 mm
Maker	Rochester Electronics	-	Rochester Electronics
