Power Entry Modules with Line Filter
https://www.schurter.com /PG06
DC22

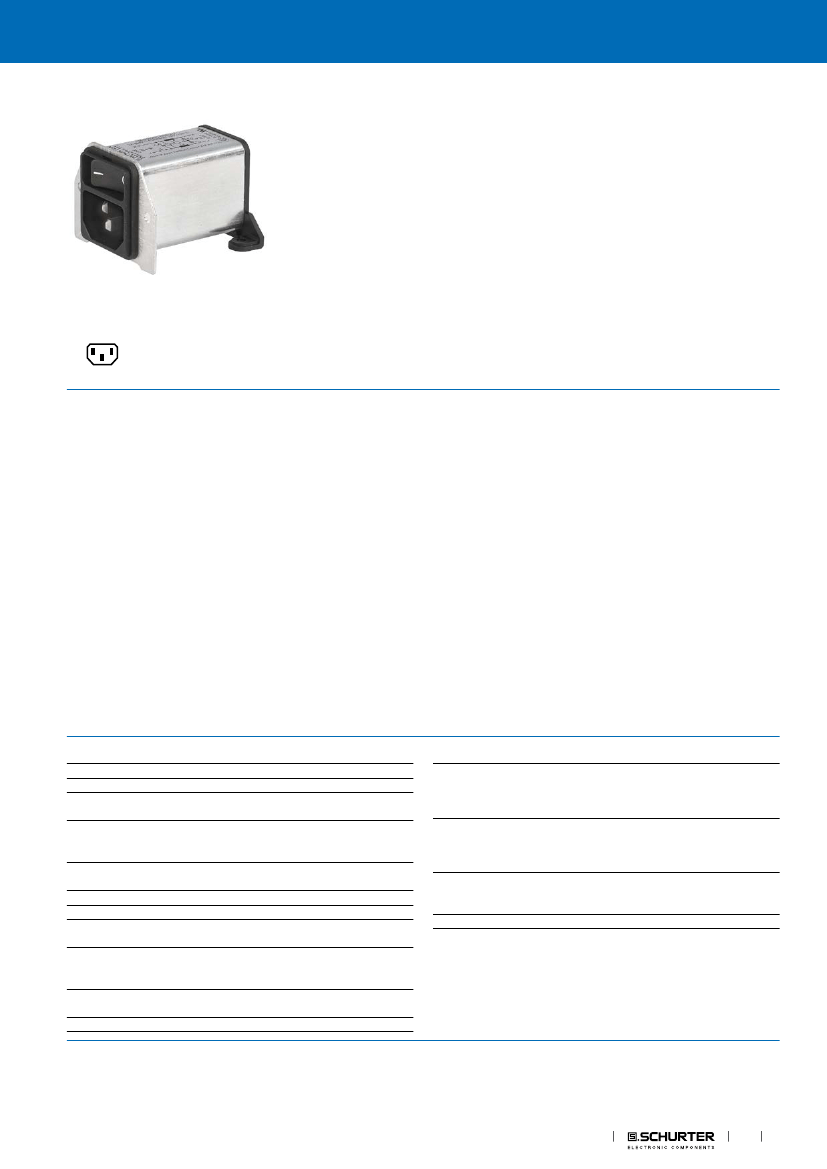

IEC Appliance Inlet C14 with Filter, Line Switch 1- or 2-pole, PCB Mounting
C14
70° C
Approvals and Compliances
Description
- Panel Mount :
Screw-on mounting on PCB from rear-side
- 3 Functions :
Appliance Inlet Protection class I , Line Switch 1- or 2-pole , Line filter
in standard and medical version
- For PCB mounting
Characteristics
-
-
-
-
-
Ultra-compact design
All single elements are already wired
Line switch non-illuminated or illuminated
With EMC-shield
Especially suitable for use in switching power supplies
Ideal for application with high transient loads
- Suitable for use in equipment according to IEC/UL 60950
Suitable for use in medical equipment according to IEC/UL 60601-1
Other versions on request
-
-
-
-
-
Fixing on PCB with self-tapping screws 3 mm or pre-inserted nuts M3
Other rocker marking
Illuminated green
Medical version M80
Capacitance CX1
References
Weblinks
Alternative: version without line filter
DC21
Alternative: Standard version
DC21
pdf datasheet, html-datasheet, General Product Information, Distributor-
Stock-Check, Accessories, Detailed request for product, Microsite
Newly available variants corresponding to V-Lock mating cordset. The connector is equipped with a notch intended for use with the latching cordset.
The cord latching system prevents against accidental removal of the cordset.
Technical Data
Ratings IEC
Ratings UL/CSA
Leakage Current
Dielectric Strength
1 - 10 A @ Ta 40 °C / 250 VAC; 50 Hz
1 - 10 A @ Ta 40 °C / 125 VAC; 60 Hz
standard < 0.5 mA (250 V / 60 Hz)
medical < 5 µA (250 V / 60 Hz)
> 1.7 kVDC between L-N
> 2.7 kVDC between L/N-PE
Test voltage (2 sec)
-25 °C to 85 °C
25/085/21 acc. to IEC 60068-1
from front side IP 40 acc. to IEC 60529
Suitable for appliances with protection
class I acc. to IEC 61140
For PCB mounting ; Ground terminal:
Quick connect terminals 6.3 x 0.8 mm
angled to pin axis
Screw: max 4 mm
Mounting screw torque max 0.5 Nm
Thermoplastic, black, UL 94V-0
appliance inlet/-outlet
C14 acc. to IEC 60320-1,
UL 498 CSA C22.2 no. 42 (for cold
conditions) pin-temperature 70 °C, 10 A,
Protection Class I
Rocker switch 1 or 2 pole, non-illumi-
nated or illuminated red, acc. to IEC
61058-1
Technical Details
Standard and Medical Version, IEC
60939, UL 1283, CSA C22.2 no. 8
Technical Details
> 2'100'000 h acc. to MIL-HB-217 F
Line Switch
Allowable Operation Tempe-
rature
Climatic Category
IP-Protection
Protection Class
Terminal
Line Filter
MTBF
Panel Thickness S
Material: Housing
Approvals and Compliances
EMC Products
1
DC22
Power Entry Modules with Line Filter
https://www.schurter.com /PG06
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
Approvals
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: DC22
Approval Logo
Certificates
VDE Approvals
UL Approvals
Certification Body
VDE
UL
Description
Certificate Number: 40001522
UL File Number: E72928
Product standards
Product standards that are referenced
Organization
Design
Designed according to
Designed according to
Designed according to
Designed according to
Designed according to
Designed according to
Designed according to
Standard
IEC 60320-1
IEC 60939
IEC 61058-1
UL 498
UL 1283
CSA C22.2 no. 42
CSA C22.2 no. 8
Description
Appliance couplers for household and similar general purposes
Passive filters for suppressing electromagnetic interference
Switches for appliances. Part 1. General requirements
Standard for Attachment Plugs and Receptacles
Electromagnetic interference filters
General Use Receptacles, Attachment Plugs, and Similar Wiring Devices
Electromagnetic interference (EMI) filters
Application standards
Application standards where the product can be used
Organization
Design
Designed for applications acc.
Designed for applications acc.
Standard
IEC/UL 60950
IEC 60601-1
Description
IEC 60950-1 includes the basic requirements for the safety of information
technologyequipment.
Medical electrical equipment - Part 1: General requirements for basic
safety and essential performance
Compliances
The product complies with following Guide Lines
Identification
Details
CE declaration of conformity
Initiator
SCHURTER AG
Description
The CE marking declares that the product complies with the applicable
requirements laid down in the harmonisation of Community legislation on
its affixing in accordance with EU Regulation 765/2008.
EU Directive RoHS 2011/65/EU
The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March
2007. It is similar to the EU directive RoHS.
On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,
Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as
"REACH") entered into force.
V-Lock system are based on a matching plug-dose combination. The
connector is equipped with a notch intended for use with the latching
cordset. The cord latching system prevents against accidental removal of
the cordset.
Suitable for use in medical equipment according to IEC/UL 60601-1
RoHS
China RoHS
REACH
SCHURTER AG
SCHURTER AG
SCHURTER AG
MicrositeV-Lock
SCHURTER AG
Medical Equipment
SCHURTER AG
2
EMC Products
Power Entry Modules with Line Filter
https://www.schurter.com /PG06
DC22
Dimension [mm]
Screw-on mounting
46.8
39
R4
30
R 5.1
5.8
57.6
47.6
2.2
R4.2
±0.05
4.2
19.5
6.05
10.5
N
PE
L
4.5
1)
1.25
3.95
2.5
2.8
32.7
47.05
0.85
30.4
±0.10
39
±0.15
4.3
8.1
16.2
1) all pins
38
2)
6.6
6.05
±0.10
L
3.4
28.4
16.2
±0.15
38
±0.20
32.7
±0.20
PE
+0.10
1.6
0
+0.10
0
41
N
1.6
3.6
2) PE additionally as quick-connect terminal 6.3 x 0.8
Technical Data of Filter-Components
Rated Current
[A]
1
2
4
6
10
1
2
4
6
10
Filter-Type
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Inductances
L [mH]
2 x 10
2x4
2 x 1.5
2 x 0.8
2 x 0.3
2 x 10
2x4
2 x 1.5
2 x 0.8
2 x 0.3
Capacitance
CX [nF]
100
100
100
100
100
100
100
100
100
100
Capacitance
CY [nF]
2.2
2.2
2.2
2.2
2.2
-
-
-
-
-
R [MΩ]
1
1
1
1
1
1
1
1
1
1
EMC Products
34.4
±0.10
37.6
32.5
34
3.6
R4
.4
3
DC22
Diagrams
Standard filter 1-pole
Standard filter 2-pole
Power Entry Modules with Line Filter
https://www.schurter.com /PG06
L
1)
PE
N
R
Cx
L1
Cy
L2
Cy
L’
2)
PE’
N’
1)
L
L1
L’
R
Cy
Cx
L2
Cy
2)
PE’
N’
PE
N
1) Line
2) Load
1) Line
2) Load
Medical filter 1-pole (M5)
Medical filter 2-pole (M5)
L
1)
PE
N
R
Cx
L1
L’
2)
PE’
L2
L
1)
PE
N
R
Cx
L1
L’
2)
PE’
L2
N’
N’
1) Line
2) Load
1) Line
2) Load
Standard filter 2-pole
illuminated
Medical Filter 2-pole (M5)
illuminated
L
1)
PE
N
Cx
L1
Cy
L2
Cy
L’
2)
PE’
N’
1)
L
L1
L’
2)
PE’
L2
PE
N
Cx
N’
1) Line
2) Load
1) Line
2) Load
4
EMC Products
Power Entry Modules with Line Filter
https://www.schurter.com /PG06
DC22
- - - - 50Ω differential mode _____ 50Ω common mode

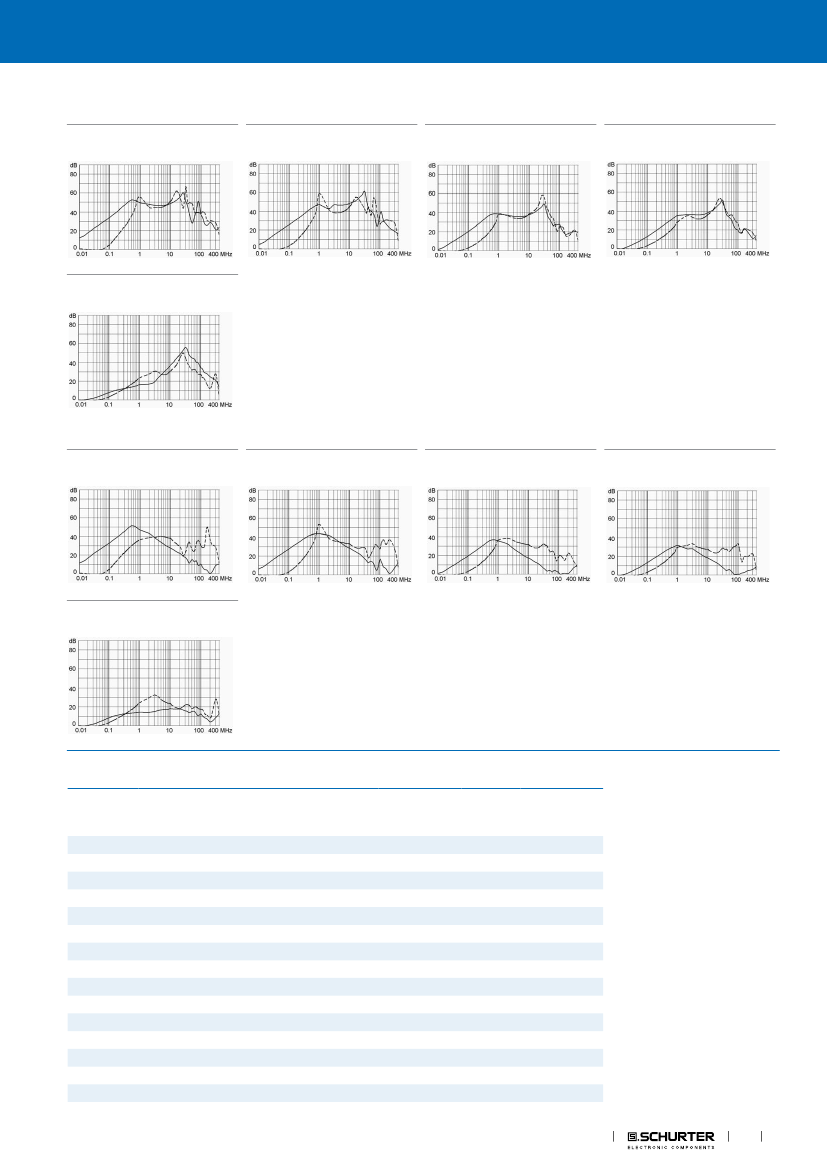

Attenuation Loss
Standard version
1A
2A
4A
6A
10 A
Medical version (M5)
1A
2A
4A
6A
10 A
All Variants
Rated current
Filter-Type
Line Switch
Illumination
Color
V-Lock
1
2
4
6
10
1
2
4
6
10
1
2
4
6
10
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
1-pole
1-pole
1-pole
1-pole
1-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
l
l
l
l
l
-
-
-
-
-
-
-
-
-
-
red
red
red
red
red
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
EMC Products
5
