EC24100UH10%B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> EC24100UH10%B

EC24100UH10%B: DescriptionGeneral Fixed Inductor, 1 ELEMENT, 100 uH, GENERAL PURPOSE INDUCTOR; CategoryPassive components inductor; File Size26KB，2 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric View All

EC24100UH10%B Overview

General Fixed Inductor, 1 ELEMENT, 100 uH, GENERAL PURPOSE INDUCTOR

EC24100UH10%B Parametric

Parameter Name	Attribute value
Maker	Vishay
Reach Compliance Code	unknown
ECCN code	EAR99
DC Resistance	3.5 Ω
Nominal inductance(L)	100 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-20 °C
Minimum quality factor (at nominal inductance)	50
Maximum rated current	0.165 A
self resonant frequency	5.5 MHz
Shape/Size Description	TUBULAR PACKAGE
shield	NO
surface mount	NO
Terminal location	AXIAL
Terminal shape	PRINTED WIRING PIN
Test frequency	2.52 MHz
Tolerance	10%

Preview

Download Datasheet

View All

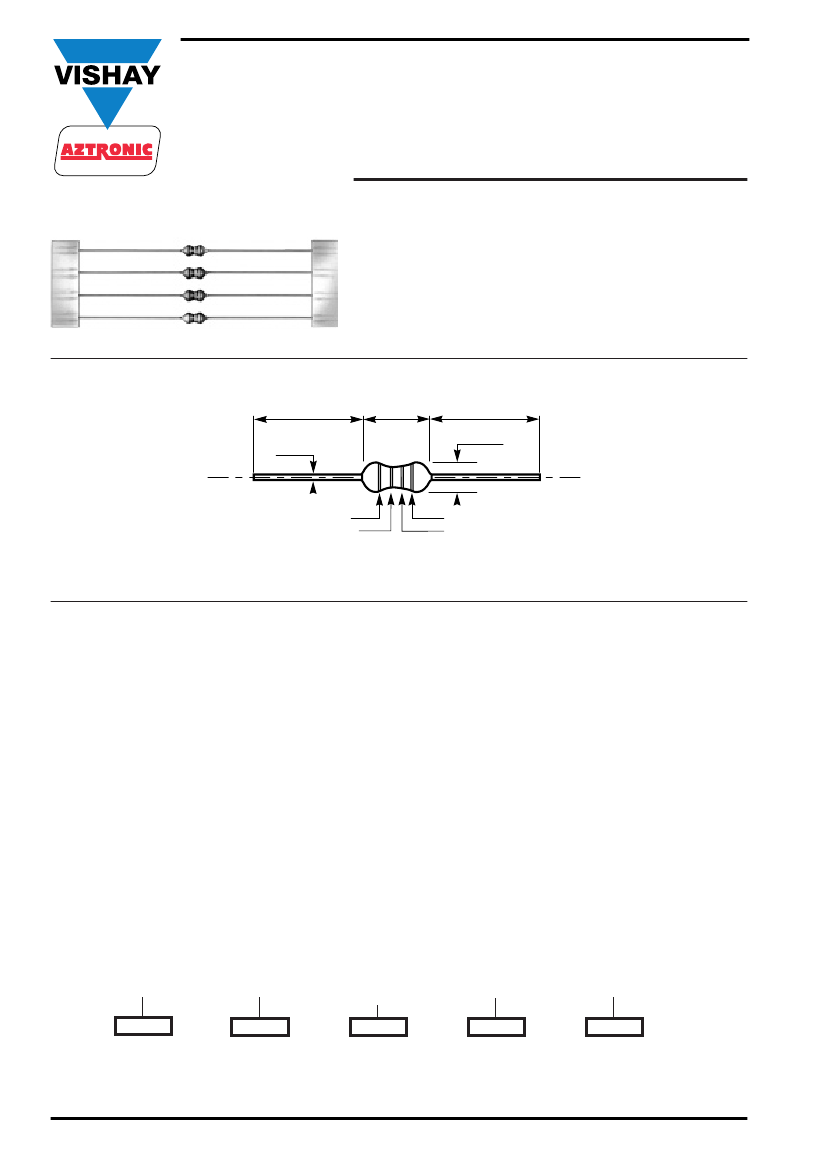

Data sheet E 1/7.102 -

10497

EC24

conformal coated inductors

– axial leads

– commercial use

Inductors EC series have copper winding on magnetic core structure with

tinned copper axial leads.

UNIFORM EPOXY COATING FOR HUMIDITY

±3

7 max.

±3

Ø 3,2 max.

0,5

±0,05

First significant digit

Second significant digit

Tolerance

Multiplier

Dimensions in mm

SPECIFICATIONS

MECHANICAL

COATING... epoxy resin

TERMINATIONS... tinned copper

WEIGHT... 0,25 g

ENVIRONMENTAL

OPERATING TEMPÉRATURE... + 70°C

TEMPERATURE LIMITS... –20°C +100°C

ELECTRICAL

INDUCTANCE RANGE... 0,1 µH to 1000 µH

TOLERANCE... ± 20% 0,1 µH < L

≤

0,82 µH

± 10% 1 µH < L

≤

1000 µH

LIMITING VOLTAGE... 250 V

RMS

MARKING

PACKAGING

4 color bands.

2000 pieces tape in box “ammopack”

5000 pieces tape and reel

On request : 2000 pieces tape and reel

radial style available (consult AZTRONIC for dimensions).

ORDERING PROCEDURE

SERIES

STYLE

INDUCTANCE

VALUE

TOLERANCE

PACKAGING

0,47 µH

± 20%

: tape and reel

: tape in box ”Ammopack“

: bulk pack

: radial style

7-12
