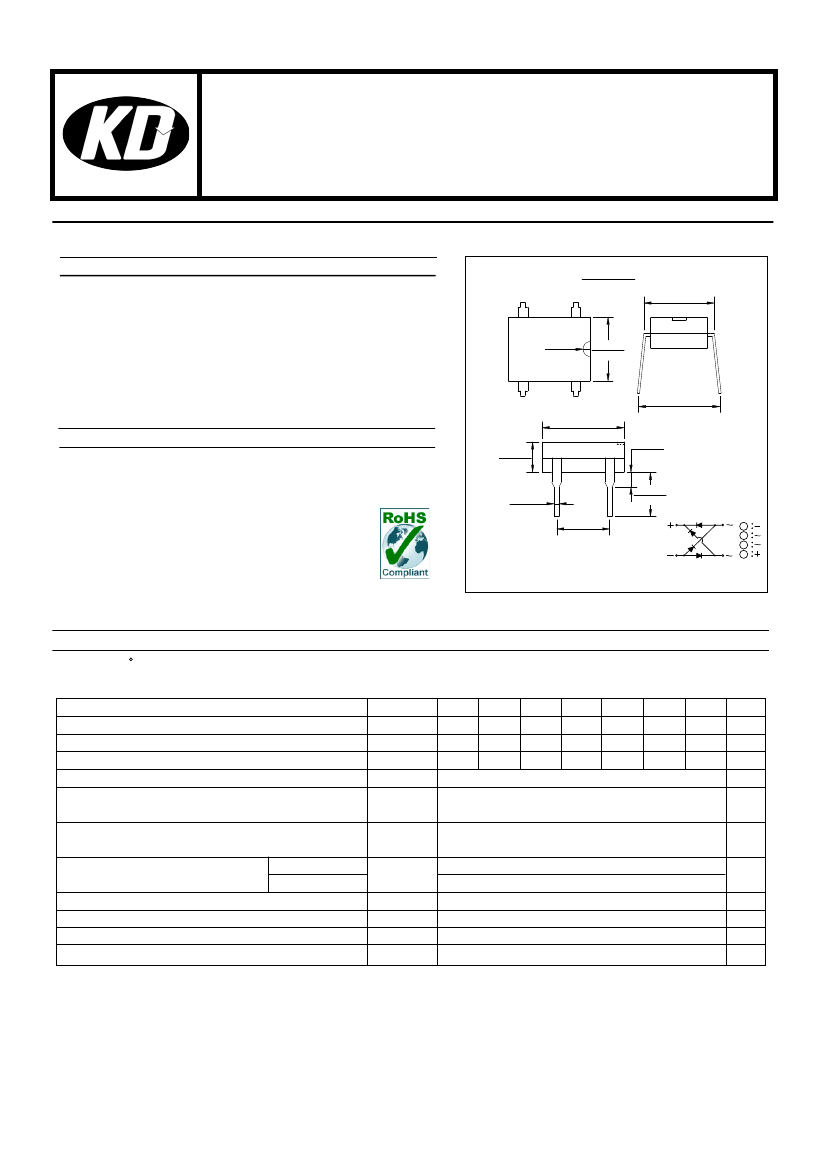

DF005 THRU DF10
Reverse Voltage - 50 to 1000 Volts
GLASS PASSIVATED BRIDGE RECTIFIERS
Forward Current - 1.0 Ampere
FEATURES
●
DF-M
.335(8.5)
.307(7.8)
●
●
●
Plastic package used has Underwriters
Laboratory Flammability Classification 94V-0
Glass passivated chip junction
High surge overload rating of 50 Amperes peak
High temperature soldering guaranteed:
260°C/10 seconds, at 5 lbs. (2.3kg) tension
.031(0.8)
.023(0.6)
.256(6.5)
.244(6.2)
MECHANICAL DATA
●
●
.323(8.2)
.315(8.0)
.102(2.6)
.089(2.2)
.350(8.9)
.311(7.9)
Case: Molded plastic body over passivated junctions
Terminals: Plated leads solderable per MIL-STD-750
Method 2026
Mounting Position: Any
Weight: 0.014 oz., 0.4 g
.079(2.0)
.059(1.5)
.022(0.55)
.018(0.45)
.205(5.2)
.197(5.0)
.193(4.9)
.165(4.2)
1
2
3
4
●
●
Dim ensions in inches and (m illim eters)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25 C ambient temperature unless otherwise specified.
Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.
CHARACTERISTICS
SYMBOL
V
RRM
V
RMS
V
DC
I
O
I
FSM
V
F
@T
A
= 25
o
C
@T
A
= 125 C
o
DF005
50
35
50
DF01
100
70
100
DF02
200
140
200
DF04
400
280
400
1.0
50
1.1
10.0
500
10
25
40
-55 to + 150
DF06
600
420
600
DF08
800
560
800
DF10
1000
700
1000
UNITS
V
V
V
A
A
V
µA
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Bridge Input Voltage
Maximum DC Blocking Voltage
o
Maximum Average Forward Output Current at T
A
= 40 C
Peak Forward Surge Current 8.3 ms single half sine-wave
superimposed on rated load (JEDEC Method)
Maximum DC Forward Voltage Drop per Bridge
Element at 1.0A DC
Maximum Reverse Current at rated
DC Blocking Voltage per element
I
2
t Rating for Fusing (t<8.3ms)
Typical Junction Capacitance ( Note1)
Typical Thermal Resistance (Note 2)
Operating and Storage Temperature Range
NOTES : 1.Measured at 1 MH
Z
and applied reverse voltage of 4.0 volts
I
R
I
2
t
C
J
R
θJ
A
T
J,
T
STG
A
2
Sec
pF
0
C/W
C
0
2. Thermal Resistance from Junction to Ambient and from junction to lead mounted on P.C.B. with 0.5 x 0.5" (13x13mm) copper pads.
DF005 THRU DF10

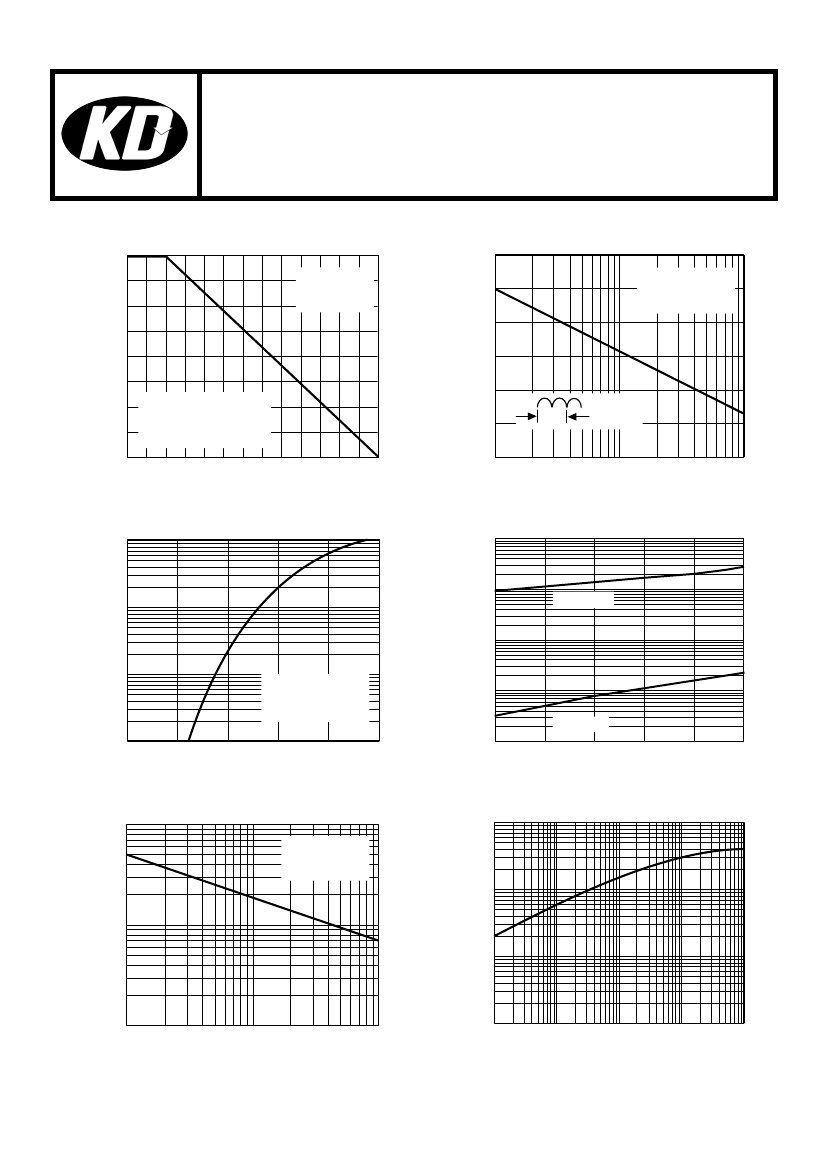

RATINGS AND CHARACTERISTIC CURVES
Fig. 1 - Derating Curve Output
Rectified Current
60 H
Z
Resistive or
Inductive Load
Fig. 2 - Maximum Non-Repetitive Peak
Forward Surge Current Per Leg
Average Forward Output Current (A)
60
50
40
30
20
10
0
Average Forward Output Current (A)
1.0
T
J
= 150°C
Single Sine-Wave
(JEDEC Method)
0.5
P.C.B mounted on
0.51 x 0.51" (13 x 13mm)
Copper pads with 0.06"
(1.5mm) lead length
0
20
40
60
80
100
120
140 150
1.0 Cycle
1
10
100
Ambient Temperature (°C)
Number of Cycles at 60 Hz
Instantaneous Reverse Current (
µ
A)
10
Fig. 3 - Typical Forward Characteristics
Per Leg
100
Fig. 4 - Typical Reverse Leakage
Characteristics Per Leg
Instantaneous Forward Current (A)
1
10
T
J
= 125°C
1
0.1
T
J
= 25°C
Pulse width = 300µs
1% Duty Cycle
0.01
0.4
0.6
0.8
1.0
1.2
1.4
0.1
T
J
= 25°C
0.01
0
20
40
60
80
100
Instantaneous Forward Voltage (V)
Percent of Rated Peak Reverse Voltage (V)
Junction Capacitance (pF)
T
J
= 25° C
f = 1.0MHz
Vsig = 50mVp-p
Transient Thermal Impedance (
°
C/W)
100
Fig. 5 - Typical Junction Capacitance
Per Leg
100
Fig. 6 - Typical Transient Thermal
Impedance
10
10
1
1
0.1
1
10
100
0.01
0.1
1
10
100
Reverse Voltage (V)
t, Heating Time (sec.)
