EB4, EB6, EB7, EB8
Vishay Dale

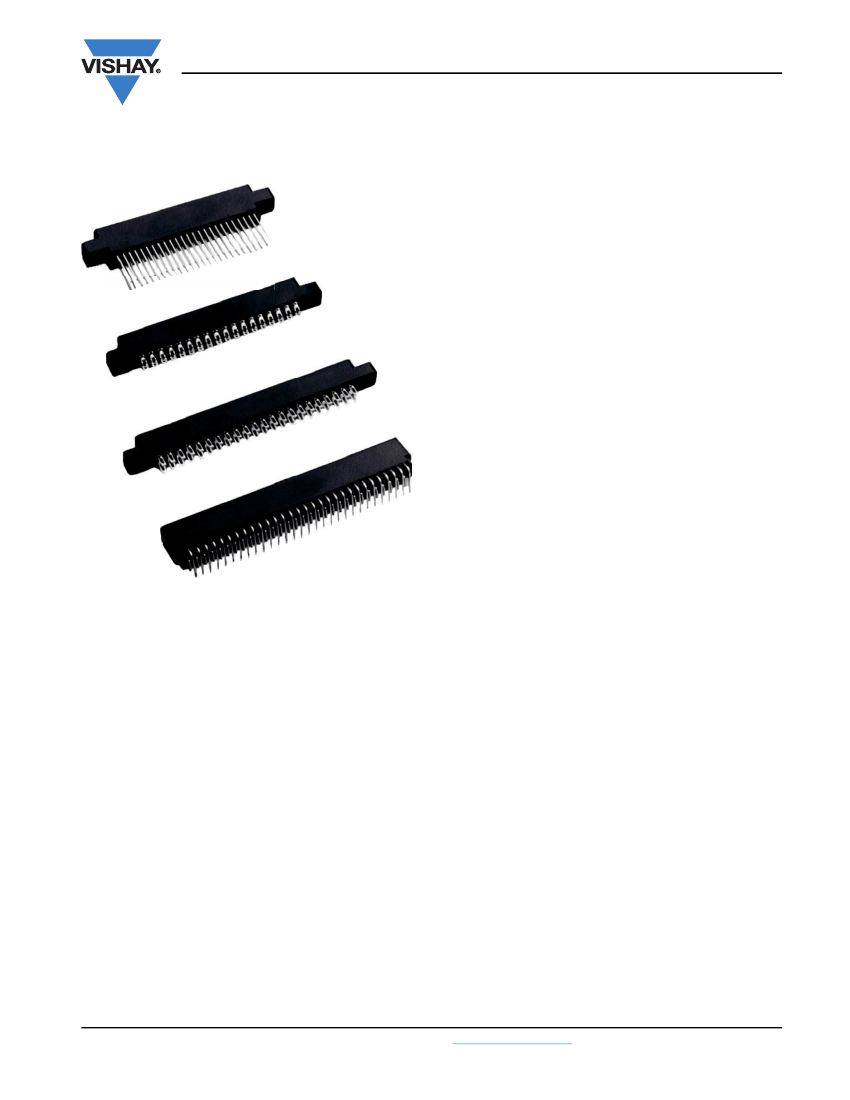

Edgeboard Connectors, 200 °C Burn-In Connectors, Dual Readout
FEATURES
• EB4, 0.100" (2.54 mm) C-C; EB6, 0.125" (3.17 mm) C-C;
EB7 and EB8, 0.156" (3.96 mm) C-C
• Right angle styles included for all models
• High temperature, glass reinforced PPS connector bodies
- 200 °C
• High reliability copper-nickel-tin alloy contacts
• Accepts PC board thickness of 0.054" to 0.071" (1.37 mm
to 1.80 mm)
• High reliability bifurcated bellows contacts
• Gold plated contacts
• Card extender style terminals standard
• Variety of mounting styles available
•
Recognized under the Component Program of
Underwriters Laboratories, Inc. listed under file
E65524
APPLICATIONS
High temperature, long life connectors specifically designed
for burn-in oven and automatic temperature testing
applications.
Available in a wide range of sizes. Priced affordably and
competitively.
SPECIAL NOTE
ELECTRICAL SPECIFICATIONS
Current Rating:
EB4 = 3 A; EB6 = 3 A; EB7 = 5 A; EB8 = 5 A
Test Voltage Between Contacts:
At sea level: EB4 = 650 V
RMS
; EB6 = 1500 V
RMS
;
EB7 = 1800 V
RMS
; EB8 = 1800 V
RMS
At 70 000 feet (21 336 meters): EB4 = 275 V
RMS
;
EB6 = 325 V
RMS
; EB7 = 450 V
RMS
; EB8 = 450 V
RMS
Insulation Resistance:
5000 MΩ minimum at 500 V
DC
potential
Contact Resistance:
30 mV maximum at rated current
Humidity:
48 h at 95 % relative humity at + 90 °C, insulation
resistance 5000 MΩ
Shock:
Threee 50G shocks in each of 3 mutually
perpendicular planes with no loss of continuity
When operating units at elevated temperatures, solder
having a melting point 50 °C above the operating
temperature should be used. Contact factory for specific
solder information.
MATERIAL SPECIFICATIONS
Body Material:
200 °C connectors: Fiberglass reinforced
polyphenylene sulfide, + 200 °C operating temperature,
flame retardant (UL 94 V-0)
Contacts:
Copper-nickel-tin alloy per ASTM B 740
Plating:
Golf plating (0.00003" (0.000762 mm) thick), over
0.00005" (0.00127 mm) minimum nickel underplate
Document Number: 36006
Revision: 28-Jan-10
For technical questions, contact:
connectors@vishay.com
www.vishay.com
1
EB4, EB6, EB7, EB8
Vishay Dale
Edgeboard Connectors, 200 °C Burn-In Connectors,
Dual Readout
DIMENSIONS
in inches (millimeters)
EB4 0.100" (2.54 mm) C-C
0.060
(1.52)
R Typ.
A
B
C
0.100
(2.54)
Typ.
D
E
0.050
(1.27)
Typ.
0.287
(7.29)
0.342 (8.69)
Typ.
0.060 (1.52) Typ.
0.250
(6.35)
Typ.
0.430
(10.92)
Typ.
0.610 (15.49)
Typ.
0.180
(4.57)
Typ.
0.365
(9.27)
MODEL -
PART NUMBER
EB45-P 6GΔ
EB45-P 10GΔ
EB45-P 12GΔ
EB45-P 15GΔ
EB45-P 18GΔ
EB45-P 20GΔ
EB45-P 22GΔ
EB45-P 25GΔ
EB45-P 28GΔ
EB45-P 30GΔ
EB45-P 31GΔ
EB45-P 35GΔ
EB45-P 36GΔ
EB45-P 40GΔ
EB45-P 43GΔ
EB45-P 44GΔ
EB45-P 48GΔ
EB45-P 49GΔ
EB45-P 50GΔ
EB45-P 60GΔ
EB45-P 65GΔ
# OF CONTACT
POSITIONS
PER SIDE
6
10
12
15
18
20
22
25
28
30
31
35
36
40
43
44
48
49
50
60
65
A
1.435 (36.45)
1.835 (46.61)
2.035 (51.69)
2.335 (59.31)
2.635 (66.93)
2.835 (72.01)
3.035 (77.09)
3.335 (84.71)
3.635 (92.33)
3.835 (97.41)
3.935 (99.95)
4.335 (110.11)
4.435 (112.65)
4.835 (122.81)
5.135 (130.43)
5.235 (132.97)
5.635 (143.13)
5.735 (145.67)
5.835 (148.21)
6.835 (173.61)
7.335 (186.31)
B
1.175 (29.85)
1.575 (40.00)
1.775 (45.08)
2.075 (52.70)
2.375 (60.32)
2.575 (65.40)
2.775 (70.48)
3.075 (78.10)
3.375 (85.72)
3.575 (90.80)
3.675 (93.34)
4.075 (103.50)
4.175 (106.04)
4.575 (116.20)
4.875 (123.82)
4.975 (126.36)
5.375 (136.52)
5.475 (139.06)
5.575 (141.60)
6.575 (167.00)
7.075 (179.70)
C
0.700 (17.78)
1.100 (27.94)
1.300 (33.02)
1.600 (40.64)
1.900 (48.26)
2.100 (53.34)
2.300 (58.42)
2.600 (66.04)
2.900 (73.66)
3.100 (78.74)
3.200 (81.28)
3.600 (91.44)
3.700 (93.98)
4.100 (104.14)
4.400 (111.76)
4.500 (114.30)
4.900 (124.46)
5.000 (127.00)
5.100 (129.54)
6.100 (154.94)
6.600 (167.64)
D
0.860 (24.84)
1.260 (32.00)
1.460 (37.08)
1.760 (44.70)
2.060 (52.32)
2.260 (57.40)
2.460 (62.48)
2.760 (70.10)
3.060 (77.72)
3.260 (82.80)
3.360 (85.34)
3.760 (95.50)
3.860 (98.04)
4.260 (108.20)
4.560 (115.82)
4.660 (118.36)
5.060 (128.52)
5.160 (131.06)
5.260 (133.60)
6.260 (159.00)
6.760 (171.70)
E
0.750 (19.05)
1.150 (29.21)
1.350 (34.29)
1.650 (41.91)
1.950 (49.53)
2.150 (54.61)
2.350 (59.69)
2.650 (67.31)
2.950 (74.93)
3.150 (80.01)
3.250 (82.55)
3.650 (92.71)
3.750 (95.25)
4.150 (105.41)
4.450 (113.03)
4.550 (115.57)
4.950 (125.73)
5.050 (128.27)
5.150 (130.81)
6.150 (156.21)
6.650 (168.91)
CARD SLOT
DEPTH
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
ORDERING INFORMATION
When ordering connectors using the above part numbers:
= Indicate “E” for card extender, “K” for Wire Wrap™ or “3R” for right angle terminals
Δ
= Indicate “X” for standard mounting, “XF” for flush mounting or “XS” for side mounting
www.vishay.com
2
For technical questions, contact:
connectors@vishay.com
Document Number: 36006
Revision: 28-Jan-10
EB4, EB6, EB7, EB8
Edgeboard Connectors, 200 °C Burn-In Connectors,
Dual Readout
DIMENSIONS
in inches (millimeters)
EB6 0.125" (3.17 mm) C-C
0.060
(1.52)
R Typ.
A
B
C
0.125
(3.17)
Typ.
D
E
0.060
(1.52)
Typ.
Vishay Dale
0.260
(6.60)
0.340 (8.64)
Typ.
0.060 (1.52) Typ.
0.250
(6.35)
Typ.
0.430
(10.92)
Typ.
0.610 (15.49)
Typ.
0.365
(9.27)
0.180
(4.57)
Typ.
MODEL -
PART NUMBER
EB65-P 6GΔ
EB65-P 10GΔ
EB65-P 12GΔ
EB65-P 14GΔ
EB65-P 15GΔ
EB65-P 18GΔ
EB65-P 22GΔ
EB65-P 24GΔ
EB65-P 25GΔ
EB65-P 28GΔ
EB65-P 30GΔ
EB65-P 31GΔ
EB65-P 32GΔ
EB65-P 35GΔ
EB65-P 36GΔ
EB65-P 40GΔ
EB65-P 43GΔ
EB65-P 44GΔ
EB65-P 49GΔ
EB65-P 50GΔ
# OF CONTACT
POSITIONS
PER SIDE
6
10
12
14
15
18
22
24
25
28
30
31
32
35
36
40
43
44
49
50
A
1.555 (39.50)
2.055 (52.20)
2.305 (58.55)
2.555 (64.90)
2.680 (68.07)
3.055 (77.60)
3.555 (90.30)
3.805 (96.65)
3.930 (99.82)
4.305 (109.35)
4.555 (115.70)
4.680 (118.87)
4.805 (122.05)
5.180 (131.57)
5.305 (134.75)
5.805 (147.45)
6.180 (156.97)
6.305 (160.15)
6.930 (176.02)
7.055 (179.20)
B
1.295 (32.89)
1.795 (45.59)
2.045 (51.94)
2.295 (58.29)
2.420 (61.47)
2.795 (70.99)
3.295 (83.69)
3.545 (90.04)
3.670 (93.22)
4.045 (102.74)
4.295 (109.09)
4.420 (112.27)
4.545 (115.44)
4.920 (124.97)
5.045 (128.14)
5.545 (140.84)
5.920 (150.37)
6.045 (153.54)
6.670 (169.42)
6.795 (172.59)
C
0.875 (22.22)
1.375 (34.92)
1.625 (41.28)
1.875 (47.62)
2.000 (50.80)
2.375 (60.32)
2.875 (73.02)
3.125 (79.38)
3.250 (82.55)
3.625 (92.08)
3.875 (98.42)
4.000 (101.60)
4.125 (104.78)
4.500 (114.30)
4.625 (117.48)
5.125 (130.18)
5.500 (139.70)
5.625 (142.88)
6.250 (158.75)
6.375 (161.92)
D
1.035 (26.29)
1.535 (38.99)
1.785 (45.34)
2.035 (51.69)
2.160 (54.86)
2.535 (64.39)
3.035 (77.09)
3.285 (83.44)
3.410 (86.61)
3.785 (96.14)
4.035 (102.49)
4.160 (105.66)
4.285 (108.84)
4.660 (118.36)
4.785 (121.54)
5.285 (134.24)
5.660 (143.76)
5.785 (146.94)
6.410 (162.81)
6.535 (165.99)
E
0.875 (22.22)
1.375 (34.92)
1.625 (41.28)
1.875 (47.62)
2.000 (50.80)
2.375 (60.32)
2.875 (73.02)
3.125 (79.38)
3.250 (82.55)
3.625 (92.08)
3.875 (98.42)
4.000 (101.60)
4.125 (104.78)
4.500 (114.30)
4.625 (117.48)
5.125 (130.18)
5.500 (139.70)
5.625 (142.88)
6.250 (158.75)
6.375 (161.92)
CARD SLOT
DEPTH
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
ORDERING INFORMATION
When ordering connectors using the above part numbers:
= Indicate “E” for card extender, “K” for Wire Wrap™ or “3R” for right angle terminals
Δ
= Indicate “X” for standard mounting, “XF” for flush mounting or “XS” for side mounting
Document Number: 36006
Revision: 28-Jan-10
For technical questions, contact:
connectors@vishay.com
www.vishay.com
3
EB4, EB6, EB7, EB8
Vishay Dale
Edgeboard Connectors, 200 °C Burn-In Connectors,
Dual Readout
DIMENSIONS
in inches (millimeters)
EB7 and EB8 0.156" (3.96 mm) C-C
0.060
(1.52)
R Typ.
0.030 (0.762)
A
B
C
D
0.156 (3.96) Typ.
0.250 (6.35)
EB75 = 0.440 (11.18)
EB85 = 0.460 (11.68)
E
MODEL -
PART NUMBER
EB85-P 6GΔ
EB85-P 10GΔ
EB85-P 12GΔ
EB85-P 15GΔ
EB85-P 18GΔ
EB85-P 22GΔ
EB85-P 24GΔ
EB85-P 25GΔ
EB75D-P 36GΔ
EB75D-P 43GΔ
EB75D-PR 6GΔ
EB75D-PR 10GΔ
EB75D-PR 12GΔ
EB75D-PR 15GΔ
EB75D-PR 18GΔ
EB75D-PR 22GΔ
EB75D-PR 36GΔ
EB75D-PR 43GΔ
# OF CONTACT
POSITIONS
PER SIDE
6
10
12
15
18
22
24
25
36
43
6
10
12
15
18
22
36
43
A
1.780 (45.21)
2.410 (61.21)
2.720 (69.09)
3.190 (81.03)
3.660 (92.96)
4.280 (108.71)
4.590 (116.59)
4.750 (120.65)
6.530 (165.86)
7.615 (193.42)
1.780 (45.21)
2.410 (61.21)
2.720 (69.09)
3.190 (81.03)
3.660 (92.96)
4.280 (108.71)
6.530 (165.86)
7.615 (193.42)
B
1.531 (38.89)
2.156 (54.76)
2.469 (62.71)
2.937 (74.60)
3.406 (86.51)
4.031 (102.39)
4.344 (110.34)
4.500 (114.30)
6.219 (157.96)
7.302 (185.47)
1.531 (38.89)
2.156 (54.76)
2.468 (62.69)
2.937 (74.60)
3.406 (86.51)
4.031 (102.39)
6.219 (157.96)
7.302 (185.47)
C
1.240 (31.50)
1.864 (47.35)
2.176 (55.27)
2.644 (67.16)
3.112 (79.04)
3.736 (94.89)
4.051 (102.90)
4.207 (106.86)
5.906 (150.01)
7.000 (177.80)
1.218 (30.94)
1.843 (46.81)
2.156 (54.76)
2.624 (66.65)
3.093 (78.56)
3.717 (94.41)
5.906 (150.01)
7.000 (177.80)
D
1.100 (27.94)
1.724 (43.79)
2.036 (51.71)
2.504 (63.60)
2.972 (75.49)
3.596 (91.34)
3.911 (99.34)
4.067 (103.30)
5.778 (146.76)
6.802 (172.77)
1.100 (27.94)
1.724 (43.79)
2.036 (51.71)
2.504 (63.60)
2.972 (75.49)
3.596 (91.34)
5.778 (146.76)
6.802 (172.77)
E
0.340 (8.64)
0.340 (8.64)
0.340 (8.64)
0.340 (8.64)
0.340 (8.64)
0.340 (8.64)
0.340 (8.64)
0.340 (8.64)
0.438 (11.13)
0.500 (12.70)
0.328 (8.33)
0.328 (8.33)
0.328 (8.33)
0.328 (8.33)
0.328 (8.33)
0.328 (8.33)
0.438 (11.13)
0.500 (12.70)
CARD SLOT
DEPTH
0.330 (8.38)
0.330 (8.38)
0.330 (8.38)
0.330 (8.38)
0.330 (8.38)
0.330 (8.38)
0.330 (8.38)
0.330 (8.38)
0.260 (6.60)
0.260 (6.60)
0.260 (6.60)
0.260 (6.60)
0.260 (6.60)
0.260 (6.60)
0.260 (6.60)
0.260 (6.60)
0.260 (6.60)
0.260 (6.60)
RIGHT ANGLE DIMENSIONS
ORDERING INFORMATION
When ordering connectors using the above part numbers:
= Indicate “A” for solder eyelet or “E” for card extender.
Note:
Dimensions are the same for “A” or “E” styles
Δ
= Indicate “X” for standard mounting or “XS” for side mounting
www.vishay.com
4
For technical questions, contact:
connectors@vishay.com
Document Number: 36006
Revision: 28-Jan-10
京公网安备 11010802033920号
EEWORLD
