BYV29B-400-HE3/81

Description
DIODE 8 A, 400 V, SILICON, RECTIFIER DIODE, TO-263AB, ROHS COMPLIANT, PLASTIC PACKAGE-3, Rectifier Diode
CategoryDiscrete semiconductor    diode
File Size132KB,5 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Environmental Compliance
Download Datasheet Parametric Compare View All

BYV29B-400-HE3/81 Overview

DIODE 8 A, 400 V, SILICON, RECTIFIER DIODE, TO-263AB, ROHS COMPLIANT, PLASTIC PACKAGE-3, Rectifier Diode

BYV29B-400-HE3/81 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerVishay
Parts packaging codeD2PAK
package instructionROHS COMPLIANT, PLASTIC PACKAGE-3
Contacts3
Reach Compliance Codeunknown

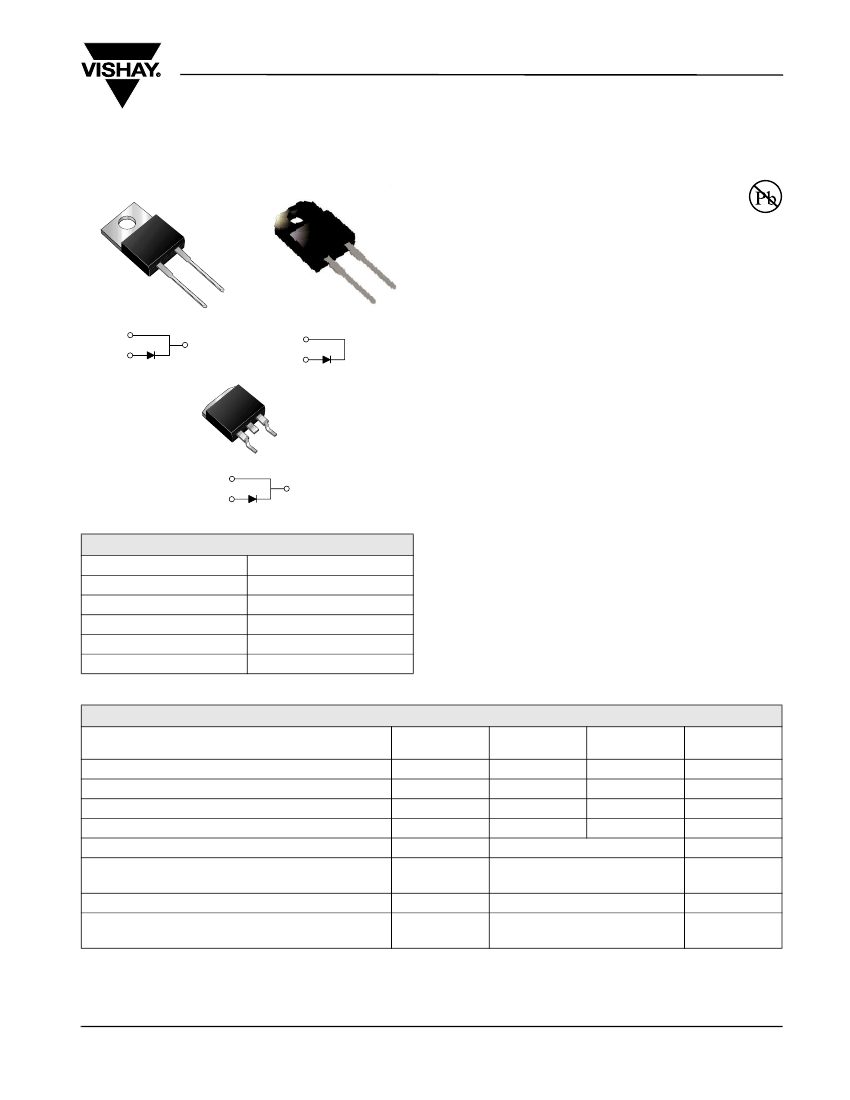

UG(F,B)8FT & UG(F,B)8GT, BYV29(F,B)-300 & BYV29(F,B)-400
Vishay General Semiconductor
Ultrafast Rectifier
TO-220AC
ITO-220AC
2
BYV29, UG8 Series
PIN 1
PIN 2
2
1
BYV29F, UGF8 Series
PIN 1
1
CASE
PIN 2
TO-263AB
K
FEATURES
• Glass passivated chip junction
• Ultrafast recovery time
• Low switching losses, high efficiency
• Low forward voltage drop
• High forward surge capability
• Meets MSL level 1, per J-STD-020C, LF max peak
of 245 °C (for TO-263AB package)
• Solder Dip 260 °C, 40 seconds (for TO-220AC &
ITO-220AC package)
• Component in accordance to RoHS 2002/95/EC
and WEEE 2002/96/EC
TYPICAL APPLICATIONS
For use in high frequency rectifier of switching mode
power supplies, inverters, freewheeling diodes,
dc-to-dc converters, and other power switching
application.
MECHANICAL DATA
Case:
TO-220AC, ITO-220AC, TO-263AB
Epoxy meets UL 94V-0 flammability rating
Terminals:
Matte tin plated leads, solderable per
J-STD-002B and JESD22-B102D
E3 suffix for commercial grade, HE3 suffix for high
reliability grade (AEC Q101 qualified)
Polarity:
As marked
Mounting Torque:
10 in-lbs maximum
2
1
BYV29B, UGB8 Series
PIN 1
PIN 2
K
HEATSINK
MAJOR RATINGS AND CHARACTERISTICS
I
F(AV)
V
RRM
I
FSM
t
rr
V
F
T
j
max.
8.0 A
300 V, 400 V
110 A
35 ns
1.03 V
150 °C
MAXIMUM RATINGS
(T
C
= 25 °C unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum working reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current at T
C
= 100 °C
Peak forward surge current 8.3 ms single half sine-wave
superimposed on rated load
Operating junction and storage temperature range
Isolation voltage (ITO-220AC only)
From terminal to heatsink t = 1 minute
SYMBOL
V
RRM
V
RWM
V
RMS
V
DC
I
F(AV)
I
FSM
T
J
, T
STG
V
AC
BYV29-300
UG8FT
300
300
210
300
8.0
110
- 40 to + 150
1500
BYV29-400
UG8GT
400
400
280
400
UNIT
V
V
V
V
A
A
°C
V
Document Number 88557
27-Jun-06
www.vishay.com
1

BYV29B-400-HE3/81 Related Products

BYV29B-400-HE3/81 BYV29-400-HE3/45 BYV29-300-HE3/45 BYV29B-300-HE3/45 BYV29B-300-HE3/81 BYV29F-300-HE3/45
Description DIODE 8 A, 400 V, SILICON, RECTIFIER DIODE, TO-263AB, ROHS COMPLIANT, PLASTIC PACKAGE-3, Rectifier Diode DIODE 8 A, 400 V, SILICON, RECTIFIER DIODE, TO-220AC, ROHS COMPLIANT, PLASTIC PACKAGE-2, Rectifier Diode DIODE 8 A, 300 V, SILICON, RECTIFIER DIODE, TO-220AC, ROHS COMPLIANT, PLASTIC PACKAGE-2, Rectifier Diode DIODE 8 A, 300 V, SILICON, RECTIFIER DIODE, TO-263AB, ROHS COMPLIANT, PLASTIC PACKAGE-3, Rectifier Diode DIODE 8 A, 300 V, SILICON, RECTIFIER DIODE, TO-263AB, ROHS COMPLIANT, PLASTIC PACKAGE-3, Rectifier Diode DIODE 8 A, 300 V, SILICON, RECTIFIER DIODE, TO-220AC, ROHS COMPLIANT, PLASTIC, ITO-220AC, 2 PIN, Rectifier Diode
Is it lead-free? Lead free Lead free Lead free Lead free Lead free Lead free
Is it Rohs certified? conform to conform to conform to conform to conform to conform to
Parts packaging code D2PAK TO-220AC TO-220AC D2PAK D2PAK TO-220AC
package instruction ROHS COMPLIANT, PLASTIC PACKAGE-3 ROHS COMPLIANT, PLASTIC PACKAGE-2 ROHS COMPLIANT, PLASTIC PACKAGE-2 ROHS COMPLIANT, PLASTIC PACKAGE-3 ROHS COMPLIANT, PLASTIC PACKAGE-3 ROHS COMPLIANT, PLASTIC, ITO-220AC, 2 PIN
Contacts 3 3 3 3 3 3
Reach Compliance Code unknown unknown unknown unknown unknown unknown
Maker Vishay - Vishay Vishay Vishay Vishay
