B-13/15-622-TDFB-SSC4 datasheet, PDF

Datasheet> All Categories > Wireless rf/communication> Optical fiber> B-13/15-622-TDFB-SSC4

B-13/15-622-TDFB-SSC4: DescriptionTransceiver, 1260nm Min, 1360nm Max, 622Mbps(Tx), 622Mbps(Rx), SC Connector, Through Hole Mount; CategoryWireless rf/communication Optical fiber; File Size2MB，7 Pages; ManufacturerSource Photonics

Download Datasheet Parametric Compare View All

B-13/15-622-TDFB-SSC4 Overview

Transceiver, 1260nm Min, 1360nm Max, 622Mbps(Tx), 622Mbps(Rx), SC Connector, Through Hole Mount

B-13/15-622-TDFB-SSC4 Parametric

Parameter Name	Attribute value
Maker	Source Photonics
Reach Compliance Code	unknown
body width	25.4 mm
body height	9.8 mm
Body length or diameter	30.5 mm
Built-in features	AMPLIFIER, ISOLATOR
Communication standards	GR-468, OC-12, SDH, SONET, STM-4
Connection Type	SC CONNECTOR
Data rate (receive)	622 Mbps
Data rate (send)	622 Mbps
Emitter/Detector Type	LASER DIODE
Fiber optic equipment types	TRANSCEIVER
Fiber type	SMF
Installation features	THROUGH HOLE MOUNT
Maximum operating temperature	70 °C
Minimum operating temperature
Maximum operating wavelength	1360 nm
Minimum operating wavelength	1260 nm
Nominal operating wavelength	1310 nm
Nominal optical power output	0.891 mW
minimum return loss	14 dB
Sensitivity	-28 dBm
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO

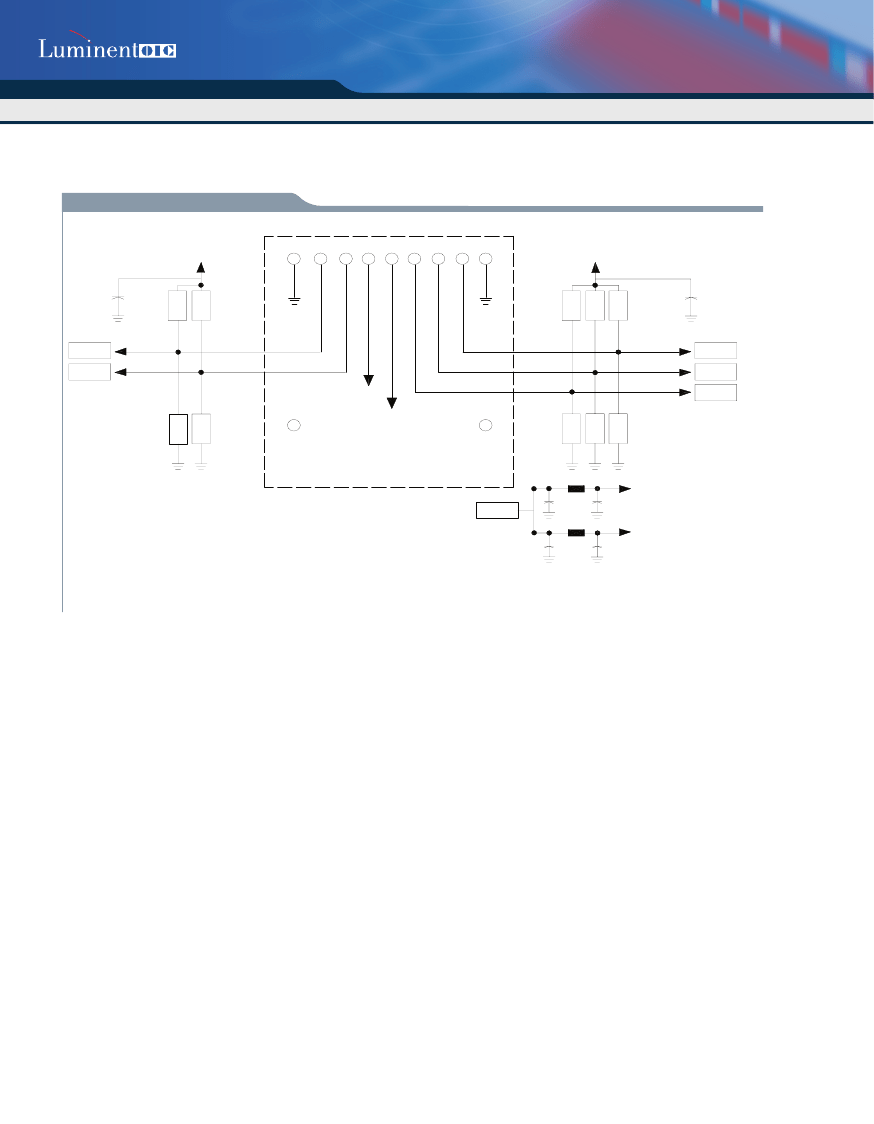

Preview

Download Datasheet

View All

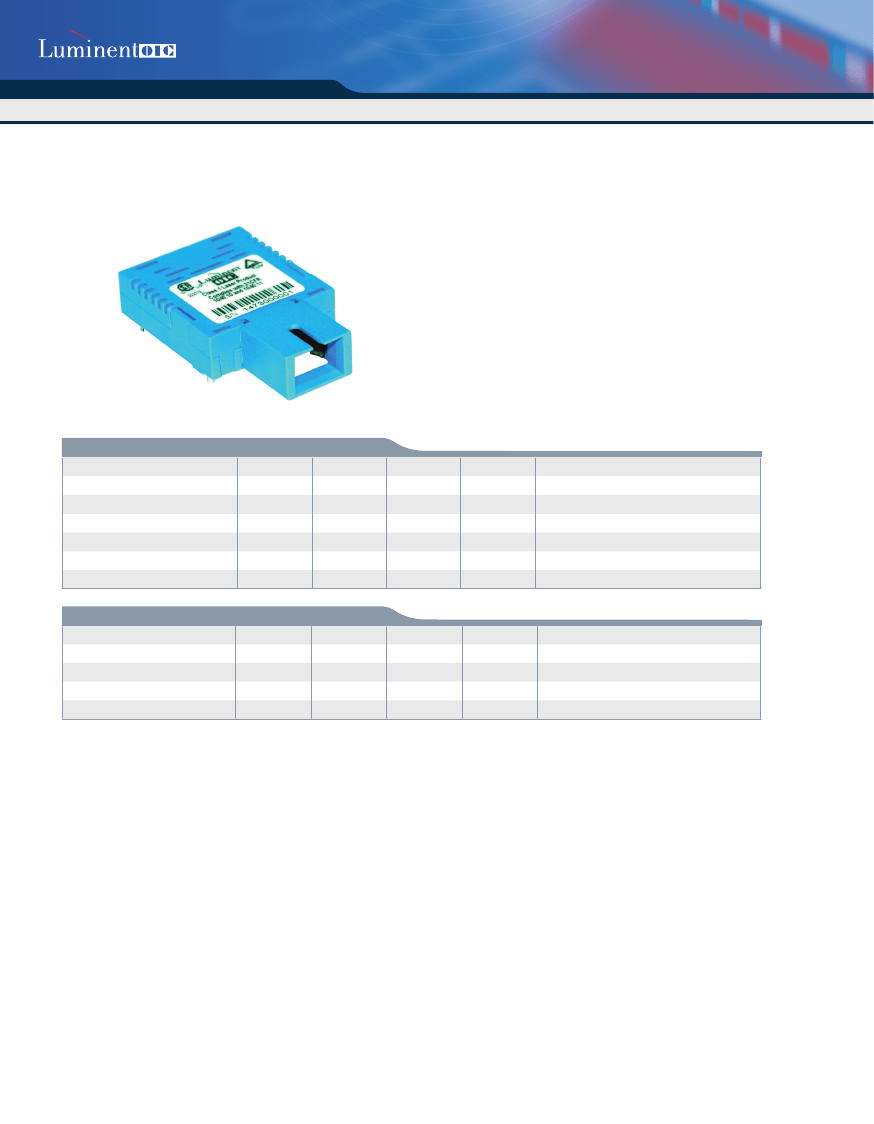

622 Mbps Bi-directional Single Fiber Transceiver

B-1X/1X-622-TDFB(3)-SSCX

Features

• Coaxial Single Mode Single Fiber Package with

SC Receptacle Connector

• Tx 1310 nm/Rx 1550 nm [B-13/15-622-TDFB(3)-SSCX]

• Tx 1550 nm/Rx 1310 nm [B-15/13-622-TDFB(3)-SSCX]

• SONET OC-12 SDH STM-4 Compliant

• Single +5V/+3.3V Power Supply

• PECL Differential Inputs and Outputs

• Wave Solderable and Aqueous Washable

• Class 1 Laser Int. Safety Standard IEC 825 Compliant

• Uncooled Laser Diode with MQW Structure

• Complies with Telcordia (Bellcore) GR-468-CORE

• Temperature Range: 0 to 70 ºC

• Optical Isolation > 30 dB

• Cross Talk < -33 dB

• Optical Return Loss >14 dB

Absolute Maximum Rating

Parameter

Power Supply Voltage

Output Current

Soldering Temperature

Operating Temperature

Storage Temperature

Recommended Operating Condition

Parameter

Power Supply Voltage

Operating Temperature

Data Rate

Symbol

opr

Min.

3.1

4.75

Typ.

3.3

622

Max.

3.5

5.25

Unit

ºC

Mbps

Symbol

out

opr

stg

Min.

-40

Max.

3.6

260

Unit

ºC

10 seconds on leads only

Note

B-1X/1X-622-TDFB3-SSCX

B-1X/1X-622-TDFB-SSCX

LUMINENTOIC.COM

20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486

9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213

LUMNDS795-NOV0104

rev. A.0

B-13/15-622-TDFB-SSC4 Related Products

	B-13/15-622-TDFB-SSC4	B-15/13-622-TDFB3-SSC4	B-15/13-622-TDFB-SSC4	B-15/13-622-TDFB3-SSC	FP-U8999-03-2641-Q-B-1	B-13/15-622-TDFB3-SSC4
Description	Transceiver, 1260nm Min, 1360nm Max, 622Mbps(Tx), 622Mbps(Rx), SC Connector, Through Hole Mount	Transceiver, 1480nm Min, 1580nm Max, 622Mbps(Tx), 622Mbps(Rx), SC Connector, Through Hole Mount	Transceiver, 1480nm Min, 1580nm Max, 622Mbps(Tx), 622Mbps(Rx), SC Connector, Through Hole Mount	Transceiver, 1480nm Min, 1580nm Max, 622Mbps(Tx), 622Mbps(Rx), SC Connector, Through Hole Mount	Array/Network Resistor, Isolated, Thin Film, 0.025W, 2640ohm, 50V, 0.02% +/-Tol, -25,25ppm/Cel, 3925,	Transceiver, 1260nm Min, 1360nm Max, 622Mbps(Tx), 622Mbps(Rx), SC Connector, Through Hole Mount
Reach Compliance Code	unknown	unknown	unknown	unknown	compliant	unknown
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	SURFACE MOUNT	THROUGH HOLE MOUNT
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	125 °C	70 °C
surface mount	NO	NO	NO	NO	YES	NO
body width	25.4 mm	25.4 mm	25.4 mm	25.4 mm	-	25.4 mm
body height	9.8 mm	9.8 mm	9.8 mm	9.8 mm	-	9.8 mm
Body length or diameter	30.5 mm	30.5 mm	30.5 mm	30.5 mm	-	30.5 mm
Built-in features	AMPLIFIER, ISOLATOR	AMPLIFIER, ISOLATOR	AMPLIFIER, ISOLATOR	AMPLIFIER, ISOLATOR	-	AMPLIFIER, ISOLATOR
Communication standards	GR-468, OC-12, SDH, SONET, STM-4	GR-468, OC-12, SDH, SONET, STM-4	GR-468, OC-12, SDH, SONET, STM-4	GR-468, OC-12, SDH, SONET, STM-4	-	GR-468, OC-12, SDH, SONET, STM-4
Connection Type	SC CONNECTOR	SC CONNECTOR	SC CONNECTOR	SC CONNECTOR	-	SC CONNECTOR
Data rate (receive)	622 Mbps	622 Mbps	622 Mbps	622 Mbps	-	622 Mbps
Data rate (send)	622 Mbps	622 Mbps	622 Mbps	622 Mbps	-	622 Mbps
Emitter/Detector Type	LASER DIODE	LASER DIODE	LASER DIODE	LASER DIODE	-	LASER DIODE
Fiber optic equipment types	TRANSCEIVER	TRANSCEIVER	TRANSCEIVER	TRANSCEIVER	-	TRANSCEIVER
Fiber type	SMF	SMF	SMF	SMF	-	SMF
Maximum operating wavelength	1360 nm	1580 nm	1580 nm	1580 nm	-	1360 nm
Minimum operating wavelength	1260 nm	1480 nm	1480 nm	1480 nm	-	1260 nm
Nominal operating wavelength	1310 nm	1550 nm	1550 nm	1550 nm	-	1310 nm
Nominal optical power output	0.891 mW	0.891 mW	0.891 mW	0.07 mW	-	0.891 mW
minimum return loss	14 dB	14 dB	14 dB	14 dB	-	14 dB
Sensitivity	-28 dBm	-28 dBm	-28 dBm	-28 dBm	-	-28 dBm
Maximum supply voltage	5.25 V	3.5 V	5.25 V	3.5 V	-	3.5 V
Minimum supply voltage	4.75 V	3.1 V	4.75 V	3.1 V	-	3.1 V
Nominal supply voltage	5 V	3.3 V	5 V	3.3 V	-	3.3 V
Base Number Matches	-	1	1	1	-	1
