LS40J2-2SR-T Overview

Illuminated Type

Preview

Download Datasheet

View All

●●●●●●●●●●

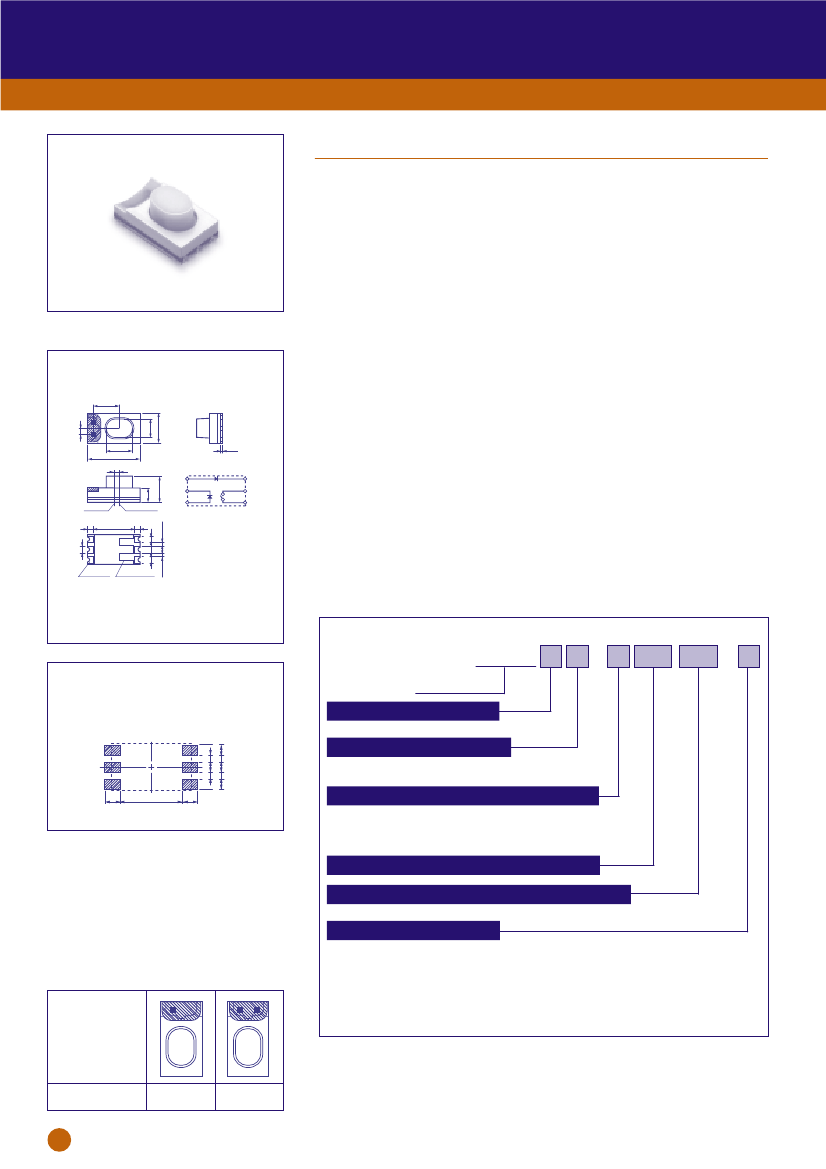

照光式

LS40 シリーズ

Illuminated Type

LS40 Series

■ 特徴／

Features

1. 小型であるため実用上のレイアウト

の融通性が高く、

他のコンポーネント

との共用により大きな自由度を与え、

セット設計が容易に行えます。

2. LEDはスイッチのサイドに配½され

ますが、

1個(1色×1個)、

2個(2色×

各1個又は1色×2個)の内蔵が可½

です。

3. リフロー炉によるはんだ付けが出来

ます。

1. Compact size allows outstanding

flexibility of layout and freedom of

application, in combination with other

devices. Set design is now much

easier.

2. LEDs are located in each corner of

the switch the following internal

configurations are possible : One

LED (one of one color), or two LEDs

(two of one color or two colors with

one LED of each).

3. Reflow soldering is possible using a

reflow furnace.

2.8(L)×4.95(W)×2.5

（H）

■外½寸法図/Outline

drawing

LS40Jタイプ

（LED付）

/LS40J type

(with LED)

(2.425)

(0.55)

1.7

2.8

2.4

4.95

(0.525)

2.5

1.6

0.5

回路図 TOP VIEW）

（

Circuit diagram(Top view)

外½中心

Center

SW中心

SW Center

3.95

0.6

Auパターン

Au pattern

レジスト印刷

Resist printing

0.6

※UR,HRは極性が逆です。

※Polarity is reversed

on the UR and HR.

0.425

0.5

●½品コード/Product

code

単½/Unit : mm

LS40

J 2 - 1 SR

推奨はんだ付けパターン

The following soldering patterns are recommended for

reflow-soldering:

-T

〈シリーズ/Series〉

スイッチ高さ/Thickness

リフローはんだ用

For reflow soldering

J 2.5mm

：

0.425 0.425

0.6 0.6 0.6

操½荷重/Operating force

2 1.76N

：

（180gf）

3 2.35N

：

（240gf）

0.9

3.95

0.9

LED付きの½½及び数/Location and number of LED(s)

LEDの½½及び数を下図(※)の1,2のコードNo.から選択/

Choose the number and position of the LEDs from the

code Nos.1and 2 in the diagram below(※).

ＬＥＤ発光色(LED付のみ)/Color of LED

ＬＥＤ発光色(LED付のみ)/Color of another LED

LEDの数が2ヶになる場合/Applicable

only to two LEDs version

包装½態/Packing mode

無記入バルク包装

：

Non-coded Bulk packing

：

(※)

LED付きの½½

及び数

Location and

number of LED(s)

※ コードNo.2のタイプのLEDはスイッチの中心から見て左側が長波長、

右側が短波長の色とします。

LED1ヶ付の場合、

左側にLEDを付けます。

※ The code No.2 LED type is colored to emit long-wavelength light from the left side and short

T テーピング(基本納入½態)

：

T Taping (standard mode)

：

コードNo.

Code No.

wavelength light from the right side, when the switch is viewed from the center. Where only one

LED is attached, it will be the LED on the left side.

100
