RA2C-24HS datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> RA2C-24HS

RA2C-24HS: DescriptionPower/Signal Relay, 2 Form C, DPDT, Momentary, 0.022A (Coil), 24VDC (Coil), 540mW (Coil), 5A (Contact), 30VDC (Contact), DC Input, Random, AC/DC Output, Through Hole-Straight Mount, ROHS COMPLIANT; CategoryMechanical and electronic products relay; File Size511KB，2 Pages; ManufacturerWorld Produts Inc.; Websitehttp://www.worldproducts.com; Environmental Compliance

Download Datasheet Parametric View All

RA2C-24HS Overview

Power/Signal Relay, 2 Form C, DPDT, Momentary, 0.022A (Coil), 24VDC (Coil), 540mW (Coil), 5A (Contact), 30VDC (Contact), DC Input, Random, AC/DC Output, Through Hole-Straight Mount, ROHS COMPLIANT

RA2C-24HS Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	World Produts Inc.
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
body width	12.8 mm
body height	20.4 mm
Body length or diameter	29.2 mm
Maximum coil current (DC)	0.022 A
Coil operating voltage (DC)	19.2 V
Coil power	540 mW
Coil release voltage (DC)	1.2 V
Coil resistance	1067 Ω
Maximum coil voltage (DC)	24 V
Nominal coil voltage	24 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	5A@250VAC
Maximum contact current (AC)	5 A
Maximum contact current (DC)	5 A
Contact (DC) maximum rated R load	5A@30VDC
Contact resistance	50 mΩ
Maximum contact voltage (AC)	250 V
Maximum contact voltage (DC)	30 V
Contact/Output Power Type	AC/DC
Dielectric strength between coil and contacts	1000 Vrms
Dielectric strength between breaking contacts	5000 Vrms
Electrical life	100000 Cycle(s)
End contact material	Silver Alloy
Input switching control type	Random
Insulation resistance	1000000000 Ω
Manufacturer's serial number	RA
Installation features	THROUGH HOLE-STRAIGHT MOUNT
Number of terminals	8
operating hours	20 ms
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB hole count	8
physical size	29.2mm x 12.8mm x 20.4mm
Guideline	UL
Relay action	MOMENTARY
Relay style	2 FORM C
Relay function	DPDT
Relay type	POWER/SIGNAL RELAY
release time	8 ms
surface mount	NO
Terminal length	0.004 inch
Termination type	SOLDER
weight	15 g

Preview

Download Datasheet

View All

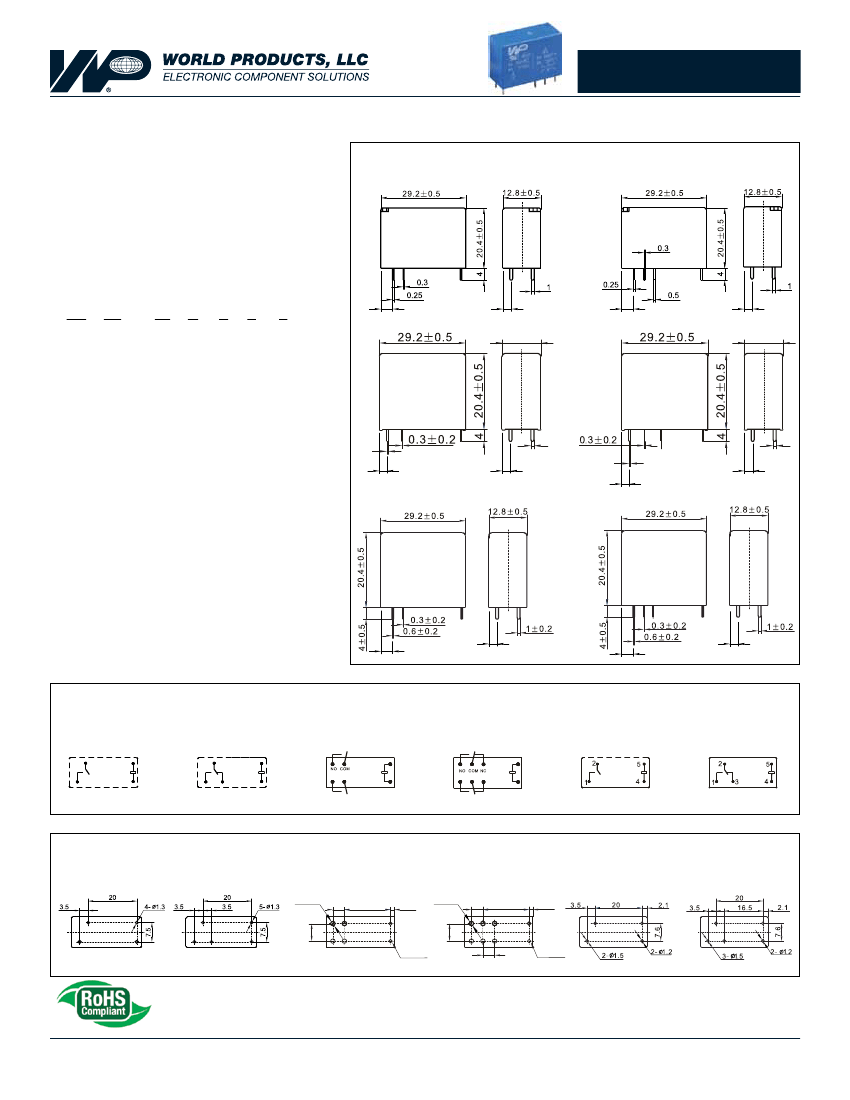

RA SERIES

INDUSTRIAL RELAYS

UL & CUL File #E256619

DIMENSIONS

Unit: mm

FEATURES

Miniature package with universal terminal

footprint.

High dielectric withstanding for transient

protection. 10,000 V surge between coil

and contact.

ORDERING INFORMATION

(1)

(2)

1A -

(2)

(3)

(4)

S T

(5) (6)

(7)

3.6 ± 0.5

2.65 ± 0.5

3.6 ± 0.5

2.65 ± 0.5

12.8±0.5

Basic Designation

= RA Series

Coil Arrangement

= 1 Form A

= 1 Form C

= 2 Form A

= 2 Form C

Coil Voltage

3~48V

Coil Sensitivity

Nil

= 720mW

=540mW

Enclosure

Nil

= Unsealed type

= Sealed type

Capacity

Nil

= Standard

= high Current

Note: 1FA, 1FC only

Insulation System

Nil

= Standard

= class B

= class F

(5)

0.6±0.2

2.3 ± 0.5

1±0.2

2.6 ± 0.5

(6)

(3)

0.6±0.2

2.3 ± 0.5

1±0.2

2.6 ± 0.5

1A T-Type

1C T-Type

(7)

3.6 ± 0.5

2.6 ± 0.5

3.6 ± 0.5

2.6 ± 0.5

SCHEMATICS

Bottom view

1A T-Type

1C T-Type

PCB LAYOUT

Bottom view

Unit: mm

4-Ø1.5

20.3

2.1

6-Ø1.5

20.3

2.1

1A T-Type

1C T-Type

7.6

2-Ø1.0

World Products, LLC

19654 Eighth Street East, Sonoma, CA 95476 | Phone (707) 996-5201 | Fax (707) 996-3380 | www.worldproducts.com

| Industrial Relays Catalog

Rev. 18.0 (12.14.10)
