3.0x1.0mm INFRA-RED EMITTING DIODE
KPA-3010SF4C
Features
!
3.0mmx1.0mm
!
LOW
Description
SMT LED, 2.0mm THICKNESS.
SF4 Made with Gallium Aluminum Arsenide Infrared
Emitting diodes.
POWER CONSUMPTION.
VIEWING ANGLE.
FOR BACKLIGHT AND INDICATOR.
COLORS AND LENS TYPES AVAILABLE.
: 2000PCS / REEL.
!
WIDE
!
IDEAL
!
VARIOUS
!
PACKAGE
Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is
±0.15(0.006")
unless otherwise noted.
3. Specifications are subject to change without notice.
SPEC NO:DSAB2108
APPROVED : J. Lu
REV NO: V.2
CHECKED :Allen Liu
DATE:FEB/23/2003
DRAWN:Y.H.LI
PAGE: 1 OF 4
Selection Guide
P ar t N o .
Dic e
L en s Ty p e
Po = (m W/s r )
@ 20 m A
Min .
KPA-3010SF4C
GaAlAs
WATER CLEAR
0.4
Ty p .
1
V i ew i n g
An g l e
2θ1/2
120°
Note:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
Electrical / Optical Characteristics at T
A
=25°C
°
P ar am et er
Forward Voltage
Reverse Current
Capacitance
Wavelength at peak emission
Spectral line half-width
S F4
S F4
S F4
S F4
S F4
P/N
Sy m b o l
V
F
I
R
C
λ
P
∆ λ
1/2
Ty p .
1.3
-
90
880
50
Max .
1.6
10
-
-
-
Un it
V
uA
pF
nm
nm
Co n d itio n
I
F
= 2 0 m A
V
R
= 5 V
V
F
= 0 V; f= 1 M Hz
I
F
= 2 0 m A
I
F
= 2 0 m A
Absolute Maximum Ratings at T
A
=25°C
°
It em
Power Dissipation
Forward Current
Peak Forward Current[1]
Reverse Voltage
Operating Temperature
Storage Temperature
Note:
1. 1/100 Duty Cycle, 10ms Pulse Width.
Sy m b o l
P
T
I
F
i
FS
V
R
T
A
T
STG
S F4
100
50
1.2
5
-40~ +85
-40~ +85
Un its
mW
mA
A
V
°C
°C
SPEC NO:DSAB2108
APPROVED : J. Lu
REV NO: V.2
CHECKED :Allen Liu
DATE:FEB/23/2003
DRAWN:Y.H.LI
PAGE: 2 OF 4

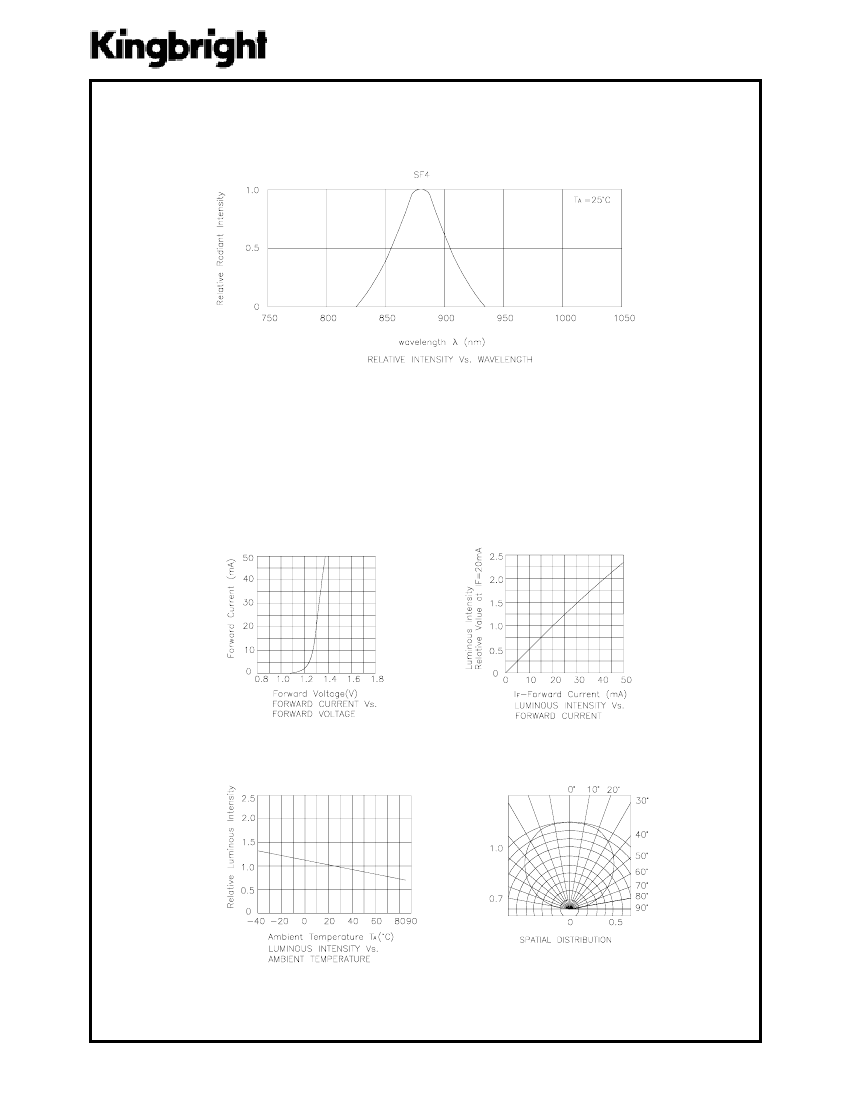

KPA-3010SF4C
SPEC NO:DSAB2108
APPROVED : J. Lu
REV NO: V.2
CHECKED :Allen Liu
DATE:FEB/23/2003
DRAWN:Y.H.LI
PAGE: 3 OF 4
KPA-3010SF4C
SMT Reflow Soldering Instructions
Number of reflow process shall be less than 2 times and cooling
process to normal temperature is required between first and
second soldering process.
Recommended Soldering Pattern
(Units : mm)
Tape Specifications
(Units : mm)
SPEC NO:DSAB2108
APPROVED : J. Lu
REV NO: V.2
CHECKED :Allen Liu
DATE:FEB/23/2003
DRAWN:Y.H.LI
PAGE: 4 OF 4
