ADCS-1021 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The sensor> ADCS-1021

ADCS-1021: DescriptionCMOS Image Sensors; CategoryThe sensor; File Size99KB，8 Pages; ManufacturerHP（Keysight）; Websitehttp://www.semiconductor.agilent.com/

Download Datasheet Parametric Compare View All

ADCS-1021 Overview

CMOS Image Sensors

ADCS-1021 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	HP（Keysight）
Reach Compliance Code	unknow
horizontal pixels	352
JESD-609 code	e0
Installation features	SURFACE MOUNT
Maximum operating temperature	65 °C
Minimum operating temperature	-5 °C
Pixel size	7.4X7.4 µm
power supply	3.3 V
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)
vertical pixels	288

Preview

Download Datasheet

View All

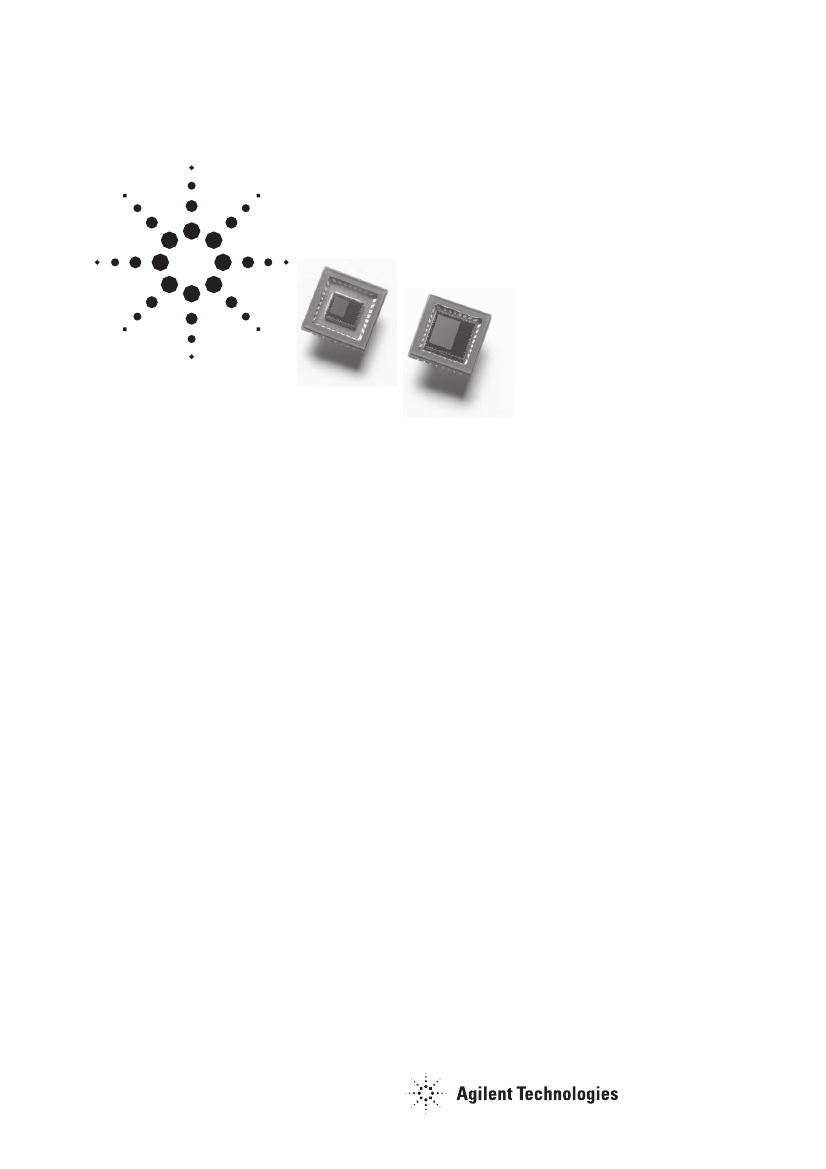

Agilent ADCS-1021, ADCS-2021

CMOS Image Sensors

Data Sheet

Key Specifications and Features

• High quality, low cost CMOS image

sensors

• Industry-standard 32-pin CLCC

package

Description

The ADCS-1021 and ADCS-2021

CMOS Image Sensors capture

high quality, low noise images

while consuming very low power.

These parts integrate a highly

sensitive active pixel photodiode

array with timing control and

onboard A/D conversion. Avail-

able in either VGA (640x480) or

CIF (352x288) resolution image

arrays, the devices are ideally

suited for a wide variety of

applications.

The ADCS-2021 and ADCS-1021,

when coupled with compatible

image processors from either

Agilent or selected Agilent

partners, provide a complete

imaging system to enable rapid

end-product development.

Designed for low-cost consumer

electronic applications, the

ADCS-2021 and ADCS-1021

sensors deliver unparalleled

performance for mainstream

imaging applications.

ADCS-2021 (VGA) and

ADCS-1021 (CIF) are CMOS active

pixel image sensors with inte-

grated A/D conversion and full

timing control. They provide

random access of sensor pixels,

which allows windowing and

panning capabilities. The sensor

is designed for video conferencing

applications and still image

capabilities. The ADCS family

achieves excellent image quality

with very low dark current, high

sensitivity, and superior anti-

blooming characteristics. The

devices operate from a single DC

bias voltage, are easy to configure

and control, and feature low

power consumption.

Programmable Features

• Programmable window size ranging

from the full array down to a 4 x 4

pixel window

• Programmable panning capability

which allows a specified window

(minimum 4x4 pixels) to be located

anywhere on the sensor array

• Integrated programmable gain

amplifiers with independent gain

control for each color (R, G, B)

• Internal register set programmable

via either the UART or Synchronous

serial interface

• Integrated timing controller with

rolling electronic shutter, row/

column addressing, and operating

mode selection with programmable

exposure control, frame rate, and

data rate

• Programmable horizontal, vertical,

and shutter synchronization signals

• Programmable horizontal and

vertical blanking intervals

• VGA resolution (640H x 480V)–

ADCS-2021

• CIF resolution (352H x 288V)–

ADCS-1021

• High frame rates for digital video

VGA: 15 frames/second

CIF: 30 frames/second

• High sensitivity, low noise design

ideal for capturing high-quality

images in a variety of lighting

conditions

• Integrated analog-to-digital

converters:

VGA (ADCS-2021): 10 bit, programmable

CIF (ADCS-1021): 8 bit, fixed

• Parallel and serial output

• Automated, dark response

compensation

• Automatic subtraction of column

fixed pattern noise

• Still image capability

• Synchronous serial or UART

interface

• Integrated voltage references

Applications

• Digital still camera

• PC camera

• Handheld computers

• Cellular phones

• Notebook computers

• Toys

ADCS-1021 Related Products

	ADCS-1021	ADCS-2021
Description	CMOS Image Sensors	CMOS Image Sensors
Is it Rohs certified?	incompatible	incompatible
Maker	HP（Keysight）	HP（Keysight）
Reach Compliance Code	unknow	unknow
horizontal pixels	352	640
JESD-609 code	e0	e0
Installation features	SURFACE MOUNT	SURFACE MOUNT
Maximum operating temperature	65 °C	65 °C
Minimum operating temperature	-5 °C	-5 °C
Pixel size	7.4X7.4 µm	7.4X7.4 µm
power supply	3.3 V	3.3 V
surface mount	YES	YES
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
vertical pixels	288	480
