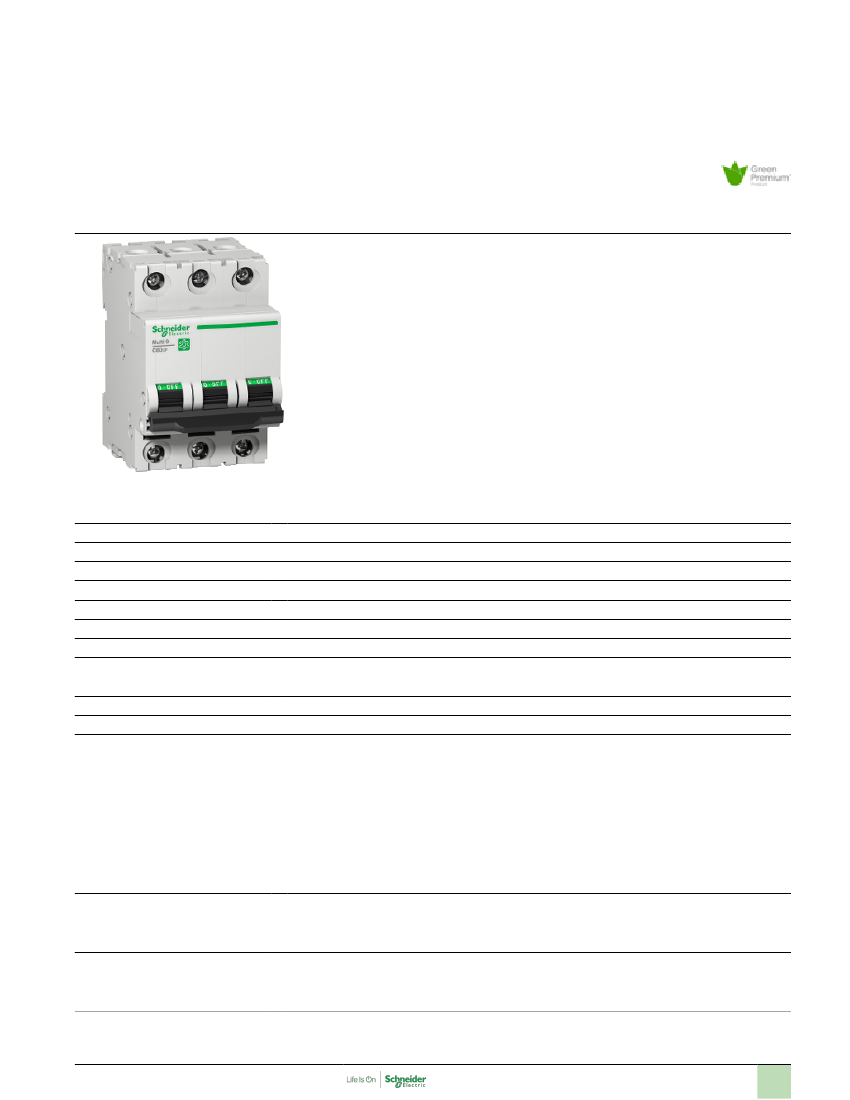

Product datasheet
Characteristics
M9F23308
Multi 9 - C60SP - MCB - 3P - 8 A - D Curve -
480Y/277 V - 10 kA - UL 1077
Main
Range
Product name
Product or component type
Device short name
Device application
Poles description
Number of protected poles
[In] rated current
Network type
Trip unit technology
Curve code
Breaking capacity
Multi 9
Multi 9 C60
Miniature circuit-breaker
C60SP
Distribution
3P
3
8 A at 25 °C conforming to EN/IEC 60947-2
AC
Thermal-magnetic
D
14 kA AIR at 240 V AC conforming to UL 1077
14 kA AIR at 240 V AC conforming to CSA C22.2 No 235
10 kA AIR at 480Y/277 V AC conforming to UL 1077
10 kA AIR at 480Y/277 V AC conforming to CSA C22.2 No 235
6 kA Icu at 440 V AC conforming to EN/IEC 60947-2
10 kA Icu at 415 V AC conforming to EN/IEC 60947-2
20 kA Icu at 240 V AC conforming to EN/IEC 60947-2
6 kA Icu at 440 V AC conforming to GB 14048.2
10 kA Icu at 415 V AC conforming to GB 14048.2
20 kA Icu at 240 V AC conforming to GB 14048.2
Yes conforming to EN/IEC 60947-2
EN/IEC 60947-2
GB 14048.2
UL 1077
CSA C22.2 No 235
IEC
CCC
UR
CSA
Suitability for isolation
Standards
Product certifications
Aug 17, 2019
1
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
Complementary
[Ue] rated operational voltage
240 V AC 50/60 Hz
415 V AC 50/60 Hz
440 V AC 50/60 Hz
12 x In +/- 20 % AC
4.5 kA 75 % conforming to EN/IEC 60947-2 - 440 V AC
7.5 kA 75 % conforming to EN/IEC 60947-2 - 415 V AC
15 kA 75 % conforming to EN/IEC 60947-2 - 240 V AC
4.5 kA 75 % conforming to GB 14048.2 - 440 V AC
7.5 kA 75 % conforming to GB 14048.2 - 415 V AC
15 kA 75 % conforming to GB 14048.2 - 240 V AC
AC conforming to EN/IEC 60947-2
6 kV conforming to EN/IEC 60947-2
Yes
Toggle
ON/OFF indication
Clip-on
DIN rail
6
81 mm
54 mm
72 mm
Grey
20000 cycles
10000 cycles
Padlockable
Tunnel type terminal (top or bottom)1…25 mm² (AWG 18...AWG 8) - rigid
Tunnel type terminal (top or bottom)1…16 mm² (AWG 18...AWG 8) - flexible with ferrule
Tunnel type terminal (top or bottom)1…16 mm² (AWG 18...AWG 8) - flexible
14 mm for top or bottom connection
2.5 N.m top or bottom
Without
Magnetic tripping limit
[Ics] rated service breaking capacity
[Ui] rated insulation voltage
[Uimp] rated impulse withstand voltage
Contact position indicator
Control type
Local signalling
Mounting mode
Mounting support
9 mm pitches
Height
Width
Depth
Colour
Mechanical durability
Electrical durability
Provision for padlocking
Connections - terminals
Wire stripping length
Tightening torque
Earth-leakage protection
Environment
IP degree of protection
Pollution degree
Tropicalisation
Relative humidity
Operating altitude
Ambient air temperature for operation
Ambient air temperature for storage
IP20 conforming to IEC 60529
IP40 (modular enclosure) conforming to IEC 60529
3 conforming to EN/IEC 60947-2
2 conforming to IEC 60068-1
95 % at 55 °C
0...2000 m
-30…70 °C
-40…80 °C
Offer Sustainability
Sustainable offer status
REACh Regulation
EU RoHS Directive
Mercury free
RoHS exemption information
China RoHS Regulation
Circularity Profile
WEEE
Green Premium product
REACh Declaration
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Yes
Yes
Download RoHS China Declaration
Product out of China RoHS scope. Substance declaration for your information
No need of specific recycling operations
The product must be disposed on European Union markets following specific waste collection and
never end up in rubbish bins
2
Analog electronics
