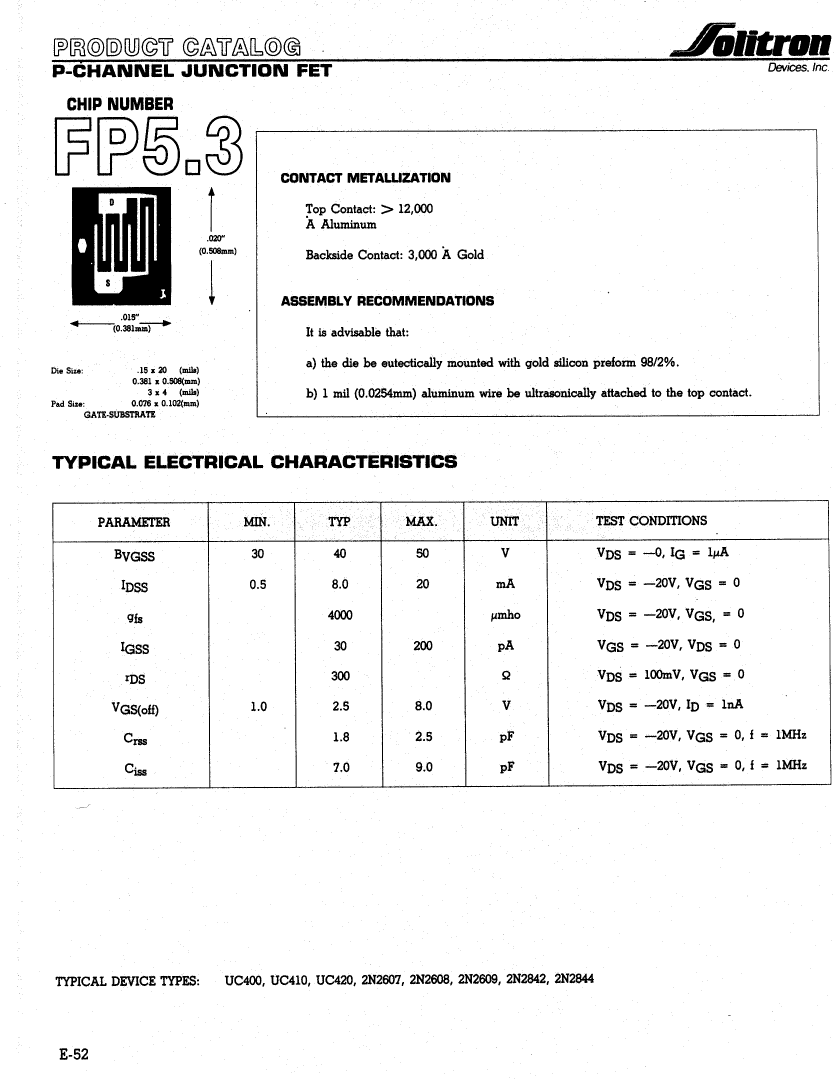

Small Signal Field-Effect Transistor, 1-Element, P-Channel, Silicon, Junction FET, TO-5,

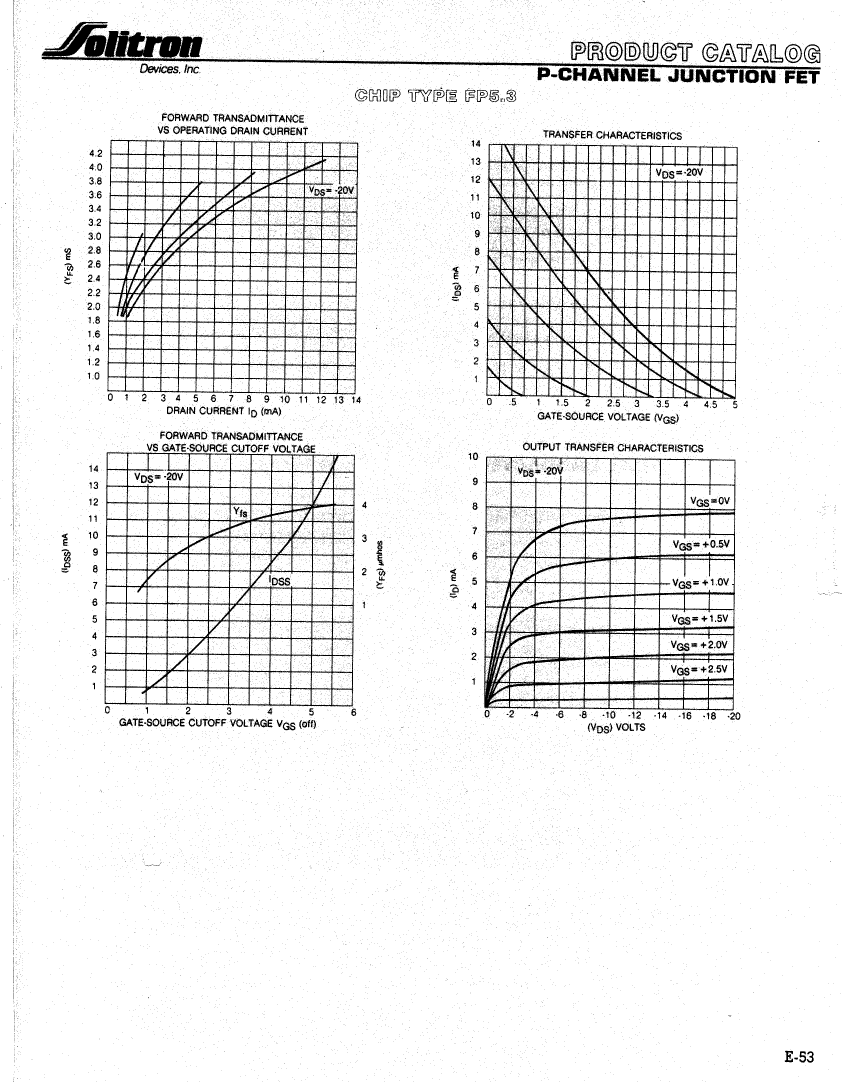

| Parameter Name | Attribute value |
| Is it lead-free? | Contains lead |
| Is it Rohs certified? | incompatible |
| Reach Compliance Code | unknow |
| Configuration | SINGLE |
| Maximum drain-source on-resistance | 1000 Ω |
| FET technology | JUNCTION |
| JEDEC-95 code | TO-5 |
| JESD-30 code | O-MBCY-W3 |
| Number of components | 1 |
| Number of terminals | 3 |
| Operating mode | DEPLETION MODE |
| Maximum operating temperature | 200 °C |
| Package body material | METAL |
| Package shape | ROUND |
| Package form | CYLINDRICAL |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Polarity/channel type | P-CHANNEL |
| Maximum power dissipation(Abs) | 0.5 W |
| Certification status | Not Qualified |
| surface mount | NO |
| Terminal form | WIRE |
| Terminal location | BOTTOM |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Transistor component materials | SILICON |
| Base Number Matches | 1 |
| 2N2497 | 2N2498 | 2N2499 | 2N2500 | |
|---|---|---|---|---|
| Description | Small Signal Field-Effect Transistor, 1-Element, P-Channel, Silicon, Junction FET, TO-5, | Small Signal Field-Effect Transistor, 1-Element, P-Channel, Silicon, Junction FET, TO-5, | Small Signal Field-Effect Transistor, 1-Element, P-Channel, Silicon, Junction FET, TO-5, | Small Signal Field-Effect Transistor, 1-Element, P-Channel, Silicon, Junction FET, TO-5, |
| Is it lead-free? | Contains lead | Contains lead | Contains lead | Contains lead |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible |
| Reach Compliance Code | unknow | unknow | unknow | unknow |
| Configuration | SINGLE | SINGLE | SINGLE | SINGLE |
| FET technology | JUNCTION | JUNCTION | JUNCTION | JUNCTION |
| JEDEC-95 code | TO-5 | TO-5 | TO-5 | TO-5 |
| JESD-30 code | O-MBCY-W3 | O-MBCY-W3 | O-MBCY-W3 | O-MBCY-W3 |
| Number of components | 1 | 1 | 1 | 1 |
| Number of terminals | 3 | 3 | 3 | 3 |
| Operating mode | DEPLETION MODE | DEPLETION MODE | DEPLETION MODE | DEPLETION MODE |
| Maximum operating temperature | 200 °C | 200 °C | 200 °C | 200 °C |
| Package body material | METAL | METAL | METAL | METAL |
| Package shape | ROUND | ROUND | ROUND | ROUND |
| Package form | CYLINDRICAL | CYLINDRICAL | CYLINDRICAL | CYLINDRICAL |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Polarity/channel type | P-CHANNEL | P-CHANNEL | P-CHANNEL | P-CHANNEL |
| Maximum power dissipation(Abs) | 0.5 W | 0.5 W | 0.5 W | 0.5 W |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| surface mount | NO | NO | NO | NO |
| Terminal form | WIRE | WIRE | WIRE | WIRE |
| Terminal location | BOTTOM | BOTTOM | BOTTOM | BOTTOM |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Transistor component materials | SILICON | SILICON | SILICON | SILICON |
| Base Number Matches | 1 | 1 | 1 | 1 |
| Maximum drain-source on-resistance | 1000 Ω | 800 Ω | 600 Ω | - |
