Part Number

Search

53997-0807

Description
Board Connector, 80 Contact(s), 2 Row(s), Male, Straight, 0.039 inch Pitch, Surface Mount Terminal, M2.5, Brown Insulator, Receptacle
CategoryThe connector    The connector
File Size499KB,8 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric Compare View All

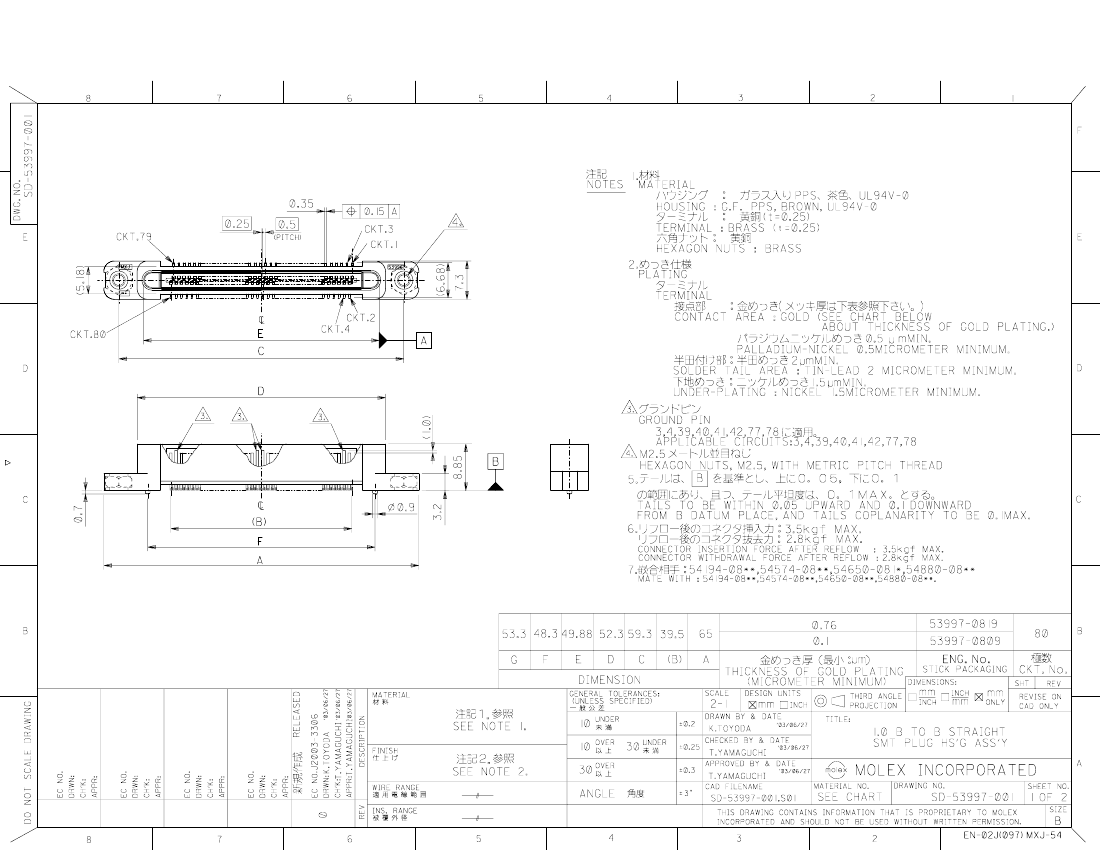

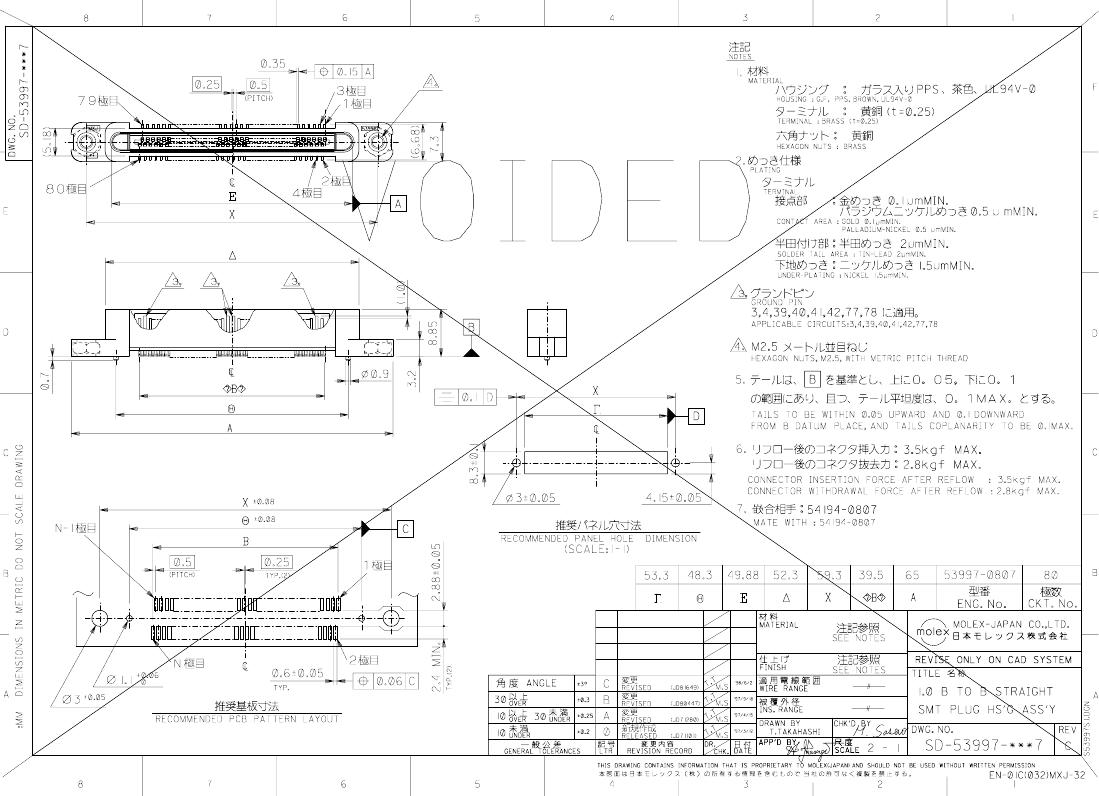

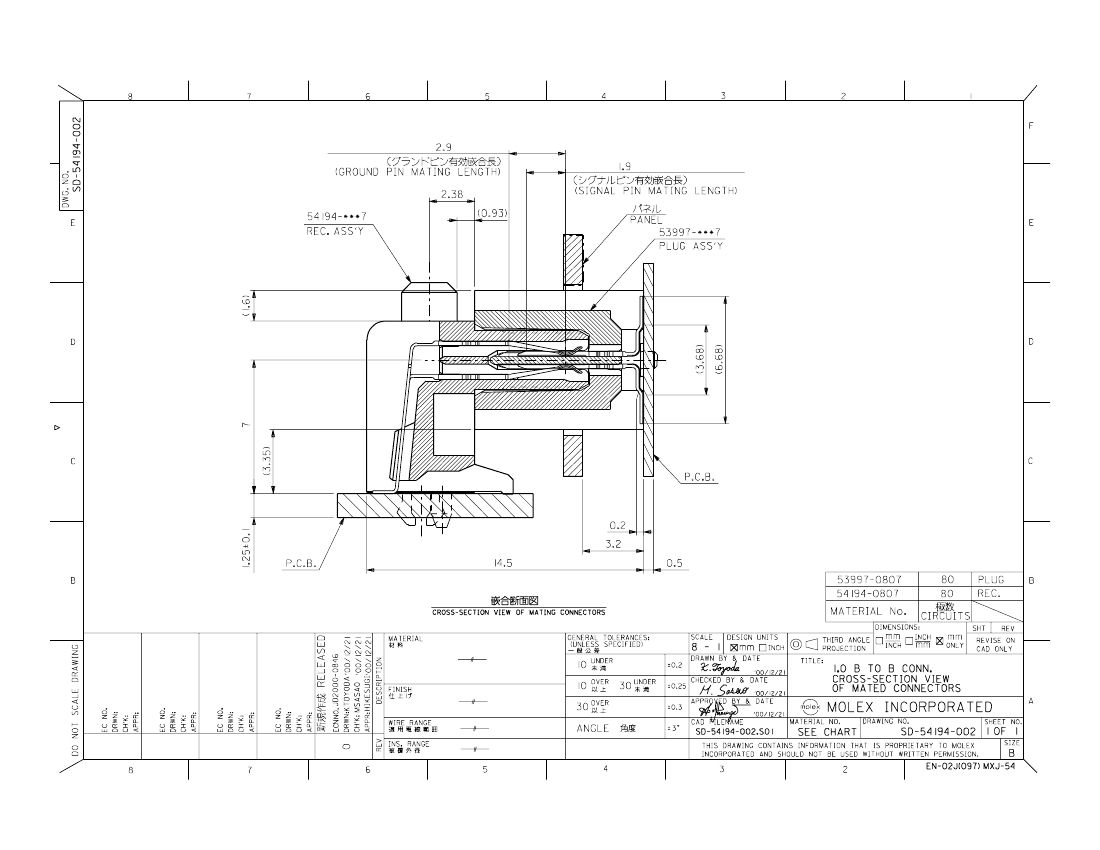

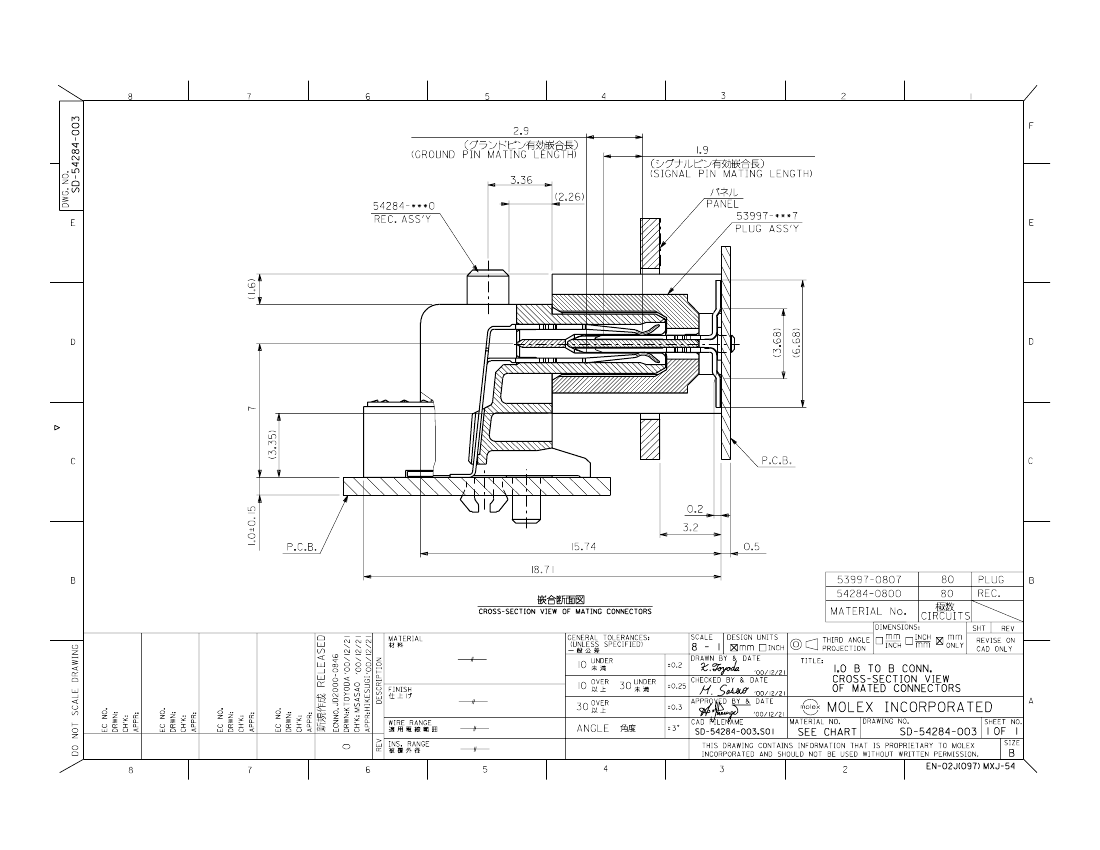

53997-0807 Overview

Board Connector, 80 Contact(s), 2 Row(s), Male, Straight, 0.039 inch Pitch, Surface Mount Terminal, M2.5, Brown Insulator, Receptacle

53997-0807 Parametric

Parameter NameAttribute value
MakerMolex
Reach Compliance Codeunknown

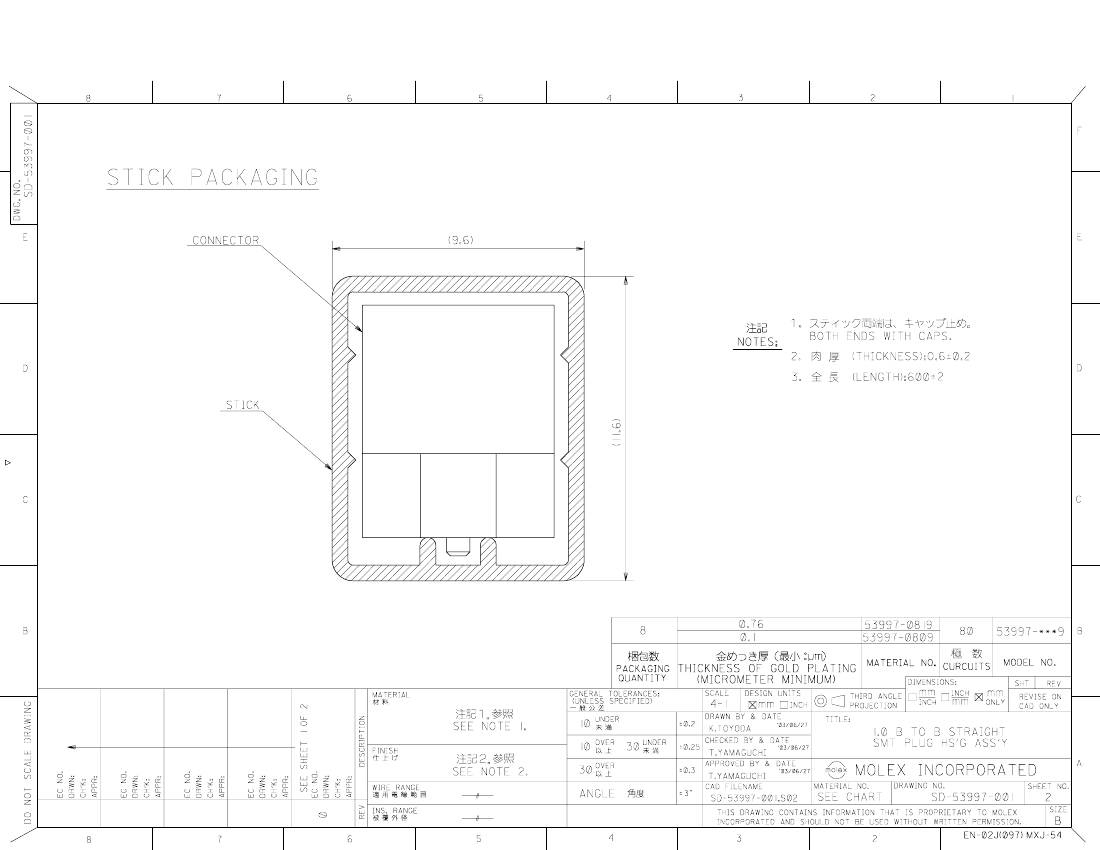

Other featuresSTICK PACKAGING
Board mount optionsHOLE .112-.124
body width0.287 inch
subject depth0.348 inch
body length2.559 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU ON PD-NI
Contact completed and terminatedTIN/LEAD OVER NICKEL
Contact point genderMALE
Contact materialBRASS
contact modeSTAGGERED
Insulator colorBROWN
insulator materialGLASS FILLED POLYPHENYLENE SULPHIDE
Manufacturer's serial number53997
Plug contact pitch0.039 inch
Installation option 1M2.5
Installation option 2SCREWLOCKS
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
PCB contact patternRECTANGULAR
PCB contact row spacing5.2578 mm
Plating thickness4u inch
polarization keyPOLARIZED HOUSING
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch0.9906 mm
Termination typeSURFACE MOUNT
Total number of contacts80

53997-0807 Related Products

53997-0807 53997-0809
Description Board Connector, 80 Contact(s), 2 Row(s), Male, Straight, 0.039 inch Pitch, Surface Mount Terminal, M2.5, Brown Insulator, Receptacle Board Connector, 80 Contact(s), 2 Row(s), Male, Straight, 0.039 inch Pitch, Surface Mount Terminal, M2.5, Brown Insulator, Receptacle
Maker Molex Molex
Reach Compliance Code unknown unknown
Other features STICK PACKAGING STICK PACKAGING
Board mount options HOLE .112-.124 HOLE .112-.124
body width 0.287 inch 0.287 inch
subject depth 0.348 inch 0.348 inch
body length 2.559 inch 2.559 inch
Body/casing type RECEPTACLE RECEPTACLE
Connector type BOARD CONNECTOR BOARD CONNECTOR
Contact to complete cooperation AU ON PD-NI AU-PD-NI ON NI
Contact completed and terminated TIN/LEAD OVER NICKEL TIN/LEAD OVER NICKEL
Contact point gender MALE MALE
Contact material BRASS BRASS
contact mode STAGGERED STAGGERED
Insulator color BROWN BROWN
insulator material GLASS FILLED POLYPHENYLENE SULPHIDE GLASS FILLED POLYPHENYLENE SULPHIDE
Manufacturer's serial number 53997 53997
Plug contact pitch 0.039 inch 0.039 inch
Installation option 1 M2.5 M2.5
Installation option 2 SCREWLOCKS SCREWLOCKS
Installation method STRAIGHT STRAIGHT
Installation type BOARD BOARD
Number of connectors ONE ONE
PCB row number 2 2
Number of rows loaded 2 2
PCB contact pattern RECTANGULAR RECTANGULAR
PCB contact row spacing 5.2578 mm 5.2578 mm
Plating thickness 4u inch 4u inch
polarization key POLARIZED HOUSING POLARIZED HOUSING
Guideline UL UL
reliability COMMERCIAL COMMERCIAL
Terminal pitch 0.9906 mm 0.9906 mm
Termination type SURFACE MOUNT SURFACE MOUNT
Total number of contacts 80 80
